Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

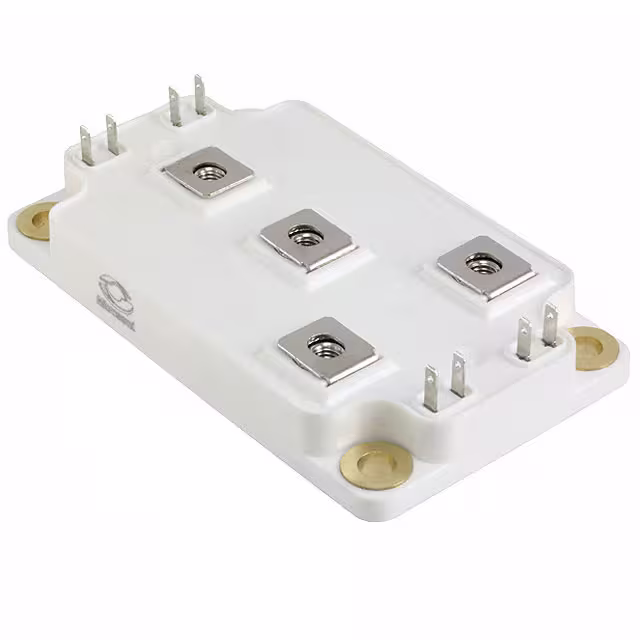

APTGLQ200H120G IGBT MODULE 1200V 350A 1000W SP6 Microchip Technology	3,470	382.17	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	350 A	1000 W	2.4V @ 15V, 200A	100 µA	12.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
FP25R12W2T4PBPSA1 IGBT MOD 1200V 50A 20MW Infineon Technologies	2,346	57.11	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount

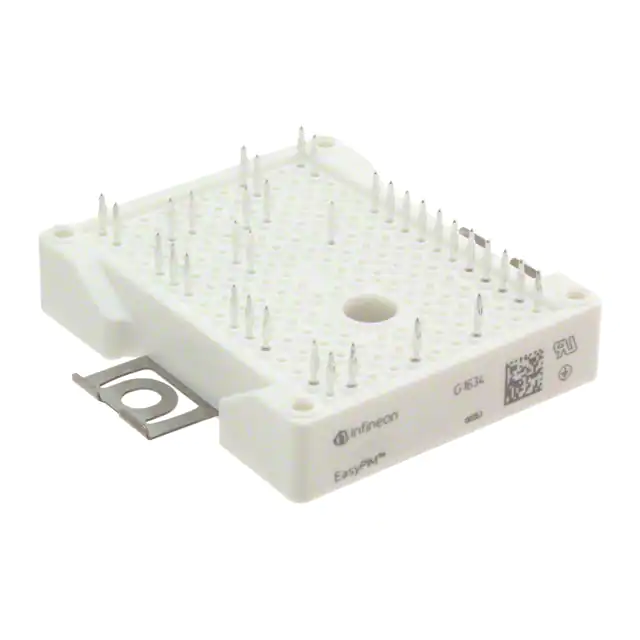

FP35R12W2T4B11BOMA1 IGBT MOD 1200V 54A 215W Infineon Technologies	2,332	60.49	- + RFQ	Datasheet	Bulk,Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	54 A	215 W	2.25V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FP50R06W2E3BOMA1 IGBT MODULE 600V 65A 175W Infineon Technologies	3,319	61.03	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	600 V	65 A	175 W	1.9V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FP35R12W2T4PBPSA1 IGBT MOD 1200V 70A 20MW Infineon Technologies	3,305	62.54	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	70 A	20 mW	2.25V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
FP10R12W1T4B11BOMA1 IGBT MOD 1200V 20A 105W Infineon Technologies	3,557	43.19	- + RFQ	Datasheet	Tray	EconoPIM™ 3	Active	-	Three Phase Inverter	1200 V	20 A	105 W	2.25V @ 15V, 10A	1 mA	600 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS75R12W2T4BOMA1 IGBT MOD 1200V 107A 375W Infineon Technologies	2,760	71.97	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Full Bridge	1200 V	107 A	375 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FD150R12RT4HOSA1 IGBT MOD 1200V 150A 790W Infineon Technologies	3,828	72.60	- + RFQ	Datasheet	Bulk,Tray	C	Active	Trench Field Stop	Single Chopper	1200 V	150 A	790 W	2.15V @ 15V, 150A	1 mA	9.3 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP15R12W1T4B11BOMA1 IGBT MOD 1200V 28A 130W Infineon Technologies	2,470	43.87	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	28 A	130 W	2.25V @ 15V, 15A	1 mA	890 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS75R12W2T4B11BOMA1 IGBT MOD 1200V 107A 375W Infineon Technologies	2,866	73.28	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Full Bridge	1200 V	107 A	375 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
F475R06W1E3BOMA1 IGBT MOD 600V 100A 275W Infineon Technologies	2,919	44.13	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	600 V	100 A	275 W	1.9V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
DDB6U75N16W1RBOMA1 IGBT MOD 1200V 69A 335W Infineon Technologies	3,996	44.26	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	69 A	335 W	2.15V @ 15V, 50A	1 mA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
A2C35S12M3 IGBT MOD 1200V 35A 250W ACEPACK2 STMicroelectronics	3,222	74.11	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	35 A	250 W	2.45V @ 15V, 35A	100 µA	2.154 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MII100-12A3 IGBT MODULE 1200V 135A 560W Y4M5 IXYS	2,126	75.96	- + RFQ	Datasheet	Bulk	-	Active	NPT	Half Bridge	1200 V	135 A	560 W	2.7V @ 15V, 75A	5 mA	5.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MUBW15-12A7 IGBT MODULE 1200V 35A 180W E2 IXYS	2,960	82.77	- + RFQ	Datasheet	Box	-	Active	NPT	Three Phase Inverter with Brake	1200 V	35 A	180 W	2.6V @ 15V, 15A	900 µA	1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
A2P75S12M3-F IGBT MOD 1200V 75A ACEPACK2 STMicroelectronics	2,424	88.30	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	454.5 W	2.3V @ 15V, 75A	100 µA	4.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FP25R12W2T4BOMA1 IGBT MOD 1200V 39A 175W Infineon Technologies	3,241	57.97	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	39 A	175 W	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
F3L75R12W1H3B27BOMA1 IGBT MOD 1200V 45A 275W Infineon Technologies	3,484	58.41	- + RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	45 A	275 W	1.7V @ 15V, 30A	1 mA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP35R12W2T4BOMA1 IGBT MOD 1200V 54A 215W Infineon Technologies	2,930	58.86	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	54 A	215 W	2.25V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
F3L75R07W2E3B11BOMA1 IGBT MODULE 650V 95A 250W Infineon Technologies	2,930	1.00	- + RFQ	Datasheet	Bulk,Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	250 W	1.9V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
