| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT75DH60T1GIGBT MODULE 600V 100A 250W SP1 |
3,705 | 0.00 |
RFQ |
Bulk | - | Obsolete | Trench Field Stop | Asymmetrical Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
|
|
APTGV50H60BT3GIGBT MODULE 600V 65A 250W SP3 |
3,970 | 0.00 |
RFQ |
Bulk | - | Active | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
APT15GF120JCU2IGBT MOD 1200V 30A 156W SOT227 |
2,736 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Single | 1200 V | 30 A | 156 W | 3.7V @ 15V, 15A | 250 µA | 1 nF @ 25 V | Standard | No | - | Chassis, Stud Mount | |
|
|
APT25GF120JCU2IGBT MOD 1200V 45A 227W SOT227 |
3,769 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Single | 1200 V | 45 A | 227 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | No | - | Chassis, Stud Mount | |
|
|
APTGF90DA60CT1GIGBT MODULE 600V 110A 416W SP1 |
2,638 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Single | 600 V | 110 A | 416 W | 2.5V @ 15V, 100A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|
|
APT50GF60JCU2IGBT MODULE 600V 70A 277W SOT227 |
3,880 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Single | 600 V | 70 A | 277 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis, Stud Mount | |
|
|
APTGT30TL60T3GIGBT MODULE 600V 50A 90W SP3 |
3,489 | 0.00 |
RFQ |
Bulk | - | Obsolete | Trench Field Stop | Three Level Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
|
|
APTGT75A1202GIGBT MODULE 1200V 110A 357W SP2 |
3,804 | 0.00 |
RFQ |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 50 µA | 5.34 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
APTGF50DA120CT1GIGBT MODULE 1200V 75A 312W SP1 |
2,554 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Single | 1200 V | 75 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | |
|

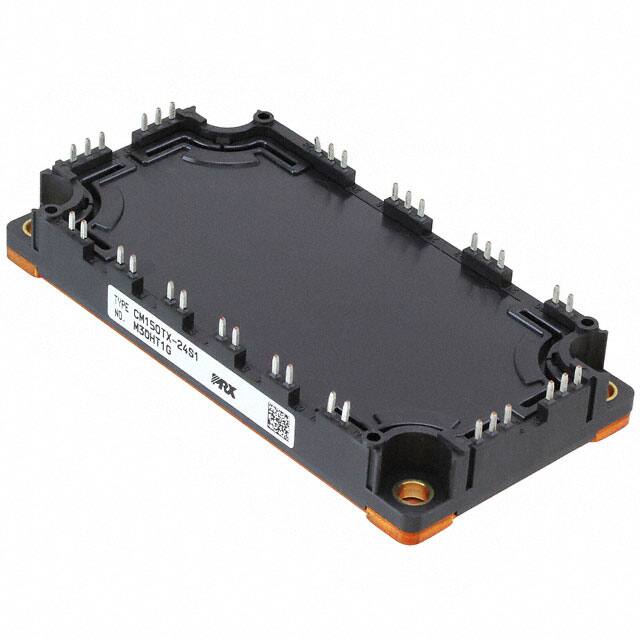

CM150TX-24S1IGBT MOD 1200V 150A 935W |
2,414 | 0.00 |
RFQ |
Datasheet |
Tray | - | Discontinued at Mosen | - | Three Level Inverter | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|

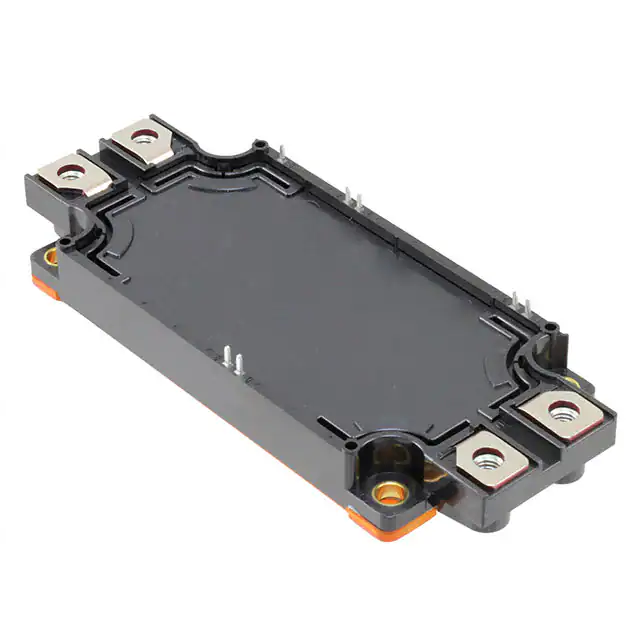

CM225DX-24S1IGBT MOD 1200V 225A 1250W |
3,438 | 0.00 |
RFQ |
Datasheet |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 225 A | 1250 W | 2.35V @ 15V, 225A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|

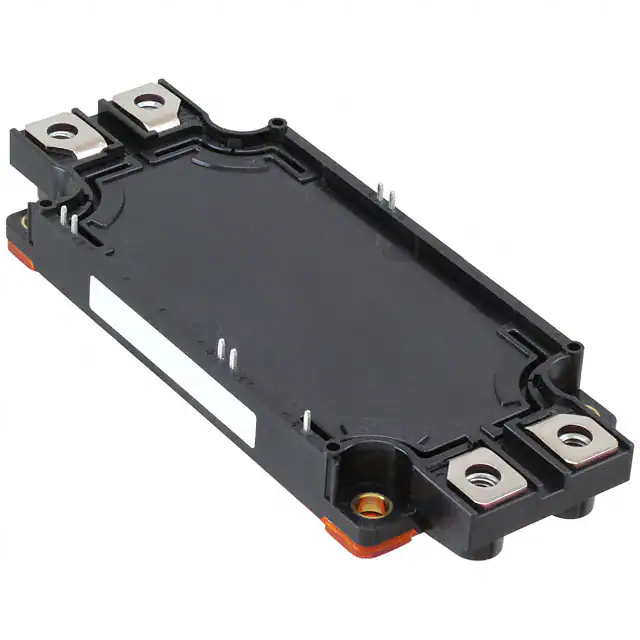

CM300DX-24S1IGBT MOD 1200V 300A 1850W |
3,946 | 0.00 |
RFQ |
Datasheet |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 300 A | 1850 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM450DX-24S1IGBT MOD 1200V 450A 2775W |
3,417 | 0.00 |
RFQ |
Datasheet |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 450 A | 2775 W | 2.25V @ 15V, 450A | 1 mA | 45 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM600DX-24S1IGBT MOD 1200V 600A 3330W |
3,245 | 0.00 |
RFQ |
Datasheet |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 600 A | 3330 W | 2.45V @ 15V, 600A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
3,613 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
|
|
VS-EMF050J60UIGBT MOD 600V 88A 338W EMIPAK2 |
3,631 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Level Inverter | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | No | 150°C (TJ) | Chassis Mount |
|
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
3,315 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|

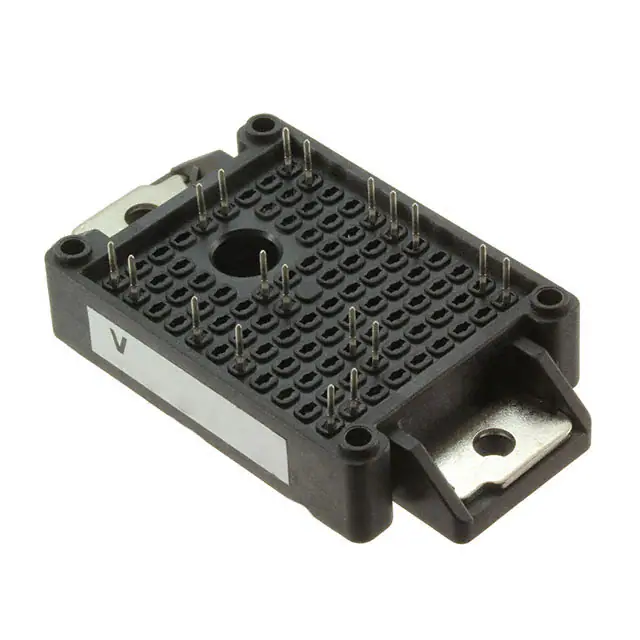

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
3,684 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|

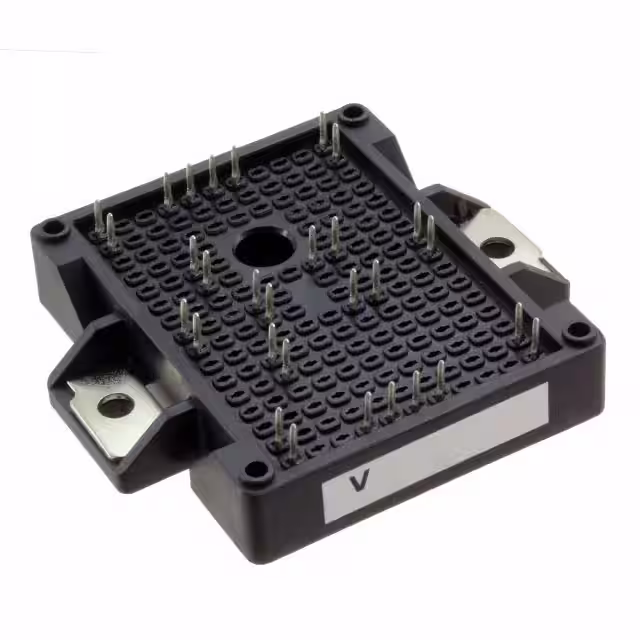

VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
2,474 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
3,319 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
