| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM50MXA-24SIGBT MOD 1200V 50A 355W |
3,415 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Three Phase Inverter with Brake | 1200 V | 50 A | 355 W | 2.25V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM600DU-12NFHIGBT MOD 600V 600A 1130W |
2,888 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.7V @ 15V, 600A | 1 mA | 166 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - |
|
|
CM600DXL-24SIGBT MOD 1200V 600A 4545W |
2,198 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 600 A | 4545 W | 2.3V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM600E3U-12NFHIGBT MOD 600V 600A 1420W |
2,323 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Single | 600 V | 600 A | 1420 W | 2.7V @ 15V, 600A | 1 mA | 166 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - |
|
|
CM75MXA-24SIGBT MOD 1200V 75A 600W |
3,023 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.25V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM75TX-24SIGBT MOD 1200V 75A 600W |
2,145 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Three Phase Inverter | 1200 V | 75 A | 600 W | 2.25V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM900DUC-24NFIGBT MOD 1200V 900A 5900W |
3,658 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 900 A | 5900 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - |
|
|
PP600T120IGBT MOD POWR-PAC 3PH 600A 1200V |
3,855 | 0.00 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | No | - | - | |
|
|
QID4515001IGBT MOD 4500V 150A 1440W |
2,299 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Active | - | Half Bridge | 4500 V | 150 A | 1440 W | 3.9V @ 15V, 150A | 2.7 mA | 18 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - |
|

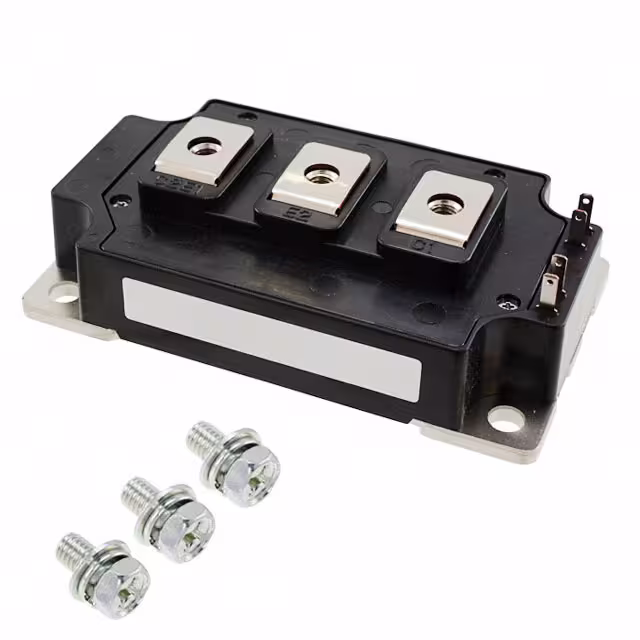

CM300DY-24SIGBT MOD 1200V 300A 2270W |
3,929 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

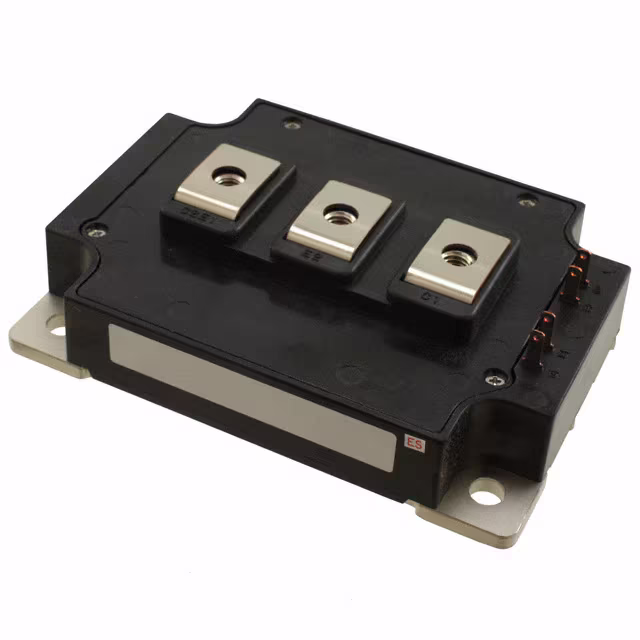

CM600DY-24SIGBT MOD 1200V 600A 4050W |
2,749 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 600 A | 4050 W | 2.25V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
VS-GA250SA60SIGBT MOD 600V 400A 961W SOT227 |
3,959 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Single | 600 V | 400 A | 961 W | 1.66V @ 15V, 200A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|

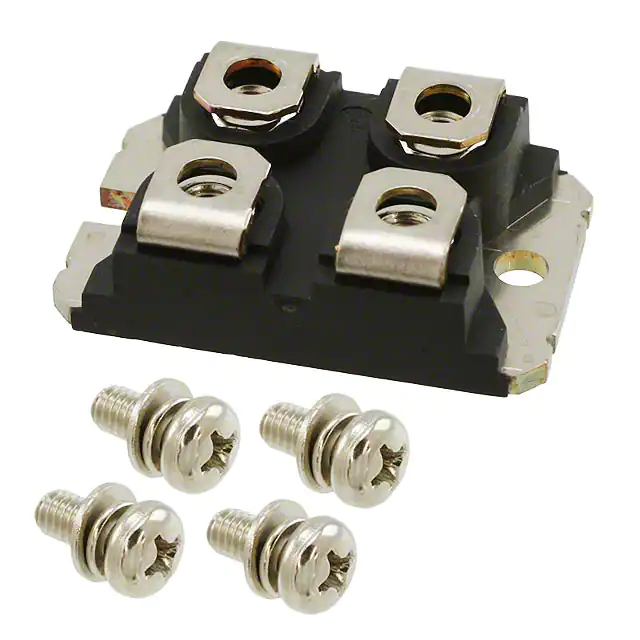

VS-GB90SA120UIGBT MOD 1200V 149A 862W SOT227 |
3,549 | 0.00 |
RFQ |
Tube | - | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.9V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
VS-GB90DA60UIGBT MOD 600V 147A 625W SOT227 |
3,866 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | NPT | Single | 600 V | 147 A | 625 W | 2.8V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

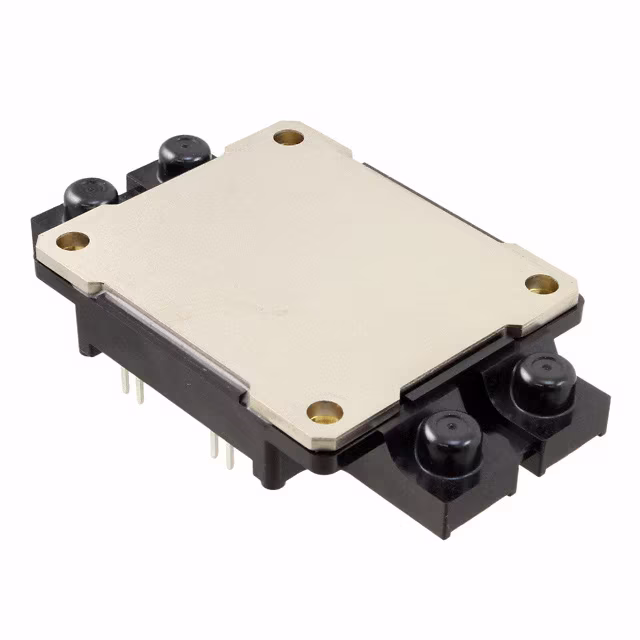

CM150EXS-24SIGBT MOD 1200V 150A 1150W |
2,683 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 150 A | 1150 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM200EXS-24SIGBT MOD 1200V 200A 1500W |
3,816 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM300EXS-24SIGBT MOD 1200V 300A 2270W |
3,033 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
3,717 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
VS-CPV362M4KPBFIGBT MODULE 600V 3PHASE IMS-2 |
3,485 | 0.00 |
RFQ |
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | |
|
|
VS-CPV362M4UPBFIGBT MODULE 600V 7.2A 23W IMS-2 |
2,275 | 0.00 |
RFQ |
Bulk | - | Obsolete | - | - | 600 V | 7.2 A | 23 W | 2.2V @ 15V, 3.9A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
