| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AH63K-M5913STEPPER MOTOR 5PHASE 85MM 1.4A |
3,508 | 857.95 |
RFQ |
Box | AHK | Active | - | Unipolar | 24VDC | 1.4 A | 500 | 0.72° | - | 892.2 / 6300 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | - | - | - | 2.756 (70.00mm) | Wire Leads | -10°C ~ 50°C | 3.92 Ohms | |
|

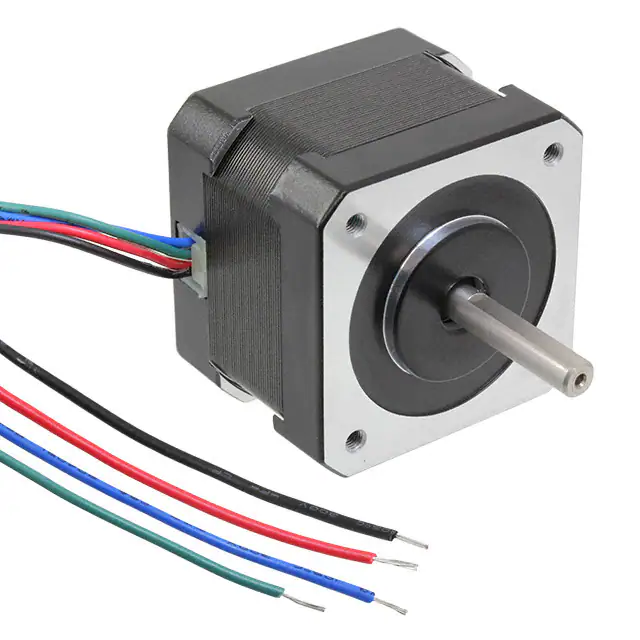

QSH4218-35-10-027STEP MOTOR HYBRID BIPOLAR 5.3V |
159 | 47.30 |
RFQ |
Datasheet |
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 5.3VDC | 1 A | 200 | 1.8° | ±5% | 38.2 / 270 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 5.3 Ohms |
|

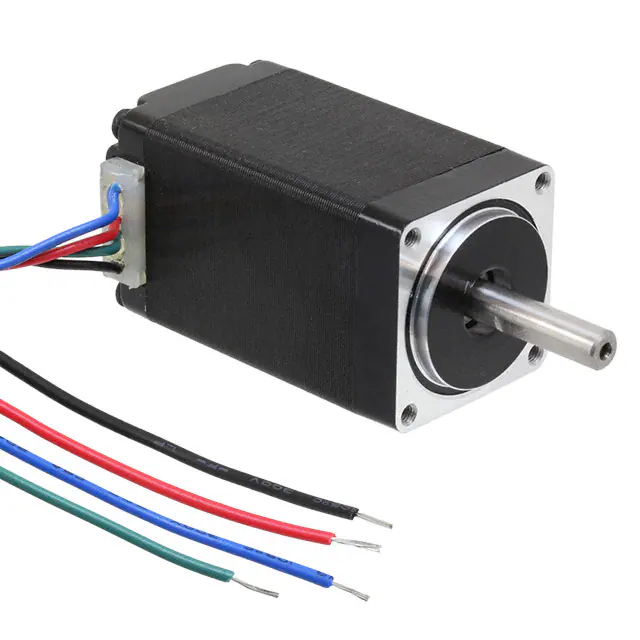

QSH2818-51-07-012STEP MOTOR HYBRID BIPOLAR 6.2V |
3,800 | 65.32 |
RFQ |
Datasheet |
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200 | 1.8° | ±5% | 17 / 120 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.905 (22.98mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms |
|

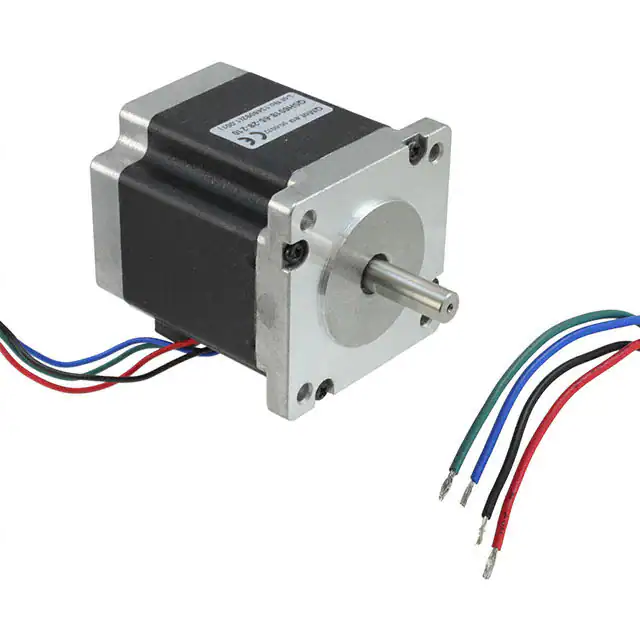

QSH6018-65-28-210STEP MOTOR HYBRID BIPOLAR 3.36V |
3,725 | 107.32 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|

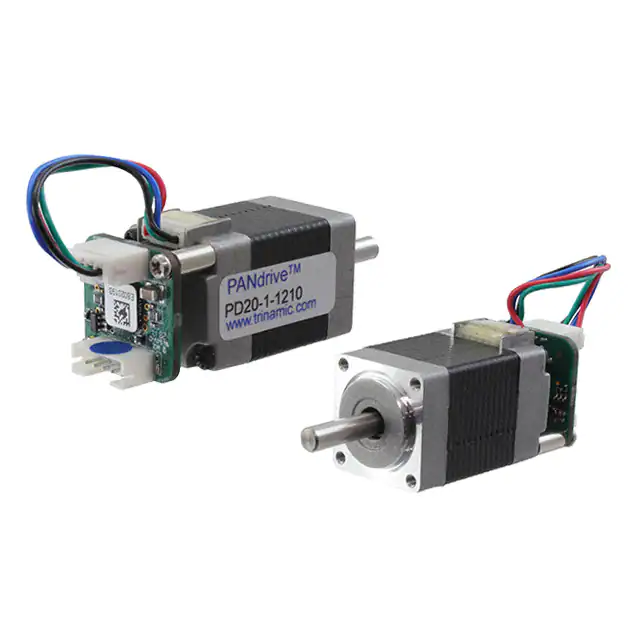

PD20-1-1210PANDRIVE NEMA08, 24V, 1.75NCM |
3,990 | 156.30 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | ±5% | 2.48 / 17.5 | Square - 0.787 x 0.787 (20.00mm x 20.00mm) | 8 | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.630 (16.00mm) | Connector | -20°C ~ 50°C | 6.5 Ohms |
|

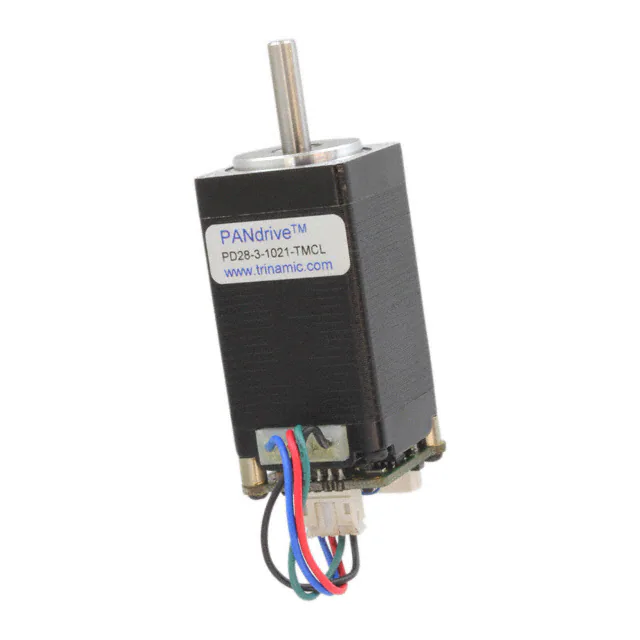

PD28-3-1021-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,552 | 199.38 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200 | 1.8° | - | 17 / 120 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | - | - |
|

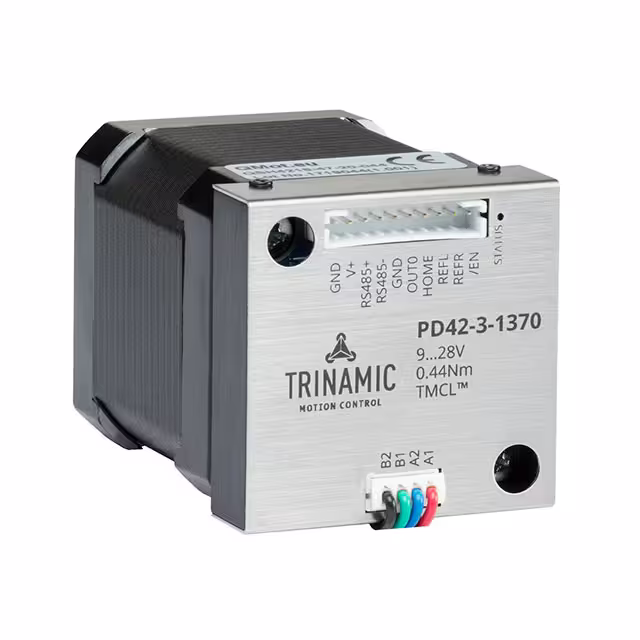

PD42-3-1370-TMCLPANDRIVE NEMA17, 24V, 0.44NM |
2,790 | 237.40 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200 | 1.8° | ±5% | 62.31 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
|

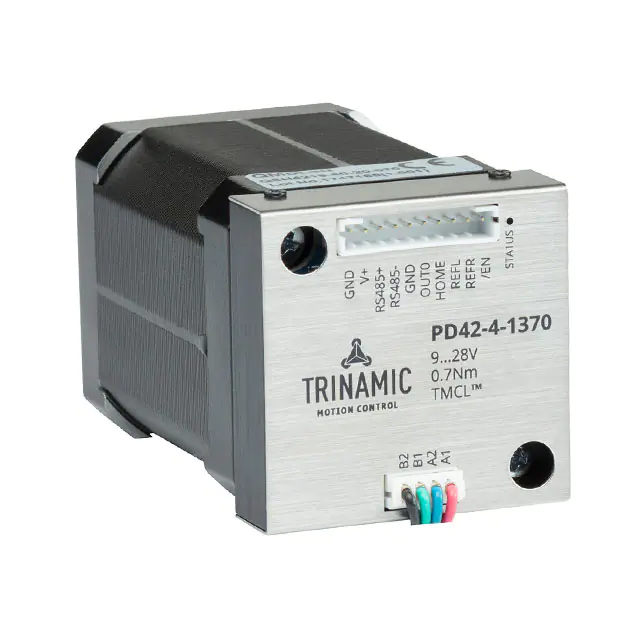

PD42-4-1370-TMCLPANDRIVE NEMA17, 24V, 0.7NM |
2,292 | 245.70 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.4VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 2.3 Ohms | |
|

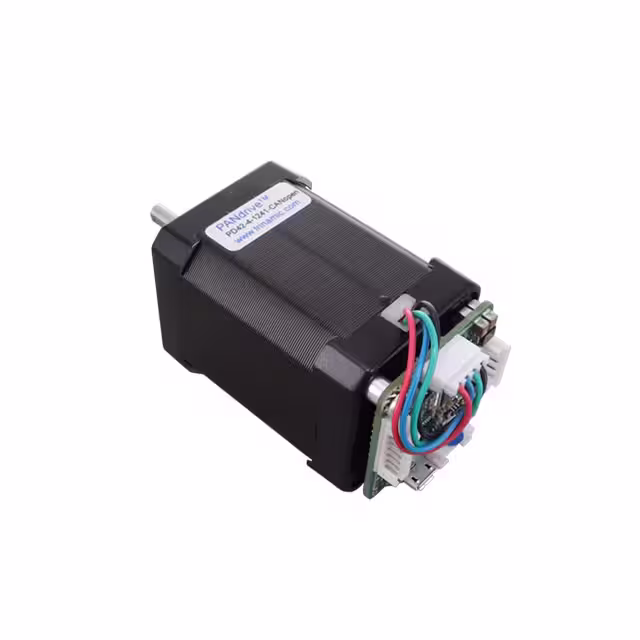

PD42-4-1241-CANOPENPANDRIVE NEMA17, 24V, 0.8NM |
3,092 | 254.25 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.3VDC | 3 A | 200 | 1.8° | ±5% | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.1 Ohms | |
|

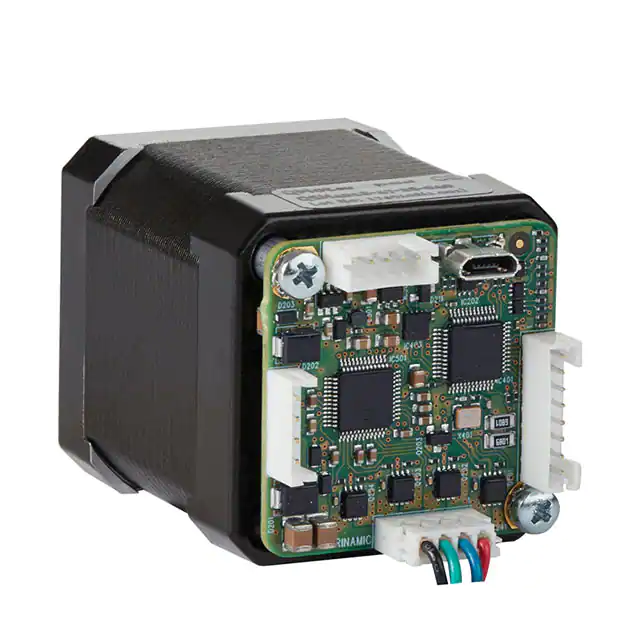

PD42-3-1241-TMCLPANDRIVE NEMA17, 24V, 0.4NM |
2,585 | 261.10 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms |
|

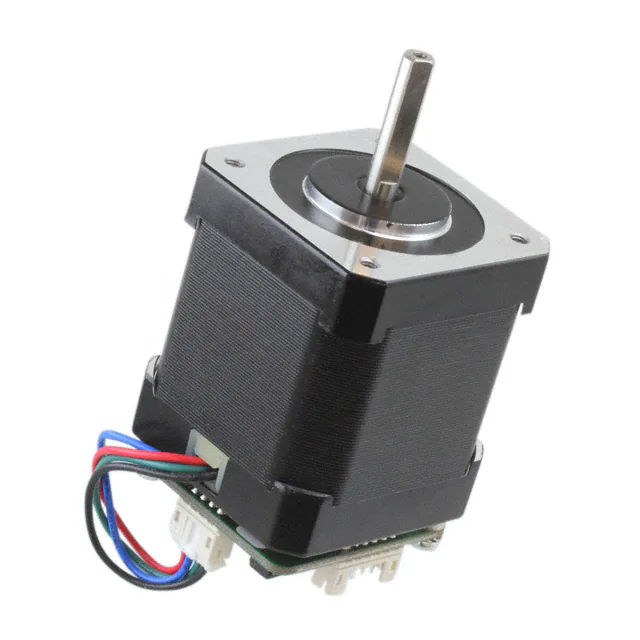

PD42-3-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,649 | 267.17 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|

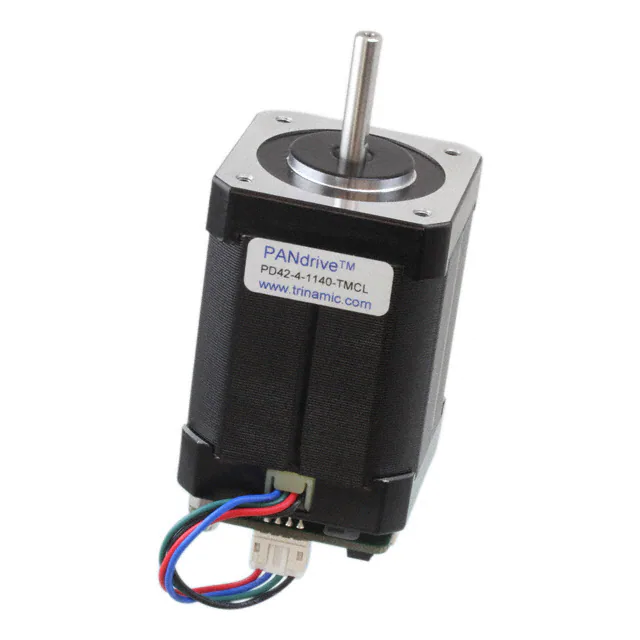

PD42-4-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,490 | 278.37 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|

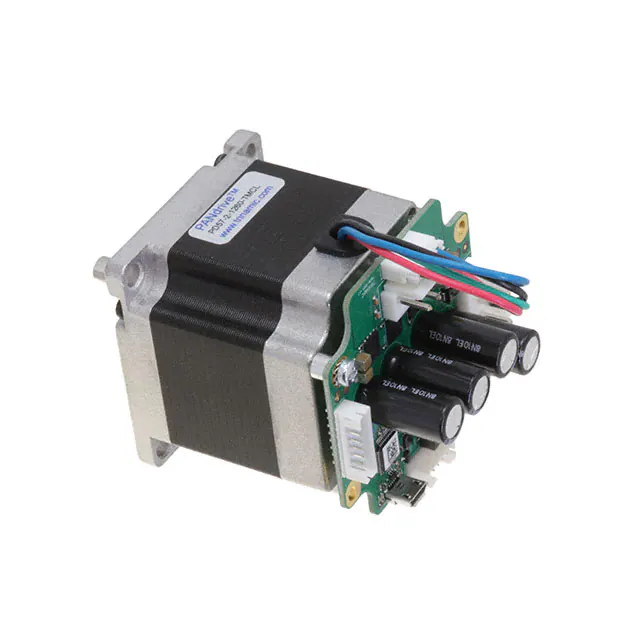

PD57-2-1260-TMCLPANDRIVE NEMA23, 48V, 1.01NM |
3,129 | 279.38 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | - | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - |
|

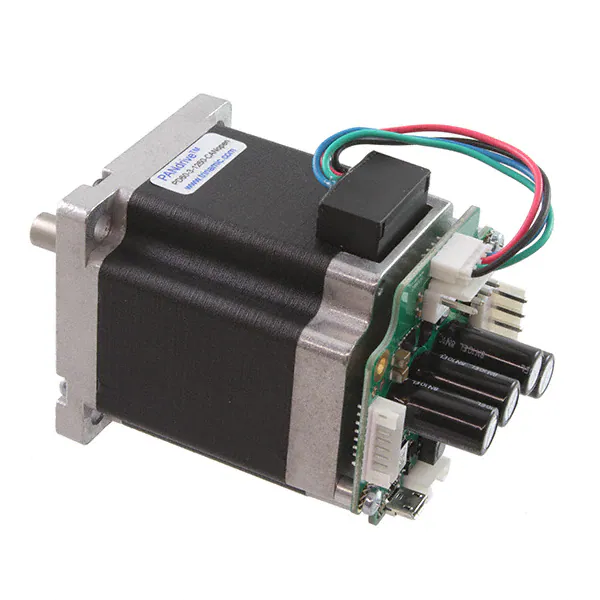

PD60-3-1260-CANOPENPANDRIVE NEMA24, 48V, 2.10NM |
3,502 | 313.10 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

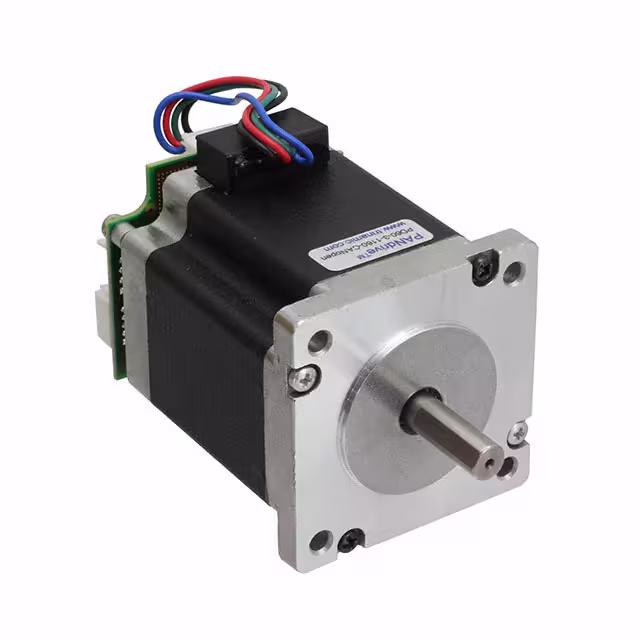

PD60-3-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
2,041 | 345.02 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
PD60-4-1260-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
3,698 | 356.80 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 6.8VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

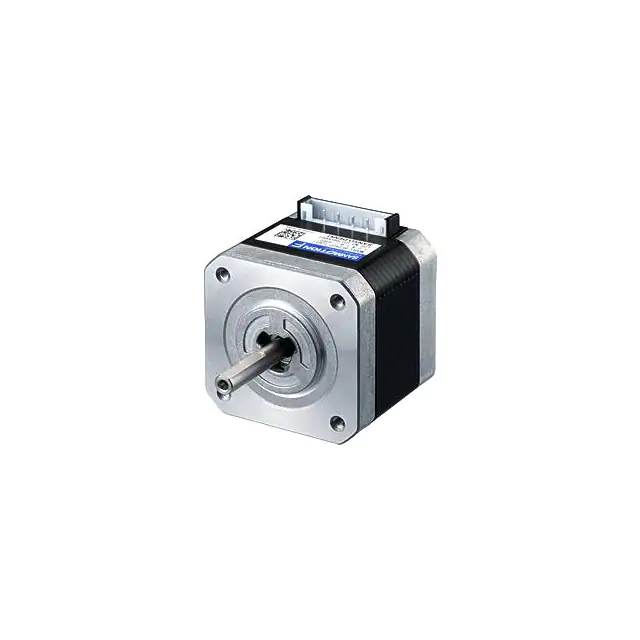

SF2422-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
2,368 | 25.83 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 60.89 / 430 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 4.6 Ohms |
|

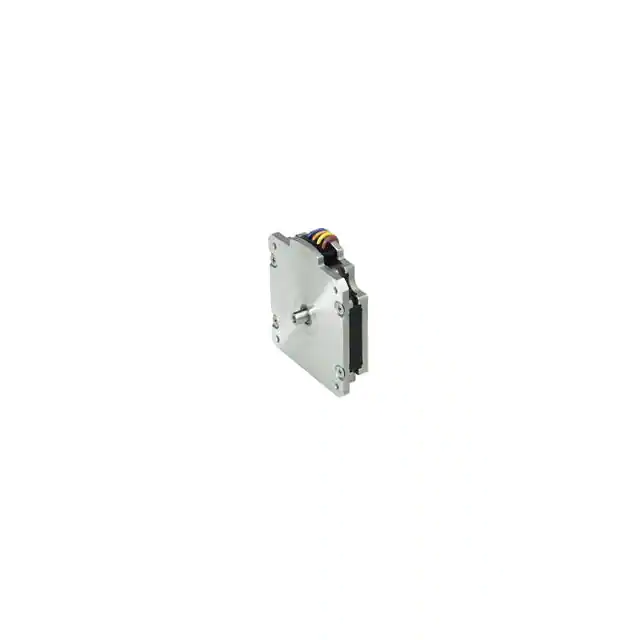

SS2502-8040PSTEP, F2, SQ.50, 1.8, PANCAKE TY |
2,746 | 49.79 |
RFQ |
Datasheet |
Box | SS | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 30.45 / 215 | Square - 1.969 x 1.969 (50.00mm x 50.00mm) | - | 0.197 (5.00mm) | 0.197 (5.00mm) | 1.614 (41.00mm) | Wire Leads | -10°C ~ 50°C | 5.9 Ohms |
|

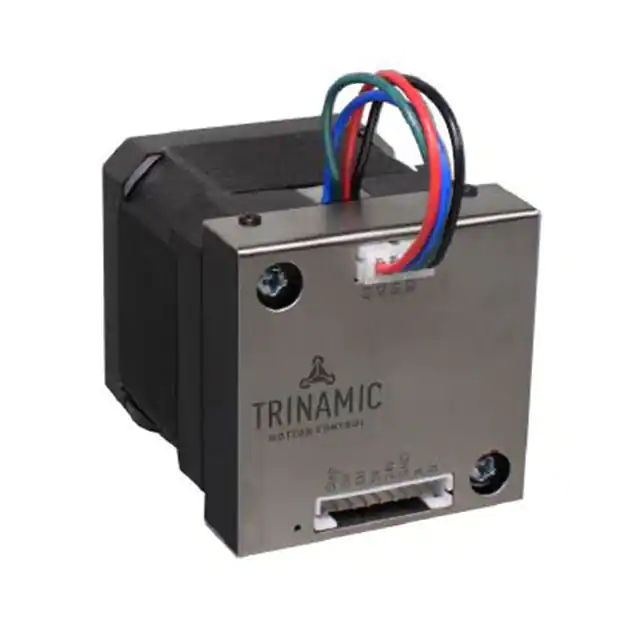

PD42-1-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
2,624 | 117.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1 Ohms | |
|
|
PD42-3-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
2,884 | 133.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
