Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E47/20/16-3C92 FERRITE CORE Ferroxcube	133	3.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 47 x 20 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
B65805N0100A033 FERRITE CORE RM 100NH M33 2PCS EPCOS - TDK Electronics	3,249	3.77	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	M33	-	100 nH	±3%	Gapped	79.6	-	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
B66347G0000X197 FERRITE CORE EPCOS - TDK Electronics	107	4.11	- + RFQ	Datasheet	Box	ER42/22/15	Active	ER	ER 42 x 22 x 15	N97	-	-	-	-	-	2300	0.58	99	170	170	16800	Uncoated	0.858 (21.80mm)
B64290L0657X065 FERRITE CORE TOROID 5.4UH T65 EPCOS - TDK Electronics	388	4.15	- + RFQ	Datasheet	Box	TX30/20/12.5	Active	Toroid	-	T65	1.264 (32.10mm)	5.4 µH	±30%	Ungapped	-	5100	1.19	77.02	64.66	-	4980	Epoxy	0.531 (13.50mm)
B66287K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	2,149	4.28	- + RFQ	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)

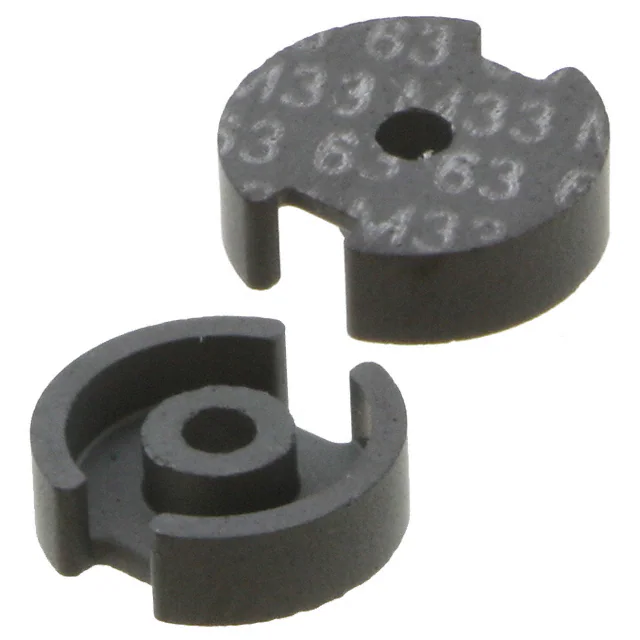

B65511A0063A033 FERRITE CORE P 63NH M33 2PCS EPCOS - TDK Electronics	2,998	4.35	- + RFQ	Datasheet	Box	P7/4	Active	P (Pot Core)	P 7 x 4	M33	0.289 (7.35mm)	63 nH	±3%	Gapped	72	750	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)

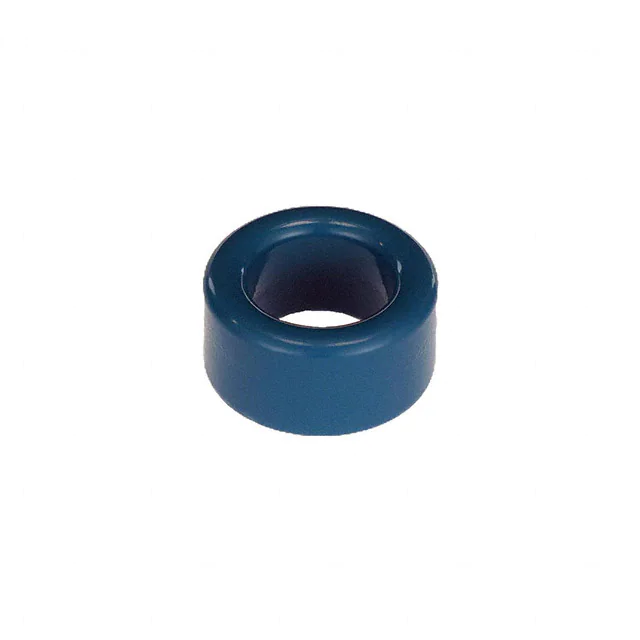

B64290L0647X065 FERRITE CORE TOROID 6.8UH T65 EPCOS - TDK Electronics	594	4.45	- + RFQ	Datasheet	Box	TX29/19/15	Active	Toroid	-	T65	1.220 (31.00mm)	6.8 µH	±30%	Ungapped	-	5200	0.96	73.78	76.98	-	5680	Epoxy	0.634 (16.10mm)
TX39/20/13-3C90 FERRITE CORES ROUND Ferroxcube	535	4.79	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	3C90	1.567 (39.80mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.535 (13.60mm)
B65651D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,543	4.91	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	250 nH	±3%	Gapped	120	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65813H3200X041 FERRITE CORE EPCOS - TDK Electronics	723	4.98	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	-	-	Gapped	-	2800	0.45	42	83	-	3490	Uncoated	0.368 (9.35mm)
PQ32/25-3C97 FERRITE CORE 2PC SET Ferroxcube	800	5.13	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 25	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)

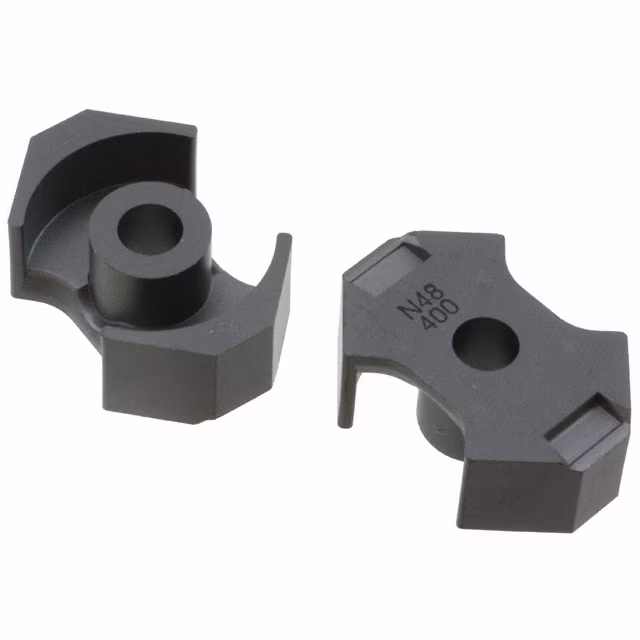

B65811D0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	833	5.15	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	400 nH	±3%	Gapped	215	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)

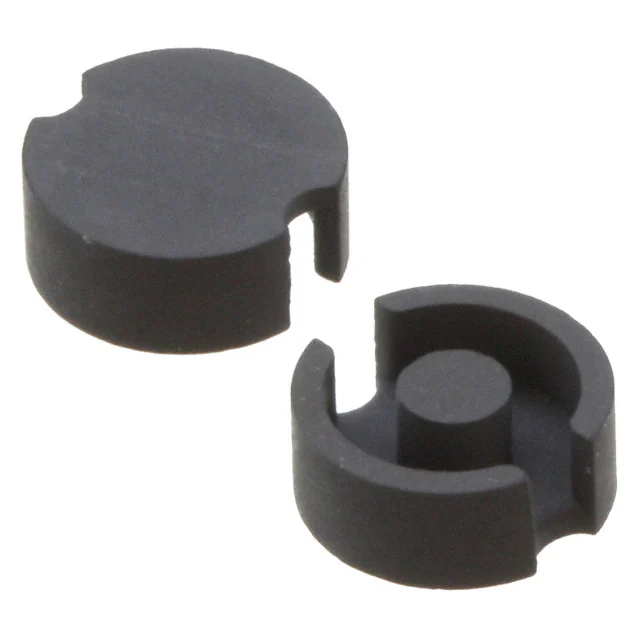

B65491C0000Y001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,721	5.64	- + RFQ	Datasheet	Box	P3.3/2.6	Active	P (Pot Core)	P 3.3 x 2.6	K1	0.132 (3.35mm)	25 nH	-30%, +40%	Ungapped	75	80	3.72	5.1	1.37	-	7	Uncoated	0.051 (1.29mm)
B65805N0040A001 FERRITE CORE RM 40NH K1 2PCS EPCOS - TDK Electronics	439	5.90	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	K1	-	40 nH	±3%	Gapped	31.8	80	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
B65651T0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,975	6.05	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	250 nH	±3%	Gapped	120	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)

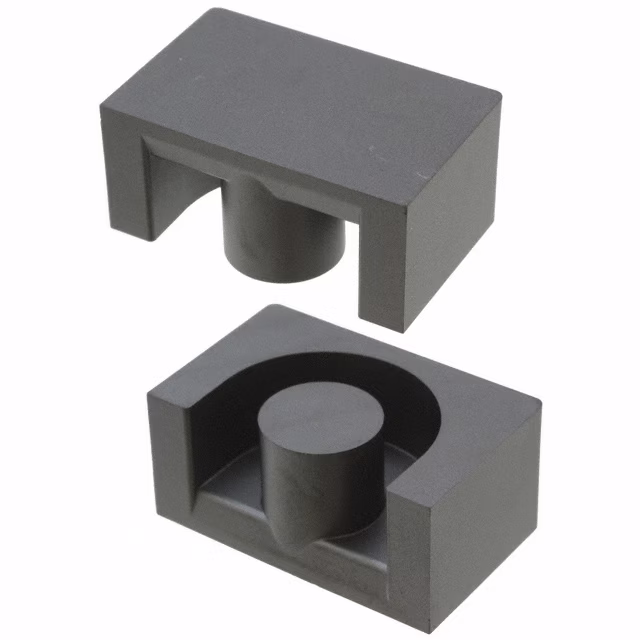

B65847A0000R030 FERRITE CORE EP 6.7UH N30 2PCS EPCOS - TDK Electronics	382	6.42	- + RFQ	Datasheet	Box	EP20	Active	EP	EP 20	N30	-	6.7 µH	-20%, +30%	Ungapped	2730	5200	0.51	40	78	60	3120	Uncoated	0.425 (10.80mm)
B65813D0630A048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	108	6.53	- + RFQ	Datasheet	Bulk	RM10	Active	RM	RM 10	N48	-	630 nH	±3%	Gapped	254	-	0.5	42	83	-	3490	Uncoated	0.368 (9.35mm)
PQ35/30-3C95 FERRITE CORE 2PC SET Ferroxcube	400	6.92	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)

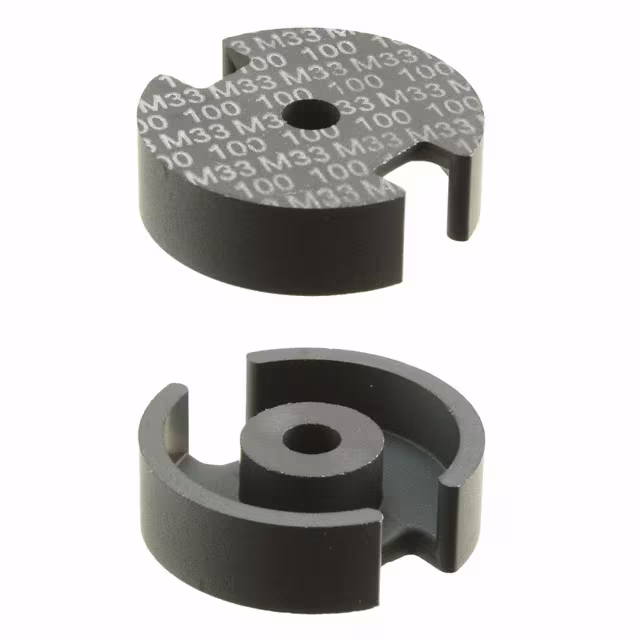

B65651D0100A033 FERRITE CORE P 100NH M33 2PCS EPCOS - TDK Electronics	3,712	7.08	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	M33	0.724 (18.40mm)	100 nH	±3%	Gapped	48	750	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B66461G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	260	7.41	- + RFQ	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
