Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

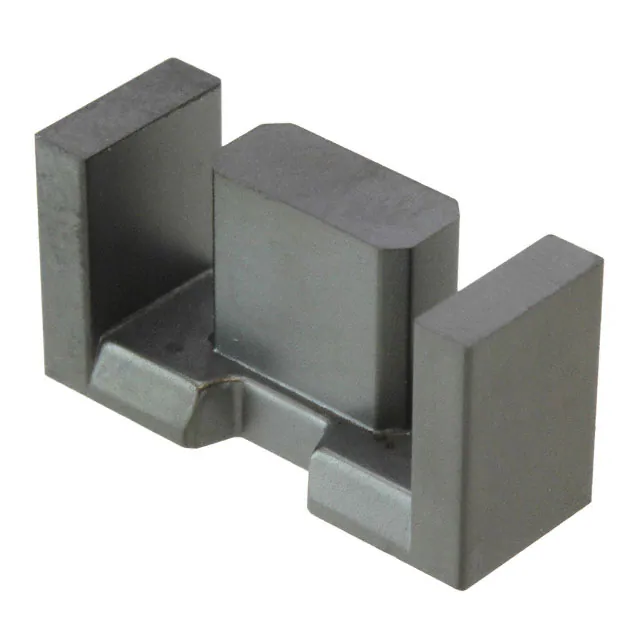

B66421G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,328	1.45	- + FFQ	Datasheet	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)

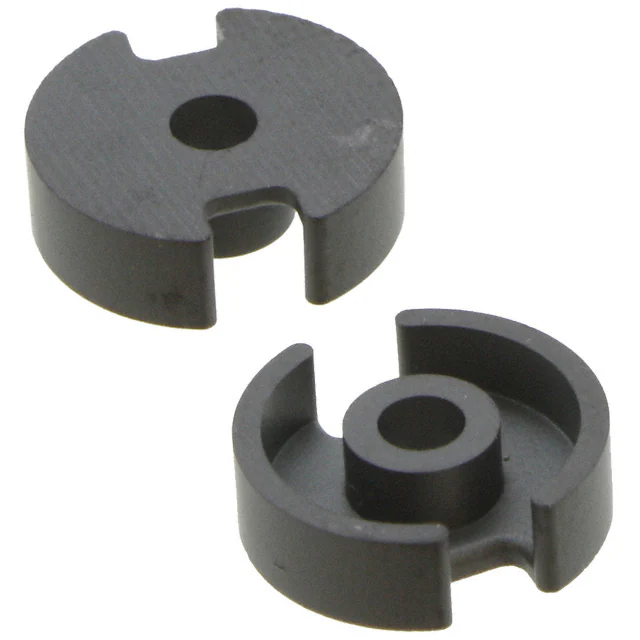

B65517D0250J048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	3,800	2.28	- + FFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	250 nH	±5%	Gapped	249	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)

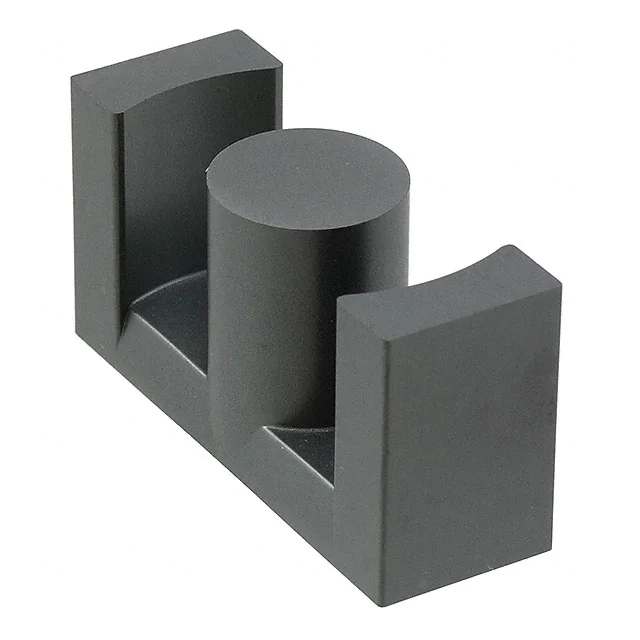

B66365G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2,041	3.53	- + FFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)

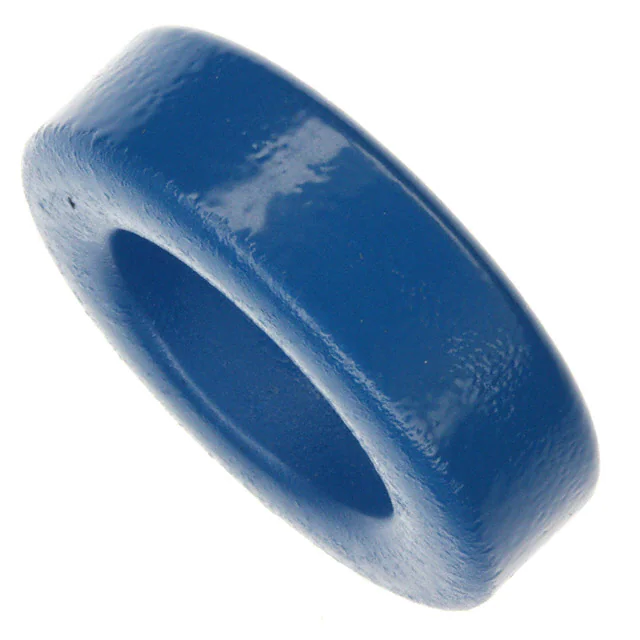

B64290L0058X830 FERRITE CORE TOROID 4.36UH N30 EPCOS - TDK Electronics	2,577	3.77	- + FFQ	Datasheet	Tray	TX34/20.5/10	Active	Toroid	-	N30	1.397 (35.50mm)	4.36 µH	±25%	Ungapped	-	4300	1.24	82.06	66.08	-	5423	Epoxy	0.437 (11.10mm)

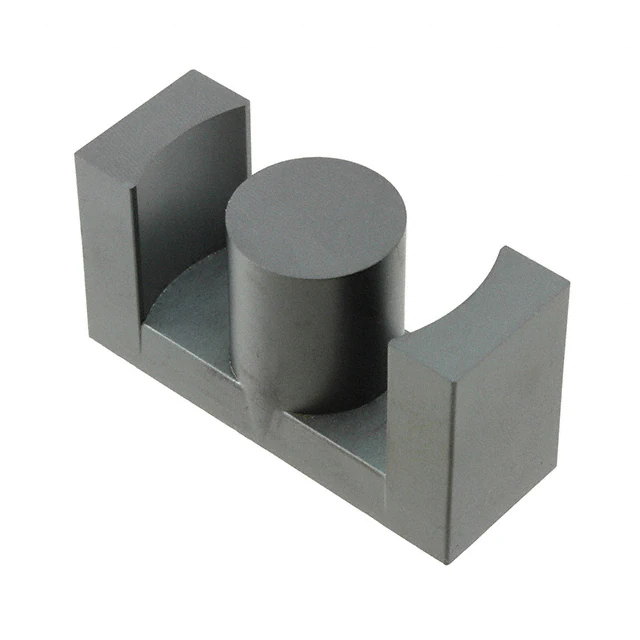

B66397G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,674	11.64	- + FFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)

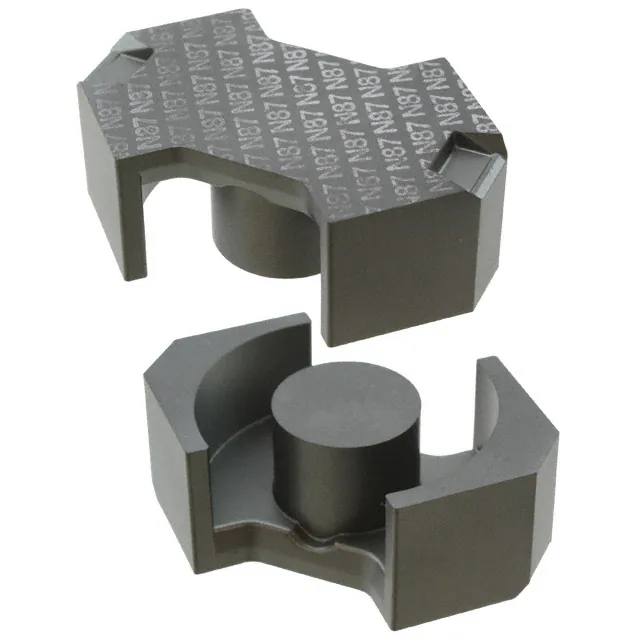

B65887E0000R087 FERRITE CORE RM 6UH N87 2PCS EPCOS - TDK Electronics	453	11.97	- + FFQ	Datasheet	Box	RM14	Active	RM	RM 14	N87	-	6 µH	-20%, +30%	Ungapped	1670	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

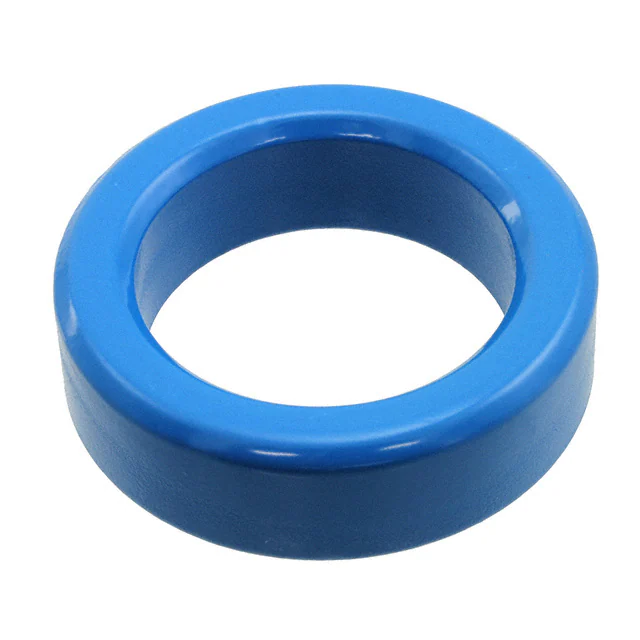

B64290L0040X065 FERRITE CORE TOROID 6.25UH T65 EPCOS - TDK Electronics	573	14.55	- + FFQ	Datasheet	Box	TX58.3/40.8/17.6	Active	Toroid	-	T65	2.366 (60.10mm)	6.25 µH	±30%	Ungapped	-	5000	1	152.4	152.4	-	23230	Epoxy	0.740 (18.80mm)

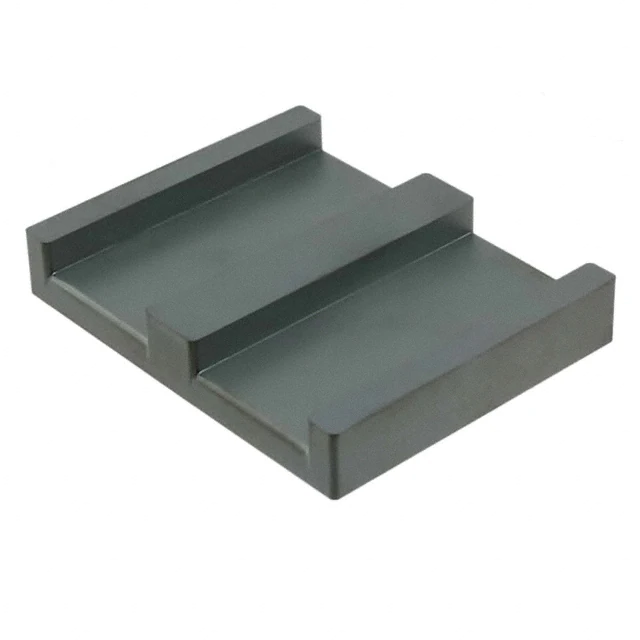

B66295G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	730	15.43	- + FFQ	Datasheet	Box	ELP64/10/50	Active	ELP	ELP 64 x 10 x50	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

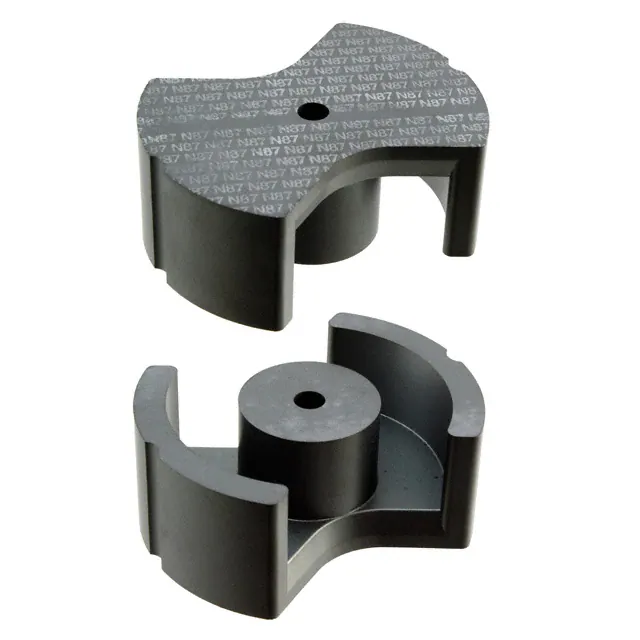

B65684A0000R087 FERRITE CORE PM 9.2UH N87 2PCS EPCOS - TDK Electronics	481	35.03	- + FFQ	Datasheet	Box	PM62/49	Active	PM	PM 62 x 49	N87	2.441 (62.00mm)	9.2 µH	-20%, +30%	Ungapped	1400	2200	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)

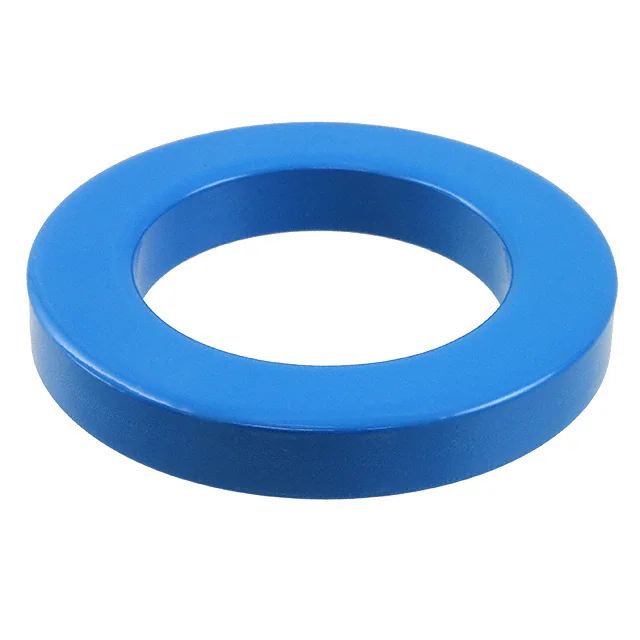

B64290L0084X830 FERRITE CORE TOROID 5.5UH N30 EPCOS - TDK Electronics	3,013	57.68	- + FFQ	Datasheet	Box	TX102/66/15	Active	Toroid	-	N30	4.126 (104.80mm)	5.5 µH	±25%	Ungapped	-	4200	0.96	255.3	267.2	-	68220	Epoxy	0.650 (16.50mm)

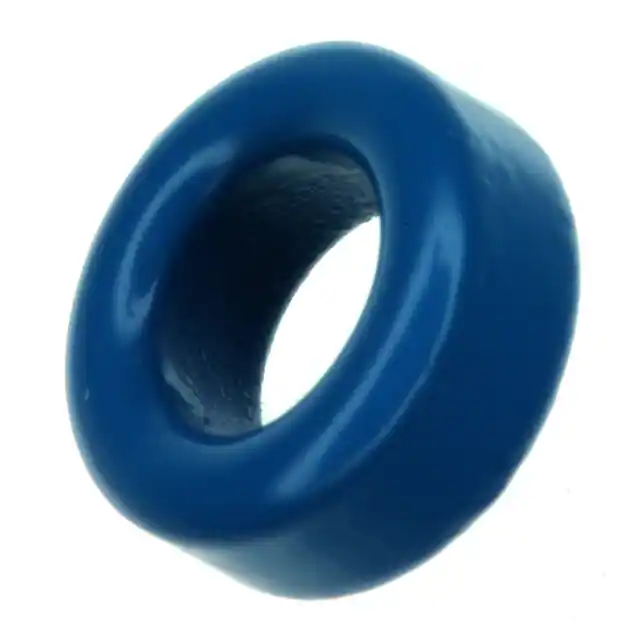

B64290L0038X087 FERRITE CORE TOROID 900NH N87 EPCOS - TDK Electronics	2,623	0.33	- + FFQ	Datasheet	Bulk	TX10/6/4	Active	Toroid	-	N87	0.425 (10.80mm)	900 nH	±25%	Ungapped	-	2200	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
B64290P0036X830 FERRITE CORE TOROID 700NH N30 EPCOS - TDK Electronics	3,943	0.33	- + FFQ	Datasheet	Box	TC4.0/2.4/1.6	Active	Toroid	-	N30	0.158 (4.02mm)	700 nH	±25%	Ungapped	-	4300	7.7	9.63	1.25	-	12	Parylene	0.064 (1.62mm)

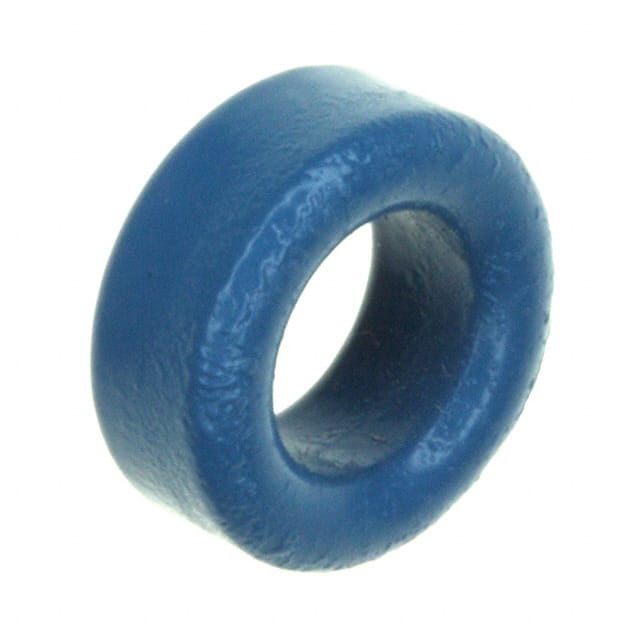

B64290L0038X830 FERRITE CORE TOROID 1.76UH N30 EPCOS - TDK Electronics	3,849	0.37	- + FFQ	Datasheet	Bulk	TX10/6/4	Active	Toroid	-	N30	0.425 (10.80mm)	1.76 µH	±25%	Ungapped	-	4300	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
B64290P0036X038 FERRITE CORE TOROID 1.63UH T35 EPCOS - TDK Electronics	3,414	0.41	- + FFQ	Datasheet	Box	TC4.0/2.4/1.6	Active	Toroid	-	T38	0.158 (4.02mm)	1.63 µH	±30%	Ungapped	-	10000	7.7	9.63	1.25	-	12	Parylene	0.064 (1.62mm)

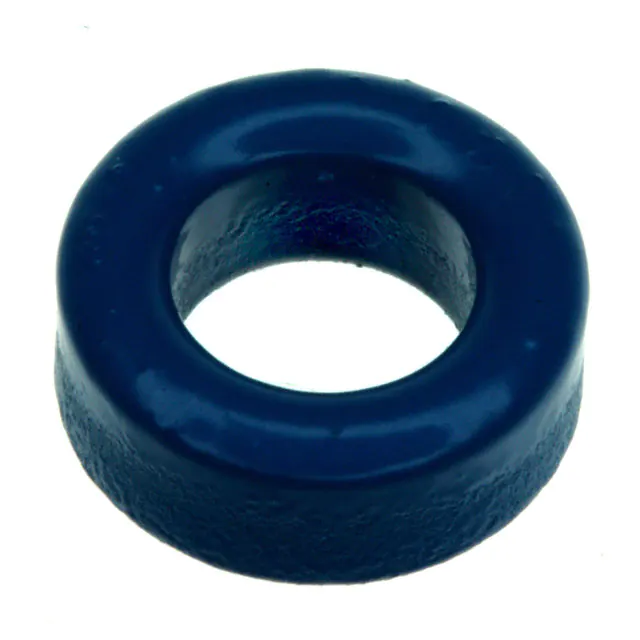

B64290L0038X038 FERRITE CORE TOROID 4.09UH T38 EPCOS - TDK Electronics	3,525	0.46	- + FFQ	Datasheet	Bulk	TX10/6/4	Active	Toroid	-	T38	0.425 (10.80mm)	4.09 µH	±30%	Ungapped	-	10000	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)

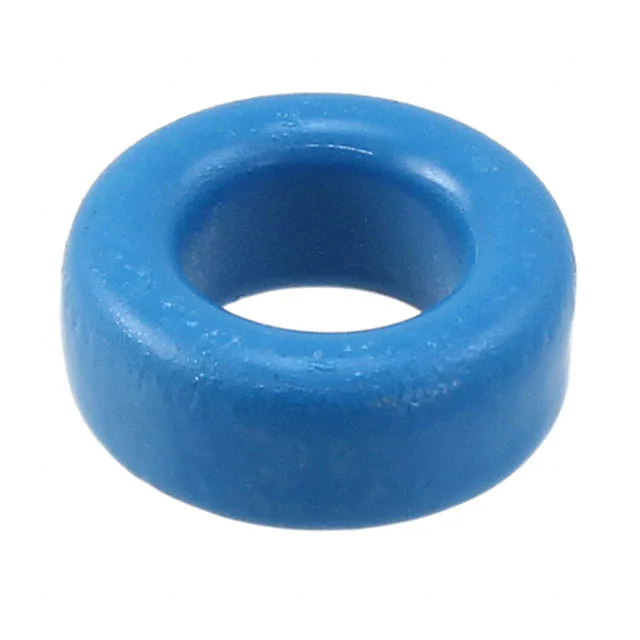

B64290L0044X087 FERRITE CORE TOROID 1.12UH N87 EPCOS - TDK Electronics	3,381	0.48	- + FFQ	Datasheet	Box	TX12.5/7.5/5	Active	Toroid	-	N87	0.535 (13.60mm)	1.12 µH	±25%	Ungapped	-	2200	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)

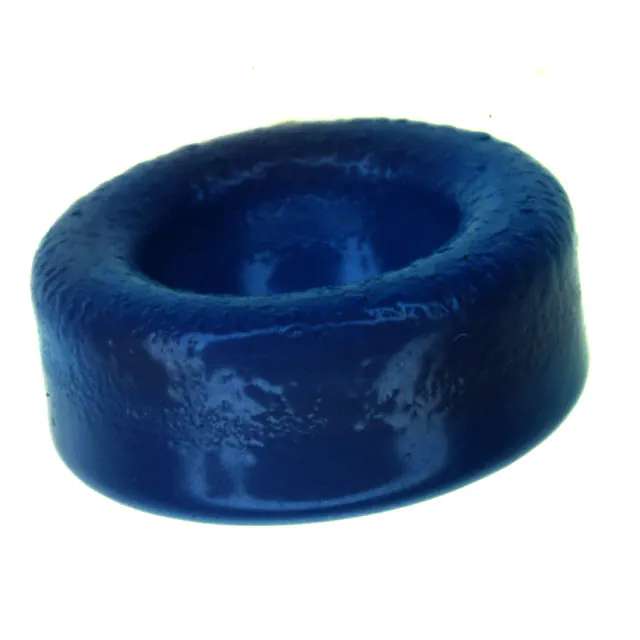

B64290L0044X830 FERRITE CORE TOROID 2.2UH N30 EPCOS - TDK Electronics	2,242	0.52	- + FFQ	Datasheet	Bulk	TX12.5/7.5/5	Active	Toroid	-	N30	0.535 (13.60mm)	2.2 µH	±25%	Ungapped	-	4300	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)

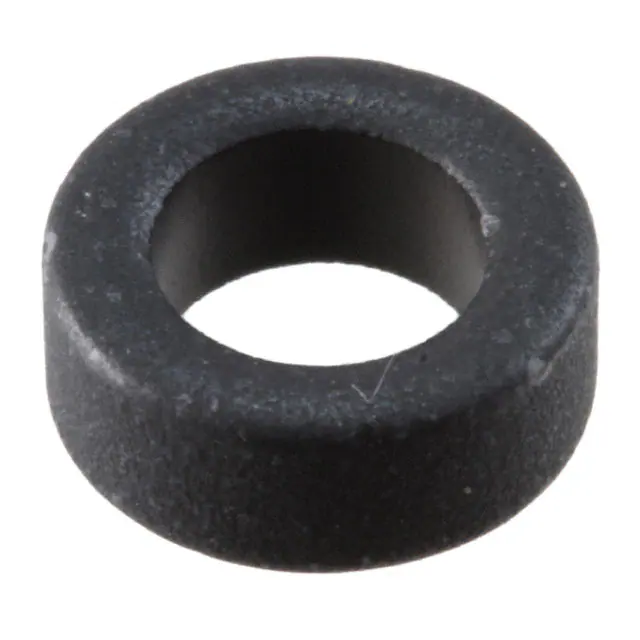

B64290P0037X087 FERRITE CORE TOROID 560NH N87 EPCOS - TDK Electronics	2,470	0.55	- + FFQ	Datasheet	Box	TC6.3/3.8/2.5	Active	Toroid	-	N87	0.249 (6.32mm)	560 nH	±25%	Ungapped	-	2200	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)
B64290L0038X049 FERRITE CORE TOROID 610NH N49 EPCOS - TDK Electronics	2,986	0.56	- + FFQ	Datasheet	Box	TX10/6/4	Active	Toroid	-	N49	0.425 (10.80mm)	610 nH	±25%	Ungapped	-	1500	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
B64290L0038X046 FERRITE CORE TOROID 6UH T46 EPCOS - TDK Electronics	3,090	0.57	- + FFQ	Datasheet	Box	TX10/6/4	Active	Toroid	-	T46	0.425 (10.80mm)	6 µH	±30%	Ungapped	-	15000	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
