Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CPFC74NP-PS02H2A20 CMC 2A 2LN 200 OHM SMD Sumida America Components Inc.	2,144	1.59	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	200 Ohms @ 20 MHz	-	2A	120mOhm (Typ)	-	-	-	-	-	-	Surface Mount	0.374 L x 0.224 W (9.50mm x 5.70mm)	0.200 (5.08mm)
CPFC74NP-PS03H2A25 CMC 2.5A 2LN 300 OHM SMD Sumida America Components Inc.	2,195	1.59	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	300 Ohms @ 160 MHz	-	2.5A	120mOhm (Typ)	-	-	-	-	-	-	Surface Mount	0.374 L x 0.224 W (9.50mm x 5.70mm)	0.200 (5.08mm)
CPFC805NP-100M05 CMC 4.5A 2LN 500 OHM SMD Sumida America Components Inc.	3,549	2.78	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	500 Ohms @ 100 MHz	-	4.5A	15mOhm	-	-	-	-	-	-	Surface Mount	0.311 L x 0.295 W (7.90mm x 7.50mm)	0.189 (4.80mm)
CPFC6D36NP-100M06 CMC 2.5A 2LN 600 OHM SMD Sumida America Components Inc.	3,535	4.28	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	600 Ohms @ 100 MHz	-	2.5A	20mOhm	-	-	-20°C ~ 100°C	-	-	-	Surface Mount	0.244 L x 0.209 W (6.20mm x 5.30mm)	0.150 (3.80mm)
UU9LFNP-B103 CMC 10MH 200MA 2LN TH Sumida America Components Inc.	3,926	0.92	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	10 mH @ 1 kHz	200mA	4Ohm	-	-	-	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
LF2020NP-222 CMC 2.2MH 1.3A 2LN TH Sumida America Components Inc.	3,242	1.77	- + FFQ	Datasheet	Bulk	LF	Active	Power Line	2	-	2.2 mH @ 1 kHz	1.3A	240mOhm	-	-	-	-	-	-	Through Hole	0.827 L x 0.638 W (21.00mm x 16.20mm)	0.886 (22.50mm)
CPFC74NP-PS01H2A30 CMC 3A 2LN SMD Sumida America Components Inc.	2,512	1.59	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	-	-	3A	60mOhm (Typ)	-	-	-	-	-	-	Surface Mount	0.374 L x 0.224 W (9.50mm x 5.70mm)	0.200 (5.08mm)
CPFC85NP-WH04 CMC 5.65A 2LN 300 OHM SMD Sumida America Components Inc.	3,286	2.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Signal Line	2	300 Ohms @ 100 MHz	-	5.65A	20mOhm	-	-	-	-	-	-	Surface Mount	0.366 L x 0.323 W (9.30mm x 8.20mm)	0.217 (5.50mm)
UU9LFNP-B222 CMC 2.2MH 500MA 2LN TH Sumida America Components Inc.	2,088	0.92	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	2.2 mH @ 1 kHz	500mA	700mOhm	-	-	-	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
CPFC74NP-PS10H2A15 CMC 1.5A 2LN 700 OHM SMD Sumida America Components Inc.	530	1.59	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Power Line	2	700 Ohms @ 100 MHz	-	1.5A	120mOhm (Typ)	-	-	-	-	-	-	Surface Mount	0.374 L x 0.224 W (9.50mm x 5.70mm)	0.200 (5.08mm)

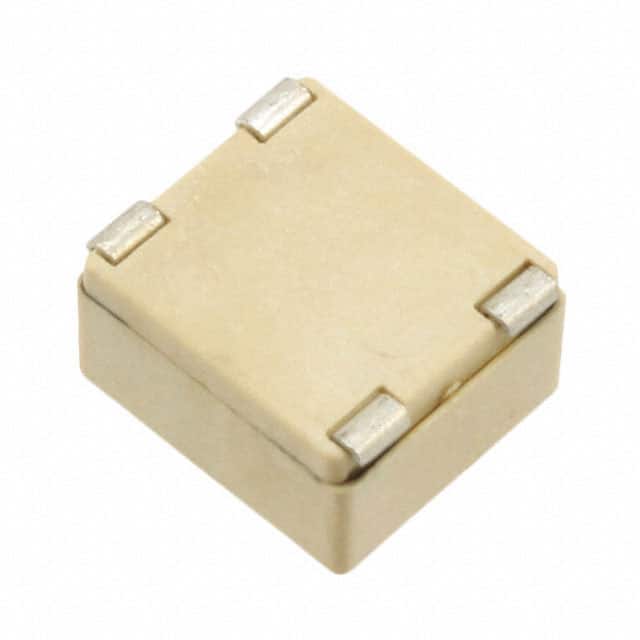

CPFC85NP-WH07 CMC 4A 2LN 1KOHM SMD Sumida America Components Inc.	2,780	2.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CPFC	Active	Signal Line	2	1 kOhms @ 100 MHz	-	4A	20mOhm	-	-	-	-	-	-	Surface Mount	0.366 L x 0.323 W (9.30mm x 8.20mm)	0.217 (5.50mm)
UU9LFNP-B472 CMC 4.7MH 340MA 2LN TH Sumida America Components Inc.	3,598	0.00	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	4.7 mH @ 1 kHz	340mA	1.6Ohm	-	-	-	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
CPFC74NP-4251-T093 COMMON MODE CHOKE Sumida America Components Inc.	3,942	0.70	- + FFQ	Datasheet	Tape & Reel (TR)	CPFC	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CPFC74NP-CB08M6 CMC 2LN 800 OHM SMD Sumida America Components Inc.	2,536	0.73	- + FFQ	Datasheet	Tape & Reel (TR)	CPFC	Active	Power Line	2	800 Ohms @ 10 MHz	-	-	500mOhm	-	-	-	-	-	-	Surface Mount	0.374 L x 0.224 W (9.50mm x 5.70mm)	0.200 (5.08mm)
UU9LFNP-B-B103 CMC 10MH 200MA 2LN TH Sumida America Components Inc.	2,919	0.76	- + FFQ	Datasheet	Tape & Reel (TR)	UU	Active	Power Line	2	-	10 mH @ 1 kHz	200mA	4Ohm	-	-	-	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)

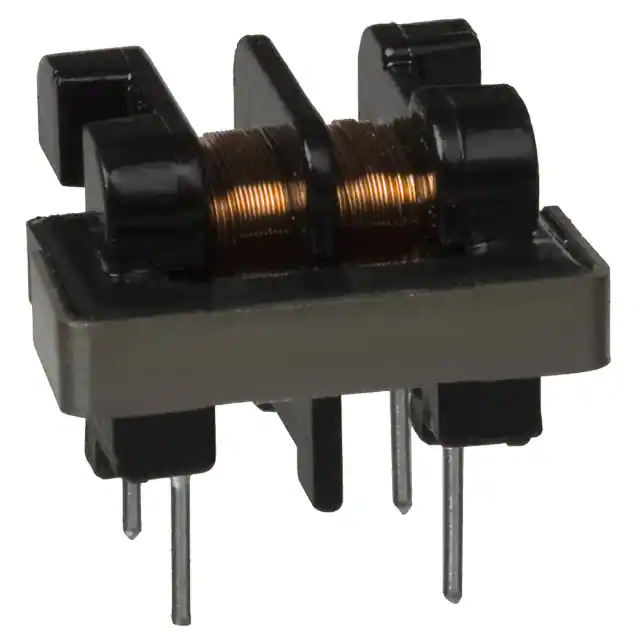

UU9LFHNP-HB471 CMC 470UH 1A 2LN TH Sumida America Components Inc.	3,660	0.88	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	470 µH @ 1 kHz	1A	150mOhm	-	-	-	-	-	-	Through Hole	0.650 L x 0.610 W (16.50mm x 15.50mm)	0.492 (12.50mm)
UU9LFHNP-HB681 CMC 680UH 850MA 2LN TH Sumida America Components Inc.	2,440	0.88	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	680 µH @ 1 kHz	850mA	250mOhm	-	-	-	-	-	-	Through Hole	0.650 L x 0.610 W (16.50mm x 15.50mm)	0.492 (12.50mm)
UU9LFHNP-HB102 CMC 1MH 700MA 2LN TH Sumida America Components Inc.	3,223	0.88	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	1 mH @ 1 kHz	700mA	350mOhm	-	-	-	-	-	-	Through Hole	0.650 L x 0.610 W (16.50mm x 15.50mm)	0.492 (12.50mm)
UU9LFHNP-HB222 CMC 2.2MH 500MA 2LN TH Sumida America Components Inc.	2,792	0.88	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	2.2 mH @ 1 kHz	500mA	700mOhm	-	-	-	-	-	-	Through Hole	0.650 L x 0.610 W (16.50mm x 15.50mm)	0.492 (12.50mm)
UU9LFHNP-HB392 CMC 3.9MH 380MA 2LN TH Sumida America Components Inc.	2,292	0.88	- + FFQ	Datasheet	Bulk	UU	Active	Power Line	2	-	3.9 mH @ 1 kHz	380mA	1.2Ohm	-	-	-	-	-	-	Through Hole	0.650 L x 0.610 W (16.50mm x 15.50mm)	0.492 (12.50mm)
