Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
744212221 CMC 220UH 300MA 2LN 1.2KOHM SMD Würth Elektronik	3,813	4.50	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL1	Active	Signal Line	2	1.2 kOhms @ 35 MHz	220 µH @ 100 kHz	300mA	280mOhm	80V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.256 L x 0.142 W (6.50mm x 3.60mm)	0.071 (1.80mm)

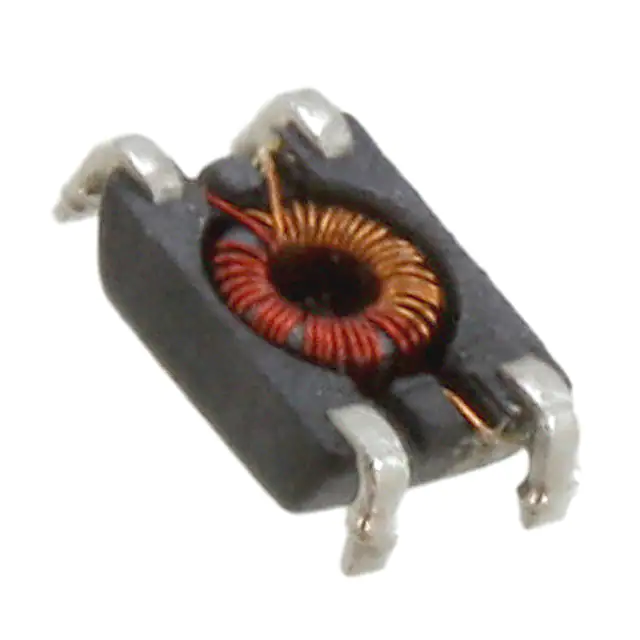

744212331 CMC 330UH 300MA 2LN 2KOHM SMD Würth Elektronik	2,394	4.50	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL1	Active	Power, Signal Line	2	2 kOhms @ 20 MHz	330 µH @ 100 kHz	300mA	300mOhm	80V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.256 L x 0.142 W (6.50mm x 3.60mm)	0.071 (1.80mm)
744212820 CMC 82UH 300MA 2LN 440 OHM SMD Würth Elektronik	2,531	4.50	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL1	Active	Power, Signal Line	2	440 Ohms @ 180 MHz	82 µH @ 100 kHz	300mA	200mOhm	80V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.256 L x 0.142 W (6.50mm x 3.60mm)	0.071 (1.80mm)
7446120027 CMC 27MH 400MA 2LN TH Würth Elektronik	273	3.32	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	27 mH @ 10 kHz	400mA	1.2Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.531 W (18.50mm x 13.50mm)	0.807 (20.50mm)

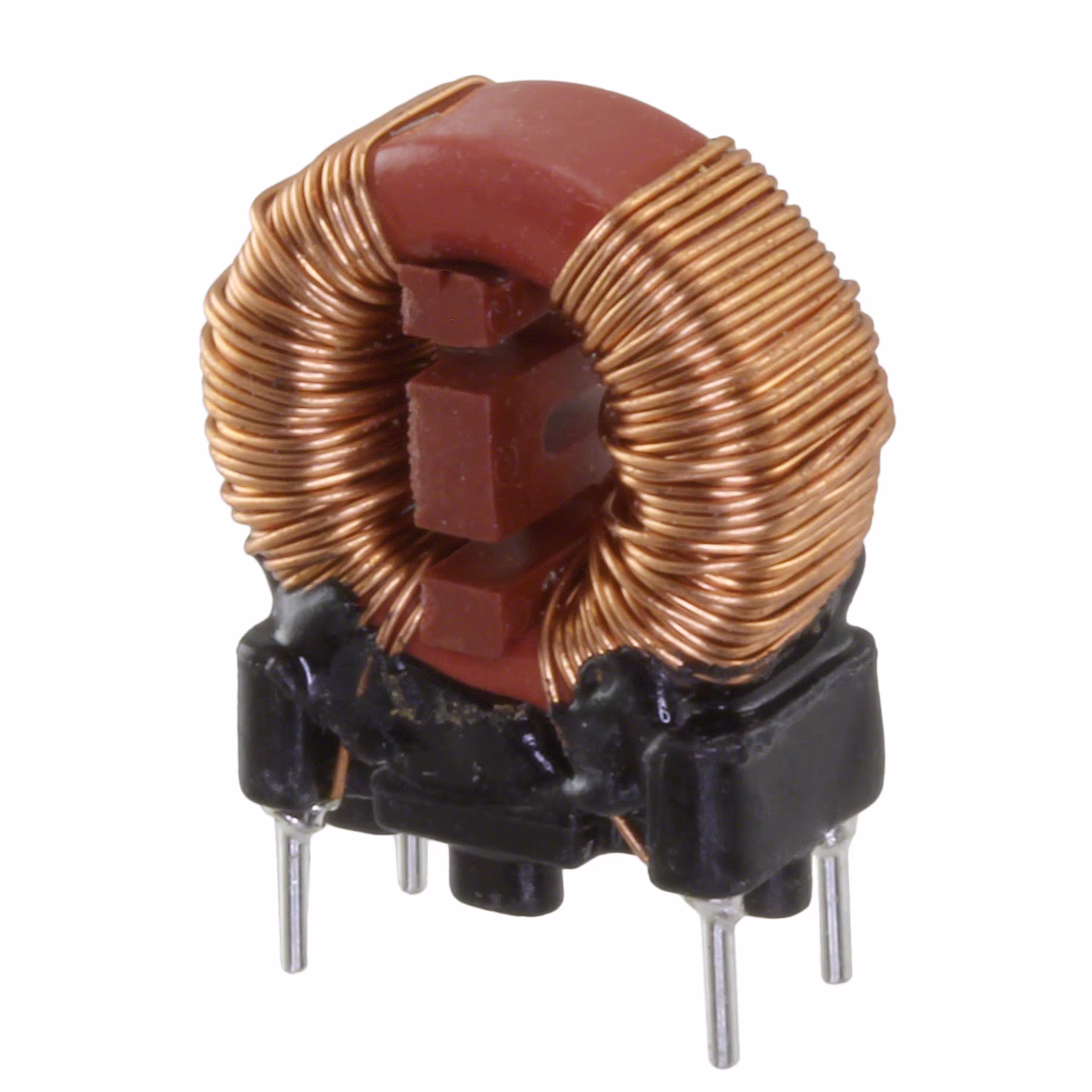

744821110 CMC 10MH 700MA 2LN TH Würth Elektronik	3,473	3.87	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	10 mH @ 10 kHz	700mA	350mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.709 (18.00mm)

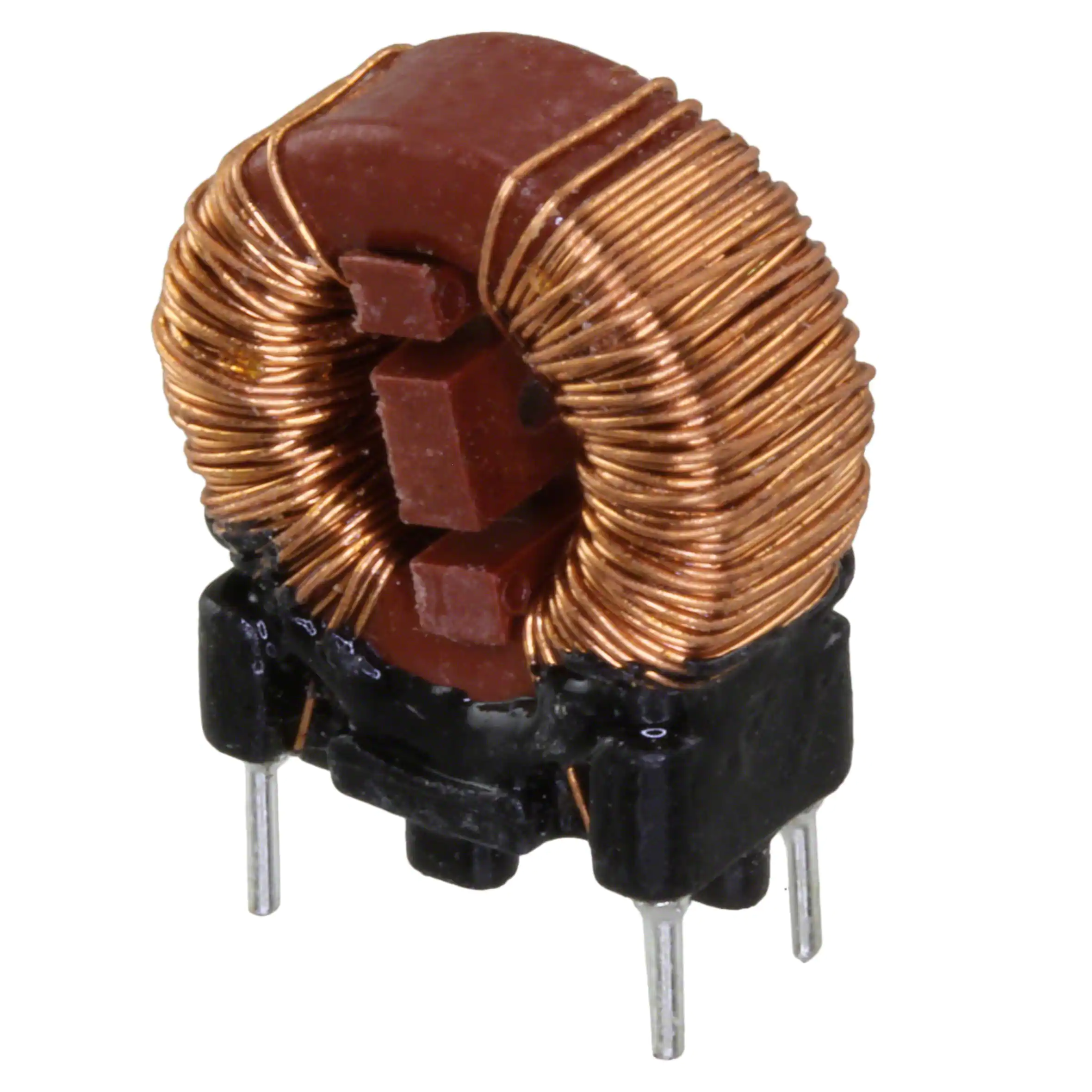

744821120 CMC 20MH 500MA 2LN TH Würth Elektronik	3,771	3.87	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	20 mH @ 10 kHz	500mA	1Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.689 (17.50mm)

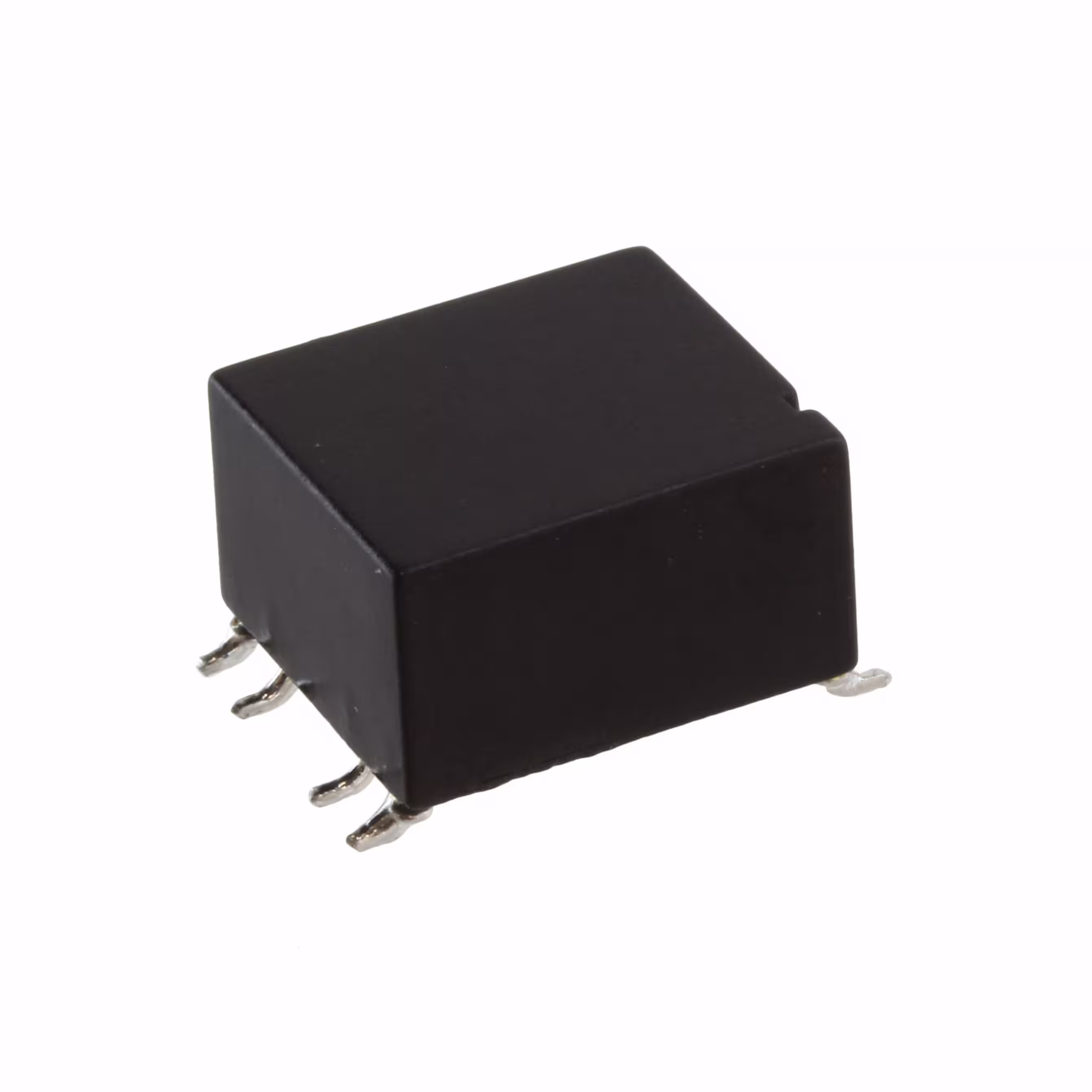

744290321 CMC 320UH 3.25A 2LN SMD Würth Elektronik	2,437	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	320 µH @ 10 kHz	3.25A	29mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)

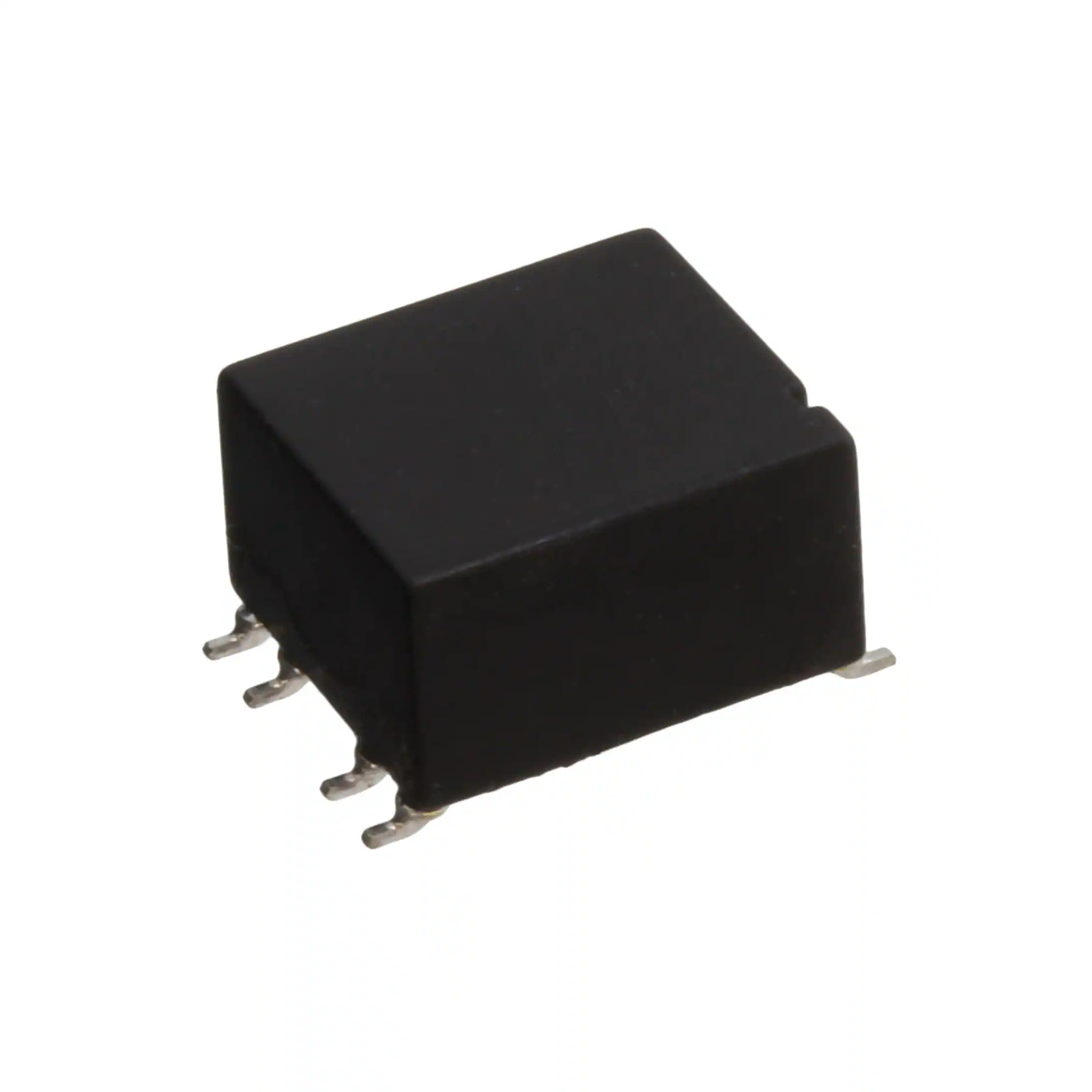

744290130 CMC 13UH 10A 2LN SMD Würth Elektronik	3,459	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Signal Line	2	-	13 µH @ 10 kHz	10A	2.7mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)

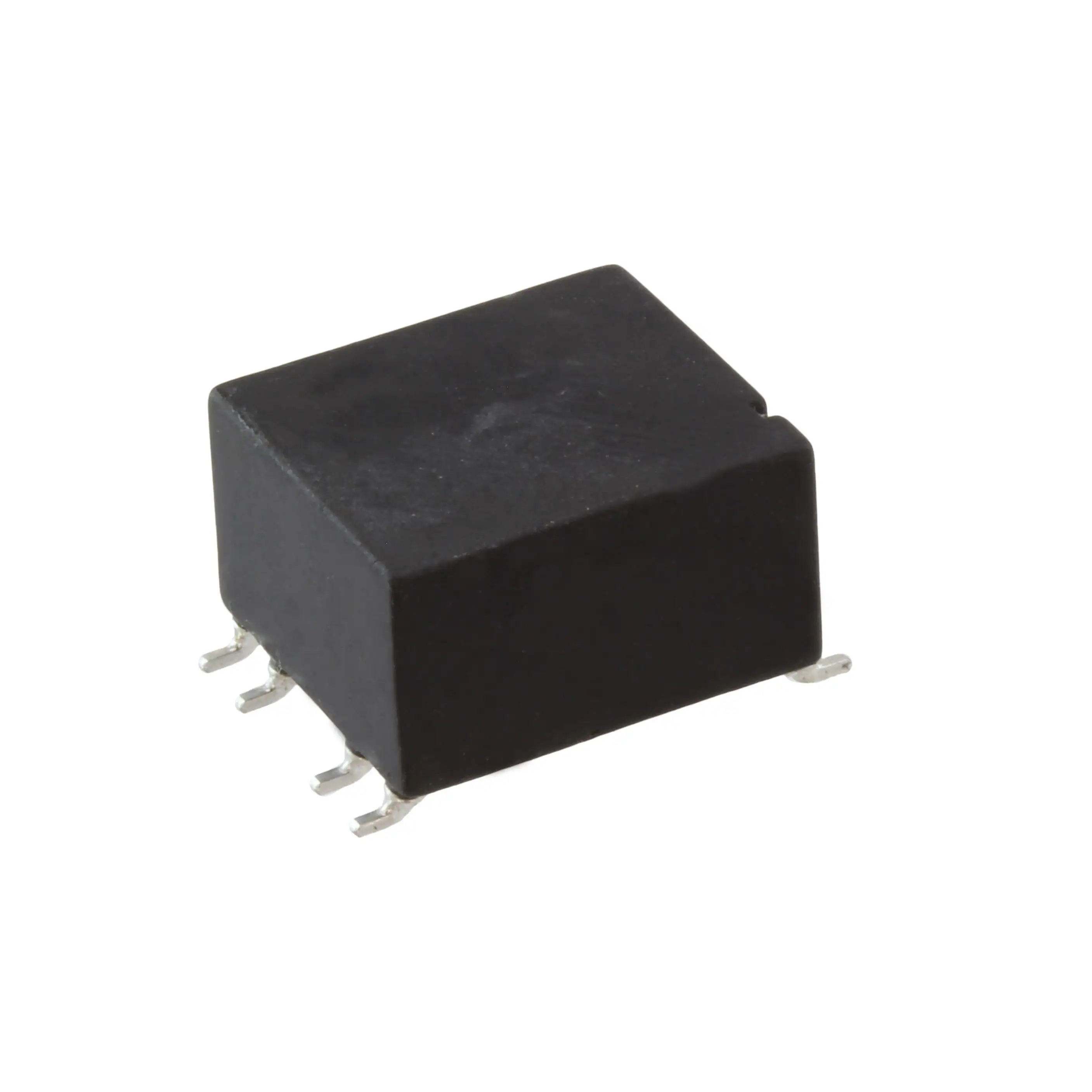

744290121 CMC 120UH 5.5A 2LN SMD Würth Elektronik	2,873	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	120 µH @ 10 kHz	5.5A	10.5mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)

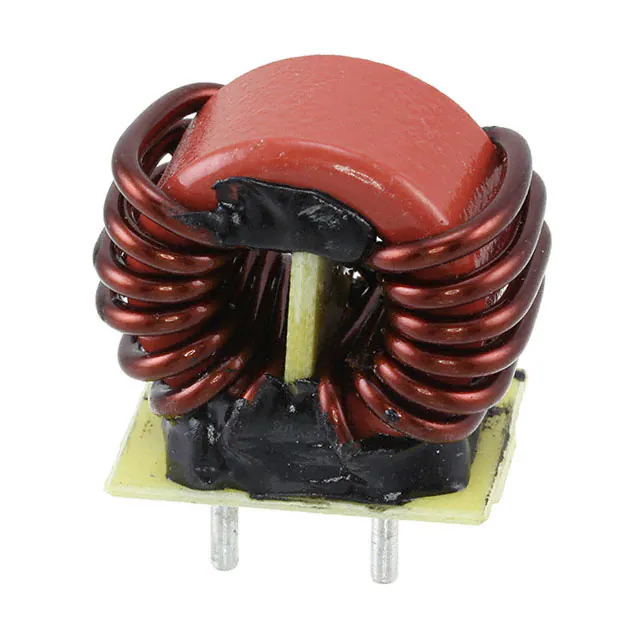

S14100038 CMC 560UH 20A 2LN TH Würth Elektronik	3,054	4.46	- + RFQ	Datasheet	Tray	WE-CMB	Active	-	2	-	560 µH @ 10 kHz	20A	2.8mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 Dia x 0.768 L (30.00mm x 19.50mm)	1.142 (29.00mm)

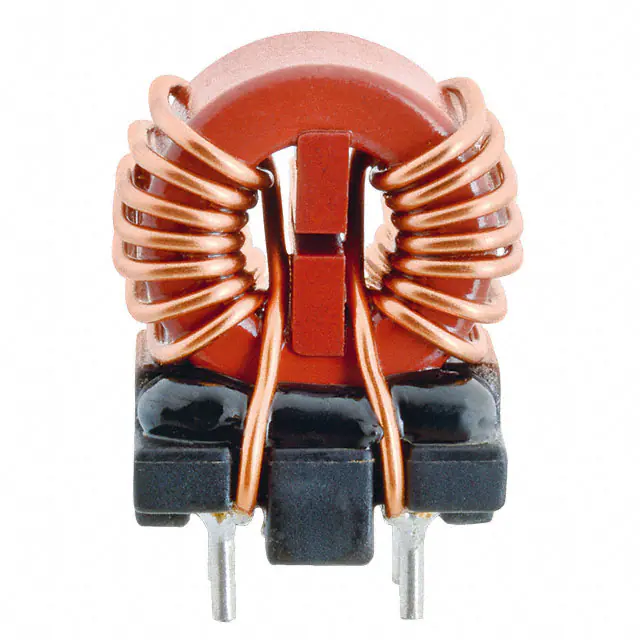

744822301 CMC 1MH 3A 2LN TH Würth Elektronik	2,650	4.57	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	1 mH @ 10 kHz	3A	35mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.689 L x 0.512 W (17.50mm x 13.00mm)	0.866 (22.00mm)

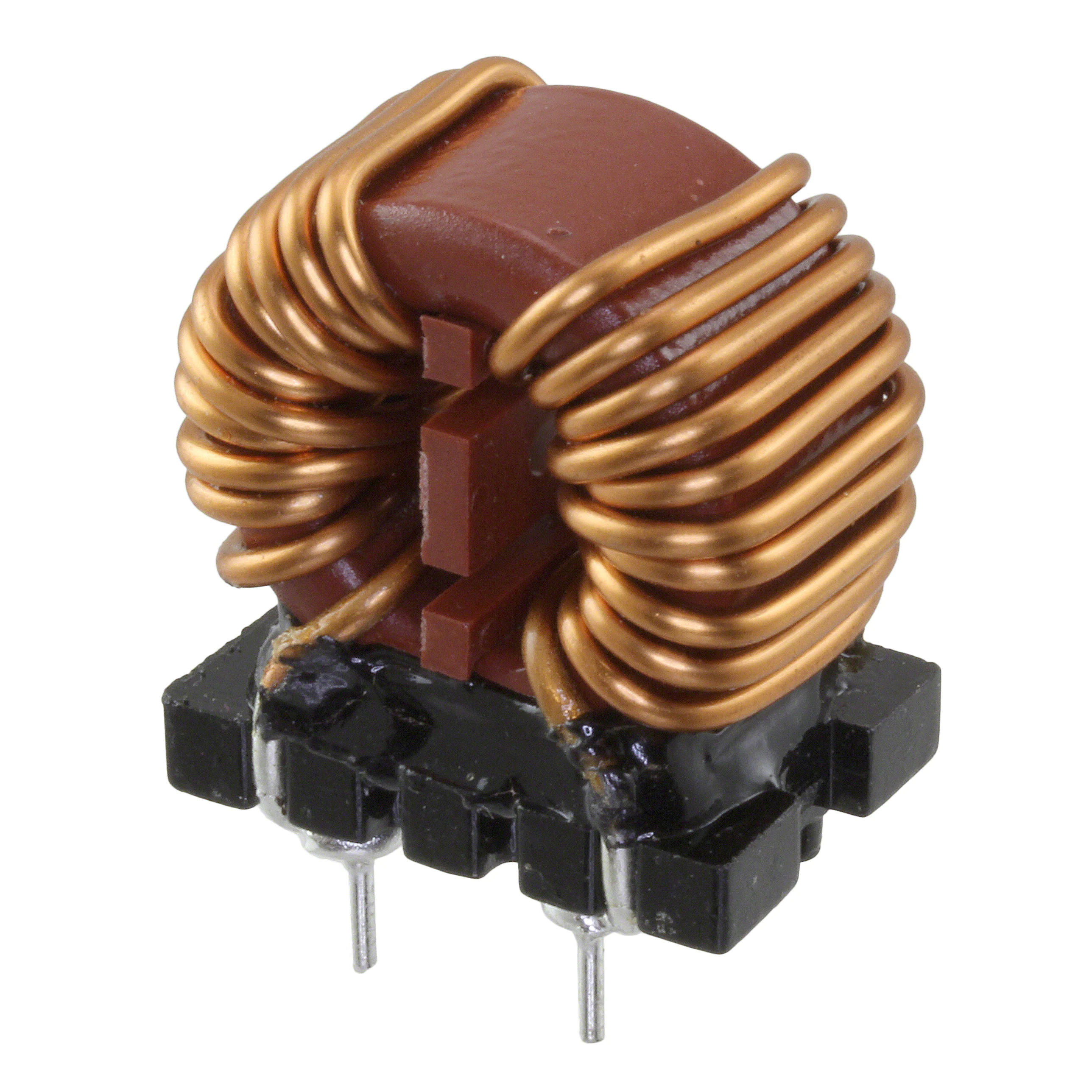

744824101 CMC 1MH 10A 2LN TH Würth Elektronik	2,090	5.63	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	1 mH @ 10 kHz	10A	7mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.083 L x 0.728 W (27.50mm x 18.50mm)	1.299 (33.00mm)
744825510 CMC 10MH 5A 2LN TH Würth Elektronik	2,500	6.33	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	10 mH @ 10 kHz	5A	55mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.827 W (30.00mm x 21.00mm)	1.378 (35.00mm)
7448225007 CMC 700UH 5A 2LN TH Würth Elektronik	637	6.33	- + RFQ	Datasheet	Tray	WE-CMB HC	Active	Power Line	2	-	700 µH @ 100 kHz	5A	15mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.571 W (18.50mm x 14.50mm)	0.866 (22.00mm)
7448251201 CMC 1MH 12A 2LN TH Würth Elektronik	463	6.33	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	1 mH @ 100 kHz	12A	9mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.866 W (30.00mm x 22.00mm)	1.378 (35.00mm)
74482210002 CMC 175UH 10A 2LN TH Würth Elektronik	320	6.33	- + RFQ	Datasheet	Tray	WE-CMB HC	Active	Power Line	2	-	175 µH @ 100 kHz	10A	4mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.571 W (18.50mm x 14.50mm)	0.866 (22.00mm)
7448229004 CMC 350UH 8.5A 2LN TH Würth Elektronik	270	6.33	- + RFQ	Datasheet	Tray	WE-CMB HC	Active	Power Line	2	-	350 µH @ 100 kHz	8.5A	7mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.571 W (18.50mm x 14.50mm)	0.866 (22.00mm)

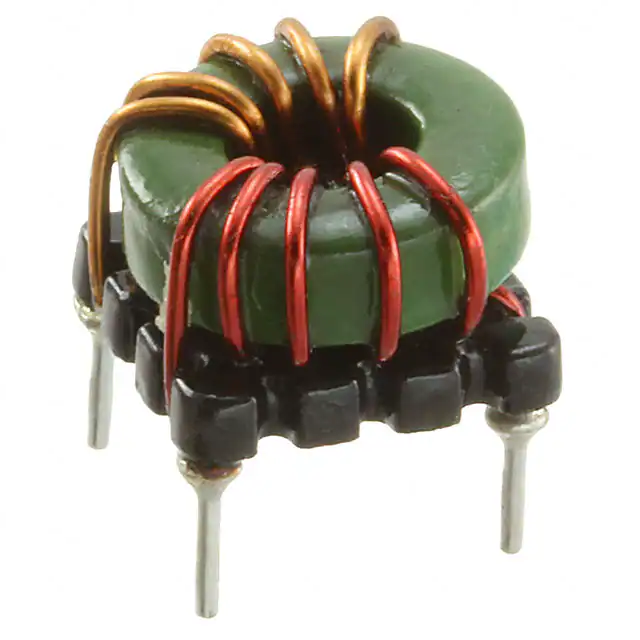

CMC-08 CMC 5.2A 2LN TH Recom Power	723	11.03	- + RFQ		Tube	CMC	Active	Power Line	2	-	-	5.2A	31mOhm	-	-	-40°C ~ 105°C	-	-	-	Through Hole	0.433 L x 0.433 W (11.00mm x 11.00mm)	0.386 (9.80mm)

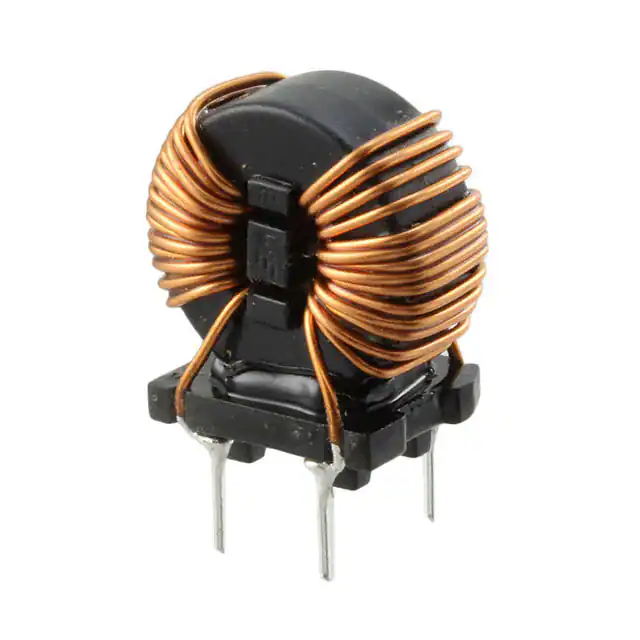

7448030509 CMC 9MH 5A 2LN TH Würth Elektronik	2,229	12.90	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	9 mH @ 10 kHz	5A	28mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.866 L x 0.531 W (22.00mm x 13.50mm)	0.984 (25.00mm)

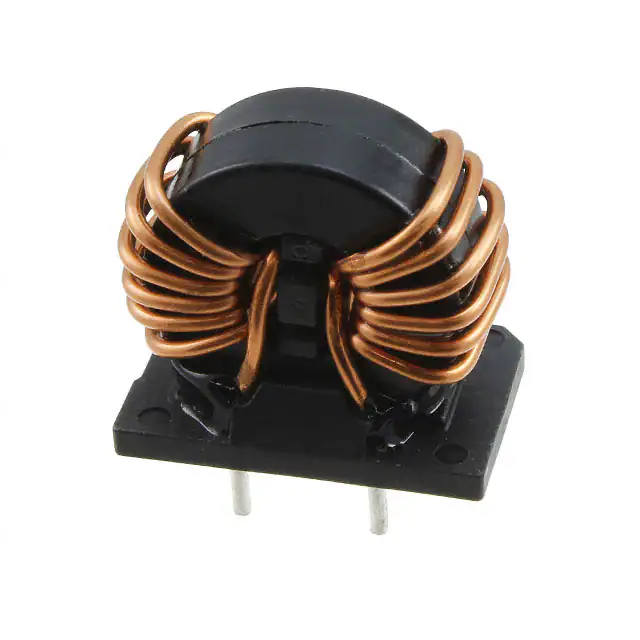

7448042001 CMC 1MH 20A 2LN TH Würth Elektronik	3,643	14.07	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	1 mH @ 10 kHz	20A	2.4mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.260 (32.00mm)
