Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

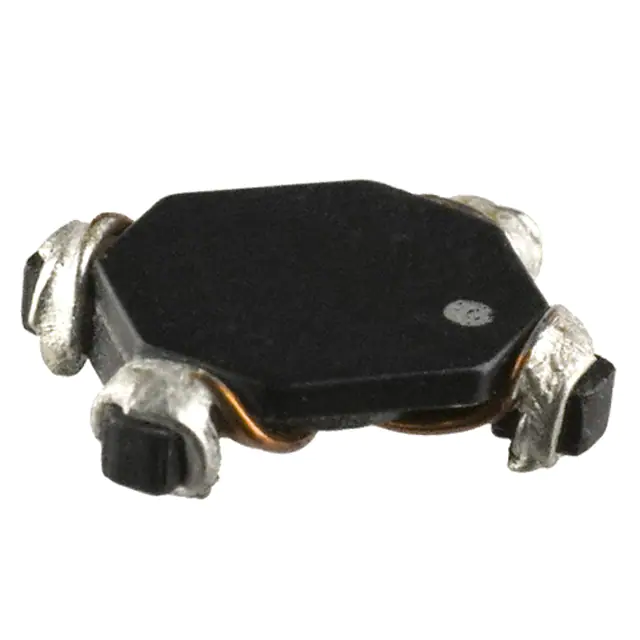

CMS1-11-R CMC 100UH 1.35A 2LN SMD Eaton - Electronics Division	3,390	2.34	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	100 µH @ 100 kHz	1.35A	70mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-6-R CMC 32.8UH 3.1A 2LN SMD Eaton - Electronics Division	3,235	2.37	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	32.8 µH @ 100 kHz	3.1A	13.8mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-10-R CMC 73.7UH 1.65A 2LN SMD Eaton - Electronics Division	2,957	2.42	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	73.7 µH @ 100 kHz	1.65A	48mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-7-R CMC 41.5UH 2.6A 2LN SMD Eaton - Electronics Division	3,998	2.91	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	41.5 µH @ 100 kHz	2.6A	19mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-4-R CMC 18UH 3.8A 2LN SMD Eaton - Electronics Division	2,832	2.95	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	18 µH @ 100 kHz	3.8A	8.9mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS2-1-R CMC 25UH 5.35A 2LN SMD Eaton - Electronics Division	949	4.19	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	25 µH @ 100 kHz	5.35A	5mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-2-R CMC 40UH 4.4A 2LN SMD Eaton - Electronics Division	3,802	3.94	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	40 µH @ 100 kHz	4.4A	8mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-11-R CMC 700UH 800MA 2LN SMD Eaton - Electronics Division	3,282	3.94	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	700 µH @ 100 kHz	800mA	230mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS1-1-R CMC 4.5UH 7A 2LN SMD Eaton - Electronics Division	2,328	4.74	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	4.5 µH @ 100 kHz	7A	2.7mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
ACE1V3225-101-R CMC 100UH 150MA 2LN SMD AEC-Q200 Eaton - Electronics Division	2,882	0.89	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V3225	Active	Signal Line	2	5.1 kOhms @ 10 MHz	100 µH @ 100 kHz	150mA	1.5Ohm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
ACE1V3225-510-R CMC 51UH 200MA 2LN SMD AEC-Q200 Eaton - Electronics Division	2,949	0.90	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V3225	Active	Signal Line	2	2.6 kOhms @ 10 MHz	51 µH @ 100 kHz	200mA	700mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
CMS1-12-R CMC 131UH 1.15A 2LN SMD Eaton - Electronics Division	3,189	2.39	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	131 µH @ 100 kHz	1.15A	100mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-14-R CMC 205UH 850MA 2LN SMD Eaton - Electronics Division	2,866	2.49	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	205 µH @ 100 kHz	850mA	186mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-5-R CMC 25UH 3.6A 2LN SMD Eaton - Electronics Division	2,273	2.51	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	25 µH @ 100 kHz	3.6A	10mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS1-3-R CMC 12.6UH 4.1A 2LN SMD Eaton - Electronics Division	2,746	3.11	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	12.6 µH @ 100 kHz	4.1A	77mOhm	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)
CMS2-4-R CMC 102UH 2.8A 2LN SMD Eaton - Electronics Division	2,807	3.16	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	102 µH @ 100 kHz	2.8A	19mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-3-R CMC 57UH 3.6A 2LN SMD Eaton - Electronics Division	3,934	4.30	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	57 µH @ 100 kHz	3.6A	12mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-7-R CMC 270UH 1.6A 2LN SMD Eaton - Electronics Division	621	4.14	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	270 µH @ 100 kHz	1.6A	60mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS3-6-R CMC 217UH 2.85A 2LN SMD Eaton - Electronics Division	3,226	5.82	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	217 µH @ 100 kHz	2.85A	20mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
CMS3-3-R CMC 64UH 4.75A 2LN SMD Eaton - Electronics Division	3,283	5.89	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	64 µH @ 100 kHz	4.75A	7mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
