Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

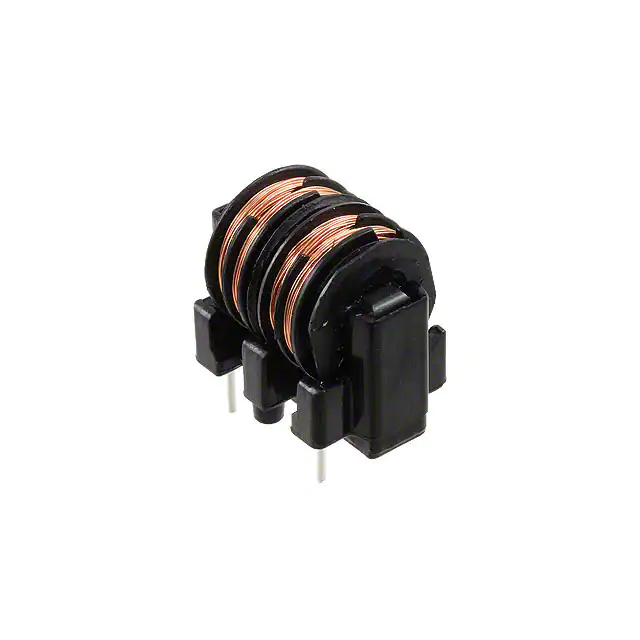

SS11VL-17024 CMC 2.4MH 1.7A 2LN TH KEMET	3,782	1.85	- + FFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	2.4 mH @ 1 kHz	1.7A	190mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.571 W (22.00mm x 14.50mm)	0.807 (20.50mm)

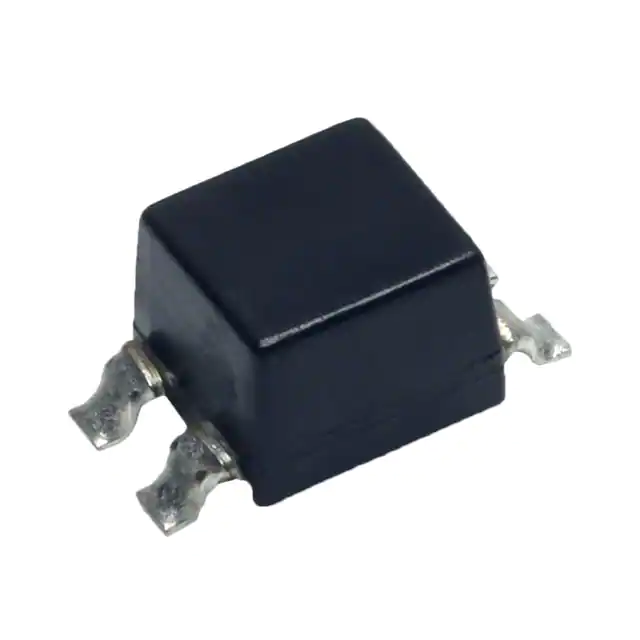

M-523CT CMC 200UH 1.5A 2LN 200 OHM SMD KEMET	2,870	3.78	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	M-500CT	Active	Signal Line	2	200 Ohms @ 20 MHz	200 µH @ 20 MHz	1.5A	-	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.217 W (5.00mm x 5.50mm)	0.165 (4.20mm)

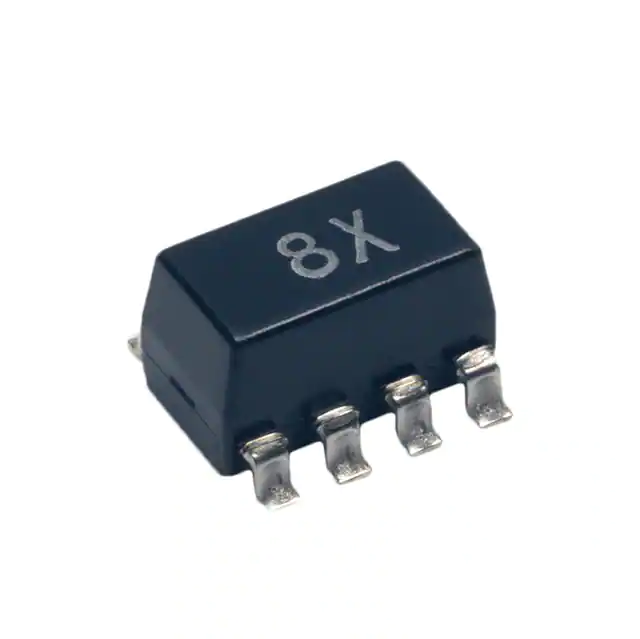

M-542CT CMC 200UH 500MA 4LN 200 OHM SMD KEMET	3,818	3.78	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	M-500CT	Active	Signal Line	4	200 Ohms @ 10 MHz	200 µH @ 10 MHz	500mA	-	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.386 L x 0.220 W (9.80mm x 5.60mm)	0.236 (6.00mm)

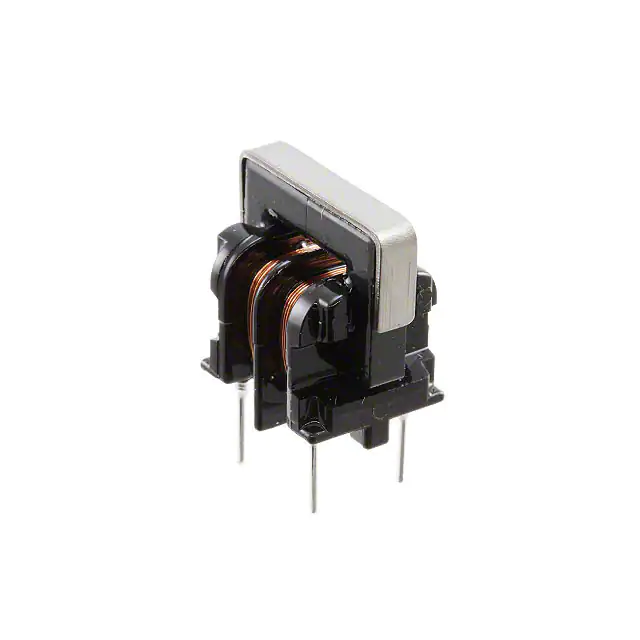

SU9V-R03090 CMC 9MH 300MA 2LN TH KEMET	2,884	2.07	- + FFQ	Datasheet	Tray	SU	Active	Power Line	2	-	9 mH @ 1 kHz	300mA	3Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
SSRH24NV-25205 CMC 20.5MH 2.5A 2LN TH KEMET	951	3.48	- + FFQ	Datasheet	Bulk	SSRH	Active	-	2	-	20.5 mH @ 10 kHz	2.5A	145mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	1.220 (31.00mm)

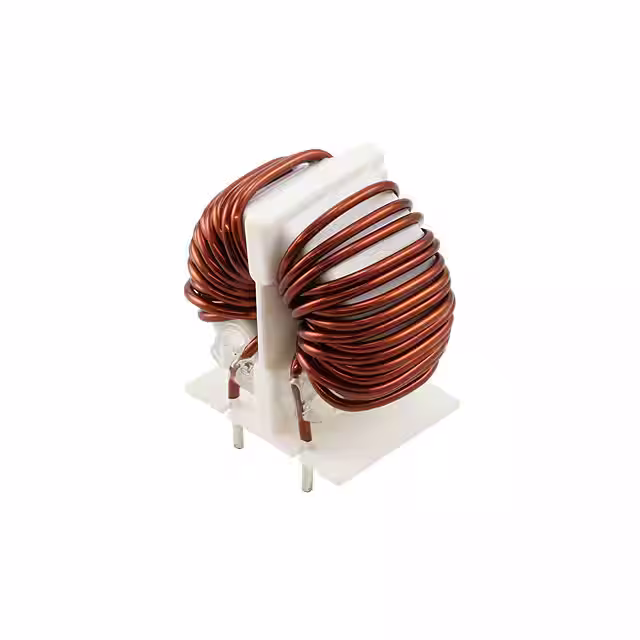

SC-10-10J CMC 1MH 10A 2LN TH KEMET	731	6.87	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	10A	20mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.299 (33.00mm)

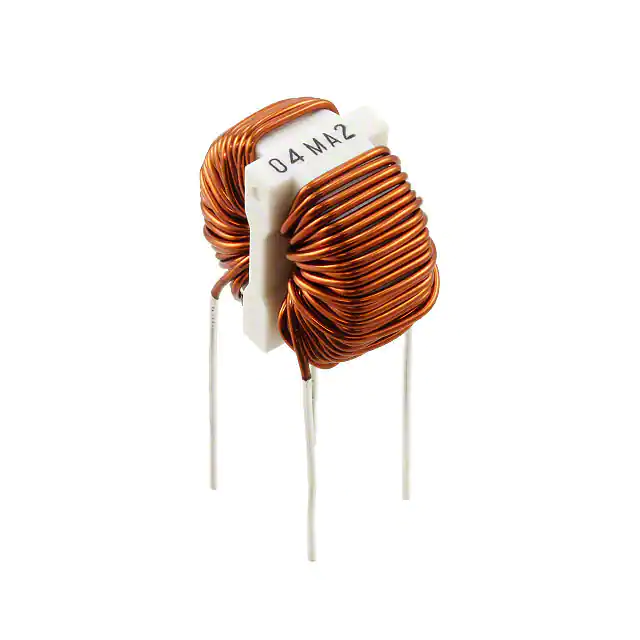

SCF20-05-1100 CMC 11MH 5A 2LN TH KEMET	777	7.30	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	11 mH @ 10 kHz	5A	39mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.984 L x 0.610 W (25.00mm x 15.50mm)	0.984 (25.00mm)

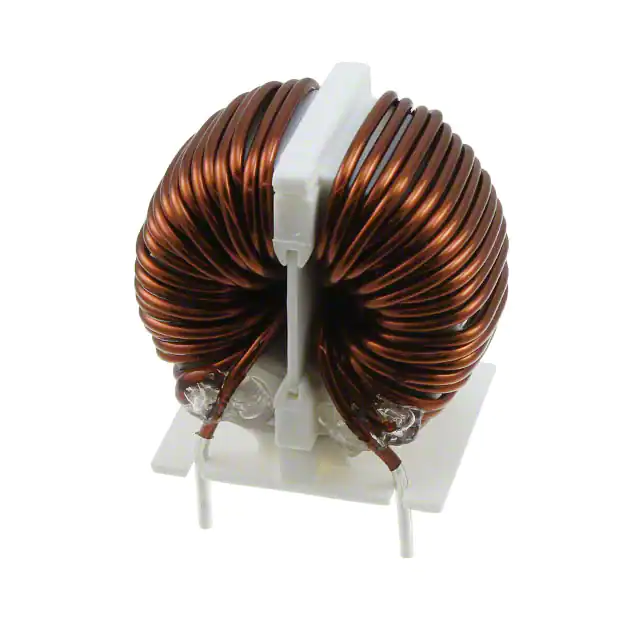

SC-10-30J CMC 3MH 10A 2LN TH KEMET	2,273	7.37	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	3 mH @ 100 kHz	10A	30mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.945 W (34.00mm x 24.00mm)	1.299 (33.00mm)

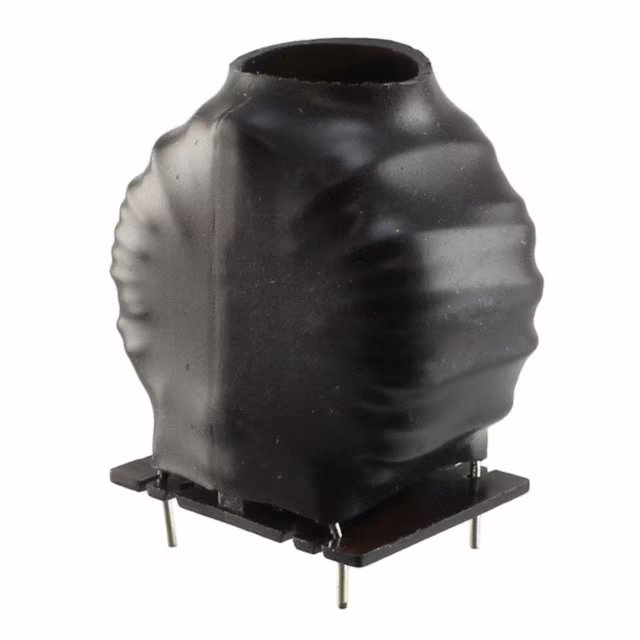

SC-04-200JV CMC 29MH 5A 2LN TH KEMET	580	7.74	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	29 mH @ 16 kHz	5A	100mOhm	250V	250V	-	-	-	-	Through Hole	1.378 Dia x 0.984 W (35.00mm x 25.00mm)	1.575 (40.00mm)

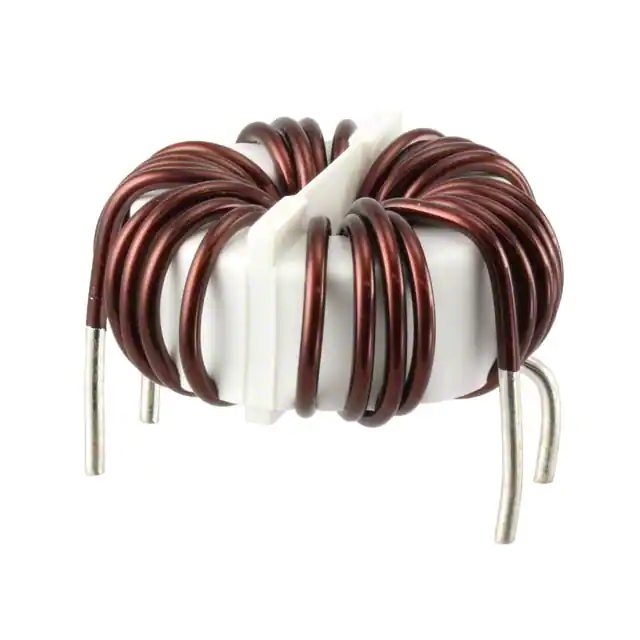

SC-30-100 CMC 1MH 30A 2LN TH KEMET	122	15.83	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	30A	6mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	2.441 Dia (62.00mm)	1.378 (35.00mm)
SU9V-01100 CMC 10MH 100MA 2LN TH KEMET	3,116	1.84	- + FFQ	Datasheet	Bulk	SU	Active	Power Line	2	-	10 mH @ 1 kHz	100mA	8Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
SS11VL-R06270 CMC 27MH 600MA 2LN TH KEMET	2,743	1.92	- + FFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	27 mH @ 1 kHz	600mA	1.3Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.571 W (22.00mm x 14.50mm)	0.807 (20.50mm)
SS11VL-R04520 CMC 52MH 400MA 2LN TH KEMET	2,383	1.92	- + FFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	52 mH @ 1 kHz	400mA	2.6Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.571 W (22.00mm x 14.50mm)	0.807 (20.50mm)

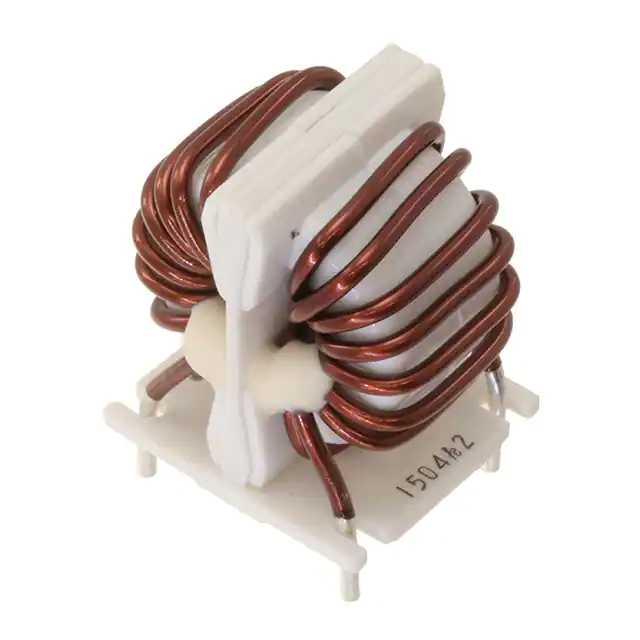

SCR-150-1R4A006J-P CMC 600UH 15A 2LN TH KEMET	196	6.14	- + FFQ	Datasheet	Tray	SCR	Active	Power Line	2	-	600 µH @ 10 kHz	15A	5.3mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.161 L x 0.906 W (29.50mm x 23.00mm)	1.122 (28.50mm)
SC-15-07J CMC 702UH 15A 2LN TH KEMET	162	6.19	- + FFQ	Datasheet	Tray	SC	Active	Power Line	2	-	702 µH @ 100 kHz	15A	10mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.417 L x 0.984 W (36.00mm x 25.00mm)	1.378 (35.00mm)

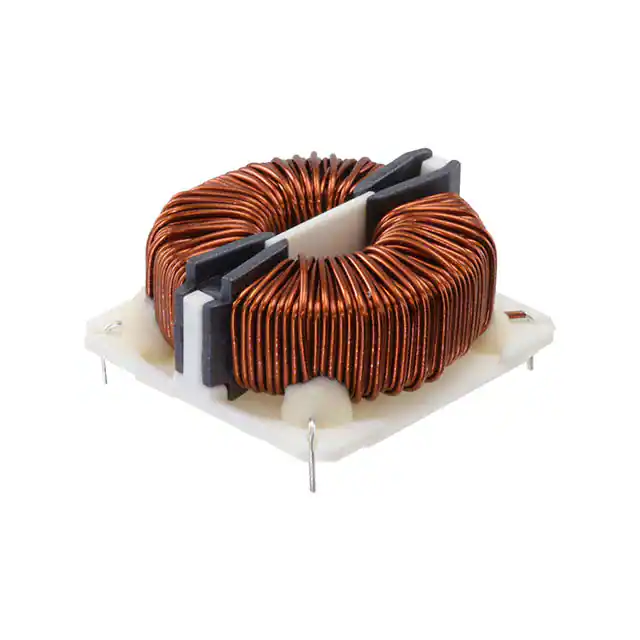

SC-030-E150JH-P CMC 15MH 3A 2LN TH KEMET	144	6.22	- + FFQ	Datasheet	Tray	SC	Active	Power Line	2	-	15 mH @ 10 kHz	3A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.260 L x 1.220 W (32.00mm x 31.00mm)	0.571 (14.50mm)

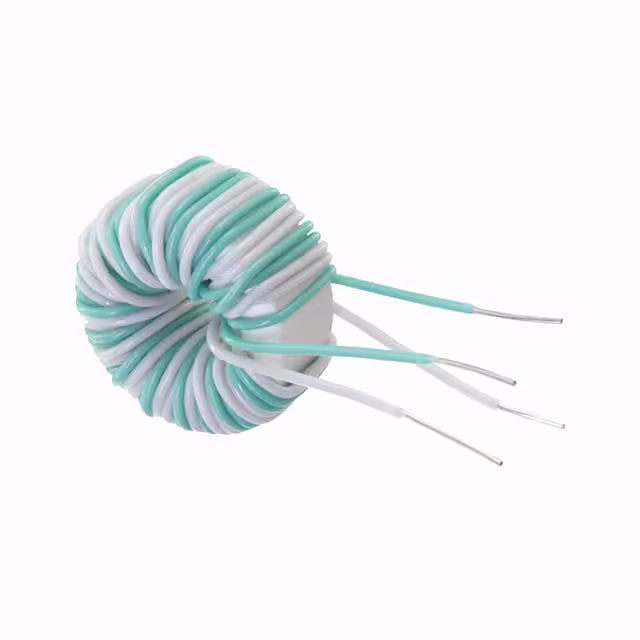

ST-101 CMC, TROID, 3000OHM, 180MOHM KEMET	165	4.61	- + FFQ	Datasheet	Tray	ST	Active	-	2	3 kOhms @ 500 kHz	-	200mA	180mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.709 Dia (18.00mm)	0.433 (11.00mm)

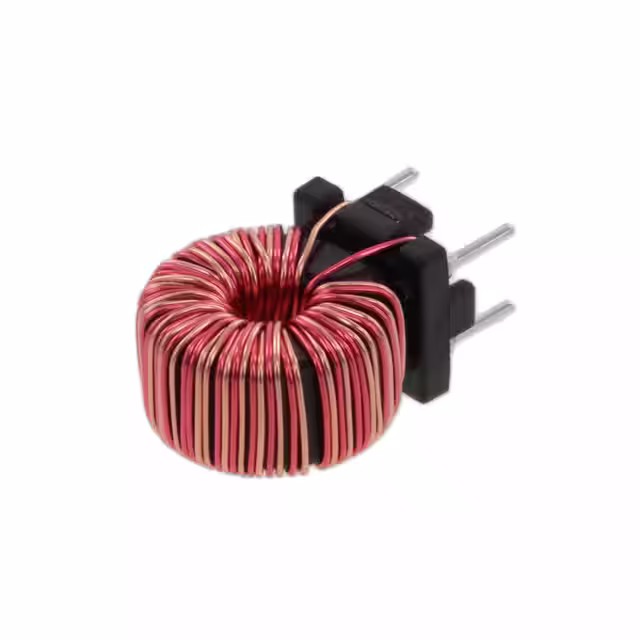

ST-101A CMC, TROID, 3000OHM, 250MOHM KEMET	210	4.70	- + FFQ	Datasheet	Tray	ST	Active	-	2	3 kOhms @ 500 kHz	-	200mA	250mOhm	50V	-	-20°C ~ 65°C	-	-	-	Through Hole	0.630 Dia (16.00mm)	0.413 (10.50mm)
SC-03-E900 CMC 9MH 3A 2LN TH KEMET	240	4.89	- + FFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	9 mH @ 10 kHz	3A	130mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 Dia (23.50mm)	0.925 (23.50mm)

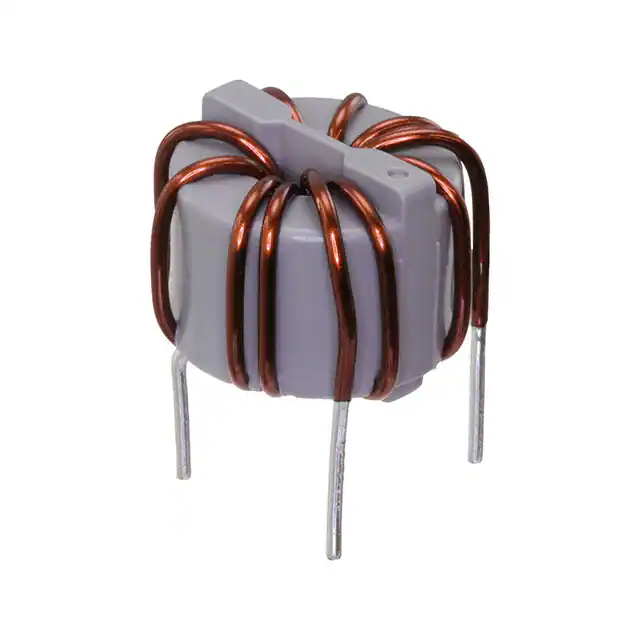

SC-10-D020H CMC 20UH 10A 2LN TH KEMET	460	4.98	- + FFQ	Datasheet	Tray	SC	Active	Power Line	2	-	20 µH @ 100 kHz	10A	6.5mOhm	250V	250V	25°C ~ 105°C	-	-	-	Through Hole	0.945 Dia (24.00mm)	0.787 (20.00mm)
