Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

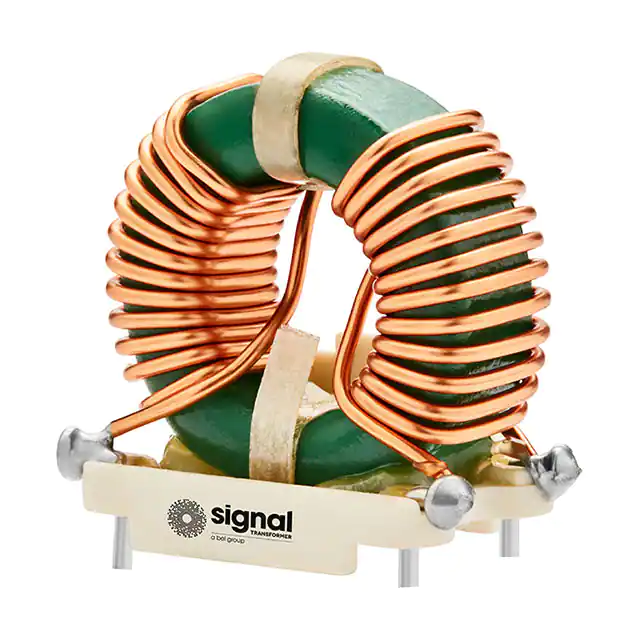

HCTC-1-10 CMC 1MH 10A 2LN TH Signal Transformer	2,158	5.95	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	1 mH @ 1 kHz	10A	10mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.400 W (30.48mm x 10.16mm)	1.200 (30.48mm)

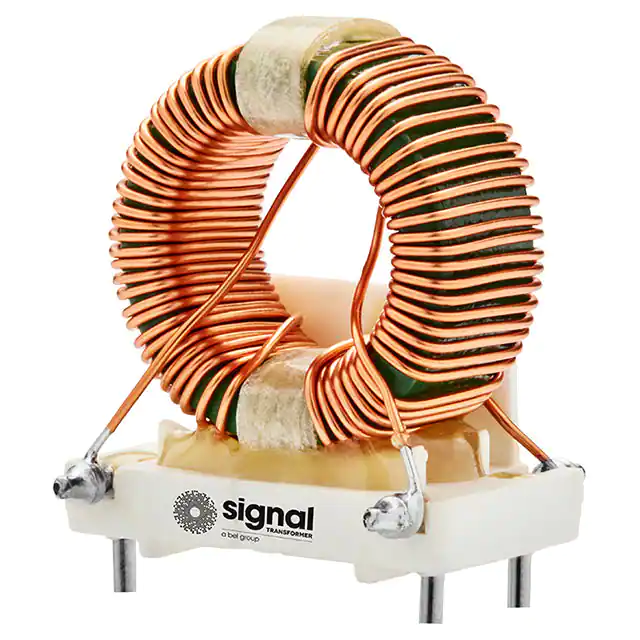

HCTC-2.5-2.4 CMC 2.5MH 2.4A 2LN TH Signal Transformer	3,366	3.73	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	2.5 mH @ 1 kHz	2.4A	90mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.760 L x 0.455 W (19.30mm x 11.56mm)	0.900 (22.86mm)

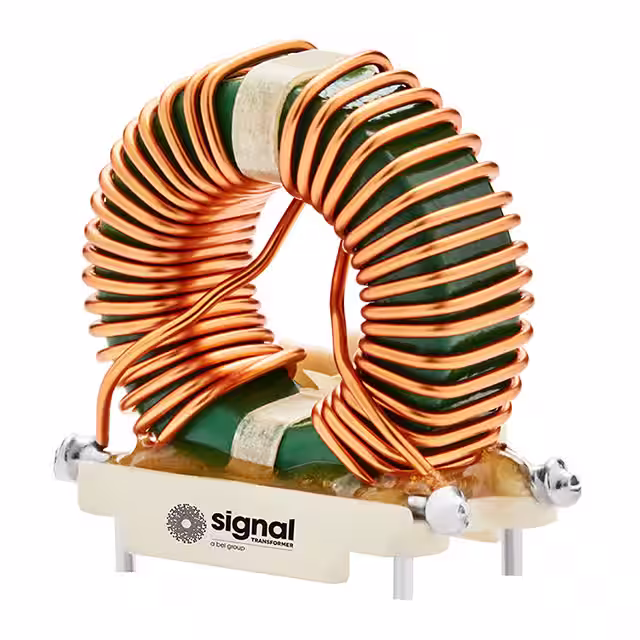

HCTC-2-6.6 CMC 2MH 6.6A 2LN TH Signal Transformer	2,782	5.95	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	2 mH @ 1 kHz	6.6A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.400 W (30.48mm x 10.16mm)	1.200 (30.48mm)

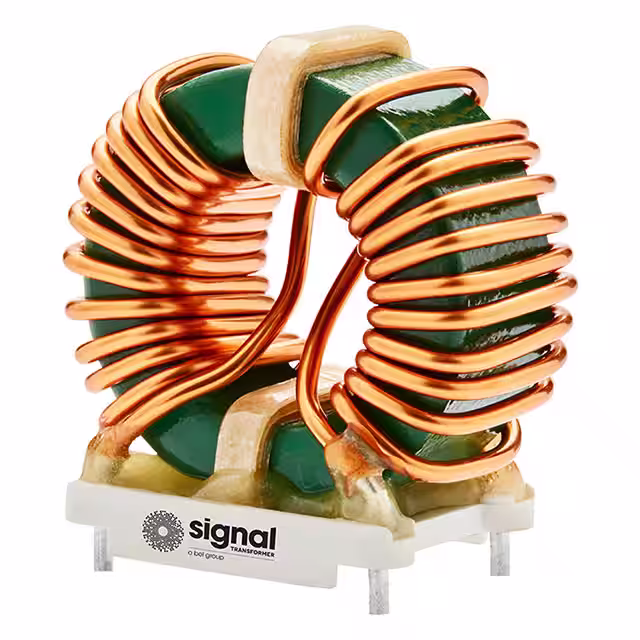

HCTC-1.2-16 CMC 1.2MH 16A 2LN TH Signal Transformer	368	9.51	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	1.2 mH @ 1 kHz	16A	6mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.500 L x 0.600 W (38.10mm x 15.24mm)	1.530 (38.86mm)

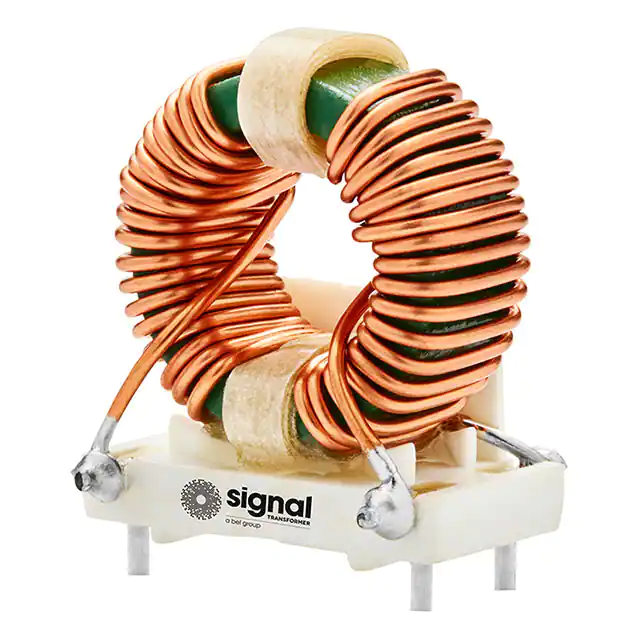

HCTC-1-4.8 CMC 1MH 4.8A 2LN TH Signal Transformer	3,342	3.82	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	1 mH @ 1 kHz	4.8A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.760 L x 0.455 W (19.30mm x 11.56mm)	0.900 (22.86mm)

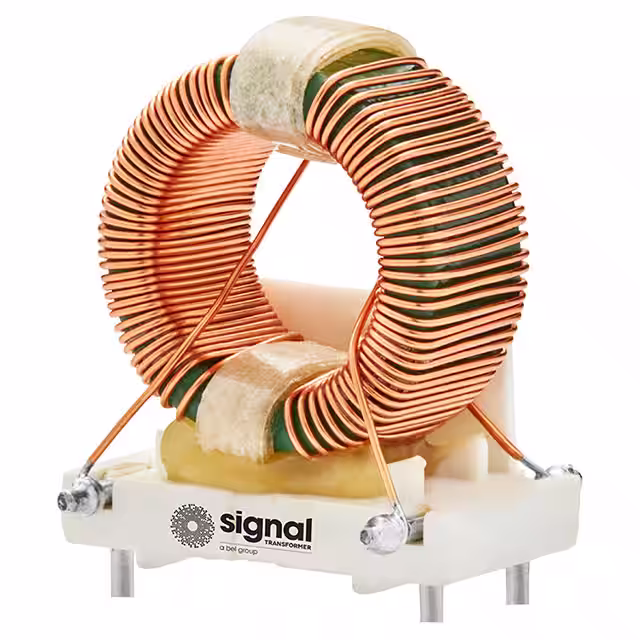

HCTC-4-1.7 CMC 4MH 1.7A 2LN TH Signal Transformer	2,023	3.85	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	4 mH @ 1 kHz	1.7A	173mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.760 L x 0.455 W (19.30mm x 11.56mm)	0.900 (22.86mm)

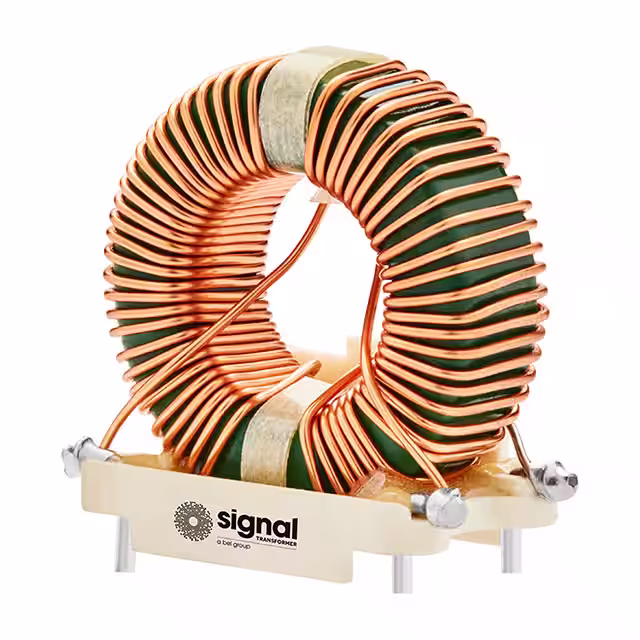

HCTC-5-3.7 CMC 5MH 3.7A 2LN TH Signal Transformer	2,375	5.81	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	5 mH @ 1 kHz	3.7A	70mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.400 W (30.48mm x 10.16mm)	1.200 (30.48mm)

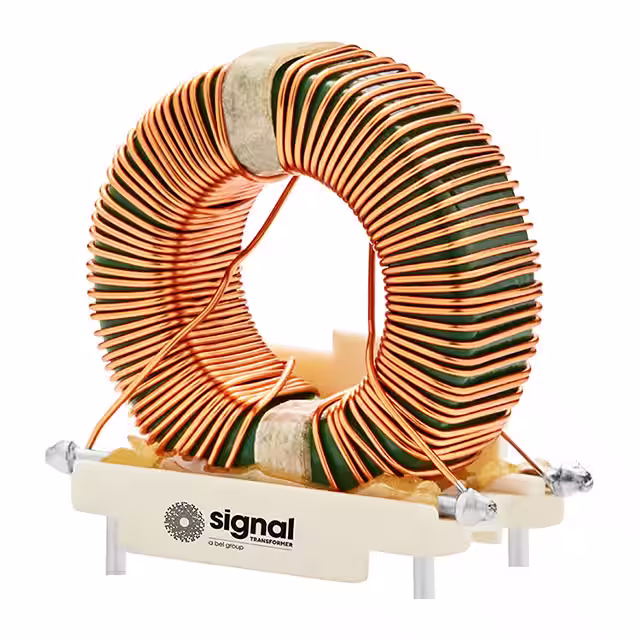

HCTC-10-2.4 CMC 10MH 2.4A 2LN TH Signal Transformer	3,610	5.81	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	10 mH @ 1 kHz	2.4A	170mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.400 W (30.48mm x 10.16mm)	1.200 (30.48mm)

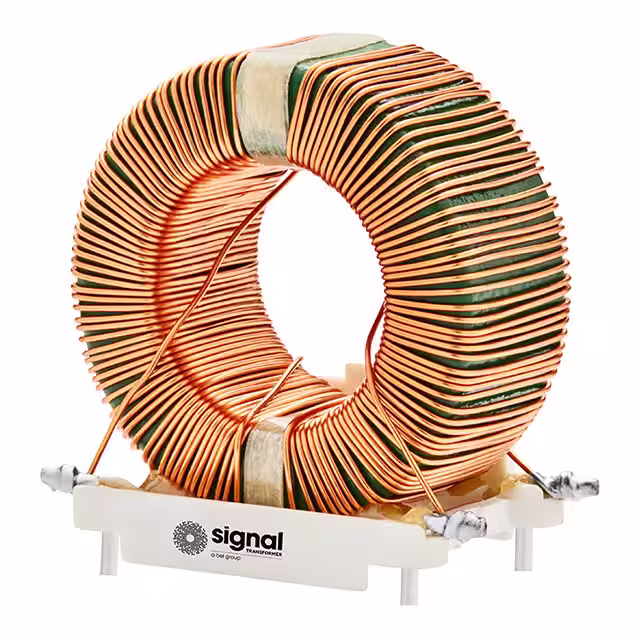

HCTC-30-2.3 CMC 30MH 2.3A 2LN TH Signal Transformer	418	8.30	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	30 mH @ 1 kHz	2.3A	330mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)

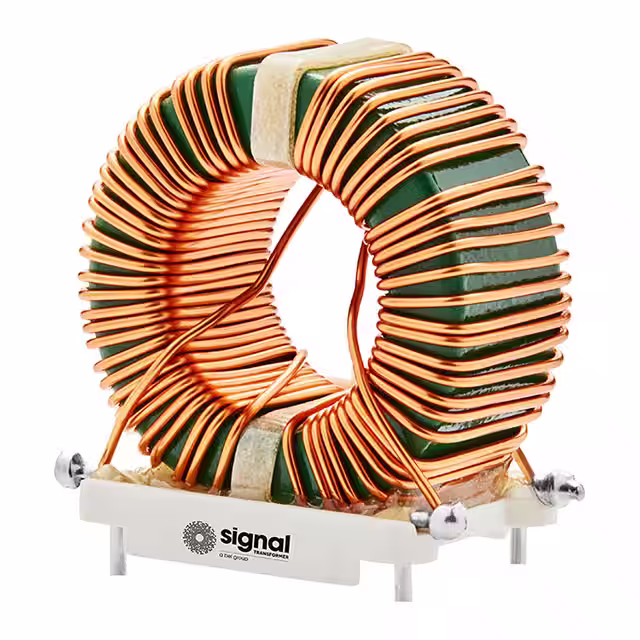

HCTC-8-5.6 CMC 8MH 5.6A 2LN TH Signal Transformer	384	8.59	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	8 mH @ 1 kHz	5.6A	55mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)

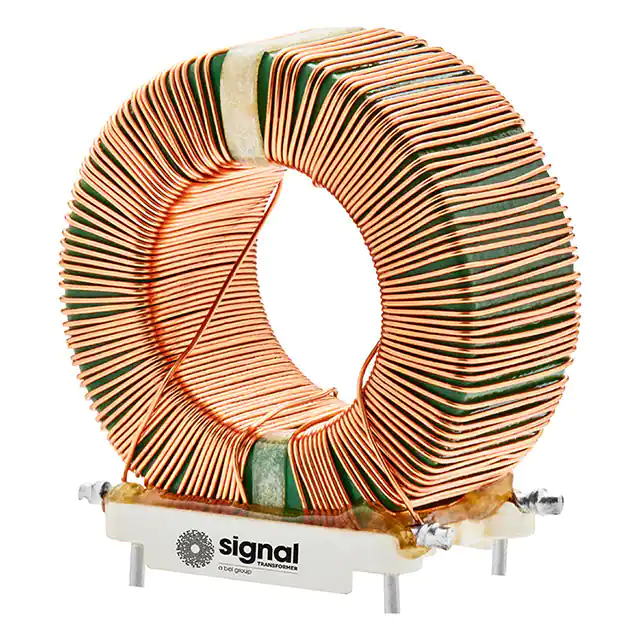

HCTC-50-2.3 CMC 50MH 2.3A 2LN TH Signal Transformer	292	9.65	- + FFQ	Datasheet	Tray	HCTC	Active	Power Line	2	-	50 mH @ 1 kHz	2.3A	450mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.550 L x 0.600 W (39.37mm x 15.24mm)	1.650 (41.91mm)

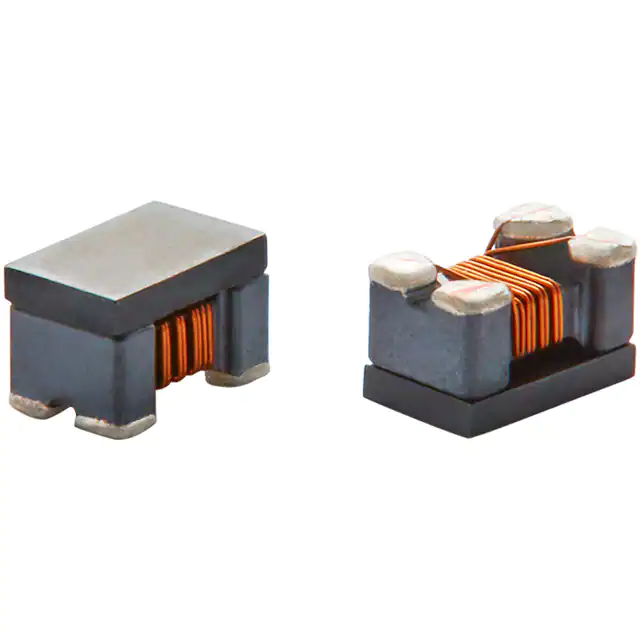

SPDL3216-222-2P-T CMC 200MA 2LN 2.2KOHM SMD Signal Transformer	2,931	0.88	- + FFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	SPDL3216	Active	Signal Line	2	2.2 kOhms @ 100 MHz	-	200mA	1.2Ohm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.079 (2.00mm)

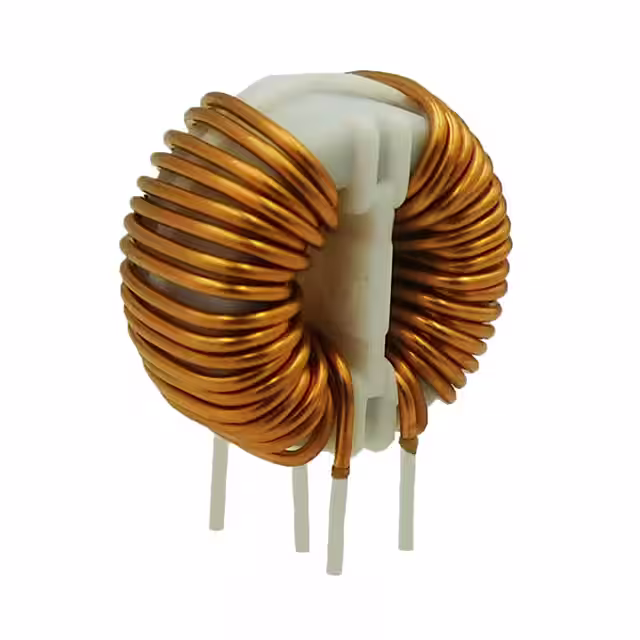

LPTC-V-0.85-5-35 COMMON MODE CHOKE TOROID 0.85MH Signal Transformer	2,926	3.24	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	850 µH @ 1 kHz	5A	35mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.866 Dia x 0.512 L (22.00mm x 13.00mm)	0.827 (21.00mm)

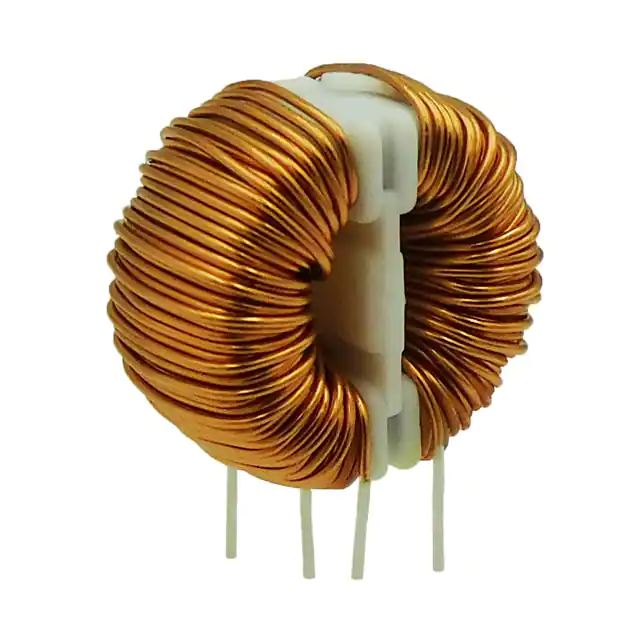

LPTC-V-6.8-2-200 COMMON MODE CHOKE TOROID 6.8MH Signal Transformer	478	3.50	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	6.8 mH @ 1 kHz	2A	200mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.866 Dia x 0.512 L (22.00mm x 13.00mm)	0.827 (21.00mm)

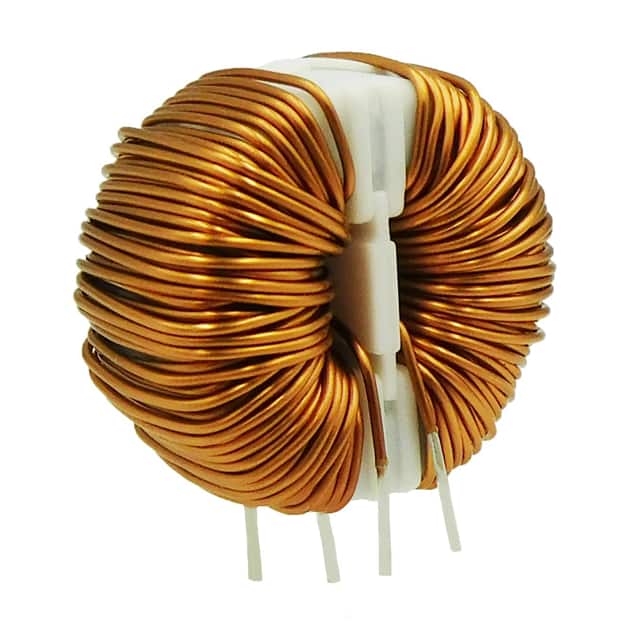

LPTC-V-25.5-4-130 COMMON MODE CHOKE TOROID 25.5MH Signal Transformer	307	5.95	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	25.5 mH @ 1 kHz	4A	130mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	1.260 Dia x 0.827 L (32.00mm x 21.00mm)	1.220 (31.00mm)
SPDL2012-900-2P-T CMC 400MA 2LN 90 OHM SMD AECQ200 Signal Transformer	3,488	0.59	- + FFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	SPDL2012	Active	Signal Line	2	90 Ohms @ 100 MHz	-	400mA	300mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.047 (1.20mm)
SPDL3225-101-2P-T CMC 100UH 150MA 2LN SMD AEC-Q200 Signal Transformer	2,425	1.47	- + FFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	SPDL3225	Active	Signal Line	2	5.1 kOhms @ 10 MHz	100 µH @ 100 kHz	150mA	1.5Ohm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.130 L x 0.098 W (3.30mm x 2.50mm)	0.098 (2.50mm)

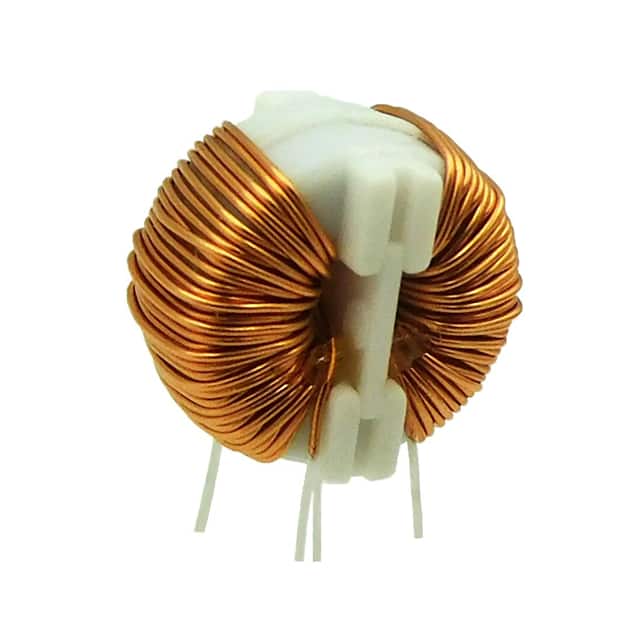

LPTC-V-4.25-1-150 COMMON MODE CHOKE TOROID 4.24MH Signal Transformer	2,589	3.11	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	4.25 mH @ 1 kHz	1A	150mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.709 Dia x 0.512 L (18.00mm x 13.00mm)	0.669 (17.00mm)

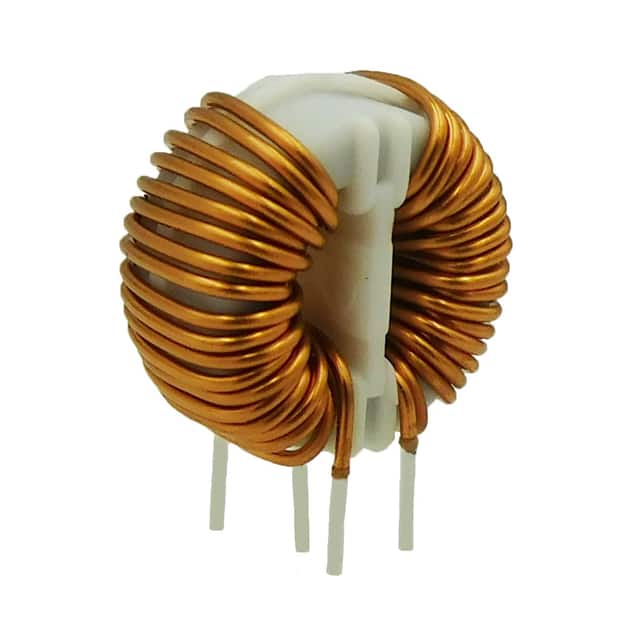

LPTC-V-0.85-3-30 COMMON MODE CHOKE TOROID 0.85MH Signal Transformer	525	3.14	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	850 µH @ 1 kHz	3A	30mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.709 Dia x 0.512 L (18.00mm x 13.00mm)	0.669 (17.00mm)

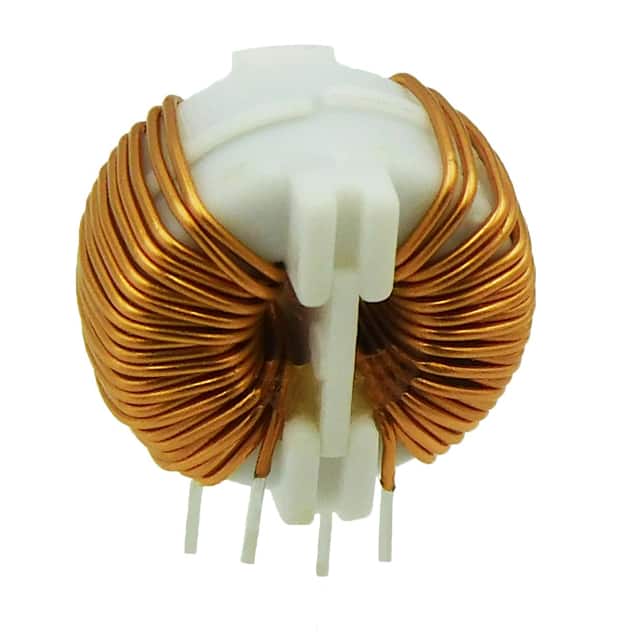

LPTC-V-1.7-2-60 COMMON MODE CHOKE TOROID 1.7MH Signal Transformer	492	3.14	- + FFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	1.7 mH @ 1 kHz	2A	60mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.709 Dia x 0.512 L (18.00mm x 13.00mm)	0.669 (17.00mm)
