| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT505090-10F2-LP-GTX 1 COIL, 1 LYR 6.3UH |
3,078 | 4.88 |
RFQ |
Datasheet |
Tray | WT | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - |
|
IWTXA148DGEB9R8KF3WIRELESS CHARGING TRANSMIT COIL |
2,127 | 4.93 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 7A | - | - | -40°C ~ 125°C |
|
|
IWTXA653FZEB120KF3WIRELESS CHARGING TRANSMIT COIL |
3,403 | 5.21 |
RFQ |
Datasheet |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz | 6.5A | - | - | -40°C ~ 85°C |
|
|
AWCCA-TX535315-101WIRELESS CHARGING COIL |
2,634 | 5.63 |
RFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm | 135 @ 125kHz | - | - | - | -40°C ~ 85°C |
|

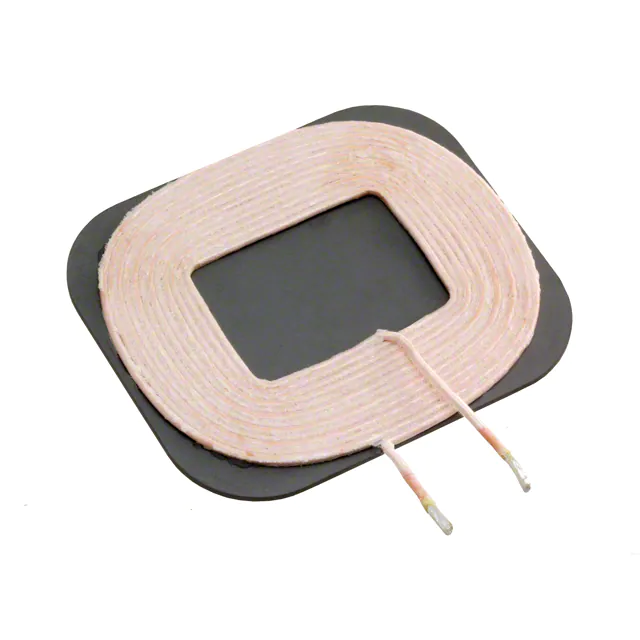

SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
2,960 | 6.14 |
RFQ |
Datasheet |
Box | SWC | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C |
|
WTSQ-10R0K-MP-A5SINGLE-COIL SQUARE BASE WIRELESS |
2,899 | 6.63 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 48mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C |
|
|
AWCCA-TX1005545-F002WIRELESS CHARGING COIL |
3,615 | 6.83 |
RFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 75mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

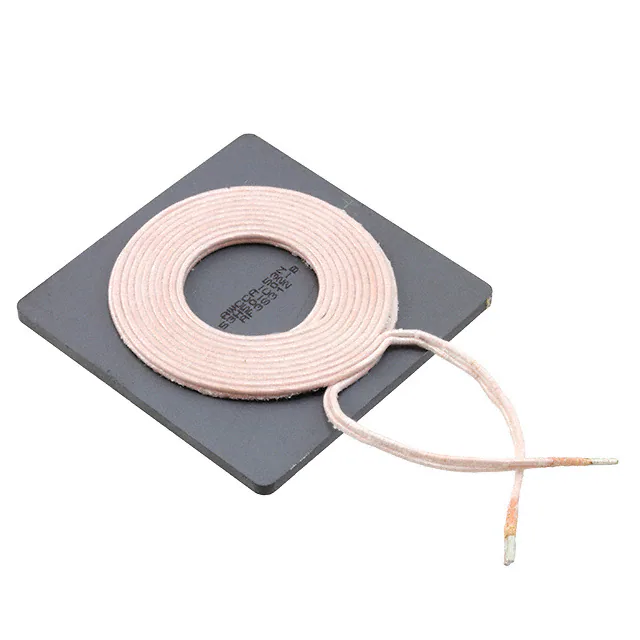

AWCCA-53N53H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11A |
3,619 | 8.30 |
RFQ |
Datasheet |
Box | AWCCA-53N53 | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 66 @ 100kHz | 11A | 40A | 6.4MHz | -25°C ~ 85°C |
|

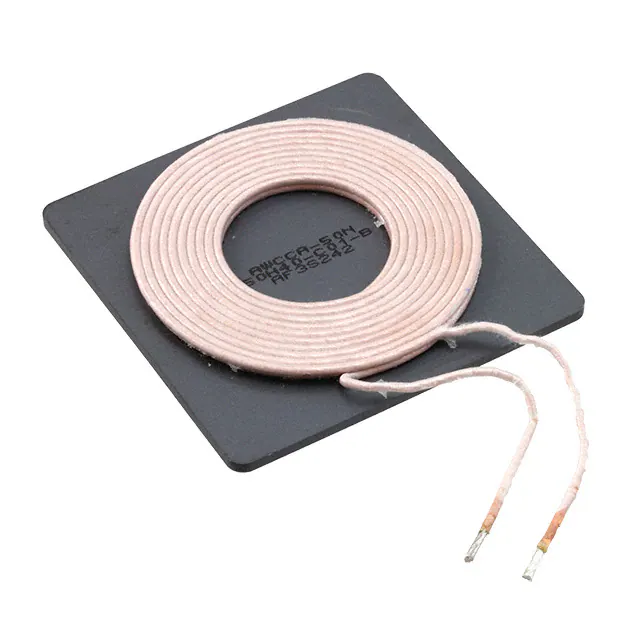

AWCCA-50N50H40-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
3,785 | 8.96 |
RFQ |
Datasheet |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 165 @ 100kHz | 5.7A | 27A | 2.9MHz | -25°C ~ 85°C |
|
WTM-7R1K-A28DOUBLE-COIL WIRELESS CHARGING CO |
3,379 | 10.26 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 2 Coil, 1 Layer | 7.1µH | ±10% | 45mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C |
|
WTM-7R3K-S7DOUBLE-COIL WIRELESS CHARGING CO |
2,048 | 10.97 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 2 Coil, 1 Layer | 7.3µH | ±10% | 50mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C |
|
WTM-7R0K-A28MULTI-COIL WIRELESS CHARGING COI |
2,105 | 10.97 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 3 Coil, 1 Layer | 6.5µH, 7µH | ±10% | 45mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C |
|

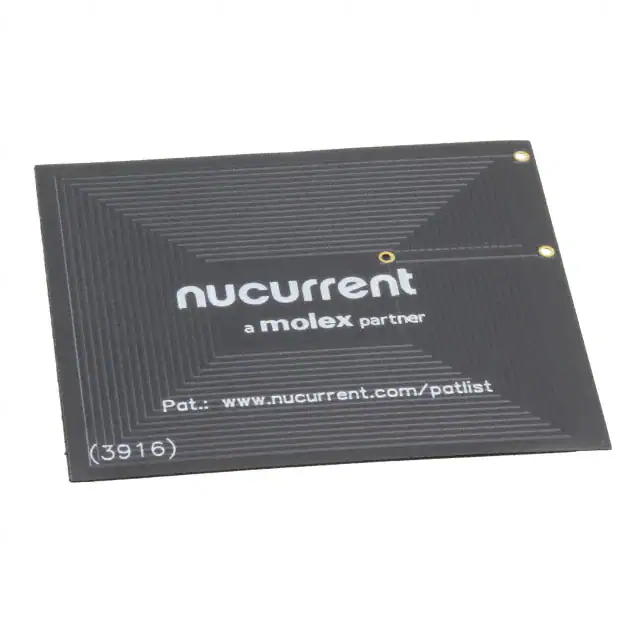

1461790001RX 1 COIL 1 LAYER 17.3UH |
2,280 | 11.14 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 1 Coil, 1 Layer | 17.3µH | ±2% | 450mOhm | - | - | - | - | - |
|
|
WT1005690-11F2-M9-GTX COIL UNIT |
2,380 | 11.26 |
RFQ |
Box | WT | Active | - | - | - | - | - | - | - | - | - | - | |
|

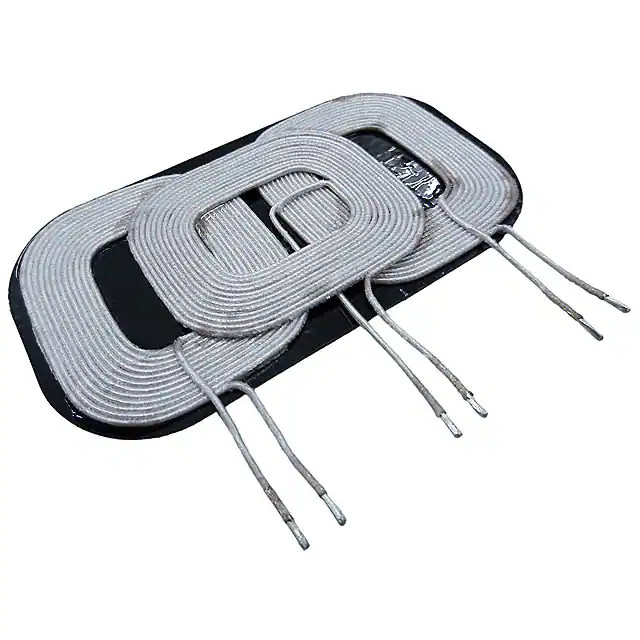

WT-1005660-12K2-A6-GTX 3 COIL 1 LYR 12.5UH/11.5UH |
3,584 | 15.96 |
RFQ |
Datasheet |
Tray | WT | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C |
|
CTTX504424SF-6R3KWIRELESS TRANSMITTER COIL |
3,597 | 3.00 |
RFQ |
Bulk | CTTX504424SF | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | |
|
|

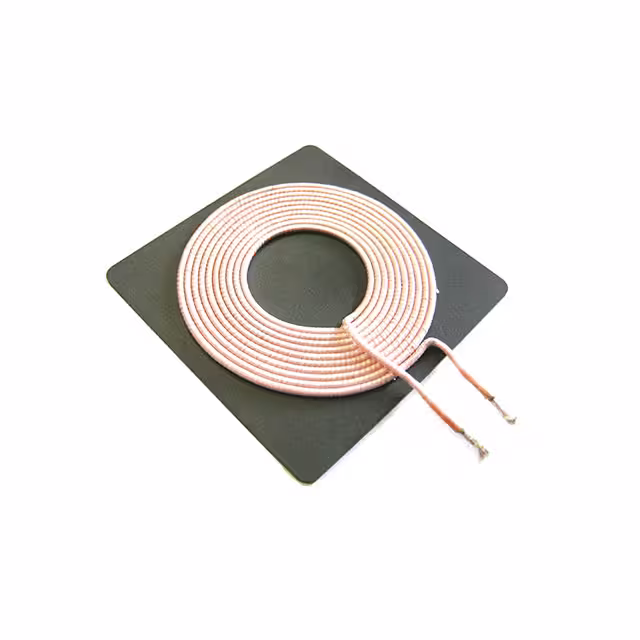

CTTX505024SF-6R3KWIRELESS TRANSMITTER COIL |
2,324 | 3.19 |
RFQ |
Bulk | CTTX505024SF | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | |
|

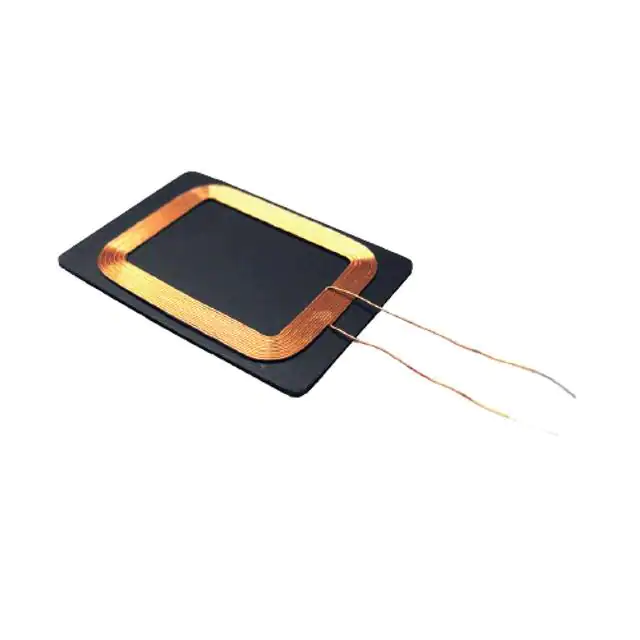

CTRX324517SF-140KWIRELESS RECEIVER COIL |
3,004 | 3.33 |
RFQ |
Bulk | CTRX324517SF | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm | - | 1.2A | - | - | -40°C ~ 85°C | |
|

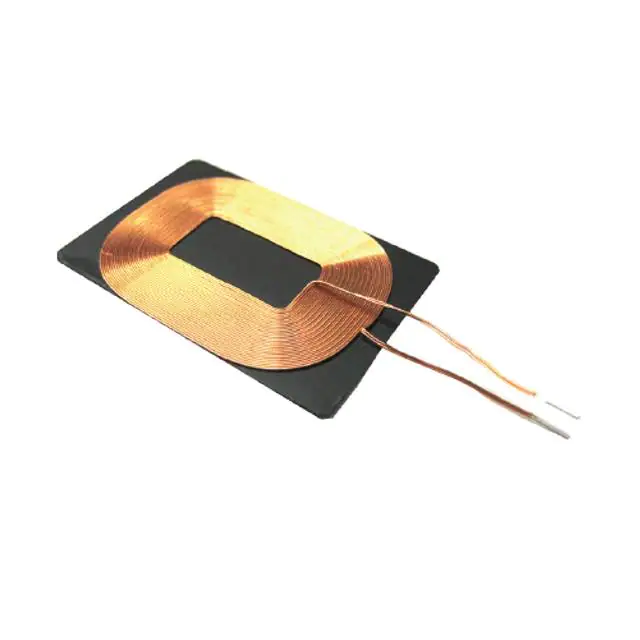

CTRX324815BF-120KWIRELESS RECEIVER COIL |
2,231 | 4.07 |
RFQ |
Bulk | CTRX324815BF | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm | - | 3A | - | - | -40°C ~ 85°C | |
|

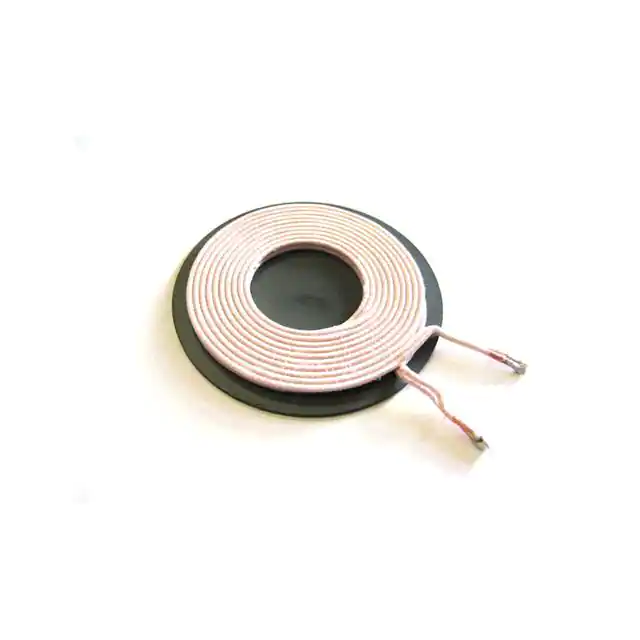

CTTX504335BF-6R3KWIRELESS TRANSMITTER COIL |
2,141 | 4.62 |
RFQ |
Bulk | CTTX504335BF | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 25mOhm | - | 10A | - | - | -40°C ~ 85°C |
