Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Current-CollectorPulsed(Icm)	Vce(on)(Max)@VgeIc	Power-Max	SwitchingEnergy	InputType	GateCharge	Td(on/off)@25°C	TestCondition	ReverseRecoveryTime(trr)	OperatingTemperature	MountingType
IXBT42N300HV IGBT 3000V 42A 357W TO268 IXYS	2,222	52.61	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	104 A	400 A	3V @ 15V, 42A	500 W	-	Standard	200 nC	72ns/445ns	1500V, 42A, 20Ohm, 15V	1.7 µs	-55°C ~ 150°C (TJ)	Surface Mount

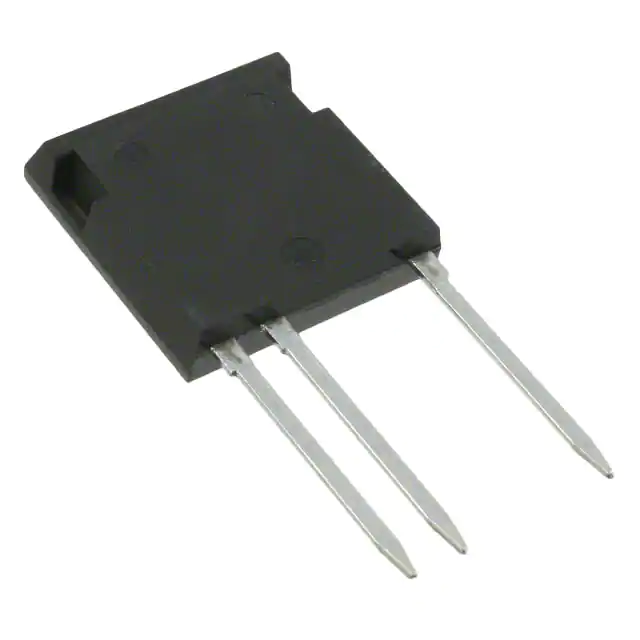

IXBF20N360 IGBT 3600V 45A ISOPLUS I4PAK IXYS	2,610	60.06	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3600 V	45 A	220 A	3.4V @ 15V, 20A	230 W	15.5mJ (on), 4.3mJ (off)	Standard	43 nC	18ns/238ns	1500V, 20A, 10Ohm, 15V	1.7 µs	-55°C ~ 150°C (TJ)	Through Hole
IXBH32N300 IGBT 3000V 80A 400W TO247 IXYS	2,386	94.25	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	80 A	280 A	3.2V @ 15V, 32A	400 W	-	Standard	142 nC	-	-	1.5 µs	-55°C ~ 150°C (TJ)	Through Hole
IXBK55N300 IGBT 3000V 130A 625W TO264 IXYS	2,096	102.78	- + RFQ	Datasheet	Tube	BIMOSFET™	Active	-	3000 V	130 A	600 A	3.2V @ 15V, 55A	625 W	-	Standard	335 nC	-	-	1.9 µs	-55°C ~ 150°C (TJ)	Through Hole
IKD06N60RC2ATMA1 IKD06N60RC2ATMA1 Infineon Technologies	3,325	1.19	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchStop™	Active	Trench Field Stop	600 V	11.7 A	18 A	2.3V @ 15V, 6A	51.7 W	170µJ (on), 80µJ (off)	Standard	31 nC	6ns/129ns	400V, 6A, 49Ohm, 15V	98 ns	-40°C ~ 175°C (TJ)	Surface Mount
FGD3N60UNDF IGBT 600V 6A 60W DPAK onsemi	2,338	1.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	NPT	600 V	6 A	9 A	2.52V @ 15V, 3A	60 W	52µJ (on), 30µJ (off)	Standard	1.6 nC	5.5ns/22ns	400V, 3A, 10Ohm, 15V	21 ns	-55°C ~ 150°C (TJ)	Surface Mount
FGD5T120SH IGBT 1200V 5A FS3 DPAK onsemi	3,715	1.74	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Trench Field Stop	1200 V	10 A	12.5 A	3.6V @ 15V, 5A	69 W	247µJ (on), 94µJ (off)	Standard	6.7 nC	4.8ns/24.8ns	600V, 5A, 30Ohm, 15V	-	-55°C ~ 150°C (TJ)	Surface Mount
RGPR30BM40HRTL 400V 30A IGNITION IGBT Rohm Semiconductor	3,559	0.89	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Not For New Designs	-	430 V	30 A	-	2.0V @ 5V, 10A	125 W	-	Standard	22 nC	500ns/4µs	300V, 8A, 100Ohm, 5V	-	-40°C ~ 175°C (TJ)	Surface Mount
FGD3050G2 IGBT 500V 27A DPAK-3 onsemi	2,653	2.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, EcoSPARK®	Active	-	500 V	32 A	-	1.2V @ 4V, 6A	150 W	-	Logic	22 nC	-	-	-	-40°C ~ 175°C (TJ)	Surface Mount
RGT16BM65DTL IGBT Rohm Semiconductor	2,585	2.21	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Trench Field Stop	650 V	16 A	24 A	2.1V @ 15V, 8A	94 W	-	Standard	21 nC	13ns/33ns	400V, 8A, 10Ohm, 15V	42 ns	-40°C ~ 175°C (TJ)	Surface Mount
STGB3NC120HDT4 IGBT 1200V 14A 75W D2PAK STMicroelectronics	2,966	2.37	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PowerMESH™	Active	-	1200 V	14 A	20 A	2.8V @ 15V, 3A	75 W	236µJ (on), 290µJ (off)	Standard	24 nC	15ns/118ns	800V, 3A, 10Ohm, 15V	51 ns	-55°C ~ 150°C (TJ)	Surface Mount
RGT16NL65DGTL FIELD STOP TRENCH IGBT Rohm Semiconductor	3,077	2.71	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Trench Field Stop	650 V	16 A	24 A	2.1V @ 15V, 8A	94 W	-	Standard	21 nC	13ns/33ns	400V, 8A, 10Ohm, 15V	42 ns	-40°C ~ 175°C (TJ)	Surface Mount
RGT40NS65DGTL IGBT 650V 40A 161W TO-263S Rohm Semiconductor	2,487	2.79	- + RFQ	Datasheet	Cut Tape (CT)	-	Not For New Designs	Trench Field Stop	650 V	40 A	60 A	2.1V @ 15V, 20A	161 W	-	Standard	40 nC	22ns/75ns	400V, 20A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Surface Mount
STGP10NC60KD IGBT 600V 20A 65W TO220 STMicroelectronics	3,202	1.66	- + RFQ	Datasheet	Tube	PowerMESH™	Active	-	600 V	20 A	30 A	2.5V @ 15V, 5A	65 W	55µJ (on), 85µJ (off)	Standard	19 nC	17ns/72ns	390V, 5A, 10Ohm, 15V	22 ns	-55°C ~ 150°C (TJ)	Through Hole
ISL9V3040S3ST IGBT 430V 21A TO263AB onsemi	2,746	2.84	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EcoSPARK®	Active	-	430 V	21 A	-	1.6V @ 4V, 6A	150 W	-	Logic	17 nC	-/4.8µs	300V, 1kOhm, 5V	-	-40°C ~ 175°C (TJ)	Surface Mount
STGP7NC60HD IGBT 600V 25A 80W TO220 STMicroelectronics	2,548	1.70	- + RFQ	Datasheet	Tube	PowerMESH™	Active	-	600 V	25 A	50 A	2.5V @ 15V, 7A	80 W	95µJ (on), 115µJ (off)	Standard	35 nC	18.5ns/72ns	390V, 7A, 10Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	Through Hole
RGT40NL65DGTL FIELD STOP TRENCH IGBT Rohm Semiconductor	3,137	3.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Trench Field Stop	650 V	40 A	60 A	2.1V @ 15V, 20A	161 W	-	Standard	40 nC	22ns/75ns	400V, 20A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Surface Mount
STGB19NC60HDT4 IGBT 600V 40A 130W D2PAK STMicroelectronics	2,318	2.84	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PowerMESH™	Active	-	600 V	40 A	60 A	2.5V @ 15V, 12A	130 W	85µJ (on), 189µJ (off)	Standard	53 nC	25ns/97ns	390V, 12A, 10Ohm, 15V	31 ns	-55°C ~ 150°C (TJ)	Surface Mount
HGT1S10N120BNST IGBT 1200V 35A 298W TO263AB onsemi	2,041	2.85	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	NPT	1200 V	35 A	80 A	2.7V @ 15V, 10A	298 W	320µJ (on), 800µJ (off)	Standard	100 nC	23ns/165ns	960V, 10A, 10Ohm, 15V	-	-55°C ~ 150°C (TJ)	Surface Mount
RGT50NL65DGTL FIELD STOP TRENCH IGBT Rohm Semiconductor	2,793	3.55	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Trench Field Stop	650 V	48 A	75 A	2.1V @ 15V, 25A	194 W	-	Standard	49 nC	27ns/88ns	400V, 25A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Surface Mount
