Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FZ1800R17KF4NOSA1 FZ1800R17 - INSULATED GATE BIPOL Infineon Technologies	2,096	1735.16	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	3 Independent	1200 V	3560 A	13500 W	2.1V @ 15V, 2.4kA	5 mA	150 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

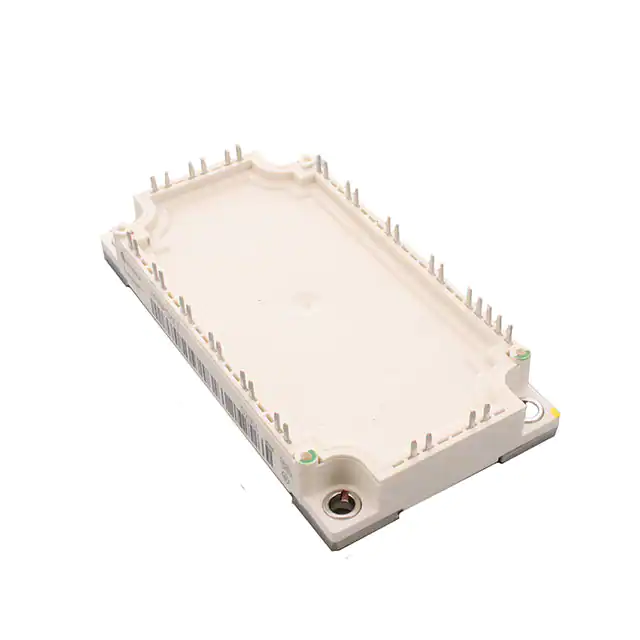

FP75R12KE3BOSA1 IGBT MOD 1200V 105A 355W Infineon Technologies	3,575	205.98	- + RFQ	Datasheet	Tray	-	Active	NPT	Single	1200 V	105 A	355 W	2.2V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FZ3600R17KE3B2NOSA1 FZ3600R17KE3 - IGBT MODULE Infineon Technologies	494	1892.90	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
APT75GN120JDQ3 IGBT MOD 1200V 124A 379W ISOTOP Microchip Technology	3,383	36.10	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	1200 V	124 A	379 W	2.1V @ 15V, 75A	200 µA	4.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
F3L25R12W1T4B27BOMA1 MODULE IGBT 1200V EASY1B-2 Infineon Technologies	3,911	39.64	- + RFQ	Datasheet	Tray	-	Active	-	Half Bridge	1200 V	45 A	215 W	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
IXYN140N120A4 IGBT 140A 1200V SOT227B MINIBLOC IXYS	3,353	46.97	- + RFQ	Datasheet	Tube	XPT™, GenX4™	Active	PT	Single	1200 V	380 A	1070 W	1.7V @ 15V, 140A	25 µA	8.3 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
FF400R17KE4HOSA1 IGBT MODULE 1700V 400A Infineon Technologies	3,818	317.17	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	Half Bridge	1700 V	400 A	-	2.3V @ 15V, 400A	1 mA	36 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount

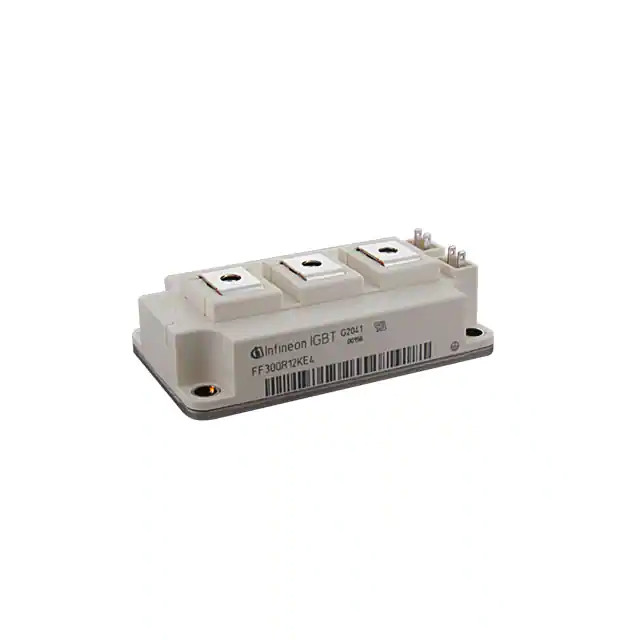

FF300R12KE4HOSA1 IGBT MOD 1200V 460A 1600W Infineon Technologies	3,668	168.07	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	2 Independent	1200 V	460 A	1600 W	2.15V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
APT150GN60JDQ4 IGBT MOD 600V 220A 536W ISOTOP Microchip Technology	2,428	39.09	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	600 V	220 A	536 W	1.85V @ 15V, 150A	50 µA	9.2 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
IXYN120N120C3 IGBT MOD 1200V 240A SOT227B IXYS	3,847	40.03	- + RFQ	Datasheet	Tube	XPT™, GenX3™	Active	-	Single	1200 V	240 A	1200 W	3.2V @ 15V, 120A	25 µA	-	Standard	No	-55°C ~ 175°C (TJ)	Surface Mount
FS50R06W1E3BOMA1 IGBT MODULE 600V 70A 205W Infineon Technologies	2,194	42.26	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	600 V	70 A	205 W	1.9V @ 15V, 50A	1 mA	95 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP25R12W1T7B11BPSA1 IGBT MODULE 1200V 25A 20MW EASY Infineon Technologies	3,029	56.59	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	20 mW	1.6V @ 15V, 25A (Typ)	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C	Chassis Mount
APT100GT120JRDQ4 IGBT MOD 1200V 123A 570W ISOTOP Microchip Technology	2,014	61.82	- + RFQ	Datasheet	Tube	Thunderbolt IGBT®	Active	NPT	Single	1200 V	123 A	570 W	3.7V @ 15V, 100A	200 µA	7.85 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount

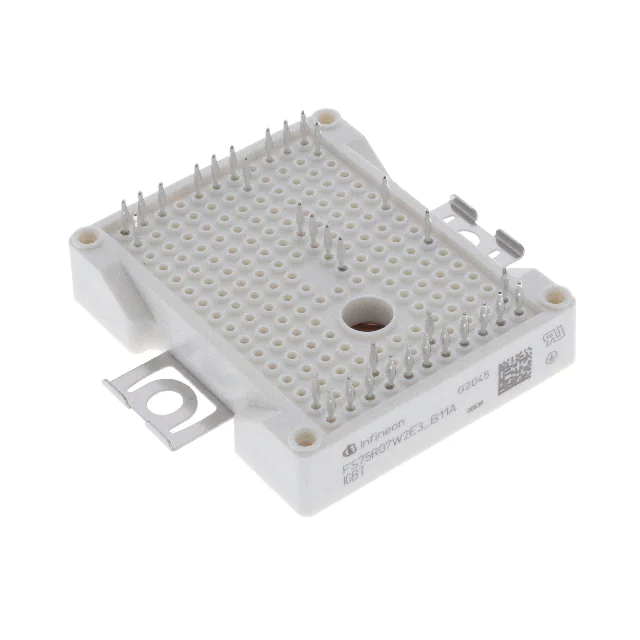

FS75R07W2E3B11ABOMA1 IGBT MODULES Infineon Technologies	3,208	68.25	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	275 W	1.9V @ 15V, 75A	50 µA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APT60GF120JRDQ3 IGBT MOD 1200V 149A 625W ISOTOP Microchip Technology	2,410	113.04	- + RFQ	Datasheet	Tube	-	Active	NPT	Single	1200 V	149 A	625 W	3V @ 15V, 100A	350 µA	7.08 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APTGT300SK60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	3,430	161.59	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-	Chassis Mount

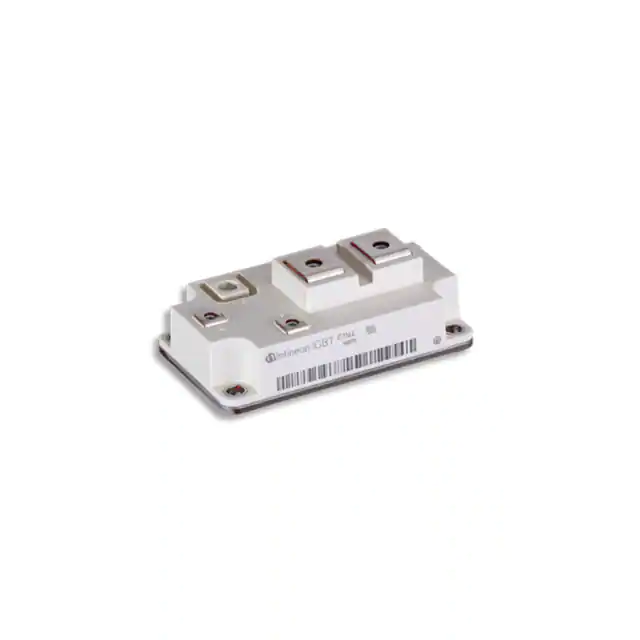

FZ400R17KE4HOSA1 MODULE IGBT 1700V AG-62MM-2 Infineon Technologies	3,084	168.19	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	Single	1700 V	550 A	2500 W	2.3V @ 15V, 400A	1 mA	49 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP10R12W1T4BOMA1 IGBT MOD 1200V 20A 105W Infineon Technologies	3,837	41.93	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	20 A	105 W	2.25V @ 15V, 10A	1 mA	600 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS200R07PE4BOSA1 IGBT MOD 650V 200A 600W Infineon Technologies	2,091	218.82	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	650 V	200 A	600 W	1.95V @ 15V, 200A	1 mA	12 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FF600R12IP4BOSA1 IGBT MOD 1200V 600A 3350W Infineon Technologies	3,571	521.24	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	1200 V	600 A	3350 W	2.05V @ 15V, 600A	5 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
