Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FS75R07U1E4BPSA1 IGBT MOD 650V 100A 275W Infineon Technologies	2,167	113.51	- + RFQ	Datasheet	Tray	SmartPACK1	Not For New Designs	Trench Field Stop	Full Bridge	650 V	100 A	275 W	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
APTGT35X120T3G IGBT MODULE 1200V 55A 208W SP3 Microchip Technology	2,148	114.03	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	55 A	208 W	2.1V @ 15V, 35A	250 µA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGLQ100H65T3G IGBT MODULE 650V 135A 350W SP3F Microchip Technology	2,237	114.35	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	650 V	135 A	350 W	2.3V @ 15V, 100A	50 µA	6.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

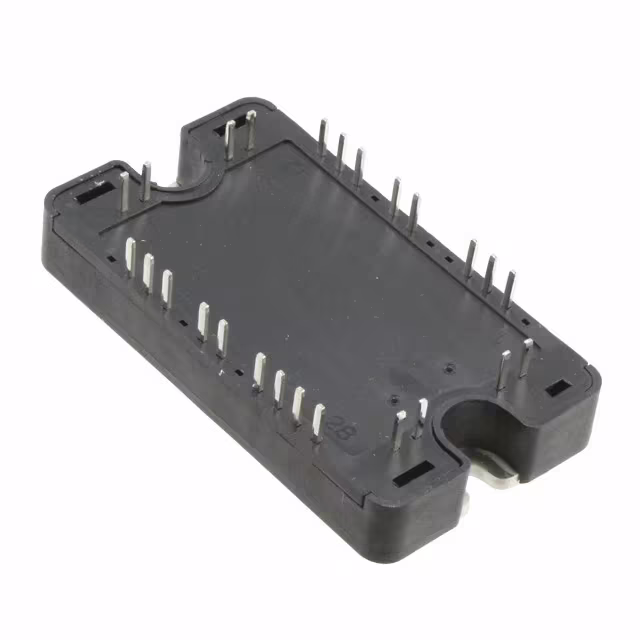

APTGT200A60T3AG IGBT MODULE 600V 290A 750W SP3 Microchip Technology	2,742	115.50	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	290 A	750 W	1.9V @ 15V, 200A	250 µA	12.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT30H170T3G IGBT MODULE 1700V 45A 210W SP3 Microchip Technology	3,001	115.71	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	1700 V	45 A	210 W	2.4V @ 15V, 30A	250 µA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
F3L200R12W2H3PB11BPSA1 MODULE IGBT 1200V EASY2B-2 Infineon Technologies	2,776	115.85	- + RFQ		Tray	EasyPACK™	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP75R07N2E4BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	2,879	111.70	- + RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	20 mW	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

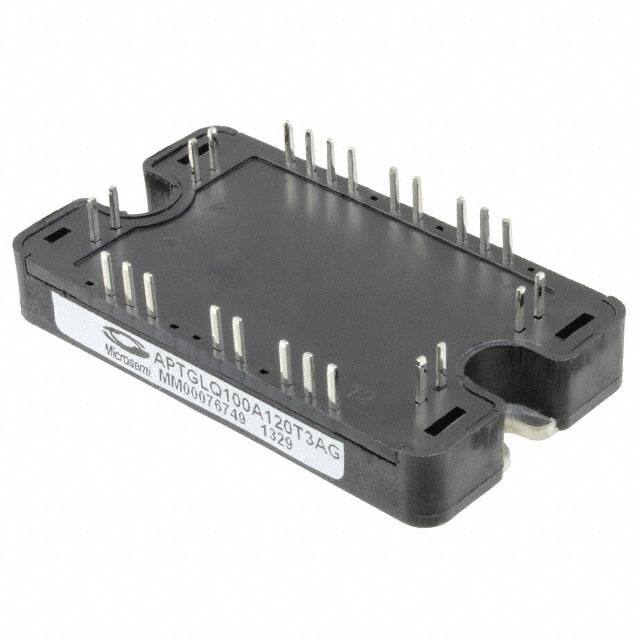

APTGLQ100A120T3AG IGBT MODULE 1200V 185A 650W SP3 Microchip Technology	2,068	116.25	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	185 A	650 W	2.4V @ 15V, 100A	50 µA	6.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
F3L200R07W2S5FPB55BPSA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	3,702	112.81	- + RFQ		Tray	-	Active	-	Single	-	-	-	-	-	-	Standard	No	-	-
F3L200R07W2S5FPB56BPSA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	2,308	112.81	- + RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

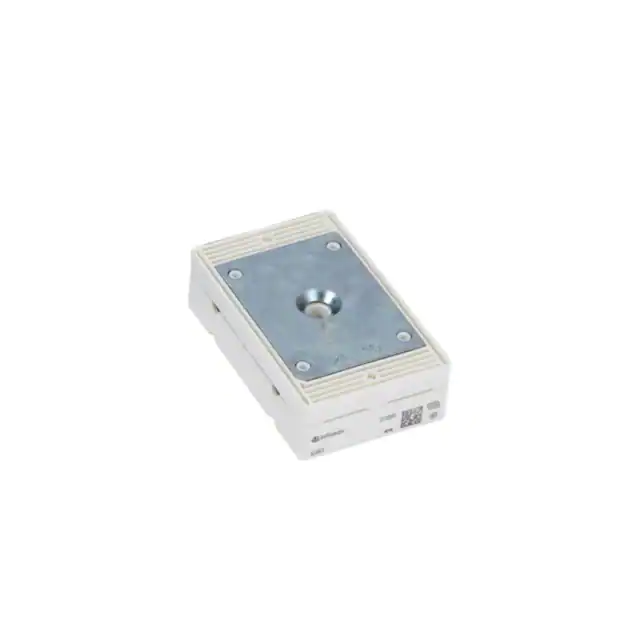

FP25R12U1T4BPSA1 IGBT MOD 1200V 39A 190W Infineon Technologies	2,433	112.84	- + RFQ	Datasheet	Bulk	SmartPIM1	Not For New Designs	Trench Field Stop	Three Phase Inverter	1200 V	39 A	190 W	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP75R07N2E4B11BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	3,240	113.09	- + RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	20 mW	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS100R07N2E4BOSA1 IGBT MOD 650V 100A 335W Infineon Technologies	3,156	118.04	- + RFQ	Datasheet	Bulk	EconoPACK™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	100 A	335 W	1.95V @ 15V, 100A	1 mA	6.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

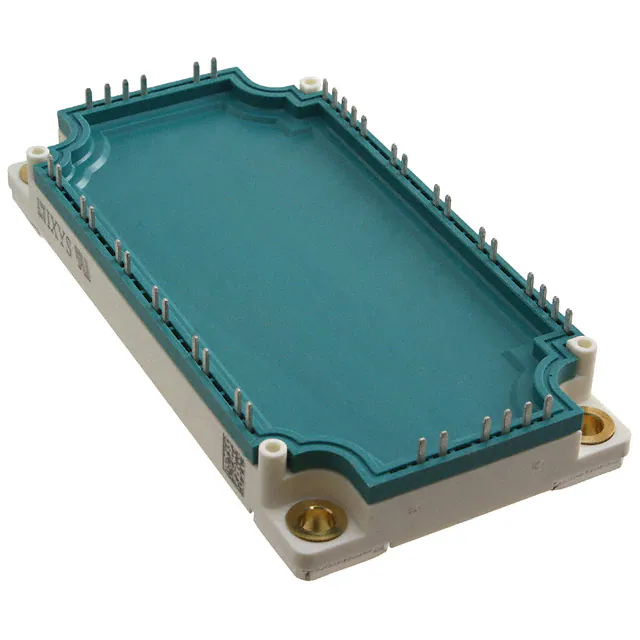

MIXA60WH1200TEH IGBT MODULE 1200V 85A 290W E3 IXYS	2,902	118.30	- + RFQ	Datasheet	Box	-	Active	-	Three Phase Inverter with Brake	1200 V	85 A	290 W	2.1V @ 15V, 55A	500 µA	-	Three Phase Bridge Rectifier	Yes	-	Chassis Mount
APTGT100SK170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	2,790	118.71	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT50A170TG IGBT MODULE 1700V 75A 312W SP4 Microchip Technology	3,245	118.74	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA81WB1200TEH IGBT MODULE 1200V 120A 390W E3 IXYS	3,853	119.35	- + RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	120 A	390 W	2.1V @ 15V, 75A	200 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

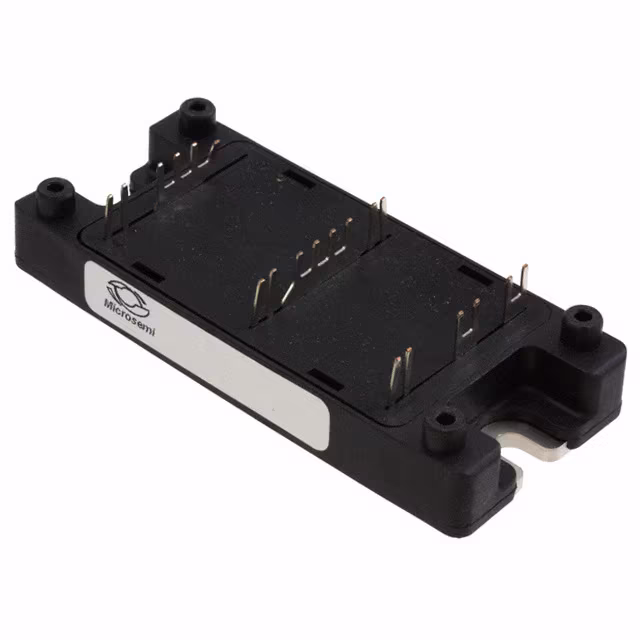

APTGT200DU60TG IGBT MODULE 600V 290A 625W SP4 Microchip Technology	3,529	119.38	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual, Common Source	600 V	290 A	625 W	1.9V @ 15V, 200A	250 µA	12.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXA80W1200PTEH IGBT MODULE SIXPACK E3-PACK-PF IXYS	2,089	119.80	- + RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
APTGT150DH60TG IGBT MODULE 600V 225A 480W SP4 Microchip Technology	3,857	120.87	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	600 V	225 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
