| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT105NA120UXIGBT MOD 1200V 134A 463W SOT227 |
3,288 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Trench | Single | 1200 V | 134 A | 463 W | - | 75 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
VS-GP300TD60SIGBT MOD 600V 580A INT-A-PAK |
3,591 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | PT, Trench | Half Bridge | 600 V | 580 A | 1136 W | 1.45V @ 15V, 300A | 150 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
VS-GP400TD60SIGBT MOD 600V 758A INT-A-PAK |
2,088 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | PT, Trench | Half Bridge | 600 V | 758 A | 1563 W | 1.52V @ 15V, 400A | 200 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
VS-100MT060WSPIGBT MODULE 600V 107A 403W MTP |
3,667 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Single | 600 V | 107 A | 403 W | 2.49V @ 15V, 60A | 100 µA | 9.5 nF @ 30 V | Single Phase Bridge Rectifier | Yes | 150°C (TJ) | Through Hole | |
|
|
VS-150MT060WDFIGBT MOD 600V 138A 12MTP PRESS |
2,070 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Dual Buck Chopper | 600 V | 138 A | 543 W | 2.48V @ 15V, 80A | 100 µA | 14 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | |
|
|
VS-GP100TS60SFPBFIGBT MOD 600V 337A INT-A-PAK |
3,348 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | PT, Trench | Half Bridge | 600 V | 337 A | 781 W | 1.34V @ 15V, 100A | 150 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
VS-GT200TP065NIGBT MOD 650V 221A INT-A-PAK |
2,532 | 0.00 |
RFQ |
Tube | - | Obsolete | Trench | Half Bridge | 650 V | 221 A | 600 W | 2.12V @ 15V, 200A | 60 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | |
|

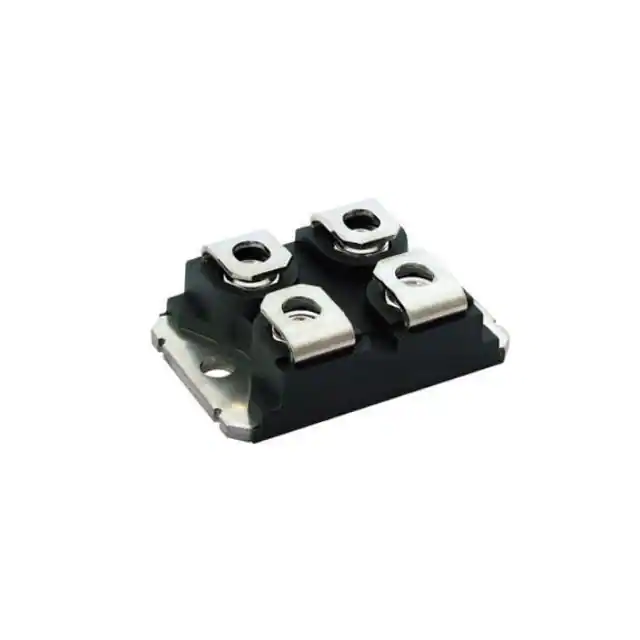

VS-GP250SA60SIGBT MOD 600V 380A 893W SOT227 |
2,618 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | PT, Trench | Single | 600 V | 380 A | 893 W | 1.3V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
VS-GA100TS60SFIGBT MOD 600V 220A INT-A-PAK |
3,629 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PT | Half Bridge | 600 V | 220 A | 780 W | 1.28V @ 15V, 100A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
VS-GT75LP120NIGBT MOD 1200V 150A INT-A-PAK |
2,685 | 0.00 |
RFQ |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 150 A | 543 W | 2.35V @ 15V, 75A | 5 mA | 5.52 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | |
|
|
CM100DY-34TMOD IGBT 100A 1700V DUAL |
3,488 | 0.00 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CM100TX-24TIGBT MOD 1200V 100A 565W |
2,963 | 0.00 |
RFQ |
Bulk | T | Discontinued at Mosen | - | Three Phase Inverter | 1200 V | 100 A | 565 W | 1.95V @ 15V, 100A | 1 mA | 20.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | |
|
|
CM225DX-24TIGBT MOD 1200V 225A 1470W |
2,349 | 0.00 |
RFQ |
Bulk | T | Discontinued at Mosen | - | Half Bridge | 1200 V | 225 A | 1470 W | 17.5V @ 15V, 225A | 1 mA | 55 nF @ 10 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
|
|
CM100TJ-24FIGBT MOD 1200V 100A 390W |
2,858 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | Trench | Three Phase Inverter | 1200 V | 100 A | 390 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Three Phase Bridge Rectifier | No | -40°C ~ 150°C | Chassis Mount | |
|
|
CM75TJ-24FIGBT MOD 1200V 75A 357W |
3,242 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | Trench | Three Phase Inverter | 1200 V | 75 A | 357 W | 2.4V @ 15V, 75A | 1 mA | 29 nF @ 10 V | Three Phase Bridge Rectifier | No | -40°C ~ 150°C | Chassis Mount | |
|
|
VS-150MT060WDF-PIGBT MOD 600V 138A 12MTP PRESS |
2,213 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Dual Buck Chopper | 600 V | 138 A | 543 W | 2.48V @ 15V, 80A | 100 µA | 14 nF @ 30 V | Standard | No | 150°C (TJ) | Chassis Mount | |
|
|
VS-GB100YG120NTIGBT MOD 1200V 127A ECONO3 4PACK |
3,219 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Full Bridge | 1200 V | 127 A | 625 W | 4V @ 15V, 100A | 80 µA | - | Standard | Yes | -55°C ~ 150°C (TJ) | Chassis Mount | |
|
|
VS-GB150YG120NTIGBT MOD 1200V 182A ECONO3 4PACK |
3,457 | 0.00 |
RFQ |
Bulk | - | Obsolete | NPT | Full Bridge | 1200 V | 182 A | 892 W | 4V @ 15V, 200A | 120 µA | - | Standard | Yes | -55°C ~ 150°C (TJ) | Chassis Mount | |
|
|
VS-GT120DA65UIGBT MOD 650V 167A 577W SOT227 |
3,625 | 0.00 |
RFQ |
Datasheet |
Bulk | FRED Pt® | Obsolete | Trench | Single Switch | 650 V | 167 A | 577 W | 2V @ 15V, 100A | 50 µA | 6.6 nF @ 30 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ25H120T2GIGBT MODULE 1200V 50A 165W SP2 |
3,903 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 165 W | 2.42V @ 15V, 25A | 50 µA | 1.43 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
