Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
NXH100B120H3Q0SG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	3,453	60.87	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP15R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	2,579	42.49	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	15 A	20 mW	-	3 µA	2.82 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

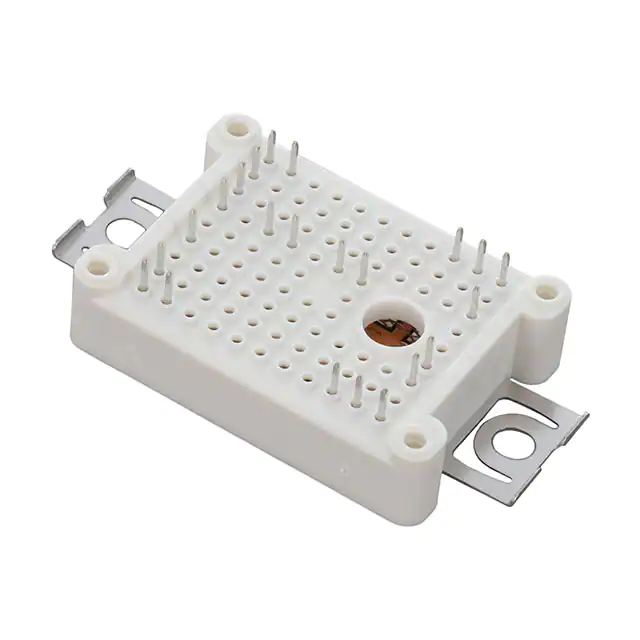

FS25R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	2,535	42.84	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	20 mW	-	5.6 µA	4.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP10R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	2,937	42.97	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	10 A	20 mW	-	4.5 µA	1890 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

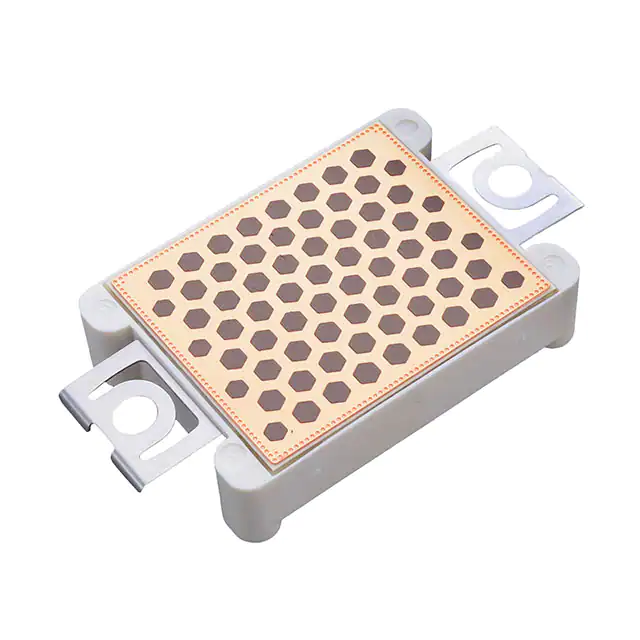

FS25R12W1T7PB11BPSA1 LOW POWER EASY AG-EASY1B-2 Infineon Technologies	3,585	43.15	- + RFQ	Datasheet	Tray	EasyPACK™, TRENCHSTOP™	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	20 mW	-	5.6 µA	4.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH100B120H3Q0PG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	3,084	62.97	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
F3L75R12W1H3PB11BPSA1 LOW POWER EASY AG-EASY1B-311 Infineon Technologies	3,718	65.33	- + RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12W2T4PB11BPSA1 IGBT MOD 1200V 70A 20MW Infineon Technologies	3,924	64.19	- + RFQ	Datasheet	Bulk,Tray	EasyPIM™ 2B	Active	Trench Field Stop	Three Phase Inverter	1200 V	70 A	20 mW	2.2V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
APT150GN120JDQ4 IGBT MOD 1200V 215A 625W ISOTOP Microchip Technology	2,616	68.16	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	1200 V	215 A	625 W	2.1V @ 15V, 150A	300 µA	9.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
FP30R06W1E3BOMA1 IGBT MODULE 600V 37A 115W Infineon Technologies	2,419	42.65	- + RFQ	Datasheet	Bulk,Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	600 V	37 A	115 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP15R12W1T4BOMA1 IGBT MOD 1200V 28A 130W Infineon Technologies	3,962	42.69	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	28 A	130 W	2.25V @ 15V, 15A	1 mA	890 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
VS-GT75YF120NT ECONO - 4 PACK IGBT Vishay General Semiconductor - Diodes Division	2,325	139.98	- + RFQ	Datasheet	Box	-	Active	Trench Field Stop	Full Bridge	1200 V	118 A	431 W	2.6V @ 15V, 75A	100 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DDB6U134N16RRB11BPSA2 LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies	2,368	103.53	- + RFQ	Datasheet	Tray	EconoPACK™ 2	Active	-	Single Chopper	1200 V	125 A	400 W	2.6V @ 15V, 75A	1 mA	5.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA300PF1200TSF IGBT MOD 1200V 465A 1500W IXYS	2,864	141.93	- + RFQ	Datasheet	Box	-	Active	PT	Half Bridge	1200 V	465 A	1500 W	2.1V @ 15V, 300A	300 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS3L100R07W3S5B11BPSA1 LOW POWER EASY AG-EASY3B-1 Infineon Technologies	3,215	142.19	- + RFQ	Datasheet	Tray	EasyPACK™, TRENCHSTOP™	Active	Trench Field Stop	Three Level Inverter	650 V	70 A	20 mW	1.38V @ 15V, 50A	7 µA	7.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GT75YF120UT ECONO - 4 PACK IGBT Vishay General Semiconductor - Diodes Division	3,482	146.14	- + RFQ	Datasheet	Box	-	Active	Trench Field Stop	Full Bridge	1200 V	118 A	431 W	2.6V @ 15V, 75A	100 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS35R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	3,008	45.60	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	20 mW	-	7.3 µA	6.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

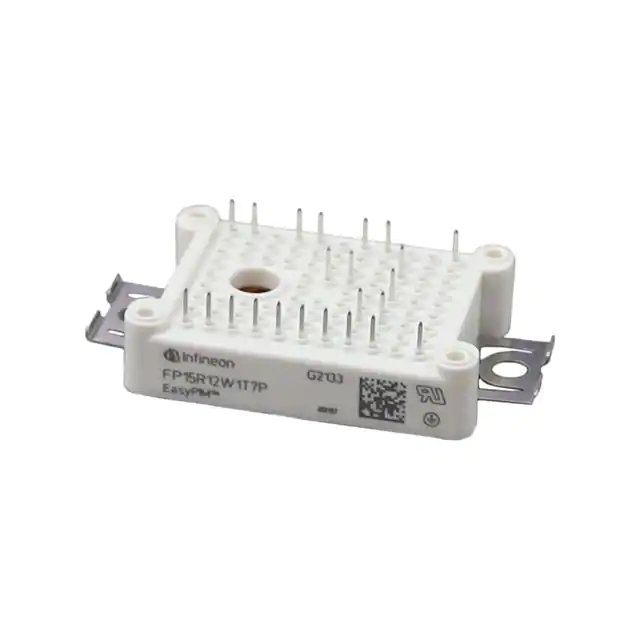

FP15R12W1T7PBPSA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	3,555	45.90	- + RFQ	Datasheet	Tray	EasyPIM™, TRENCHSTOP™	Active	Trench Field Stop	Three Phase Inverter	1200 V	15 A	20 mW	-	3 µA	2.82 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

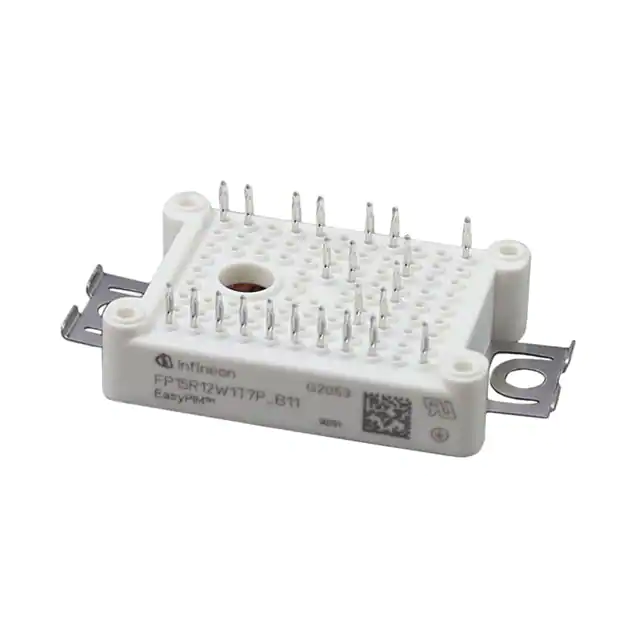

FP15R12W1T7PB11BPSA1 LOW POWER EASY AG-EASY1B-2 Infineon Technologies	2,606	46.32	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	15 A	20 mW	-	3 µA	2.82 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXA20WB1200TED IGBT MODULE 1200V 28A 100W E2 IXYS	2,725	69.61	- + RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	28 A	100 W	2.1V @ 15V, 16A	1.5 mA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
