Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

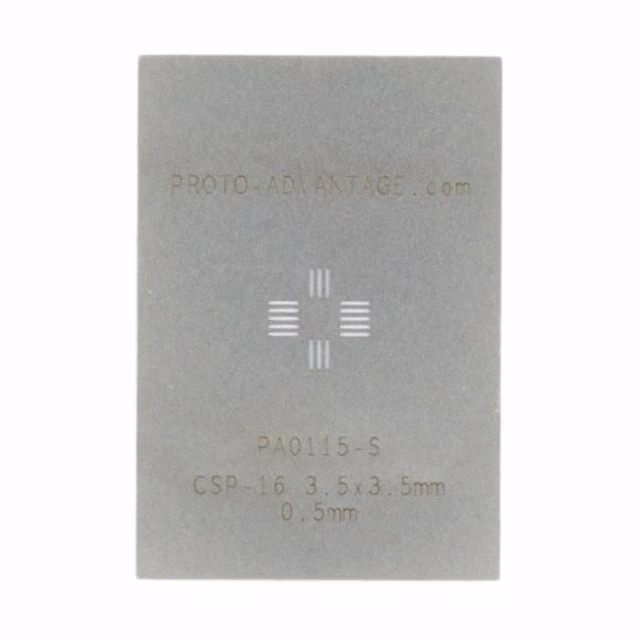

PA0115-S CSP-16 STENCIL Chip Quik Inc.	3,752	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	CSP	16	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.138 L x 0.138 W (3.50mm x 3.50mm)	-

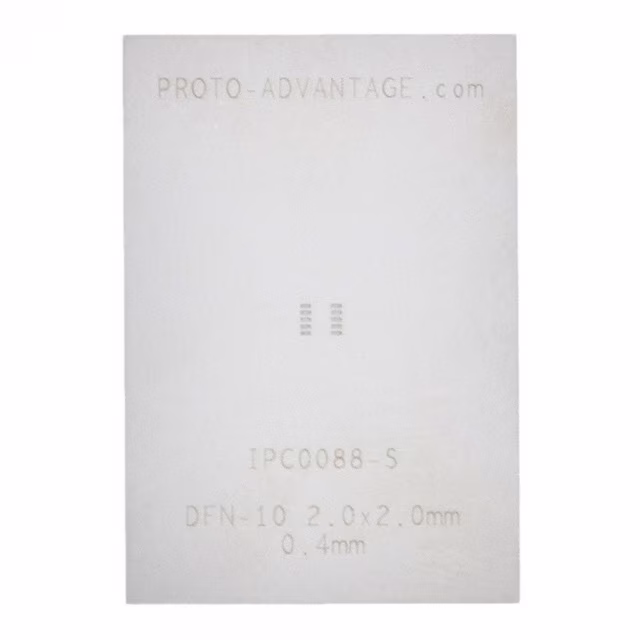

IPC0088-S DFN-10 STENCIL Chip Quik Inc.	3,424	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	10	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.079 L x 0.079 W (2.00mm x 2.00mm)	-

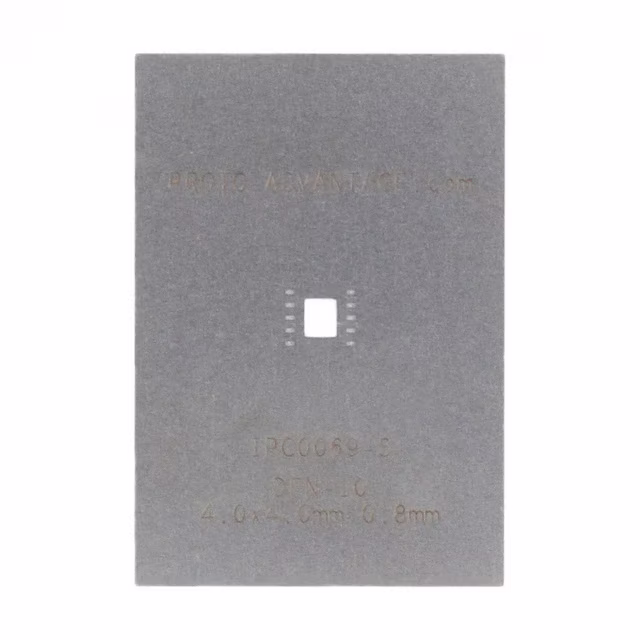

IPC0069-S DFN-10 STENCIL Chip Quik Inc.	3,865	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	10	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.118 L x 0.102 W (3.00mm x 2.60mm)

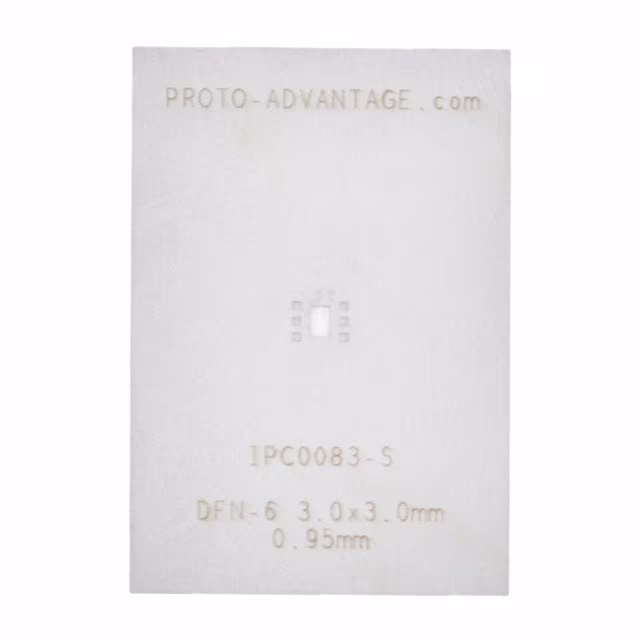

IPC0083-S DFN-6 STENCIL Chip Quik Inc.	3,051	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	6	0.037 (0.95mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.091 L x 0.059 W (2.30mm x 1.50mm)

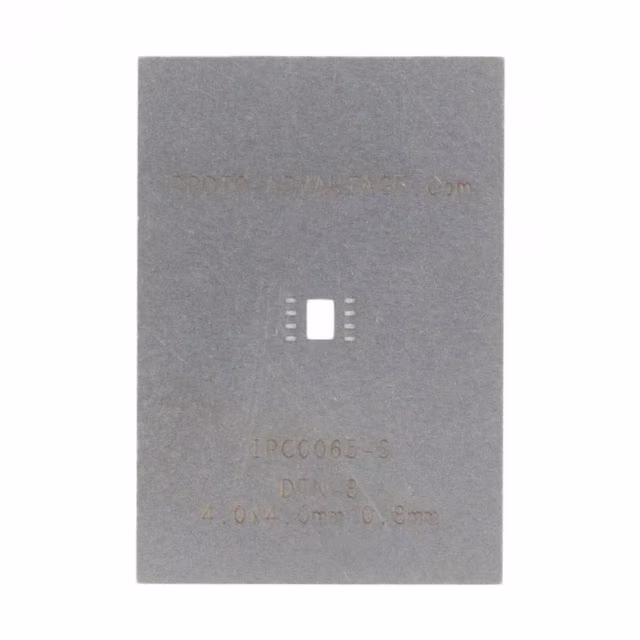

IPC0065-S DFN-8 STENCIL Chip Quik Inc.	3,659	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	8	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.118 L x 0.087 W (3.00mm x 2.20mm)

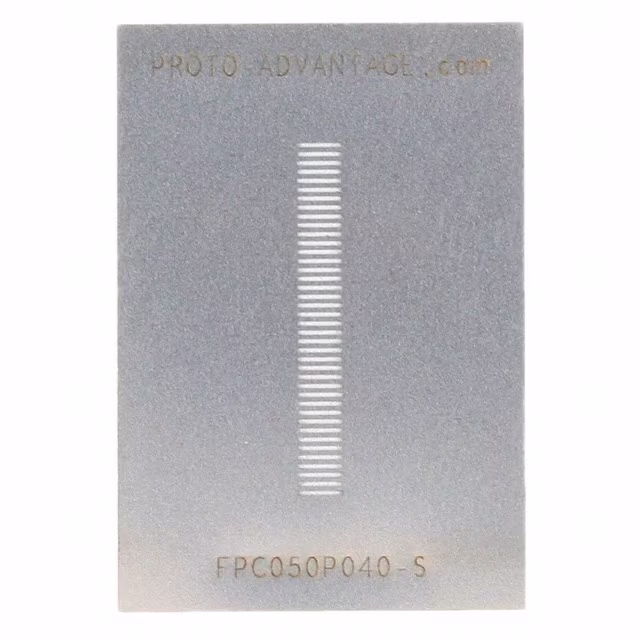

FPC050P040-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	3,145	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	40	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	1.094 L x 0.157 W (27.80mm x 4.00mm)

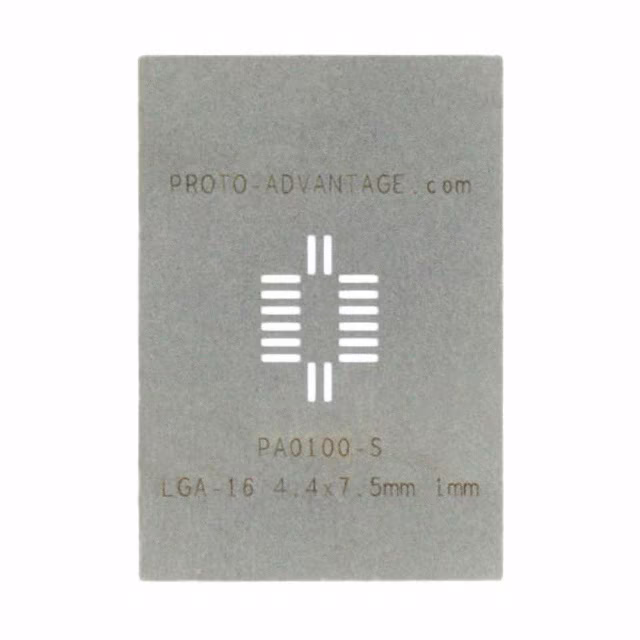

PA0100-S LGA-16 STENCIL Chip Quik Inc.	2,747	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	LGA	16	0.039 (1.00mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.295 L x 0.173 W (7.50mm x 4.40mm)	-

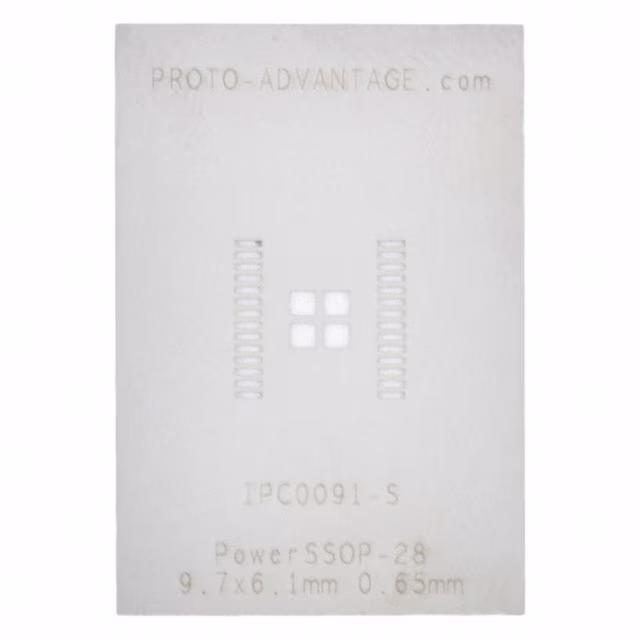

IPC0091-S POWERSSOP-28 STENCIL Chip Quik Inc.	2,301	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	PowerSSOP	28	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.382 L x 0.240 W (9.70mm x 6.10mm)	0.162 L x 0.154 W (4.11mm x 3.91mm)
IPC0005-S QFN-14 STENCIL Chip Quik Inc.	3,265	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	14	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.138 L x 0.138 W (3.50mm x 3.50mm)	0.081 L x 0.081 W (2.05mm x 2.05mm)

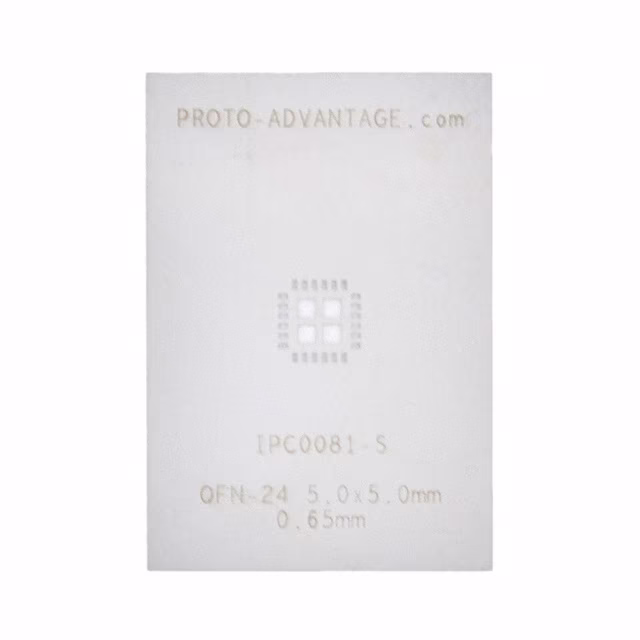

IPC0081-S QFN-24 STENCIL Chip Quik Inc.	3,420	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	24	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)	0.142 L x 0.142 W (3.60mm x 3.60mm)

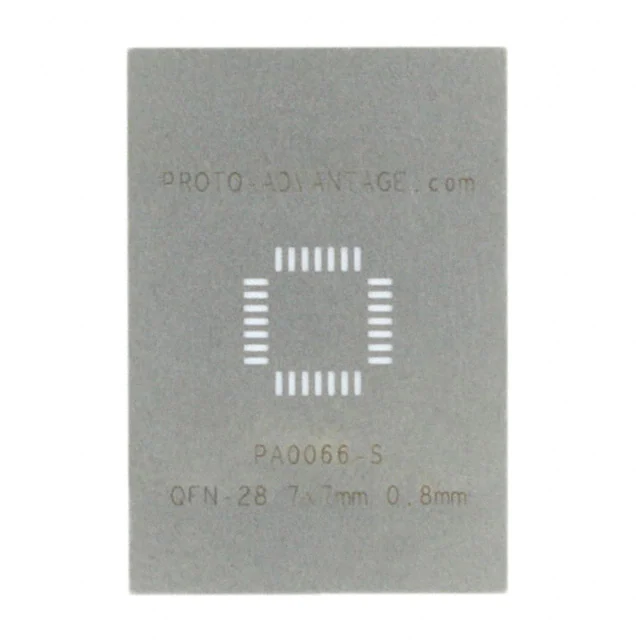

PA0066-S QFN-28 STENCIL Chip Quik Inc.	3,304	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	28	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.276 W (7.00mm x 7.00mm)	-

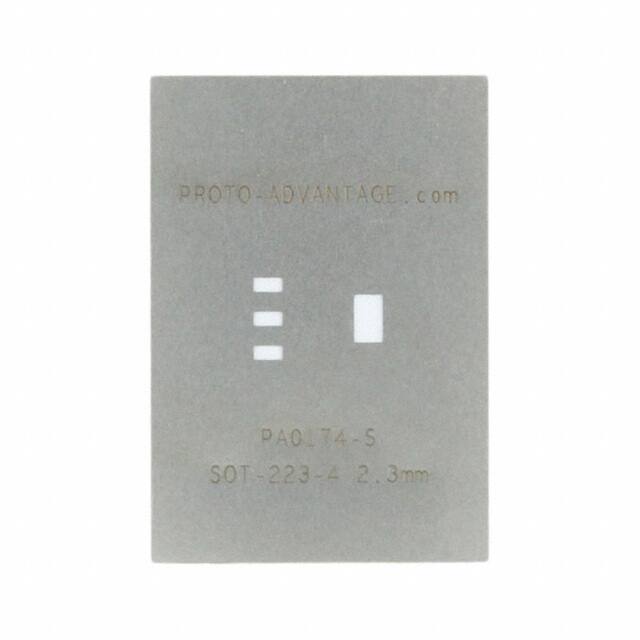

PA0174-S SOT-223-4 STENCIL Chip Quik Inc.	2,261	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	3	0.091 (2.30mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.256 L x 0.140 W (6.50mm x 3.56mm)	0.130 L x 0.079 W (3.30mm x 2.00mm)

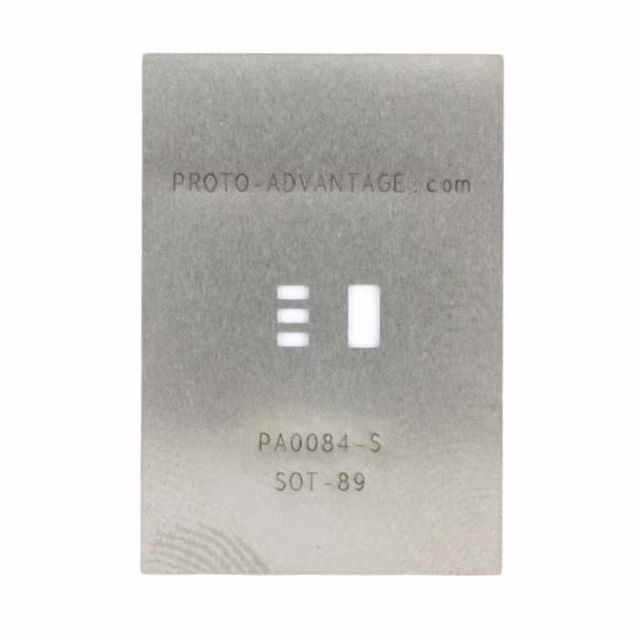

PA0084-S SOT-89 STENCIL Chip Quik Inc.	3,391	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	3	0.059 (1.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	0.157 L x 0.079 W (4.00mm x 2.00mm)

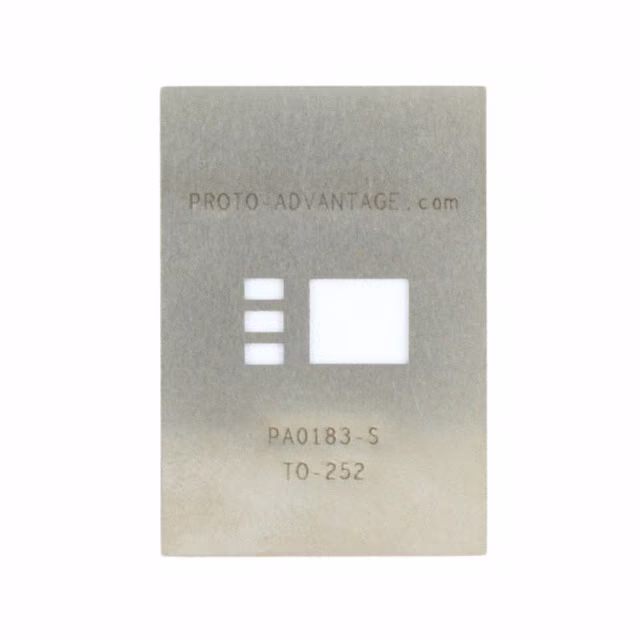

PA0183-S TO-252 STENCIL Chip Quik Inc.	2,175	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TO/DPAK	3	0.090 (2.29mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.287 L x 0.259 W (7.30mm x 6.58mm)	0.276 L x 0.236 W (7.00mm x 6.00mm)

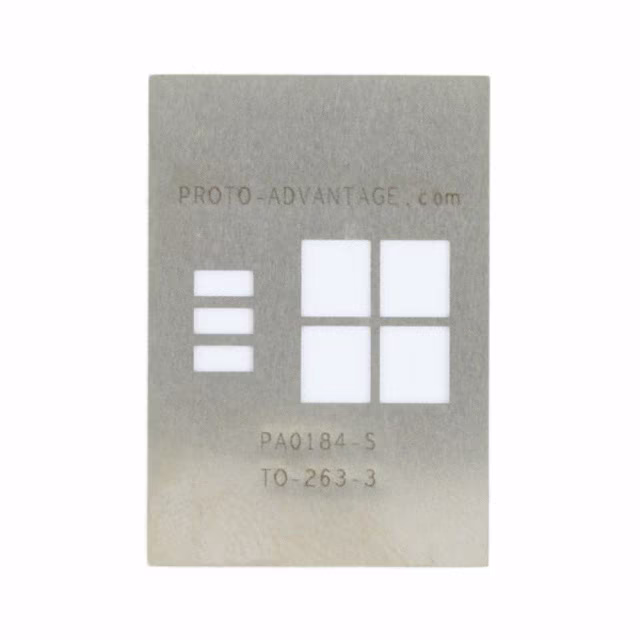

PA0184-S TO-263-3 STENCIL Chip Quik Inc.	2,699	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TO/DDPAK	3	0.100 (2.54mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.400 L x 0.390 W (10.16mm x 9.91mm)	0.433 L x 0.394 W (11.00mm x 10.00mm)

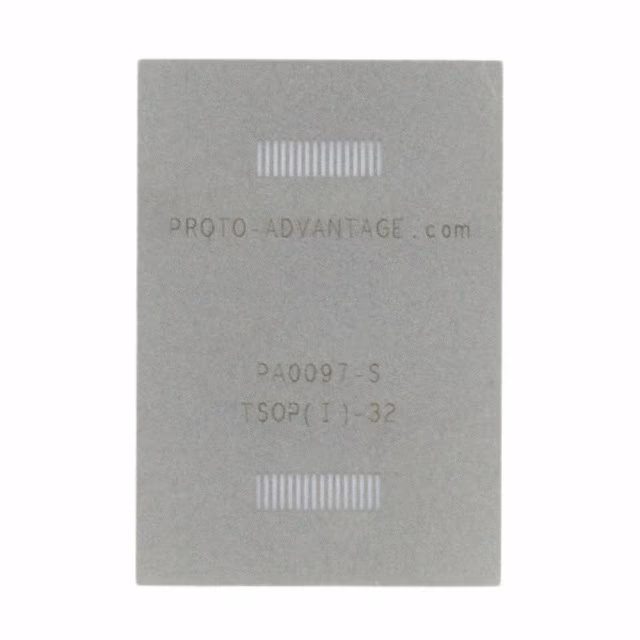

PA0097-S TSOP-32 STENCIL Chip Quik Inc.	2,973	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	32	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

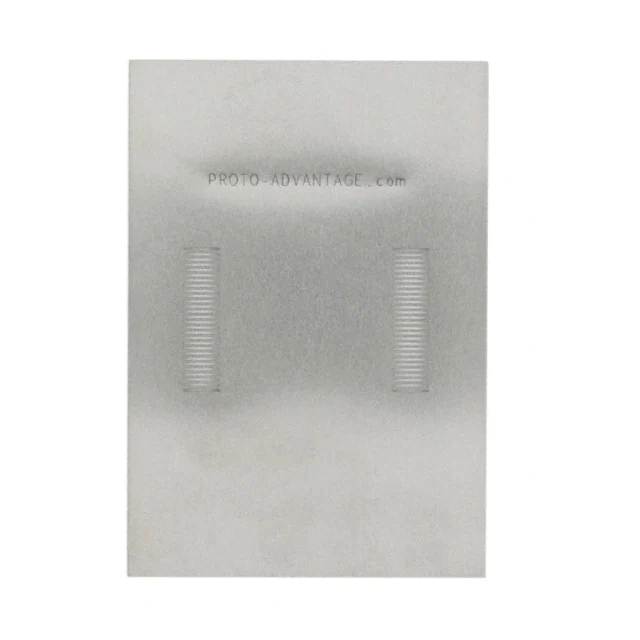

PA0211-S TSOP-56 STENCIL Chip Quik Inc.	2,767	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	56	0.020 (0.50mm)	1.950 L x 1.350 W (49.53mm x 34.29mm)	-	-

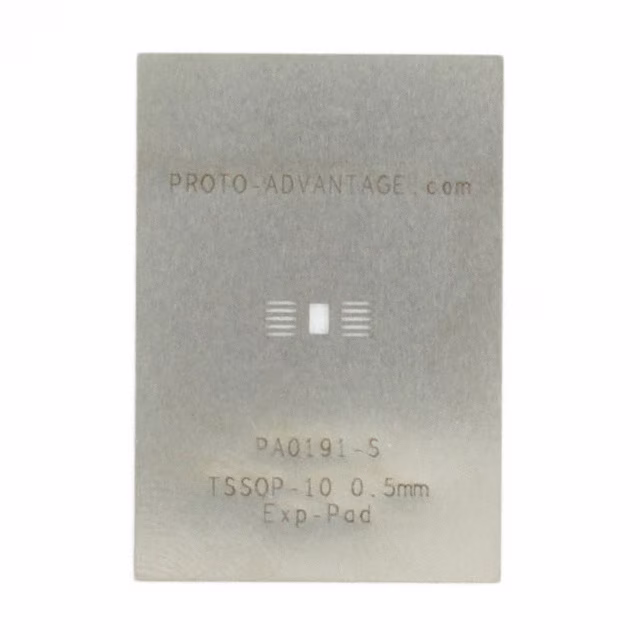

PA0191-S TSSOP-10-EXP-PAD STENCIL Chip Quik Inc.	2,916	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	10	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.354 L x 0.069 W (9.00mm x 1.75mm)

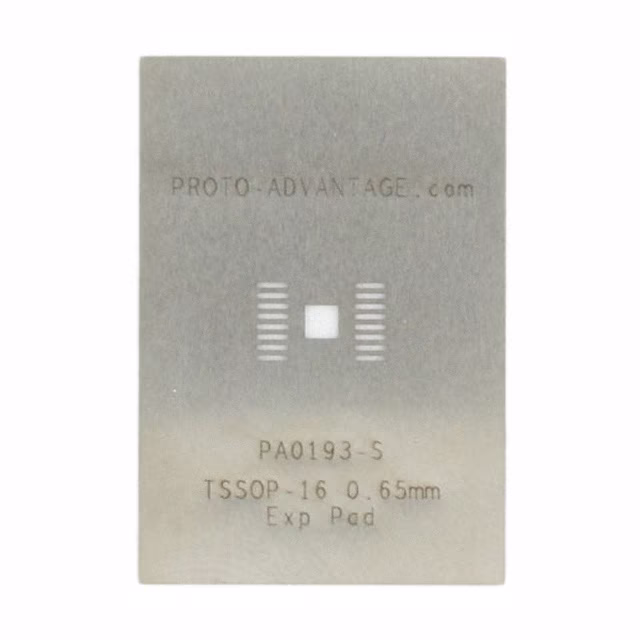

PA0193-S TSSOP-16-EXP-PAD STENCIL Chip Quik Inc.	2,280	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	16	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.173 W (5.00mm x 4.40mm)	0.433 L x 0.118 W (11.00mm x 3.00mm)

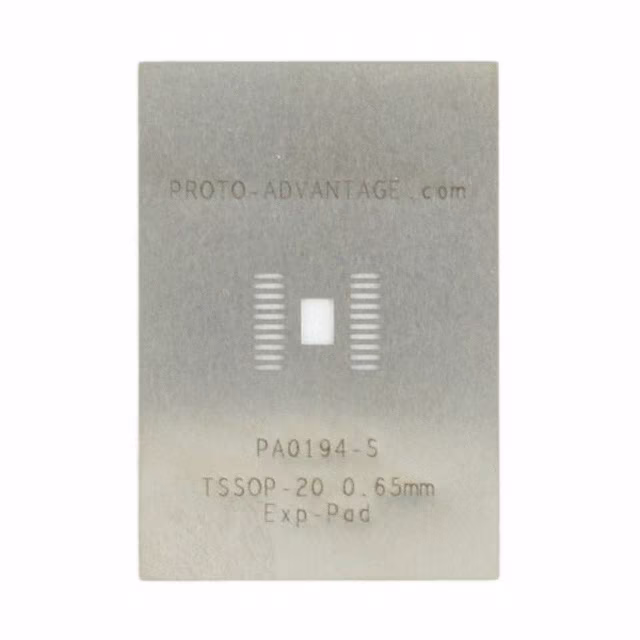

PA0194-S TSSOP-20-EXP-PAD STENCIL Chip Quik Inc.	2,651	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	20	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.256 L x 0.173 W (6.50mm x 4.40mm)	0.492 L x 0.118 W (12.50mm x 3.00mm)
