| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCSNBN015PAAA5SENSOR PRES 15PSI ABSO 5V SIP |
269 | 64.37 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C |
|
|
SSCSNBN030PDAC5SENSOR PRES 30PSI DIFF 5V SIP |
126 | 64.37 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -40°C ~ 85°C |
|
HSCMAND060PA3A3SENSOR PRES 60PSI ABSO 3.3V SMD |
117 | 66.28 |
RFQ |
Datasheet |
8-SMD, J-Lead, Top Port | Tube | TruStability® HSC | Active | Board Mount | Absolute | 60PSI (413.69kPa) | I²C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 120PSI (827.37kPa) | -20°C ~ 85°C |
|
SSCDRNT1.6BAAA3BRD MNT PRESSURE SENSORS |
476 | 67.65 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Side Port | Bulk | TruStability® SSC | Active | Board Mount | Absolute | 23.21PSI (160kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 85°C |
|
SSCDANT005PGAA5SENSOR PRES 5PSI GAUGE 3V ANALOG |
304 | 67.65 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Tube | TruStability® SSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C |
|

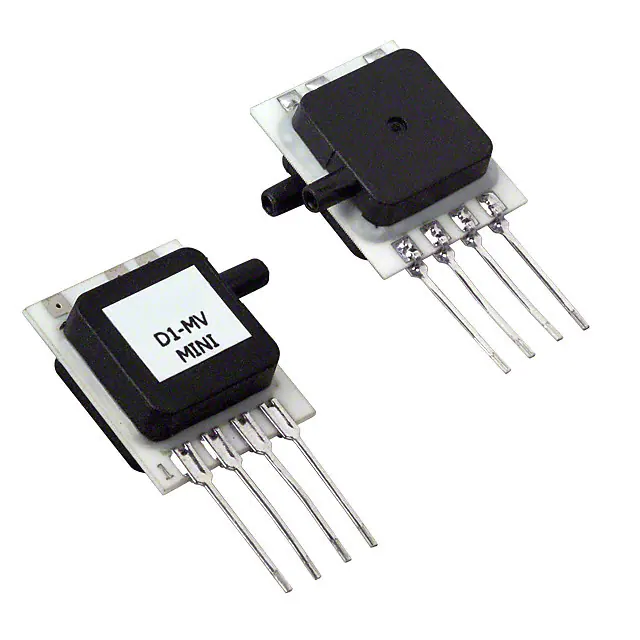

2 INCH-D1-MV-MINISENSOR PRESSURE DIFF 2 H2O 4SIP |
170 | 67.73 |
RFQ |
Datasheet |
4-SIP Module | Bulk | MDCX | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.08 (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C |
|

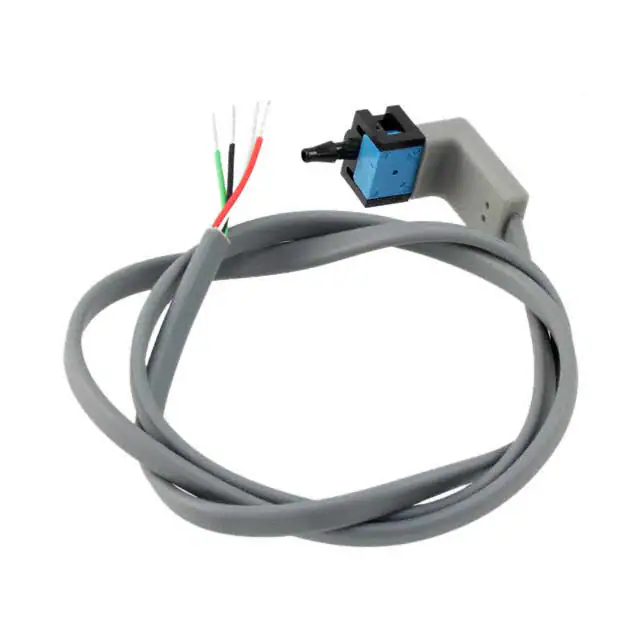

26PCCFG5GSENSOR VACUUM GAUGE +-15 PSI |
121 | 70.83 |
RFQ |
Datasheet |
4-SIP Module | Bulk | 26PC | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.14 (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C |
|

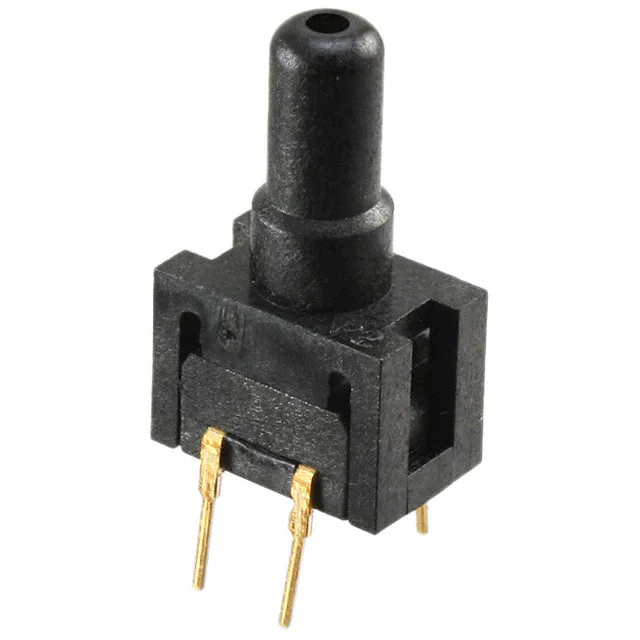

26PCFFA2GSENSOR DIFFERENTIAL +-100 PSI |
1,611 | 72.46 |
RFQ |
Datasheet |
4-DIP Module | Bulk | 26PC | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.2 (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C |
|
SSCDRRN005ND2A5SENSOR PRESSURE DIFF 5 H2O 8DIP |
136 | 81.68 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | I²C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08 (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 85°C |
|
|
SSCSNBN005NDAA5SENSOR PRESSURE DIFF 5 H2O 4SIP |
391 | 90.02 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 85°C |
|
|
SSCSNBN001NDAA5SENSOR PRESSURE DIFF 1 H2O 4SIP |
534 | 94.57 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C |
|

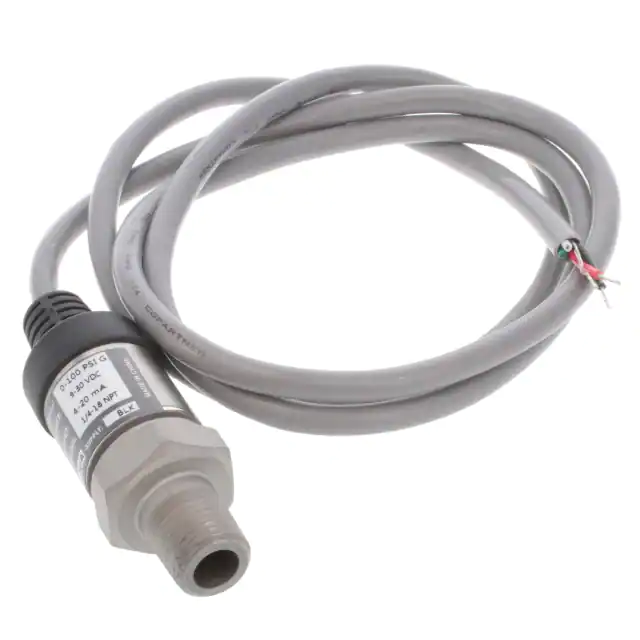

M325M-000005-100PGPRESS XDCR M325M-000005-100PG |
188 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C |
|

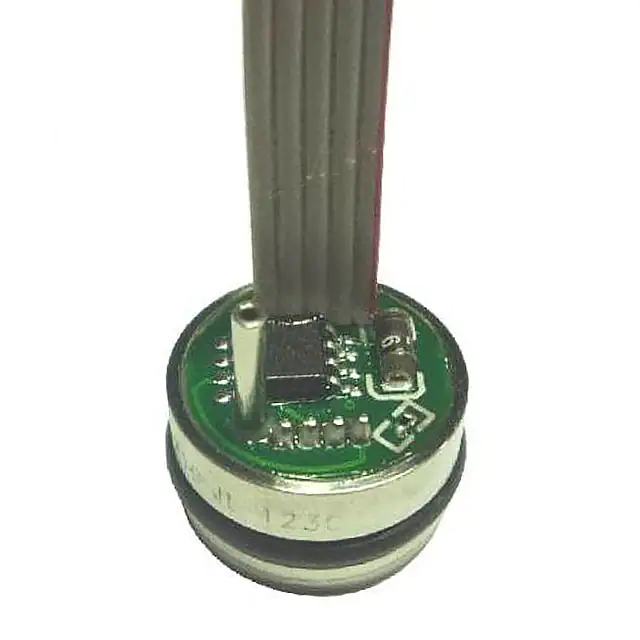

86BSD015PG-3AICSENSOR PRESSURE |
120 | 130.07 |
RFQ |
Datasheet |
Module | Tube | 86BSD | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I²C, SPI | 14 b | ±0.25% | 3.3V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 30PSI (206.84kPa) | -40°C ~ 125°C |
_sml.jpg)
|
LPS27HHWTRCONSUMER MEMS |
15,730 | 7.98 |
RFQ |
Datasheet |
10-CLGA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Board Mount | Absolute | 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) | I²C, SPI | 24 b | ±0.015PSI (±0.1kPa) | 1.7V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 85°C |
|
MPXM2202ASENS PRESSURE 29 PSI MAX MPAK |
5,332 | 16.56 |
RFQ |
Datasheet |
5-SMD Module | Tube | MPX2202 | Active | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
NBPLLNN060PGUNVSENSOR 60 PSIG UNAMPLIFIED SMD |
3,865 | 18.58 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Tube | NBP | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 120PSI (827.37kPa) | -40°C ~ 125°C |
|

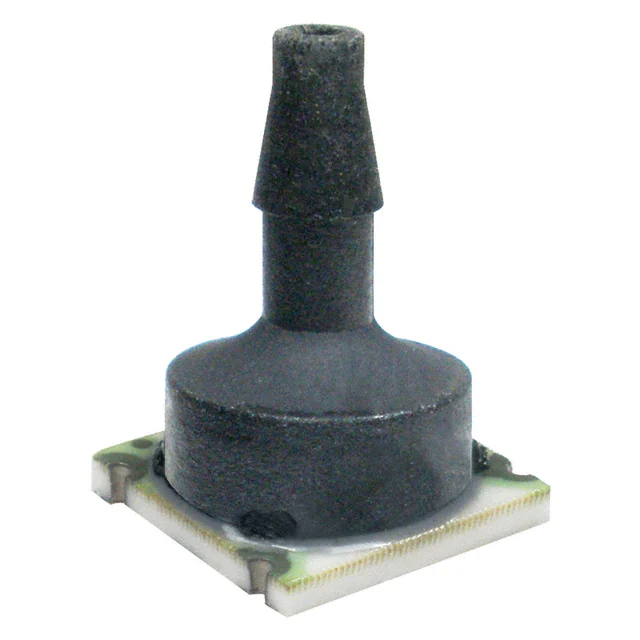

NBPLANN150PAUNVSENSOR 150 PSIA UNAMPLIFIED SMD |
2,785 | 18.82 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Bulk | NBP | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 130 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11 (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 240PSI (1654.74kPa) | -40°C ~ 125°C |
|
MPX53DPSENSOR DIFF PRESS 7.25PSI MAX |
764 | 19.25 |
RFQ |
Datasheet |
4-SIP Module | Tube | MPX53 | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | -0.6% ~ 0.4% | 3V ~ 6V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | - | PC Pin | 25.38PSI (175kPa) | -40°C ~ 125°C |
|

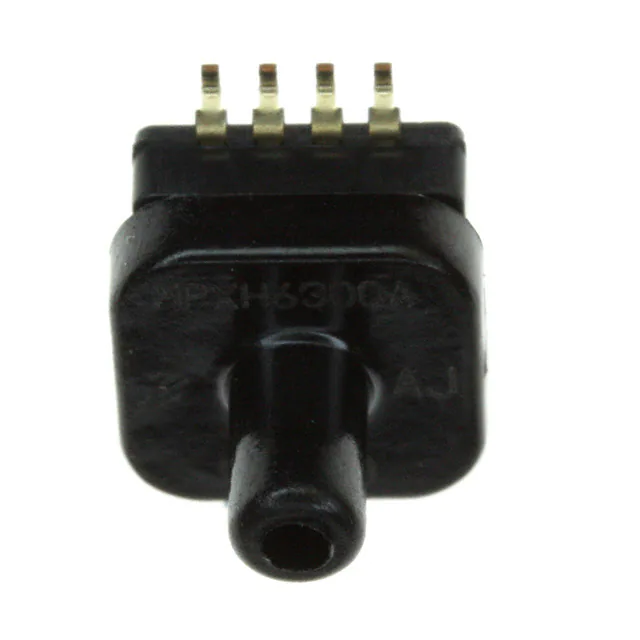

MPXH6300AC6T1SENSOR PRESSURE 20-304KPA 1317A |
300 | 24.80 |
RFQ |
Datasheet |
8-SOIC (0.335, 8.50mm Width), Top Port | Tape & Reel (TR),Cut Tape (CT) | MPXH6300A | Active | Board Mount | Absolute | 2.9PSI ~ 44.09PSI (20kPa ~ 304kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.74V ~ 5.46V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 174.05PSI (1200kPa) | -40°C ~ 125°C |
|

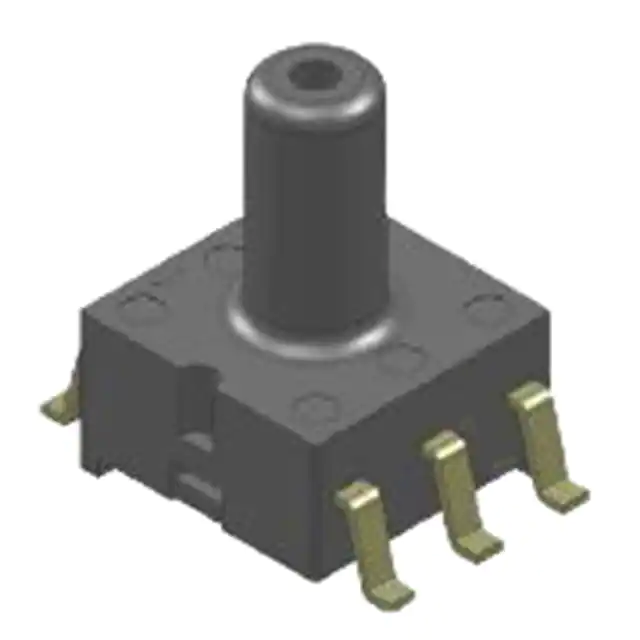

DLC-L10G-U2SENSOR PRESSURE 10 H2O GAUGE |
115 | 35.73 |
RFQ |
Datasheet |
6-SMD, Gull Wing, Top Port | Tube | DLC | Active | Board Mount | Gauge | ±0.36PSI (±2.5kPa) | I²C | 16 b | ±1.25% | 1.8V ~ 3.6V | Male - 0.12 (3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 7.25PSI (50kPa) | -40°C ~ 85°C |
