| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

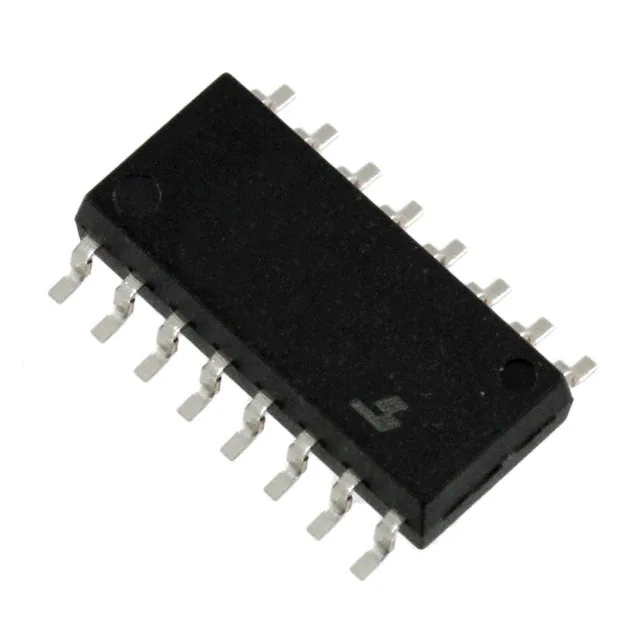

TLP292-4(V4-GB,EOPTOISOLATOR 3.75KV TRANS SO16 |
2,398 | 1.34 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
TLP292-4(V4-LA,EOPTOISOLATOR 3.75KV TRANS SO16 |
3,604 | 1.34 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 3750Vrms | 50% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
6N139MOPTOISO 5KV DARL W/BASE 8DIP |
2,825 | 1.37 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 240ns, 1.3µs | - | DC | Darlington with Base | 18V | 60mA | 1.3V | 20 mA | - | -40°C ~ 100°C | Through Hole |
|
SFH608-5OPTOISO 5.3KV TRANS W/BASE 6DIP |
3,312 | 1.37 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 8µs, 7.5µs | 5µs, 7µs | DC | Transistor with Base | 55V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
FOD2712AOPTOISO 2.5KV TRANSISTOR 8SOIC |
2,085 | 1.42 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Surface Mount |
|
QT8524 PIN HIGH POWER PHOTODARLINGTON |
2,488 | 1.42 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 250µs, 95µs (Max) | DC | Darlington | 350V | 150mA | 1.2V | 80 mA | 1.2V | -55°C ~ 100°C | Through Hole |
|
PS2562-1-L-AOPTOISOLATOR 5KV DARL 4DIP |
2,187 | 1.51 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 700% @ 1mA | 3400% @ 1mA | - | 100µs, 100µs | DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
MCT5211MOPTOISO 4.17KV TRANS W/BASE 6DIP |
3,471 | 1.52 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 150% @ 1.6mA | - | 14µs, 2.5µs | - | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
ILQ615-4X009TOPTOISO 5.3KV 4CH TRANS 16SMD |
2,792 | 3.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 5300Vrms | 160% @ 320mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
SFH6136OPTOISO 5.3KV TRANS W/BASE 8DIP |
3,783 | 1.54 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
ILQ621GB-X017TOPTOISO 5.3KV 4CH TRANS 16SMD |
3,752 | 3.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

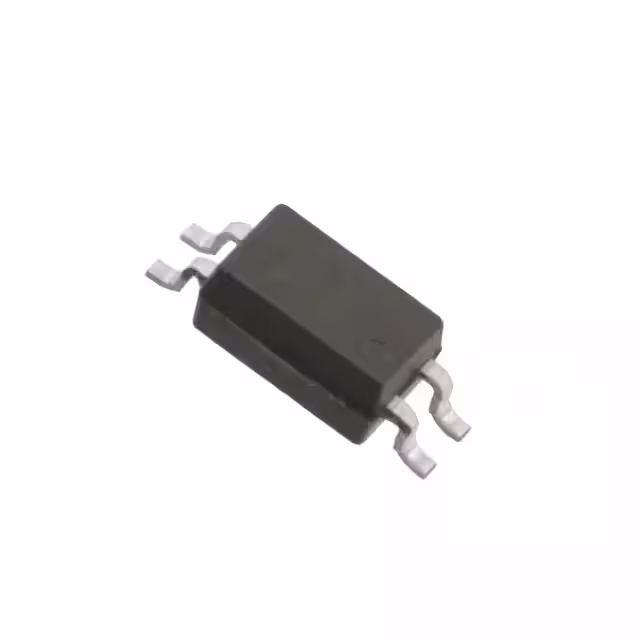

ACPL-K70A-500EOPTOCOUPLER(100KBD),T/R+LF |
3,548 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 800% @ 40µA | 25000% @ 40µA | - | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
6N136-X001OPTOISO 5.3KV TRANS W/BASE 8DIP |
3,363 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
SFH6136-X001OPTOISO 5.3KV TRANS W/BASE 8DIP |
2,171 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ACPL-K70A-560EOPTOCOUPLER(100KBD),T/R+IEC+LF |
2,769 | 3.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 800% @ 40µA | 25000% @ 40µA | - | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
ILD2OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
3,329 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
|
ISP847XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
2,702 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
FODM8801BOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,338 | 1.72 |
RFQ |
Datasheet |
Tube | OptoHit™ | Active | 1 | 3750Vrms | 130% @ 1mA | 260% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | -40°C ~ 125°C | Surface Mount |
|
ISQ74XOPTOISO 5.3KV 4CH TRANS 16DIP |
3,981 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 12.5% @ 16mA | - | - | 2.6µs, 2.2µs | DC | Transistor | 50V | 50mA | 1.2V | 50 mA | - | -25°C ~ 100°C | Through Hole |
|
IL252OPTOISO 5.3KV TRANS W/BASE 6DIP |
3,702 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
