| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP5774H(D4-TP,EGATE DRIVE COUPLER; 4A; HIGH TEM |
3,492 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 4A, 4A | 4A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5774H(TP,EGATE DRIVE COUPLER; 4A; HIGH TEM |
2,796 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 4A, 4A | 4A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5751(D4-TP4,EDRIVER COUPLER; 1A; RAIL-TO-RAIL |
3,505 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5752H(LF4,EGATE DRIVE COUPLER; 125C OPER TE |
3,135 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5752H(D4LF4,EGATE DRIVE COUPLER; 125C OPER TE |
3,162 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP5774(D4-TP,EGATE DRIVE COUPLER; LOW INPUT CU |
2,404 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1.2A, 1.2A | 4A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5752(TP4,EDRIVER COUPLER; 2.5A; RAIL-TO-RA |
2,536 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
TLP351A(F)X36 PB-F PHOTOCOUPLER THRU-HOLE |
3,465 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
TLP351H(F)X36 PB-F PHOTOCOUPLER THRU HOLE |
3,716 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 700ns, 700ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 20 mA | 10V ~ 30V | -40°C ~ 125°C | Through Hole |

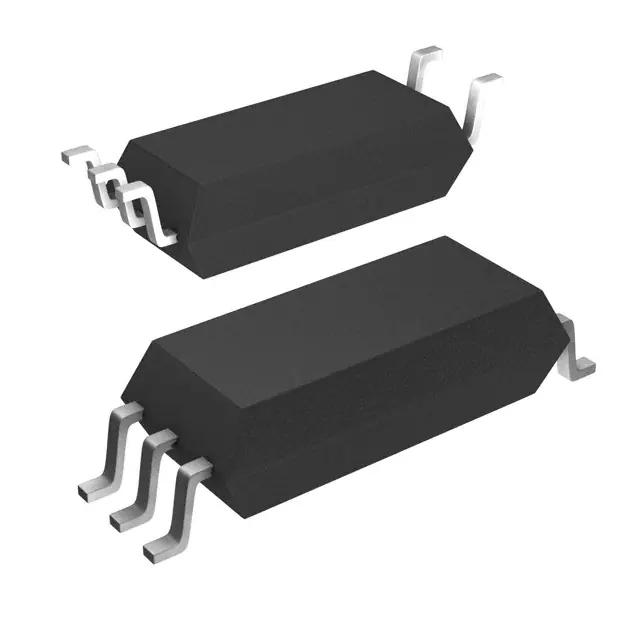

.jpg)
|
FOD8384VOPTOISO 5KV 1CH GATE DRIVER 5SOP |
2,187 | 2.74 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 35ns, 25ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8342ATSO6 2.5A GD WL |
3,789 | 1.03 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TLP5771H(D4TP4,EGATE DRIVE COUPLER; 1A; WIDER LE |
2,381 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5771H(TP4,EGATE DRIVE COUPLER; 1A; WIDER LE |
2,539 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
FOD8342TVOPTOISO 5KV 1CH GATE DRIVER 6SOP |
3,553 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8342ATVSO6 2.5A GD WL |
2,149 | 1.04 |
RFQ |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount | |
|
ACPL-W302-000EOPTOISO 5KV 1CH GATE DRIVER 6SO |
2,086 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
TLP5752(D4-TP4,EDRIVER COUPLER; 2.5A; RAIL-TO-RA |
3,983 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5754H(D4LF4,EGATE DRIVE COUPLER; 125C OPER TE |
3,657 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 4A, 4A | 4A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5754H(LF4,EGATE DRIVE COUPLER; 125C OPER TE |
2,334 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 4A, 4A | 4A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5774H(TP4,EGATE DRIVE COUPLER; 4A; WIDER LE |
2,698 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 4A, 4A | 4A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
