| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

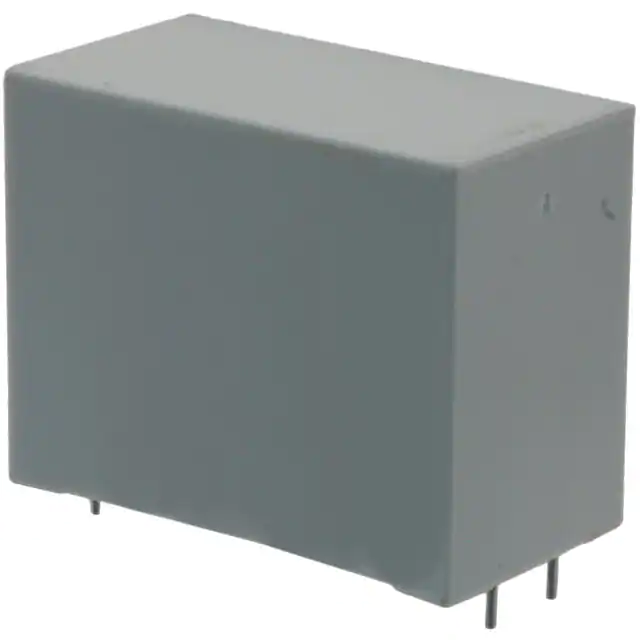

R76QW41004030JCAP FILM 1UF 5% 1KVDC RADIAL |
284 | 8.96 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.579 (40.10mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|

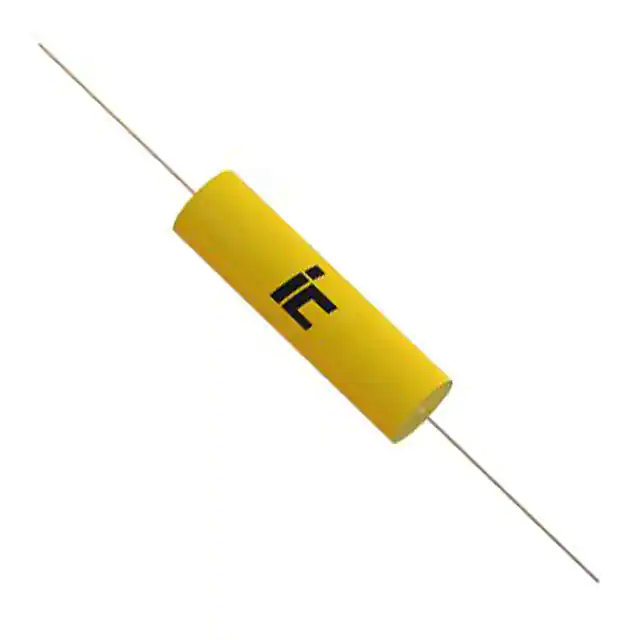

106PHC400KCAP FILM 10UF 10% 400VDC AXIAL |
2,578 | 9.44 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 10 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.063 Dia x 2.165 L (27.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
942C20P15K-FCAP FILM 0.15UF 10% 2KVDC AXIAL |
7,637 | 9.52 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.15 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.161 Dia x 1.811 L (29.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
C4ATGBW4680A3GJCAP FILM 6.8UF 5% 450VDC RADIAL |
1,206 | 9.99 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 6.8 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

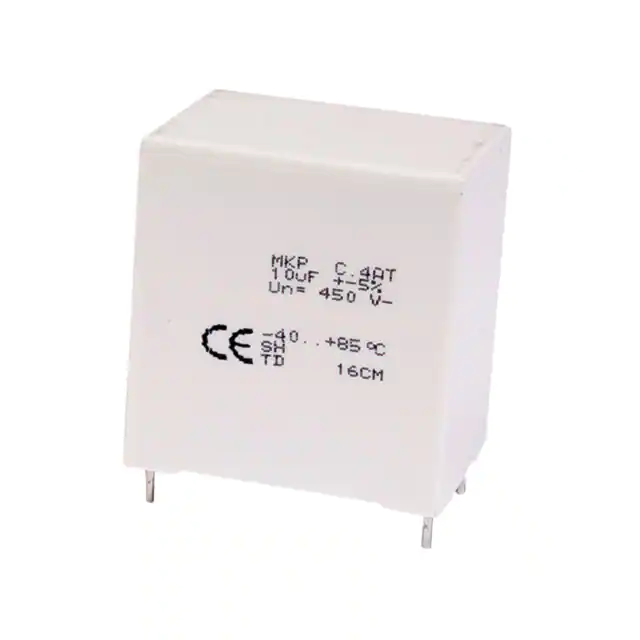

C4ATGBW5100A3FJCAP FILM 10UF 5% 450VDC RADIAL |
1,076 | 10.25 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 10 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4AQCBW5500A3OJCAP FILM 50UF 5% 650VDC RADIAL |
117 | 10.74 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 50 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

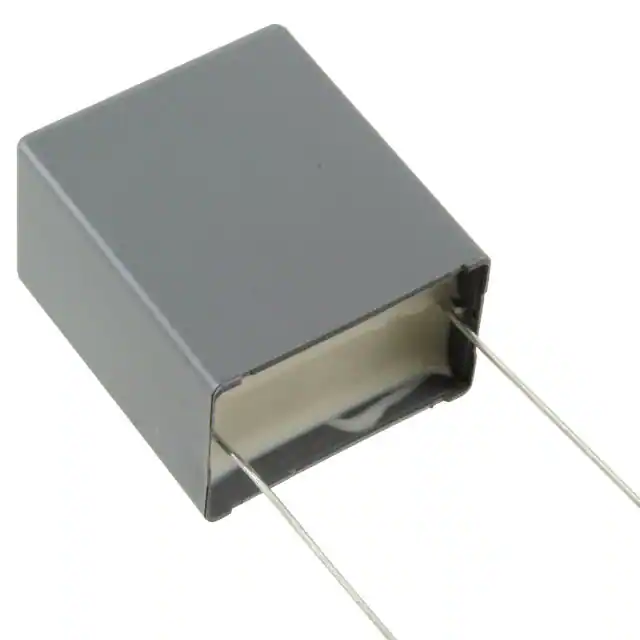

R60DR54705050KCAP FILM 47UF 10% 63VDC RADIAL |
423 | 10.87 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
DCP4N053007ID4KSSDCAP FILM 30UF 10% 900VDC RADIAL |
140 | 11.07 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | - | Active | 30 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 1.220 W (41.50mm x 31.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4ATDBW5200A30JCAP FILM 20UF 5% 250VDC RADIAL |
3,650 | 11.27 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 20 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4ASMBW4200A3HJCAP FILM 2UF 5% 850VDC RADIAL |
593 | 11.87 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 2 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | Snubber | - |
|

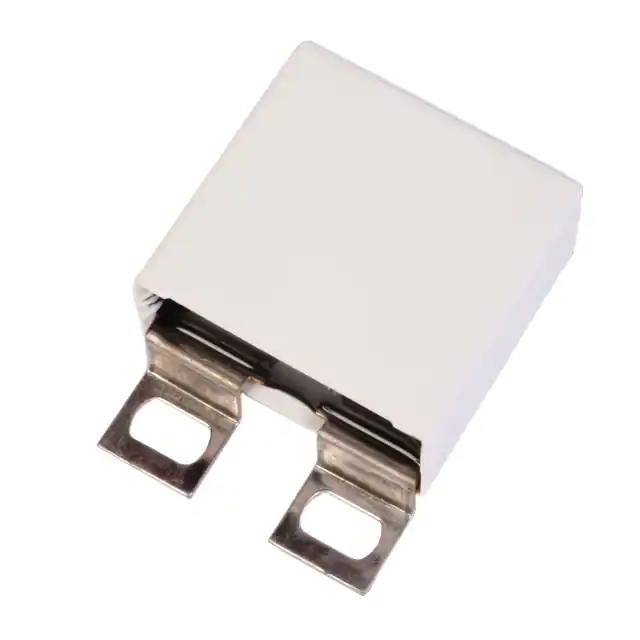

C4BSYBX3220ZAFJCAP FILM 0.22UF 5% 3KVDC SCREW |
258 | 12.32 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.22 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
940C20P47K-FCAP FILM 0.47UF 10% 2KVDC AXIAL |
1,292 | 12.36 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.47 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.260 Dia x 1.811 L (32.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

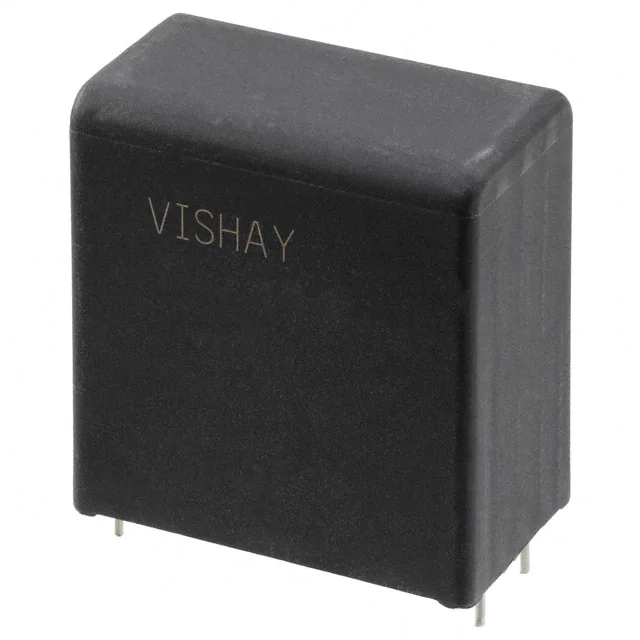

MKP1848C62580JP4CAP FILM 25UF 5% 800VDC RADIAL |
554 | 13.11 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | MKP1848C DC-Link | Active | 25 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 0.945 W (42.00mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
DCP4L054007ID4KSSDCAP FILM 40UF 10% 800VDC RAD |
525 | 13.51 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | - | Active | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 1.220 W (41.50mm x 31.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

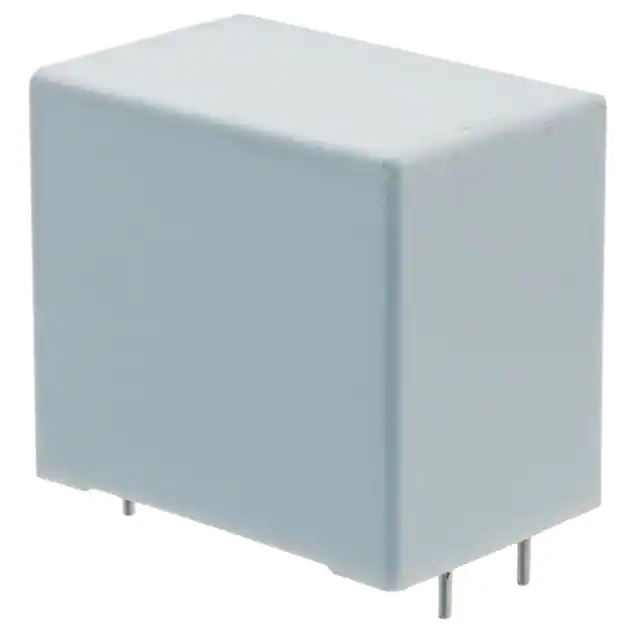

C4AEJBW5200A3JJCAP FILM 20UF 5% 700VDC RADIAL |
623 | 13.70 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 20 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

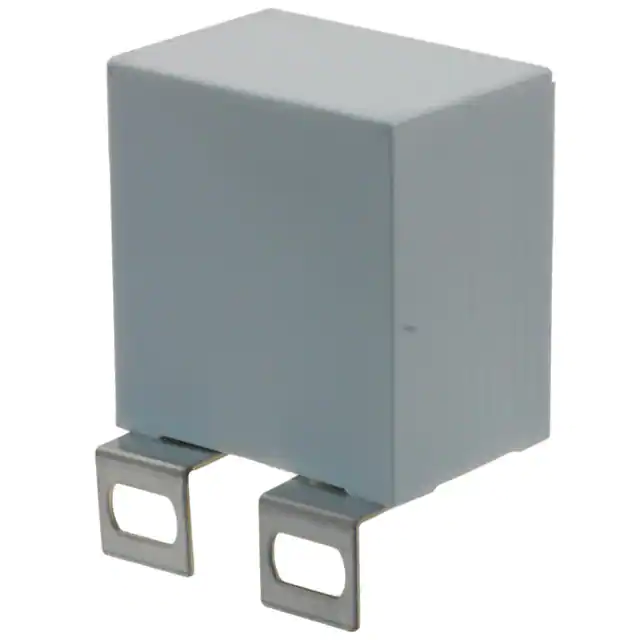

C4BSPBX4150ZALJCAP FILM 1.5UF 5% 1.2KVDC SCREW |
3,077 | 14.56 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4ASPBW4250A3MJCAP FILM 2.5UF 5% 1.2KVDC RADIAL |
299 | 15.96 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 2.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | Snubber | - |
|
R82DC3220AA60JCAP FILM 0.22UF 5% 63VDC RADIAL |
93,443 | 0.30 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82EC1470AA50JCAP FILM 4700PF 5% 100VDC RADIAL |
24,403 | 0.30 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 4700 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82EC1150AA50JCAP FILM 1500PF 5% 100VDC RADIAL |
13,239 | 0.30 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 1500 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
