Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290P0692X046 FERRITE CORE TOROID 2.76UH T46 EPCOS - TDK Electronics	2,156	0.18	- + RFQ	Datasheet	Box	TC4.0/2.4/1.8	Active	Toroid	-	T46	0.158 (4.02mm)	2.76 µH	±30%	Ungapped	-	15000	6.83	9.63	1.41	-	13.6	Parylene	0.072 (1.82mm)
E19/8/5-3C96-G100 E CORES Ferroxcube	3,407	0.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.319 (8.10mm)
E19/8/5-3C96-G200 E CORES Ferroxcube	2,568	0.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.319 (8.10mm)
B64290P0036X033 FERRITE CORE EPCOS - TDK Electronics	2,620	0.18	- + RFQ	Datasheet	Box	TC4.0/2.4/1.6	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B62152A0028X030 FERRITE CORE EPCOS - TDK Electronics	3,396	0.18	- + RFQ		Box	MHB2-3.0/3.6/2.1	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B62152P0027X030 FERRITE CORE 2 HOLE 2.4UH N30 EPCOS - TDK Electronics	3,118	0.18	- + RFQ		Box	MHB2/P-2.0/3.6/2.1	Active	Multi-Hole (2)	-	N30	-	2.4 µH	±30%	Ungapped	-	4300	2.2	3.7	1.7	-	6.3	Parylene	0.079 (2.00mm)
E16/8/5-3F36-G100 E CORES Ferroxcube	3,402	0.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 16 x 8 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
E16/8/5-3F36-G200 E CORES Ferroxcube	3,658	0.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 16 x 8 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
E13/6/6-3C96-G100 E CORES Ferroxcube	2,085	0.19	- + RFQ	Datasheet	Bulk	-	Active	E	E 13 x 6 x 6	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E13/6/6-3C96-G200 E CORES Ferroxcube	3,451	0.19	- + RFQ	Datasheet	Bulk	-	Active	E	E 13 x 6 x 6	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B64290A0072X010 FERRITE CORE TOROID 93NH K10 EPCOS - TDK Electronics	2,998	0.19	- + RFQ	Datasheet	Box	T2.5/1.5/1.3	Active	Toroid	R 2.5 x 1.5 x 1.3	K10	0.098 (2.50mm)	93 nH	±25%	Ungapped	-	700	9.41	6.02	0.64	-	3.85	Uncoated	0.051 (1.29mm)
28T0375-300 FT,NIZN,UC 9.53X4.75X4.78MMX850* Laird-Signal Integrity Products	2,638	0.19	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.375 (9.53mm)	566 nH	±20%	Ungapped	-	850	1.89	20.72	10.96	-	-	Uncoated	0.188 (4.78mm)

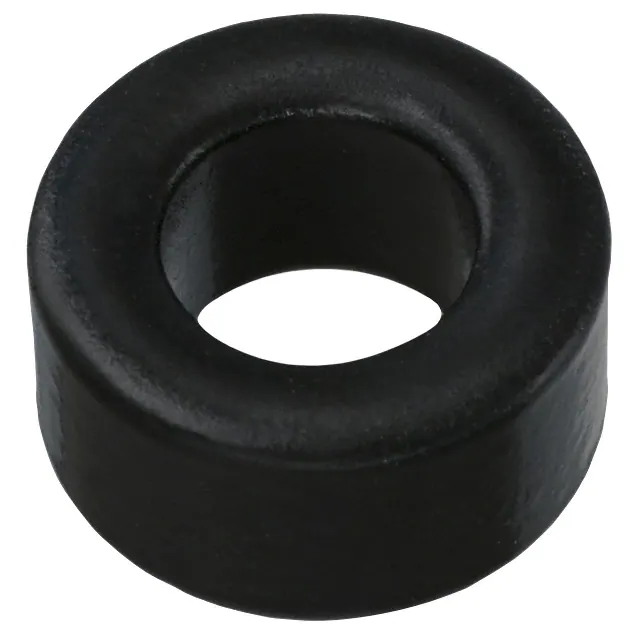

40T0501-10H FERRITE CORE TOROID Laird-Signal Integrity Products	2,195	0.19	- + RFQ	Datasheet	Bulk	Toroid Cores	Active	Toroid	-	-	0.545 (13.84mm)	-	±30%	-	-	10000	-	-	-	-	-	Epoxy	0.256 (6.50mm)

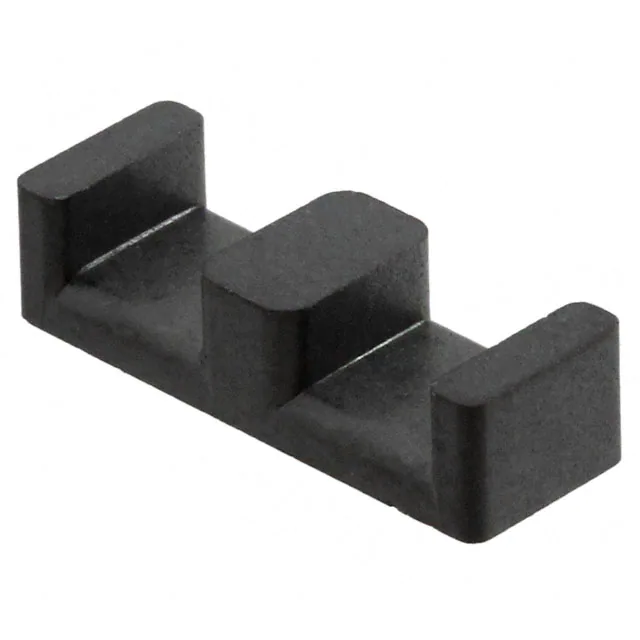

B66281G0000X195 FERRITE CORE ELP N95 1PC EPCOS - TDK Electronics	3,062	0.84	- + RFQ	Datasheet	Box	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)

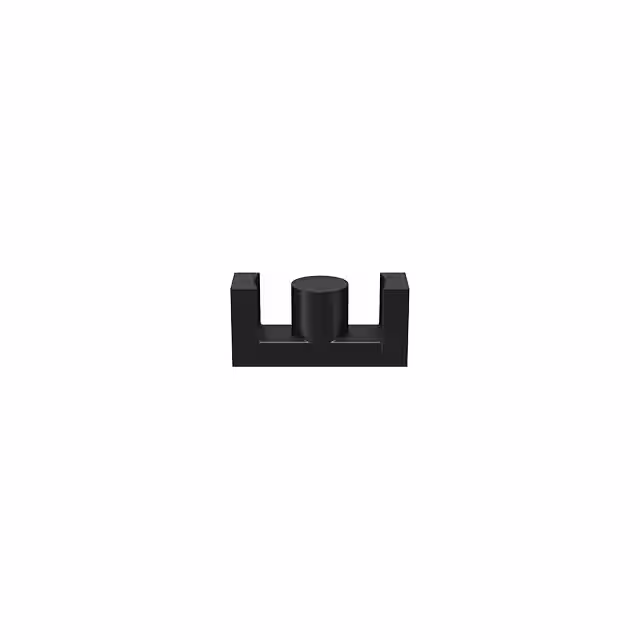

B66358G0200X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	2,723	0.84	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
6678211621 78 PQ CORE SET Fair-Rite Products Corp.	2,429	0.84	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	78	-	-	±25%	Ungapped	-	2300	60	36.9	61.5	60.1	2270	Uncoated	0.315 (8.00mm)
B64290L0626X072 FERRITE CORE EPCOS - TDK Electronics	3,976	0.84	- + RFQ	Datasheet	Box	TX22.6/14.7/9.2	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ER14.5/3/7-3C92-A100-S PLANAR ER CORES 2PC SET Ferroxcube	2,595	0.84	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3C92	-	100 nH	±3%	Gapped	86	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
E19/8/5-3F36 E CORES Ferroxcube	3,044	0.19	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.319 (8.10mm)
B64290A0061X038 FERRITE CORE TOROID 1.47UH T38 EPCOS - TDK Electronics	3,436	0.19	- + RFQ	Datasheet	Box	T3.9/2.2/1.3	Active	Toroid	R 3.94 x 2.24 x 1.3	T38	0.155 (3.94mm)	1.47 µH	±30%	Ungapped	-	10000	8.56	9.21	1.08	-	9.9	Uncoated	0.051 (1.29mm)
