Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E32/16/9-3C94-G500 E CORES Ferroxcube	2,201	0.50	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
E32/16/9-3C90-E100 E CORES Ferroxcube	3,154	0.50	- + RFQ		Bulk	-	Active	E	E 32 x 16 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
E32/16/9-3C96 E CORES Ferroxcube	3,167	0.50	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
PLT22/16/2.5-3C95 PLANAR E CORES Ferroxcube	2,371	0.50	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER9.5/2.5/5-3C92-S PLANAR ER CORES 2PC SET Ferroxcube	2,356	0.50	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C92	-	-	±25%	Ungapped	1000	-	1.67	14.2	8.47	7.6	120	Uncoated	0.096 (2.45mm)
ER9.5/2.5/5-3C96-S PLANAR ER CORES 2PC SET Ferroxcube	2,666	0.50	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C96	-	-	±25%	Ungapped	1200	-	1.67	14.2	8.47	7.6	120	Uncoated	0.096 (2.45mm)

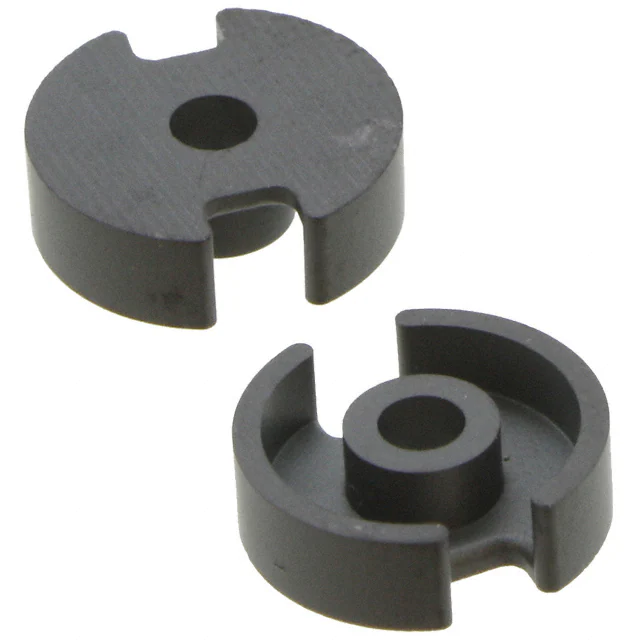

PC40P9/5Z-52H FERRITE CORE 2PC SET TDK Corporation	2,263	0.50	- + RFQ	Datasheet	Tray	-	Last Time Buy	P (Pot Core)	P 9 x 5	PC40	0.288 (7.33mm)	-	-	Ungapped	821	-	1.24	12.4	10	-	124	Uncoated	0.136 (3.45mm)
B66411G0000X149 FERRITE CORE EFD N49 1PC EPCOS - TDK Electronics	3,317	0.50	- + RFQ	Datasheet	Box	EFD10/5/3	Active	EFD	EFD 10 x 5 x 3	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.205 (5.20mm)
ETD29/16/10-3C97-G200 ER AND ETD CORES Ferroxcube	3,795	0.51	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3F36-G200 ER AND ETD CORES Ferroxcube	3,024	0.51	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3F46-G200 ER AND ETD CORES Ferroxcube	3,734	0.51	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
E18/4/10/R-3C96-A160-P PLANAR E CORES Ferroxcube	3,599	0.51	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3C96-A250-P PLANAR E CORES Ferroxcube	2,791	0.51	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

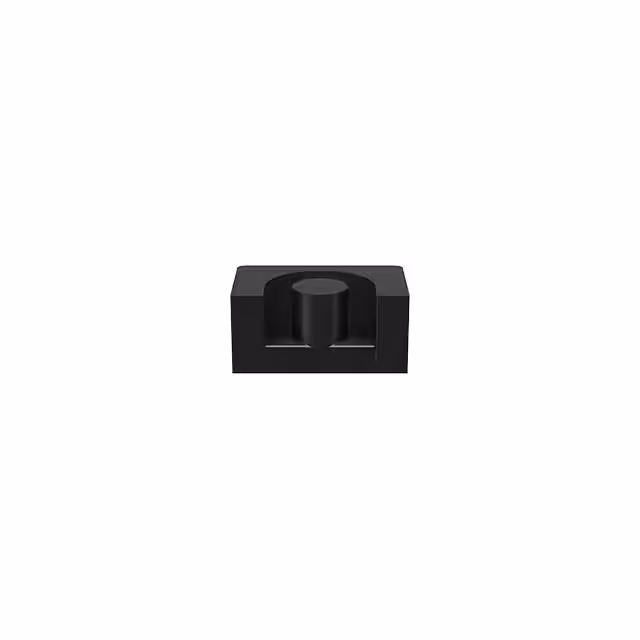

B65839A0100J087 FERRITE CORE EPCOS - TDK Electronics	3,160	0.51	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	-	-	Gapped	-	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
RM6S/ILP-3C90 RM CORES 2PC SET Ferroxcube	3,427	0.51	- + RFQ		Bulk	-	Active	RM	RM 6	3C90	-	-	±25%	Ungapped	1470	-	0.58	21.8	37.5	31.2	820	Uncoated	0.354 (9.00mm)
B65839A0100A087 FERRITE CORE EP 100NH N87 2PCS EPCOS - TDK Electronics	3,656	0.51	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	100 nH	±3%	Gapped	121	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0125B087 FERRITE CORE EPCOS - TDK Electronics	3,999	0.51	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	-	-	Gapped	-	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0160J087 FERRITE CORE EP 160NH N87 2PCS EPCOS - TDK Electronics	3,027	0.51	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	160 nH	±5%	Gapped	194	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0250E087 FERRITE CORE EP 250NH N87 2PCS EPCOS - TDK Electronics	3,136	0.51	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	250 nH	±7%	Gapped	303	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
ER9.5/2.5/5-3C95-S PLANAR ER CORES 2PC SET Ferroxcube	2,599	0.51	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 9.5 x 2.5 x 5	3C95	-	-	±25%	Ungapped	1530	-	1.67	14.2	8.47	7.6	120	Uncoated	0.096 (2.45mm)
