Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E14/3.5/5/R-3C97-A100-P PLANAR E CORES Ferroxcube	2,124	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3C97-A63-P PLANAR E CORES Ferroxcube	2,293	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3F36-A100-P PLANAR E CORES Ferroxcube	3,091	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
ETD29/16/10-3C90-G150 ER AND ETD CORES Ferroxcube	2,576	0.43	- + RFQ		Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3C90-G300 ER AND ETD CORES Ferroxcube	3,609	0.43	- + RFQ		Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3C90-G350 ER AND ETD CORES Ferroxcube	2,315	0.43	- + RFQ		Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3C90-G50 ER AND ETD CORES Ferroxcube	2,750	0.43	- + RFQ		Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3C94-G200 ER AND ETD CORES Ferroxcube	2,802	0.43	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)

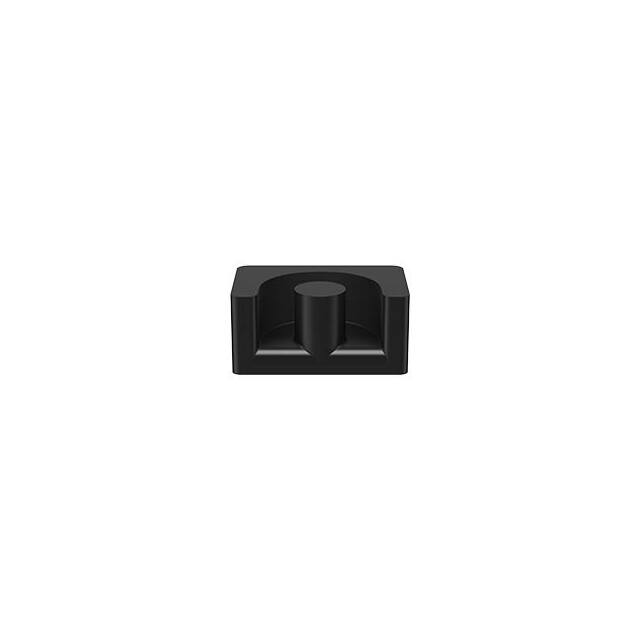

B65855A0063D038 FERRITE CORE EP 63NH T38 2PCS EPCOS - TDK Electronics	3,763	0.43	- + RFQ	Datasheet	Box	B65855A	Not For New Designs	EP	EP 5	T38	-	63 nH	±8%	Gapped	158	-	3.14	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
EQ13-3C96 EQ CORES Ferroxcube	2,406	0.43	- + RFQ	Datasheet	Bulk	-	Active	EQ	EQ 13	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)

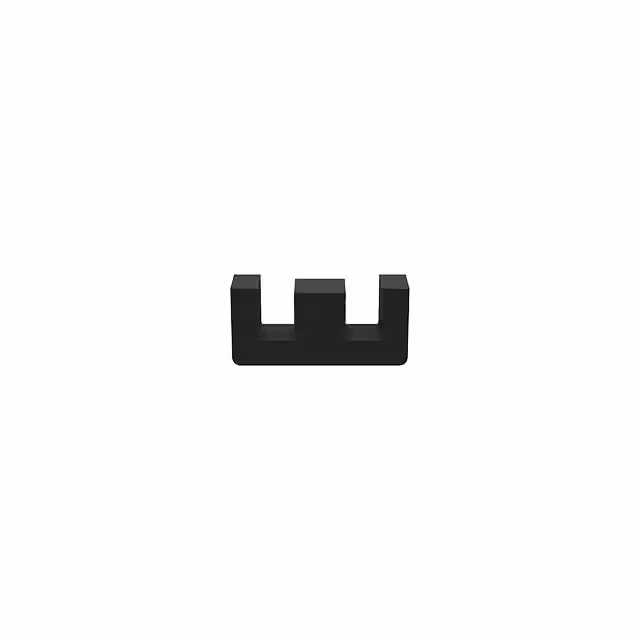

B66310G0000X127 FERRITE CORES EPCOS - TDK Electronics	2,742	0.43	- + RFQ	Datasheet	Box	E20/10/11	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6298180121 98 RM CORE SET Fair-Rite Products Corp.	2,490	0.43	- + RFQ	Datasheet	Bulk	-	Active	RM	-	-	-	-	±25%	Ungapped	-	2400	93	31	34.2	31.2	1060	Uncoated	0.244 (6.20mm)
ROD6/40-4B1-D FERRITE ROD Ferroxcube	2,227	0.43	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 6 x 40	-	0.236 (6.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
E18/4/10-3C96-A160-E PLANAR E CORES Ferroxcube	3,666	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C96-A160-P PLANAR E CORES Ferroxcube	3,647	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C96-A250-E PLANAR E CORES Ferroxcube	3,239	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C96-A250-P PLANAR E CORES Ferroxcube	3,255	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
6595100121 95 EP CORE SET Fair-Rite Products Corp.	2,554	0.43	- + RFQ	Datasheet	Bulk	-	Active	EP	-	95	-	-	±25%	Ungapped	-	3000	168	18.5	11	8.5	203	Uncoated	-
E25/13/11-3C92 E CORES Ferroxcube	3,009	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)

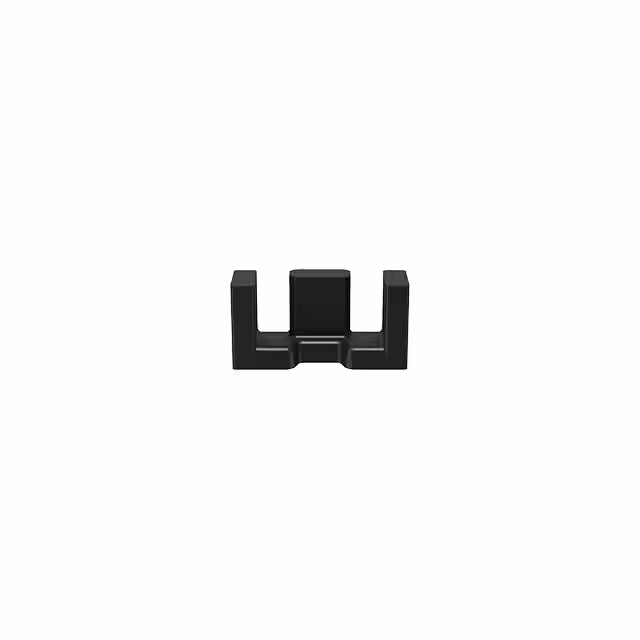

B66413U0100K197 FERRITE CORE EPCOS - TDK Electronics	3,380	0.43	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N97	-	-	-	Gapped	-	2300	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
