| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCCA-98T56H38-C01-BTRANSMITTER 3 COIL 1 LAYER |
109 | 11.63 |
FFQ |
Datasheet |
Box | AWCCA | Active | Transmitter | 3 Coil, 1 Layer | 12.0µH, 11.5µH, 12.0µH | ±10% | 56mOhm | 120 @ 100kHZ, 110 @ 100kHZ | - | - | - | -25°C ~ 85°C |
|

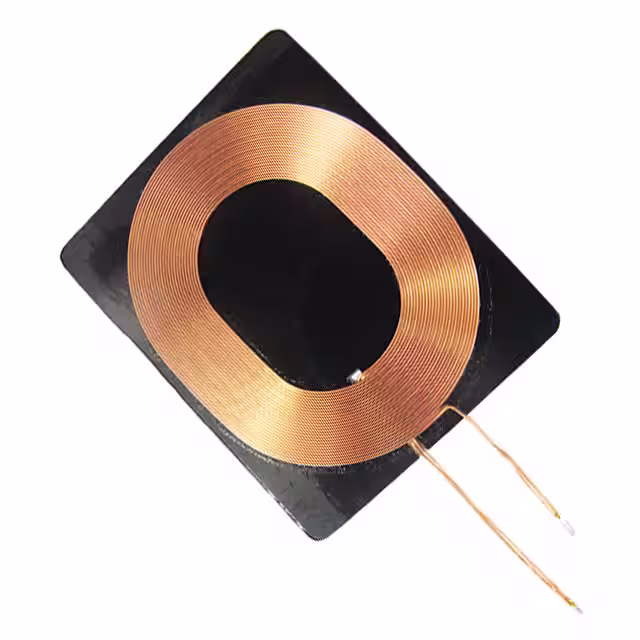

AWCCA-47R38H08-C01-BRX 1 COIL 1 LAYER 11.5UH |
2,692 | 6.55 |
FFQ |
Datasheet |
Box | AWCCA | Active | Receiver | 1 Coil, 1 Layer | 11.5µH | ±5% | 160mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

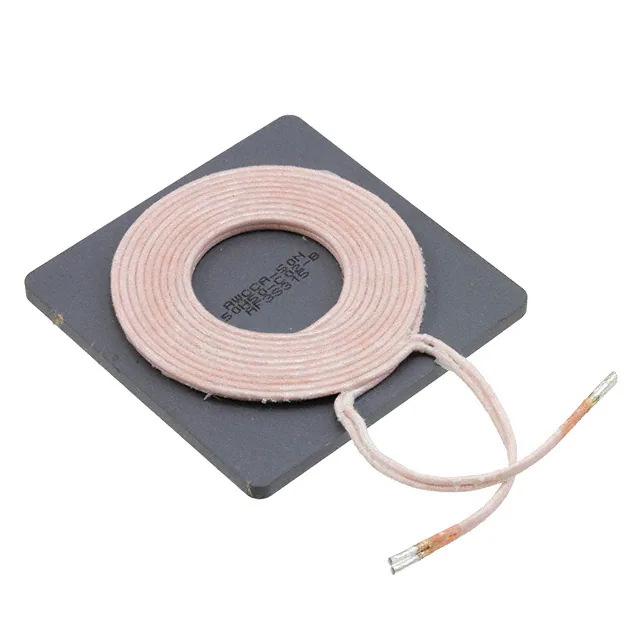

AWCCA-50N50H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
3,941 | 9.54 |
FFQ |
Datasheet |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 75 @ 100kHz | 10.6A | 40A | 5.7MHz | -25°C ~ 85°C |
|

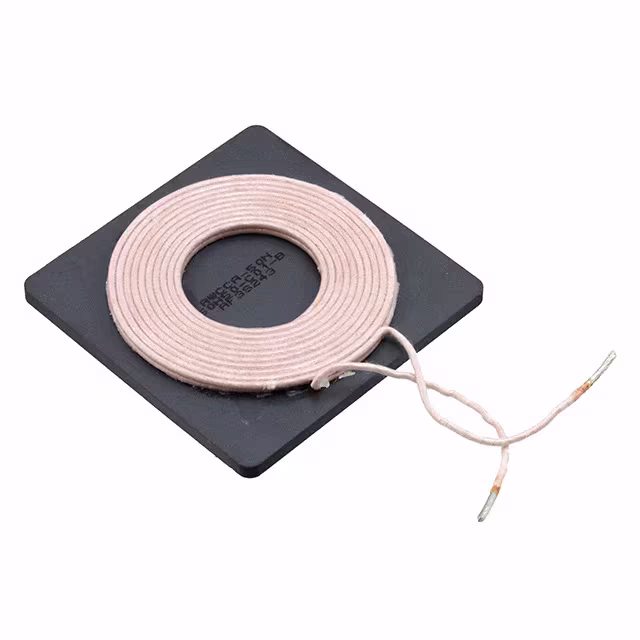

AWCCA-50N50H50-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
2,164 | 10.11 |
FFQ |
Datasheet |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 163 @ 100kHz | 5.7A | 30A | 2.8MHz | -25°C ~ 85°C |
|

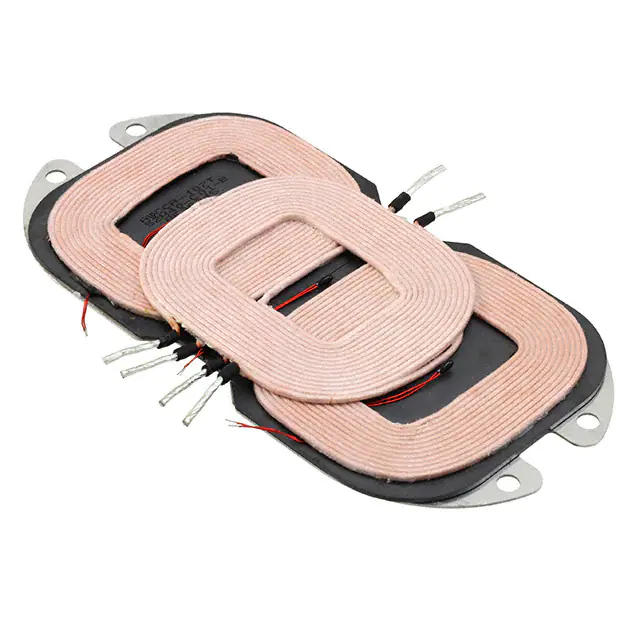

AWCCA-107T52H40-C01-BTX 3 COIL 1 LAYER 11.5UH 12UH |
3,087 | 10.68 |
FFQ |
Datasheet |
Box | AWCCA-107T52 | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12µH | ±10% | 56mOhm | 80 @ 100kHz | 7.5A | 18A | 7MHz | -25°C ~ 85°C |
|
AWCCA-26R26H08-C01-BRX 1 COIL 1 LAYER 10UH |
3,250 | 3.69 |
FFQ |
Datasheet |
Box | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 320mOhm | 18.5 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

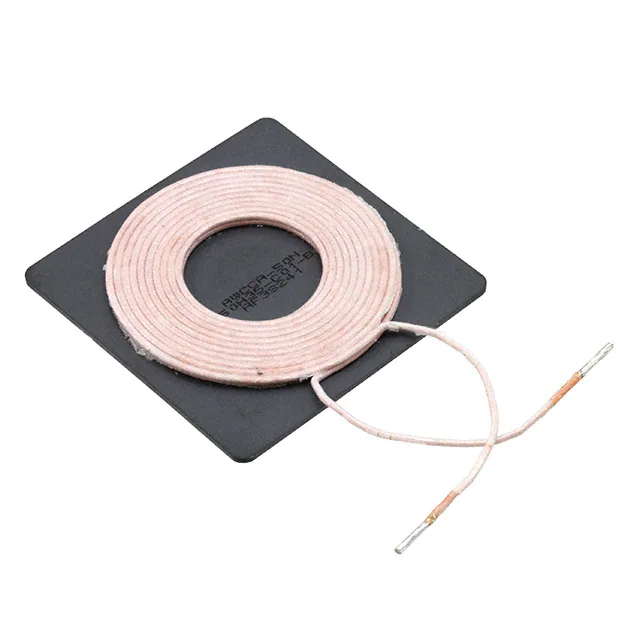

AWCCA-50N50H35-C01-BRX TX 1 COIL 1 LAYER 24UH 5.4A |
2,972 | 4.47 |
FFQ |
Datasheet |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 160 @ 100kHz | 5.4A | 21A | 3MHz | -25°C ~ 85°C |
|

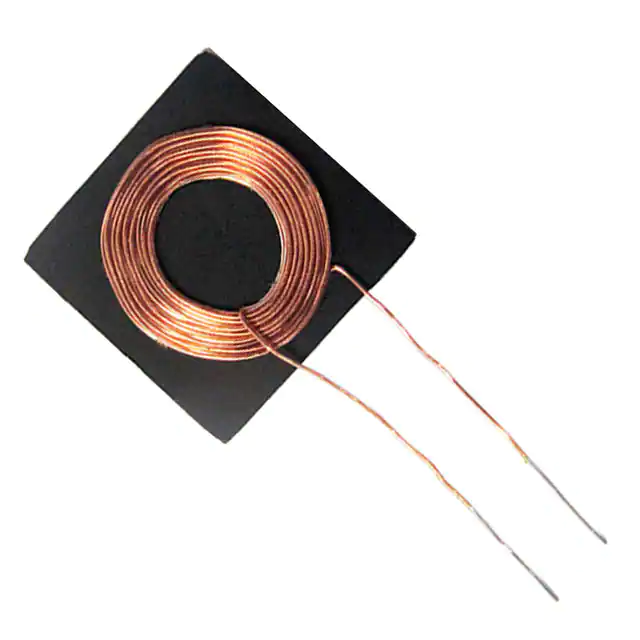

AWCCA-12R12H11-C01-BRX 1 COIL 1 LAYER 8UH |
2,886 | 0.00 |
FFQ |
Datasheet |
Box | AWCCA | Active | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 520mOhm | 10 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

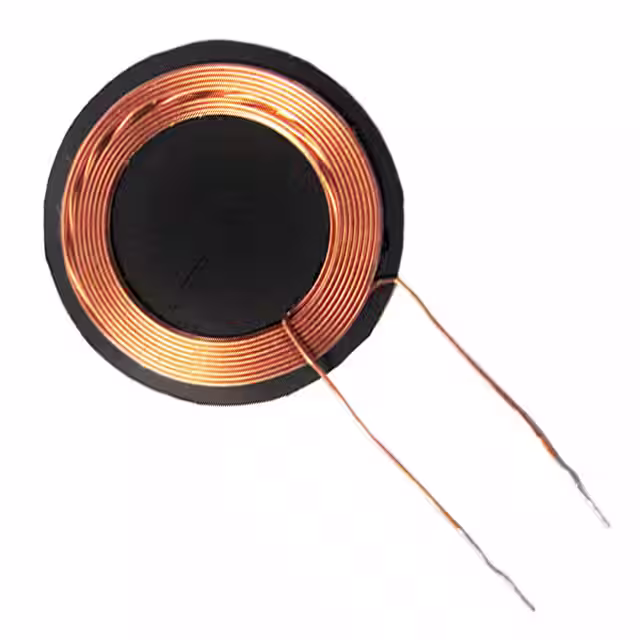

AWCCA-18R18H10-C01-BRX 1 COIL 1 LAYER 10.5UH |
3,514 | 0.00 |
FFQ |
Datasheet |
Box | AWCCA | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 330mOhm | 17 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

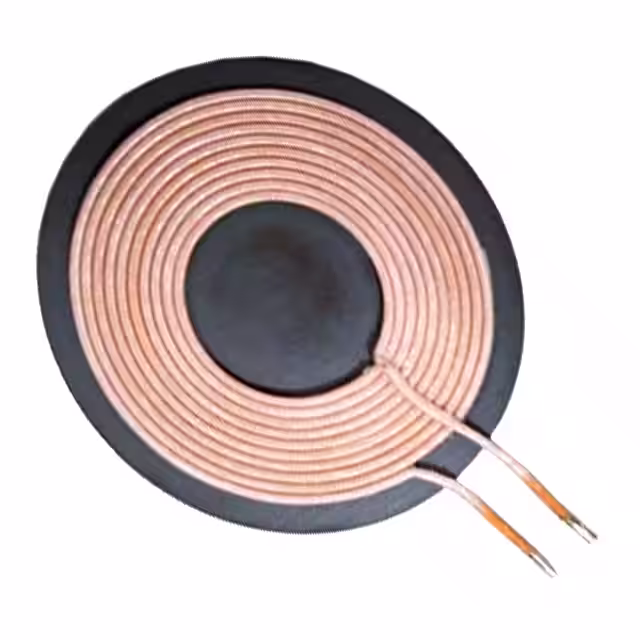

AWCCA-50N50H30-C21-BRX TX 1 COIL 1 LAYER 6.3UH |
2,911 | 0.00 |
FFQ |
Datasheet |
Box | AWCCA | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 38mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-RX404012-101RX COIL 1 LAYER 8.0UH |
3,169 | 1.31 |
FFQ |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm Max | - | - | - | - | - | |
|

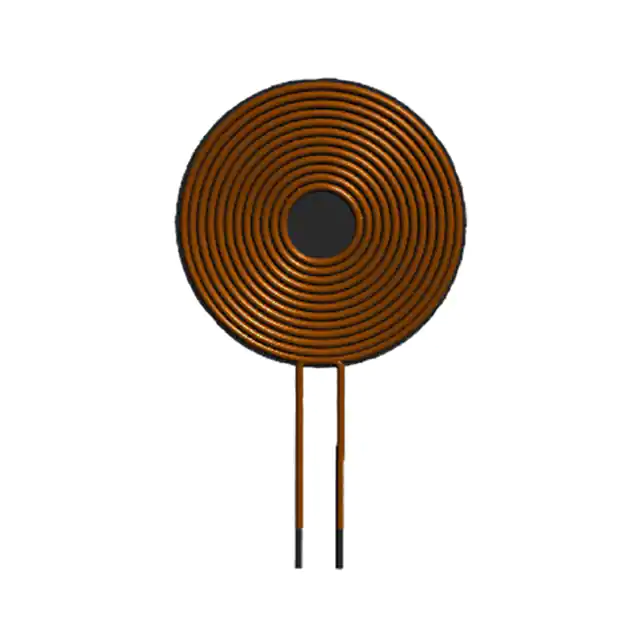

AWCCA-RX350300-101RX COIL, 1 COIL 25UH |
3,160 | 2.11 |
FFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 2 Layer | 25µH | ±10% | 170mOhm | 85 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

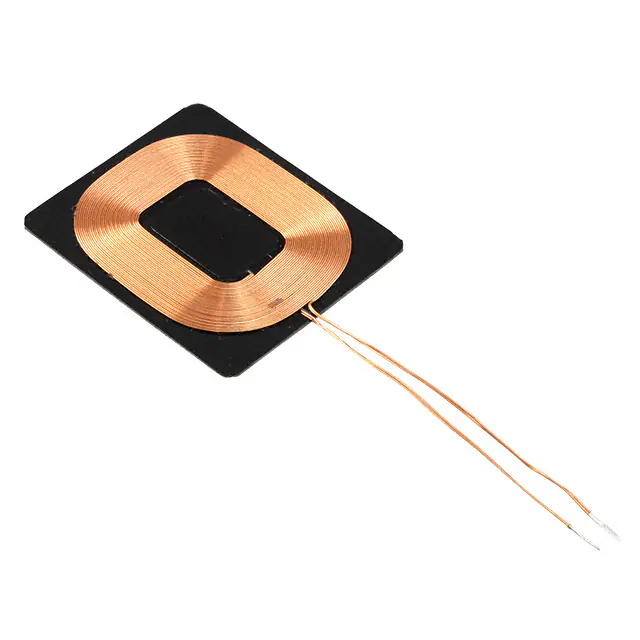

AWCCA-38R32H09-C01-BRX 1 COIL 1 LAYER 11.1UH 2.1A |
2,357 | 2.31 |
FFQ |
Datasheet |
Box | AWCCA-38R32 | Not For New Designs | Receiver | 1 Coil, 1 Layer | 11.1µH | ±10% | 260mOhm | 22 @ 100kHz | 2.1A | 12A | 11MHz | -25°C ~ 85°C |
|
|
AWCCA-RX483205-103WIRELESS CHARGING COIL |
3,402 | 3.10 |
FFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 14.5µH | ±10% | 140mOhm | 60 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
|
AWCCA-RX514012-F003WIRELESS CHARGING COIL |
3,942 | 3.30 |
FFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8.5µH | ±10% | 160mOhm | 25 @ 125kHz | - | - | - | -25°C ~ 85°C |
|
|
AWCCA-RX404012-102WIRELESS CHARGING COIL |
2,029 | 3.31 |
FFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm | 30 @ 125kHz | - | - | - | -25°C ~ 85°C |
|
|
AWCCA-RX300200-102WIRELESS CHARGING COIL |
2,319 | 3.41 |
FFQ |
Datasheet |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

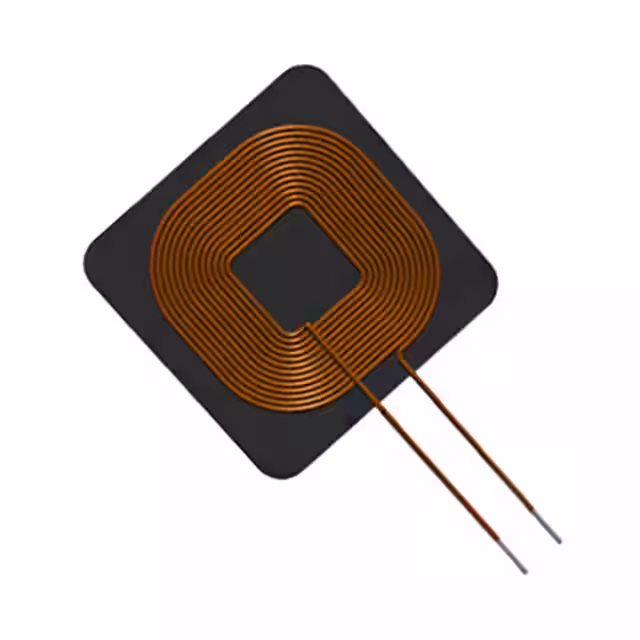

AWCCA-20R20H08-C01-BRECEIVER COIL, 12UH |
2,255 | 3.56 |
FFQ |
Datasheet |
Box | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 290mOhm | 20 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

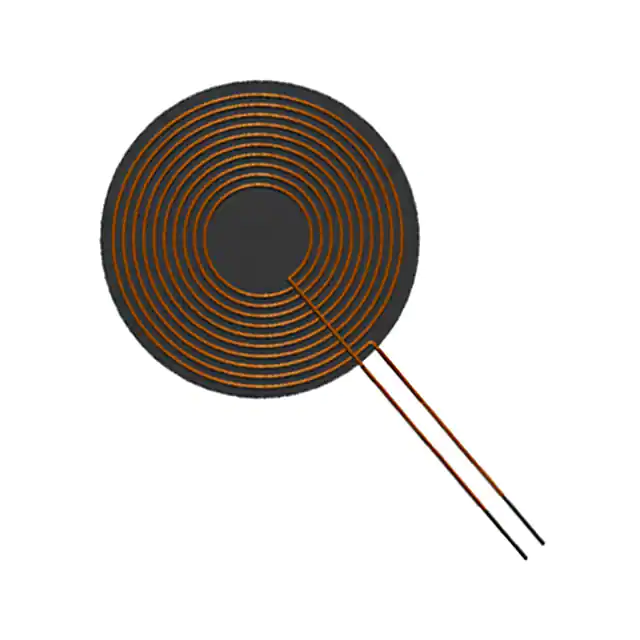

AWCCA-15N15H06-C01-BTX OR RX COIL, 1 COIL, 14.9UH |
2,381 | 3.56 |
FFQ |
Datasheet |
Box | AWCCA | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 14.9µH | ±10% | 1Ohm | 8.5 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-20N20H20-C01-BTX OR RX COIL, 1 COIL 6.3UH |
3,138 | 3.61 |
FFQ |
Datasheet |
Box | AWCCA | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 150mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C |
