Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

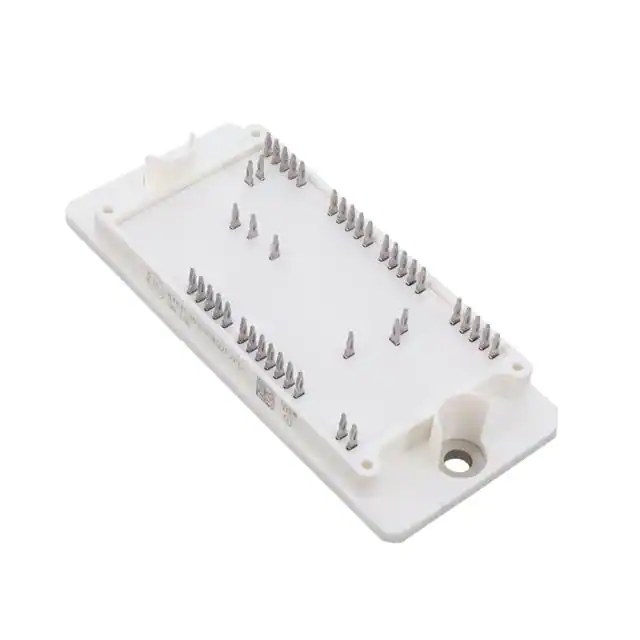

NXH400N100H4Q2F2PG MASS MARKET 250KW 1500V Q2 PACK onsemi	2,880	218.67	- + FFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Level Inverter	1000 V	409 A	959 W	2.3V @ 15V, 400A	500 µA	26.093 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH200B100H4F2SG 1500V F2 BOOST FOR SOLAR PIM onsemi	3,888	99.59	- + FFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

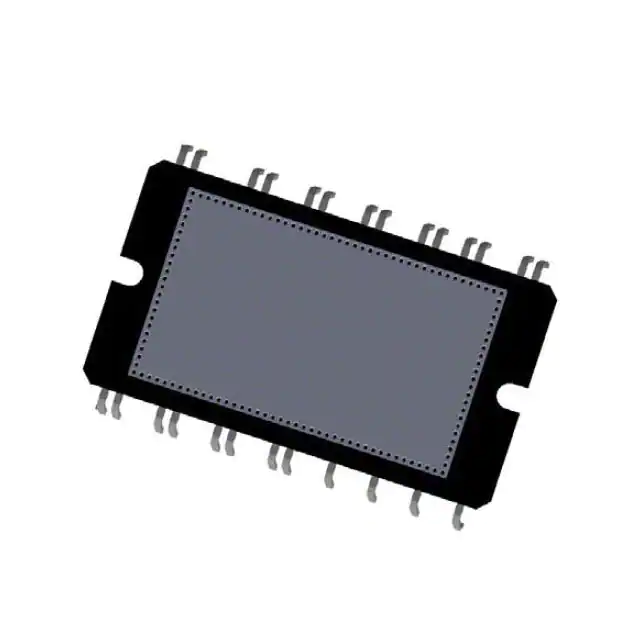

FSBF15CH60BT-F166 POWER DRIVER MODULE IGBT 600V 15 onsemi	2,569	14.28	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NXH50C120L2C2ESG IGBT MODULE, CIB 1200 V, 50 A IG onsemi	3,881	81.98	- + FFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	50 A	20 mW	2.4V @ 15V, 50A	250 µA	11.897 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH35C120L2C2SG IGBT MODULE, CIB 1200 V, 35 A IG onsemi	3,586	106.60	- + FFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	35 A	20 mW	2.4V @ 15V, 35A	250 µA	8.33 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole

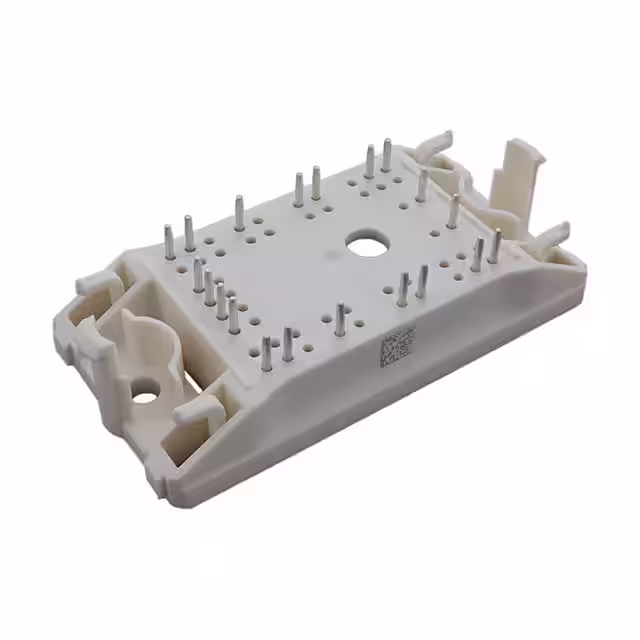

NXH80T120L3Q0S3G PIM GENERATION3 Q0PACK 1200V, 80 onsemi	3,562	54.25	- + FFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	1200 V	75 A	188 W	2.4V @ 15V, 80A	300 µA	18.15 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH100B120H3Q0SG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	3,453	60.87	- + FFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH100B120H3Q0PG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	3,084	62.97	- + FFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH40B120MNQ1SNG 30KW Q1BOOST FULL SIC onsemi	3,058	124.64	- + FFQ	Datasheet	Tray	-	Active	-	Triple, Dual - Common Source	-	-	156 W	-	-	3.227 nF @ 800 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH50M65L4Q1PTG 6KW H6.5 50A Q1PACK PRESS-FIT PI onsemi	2,611	58.58	- + FFQ	Datasheet	Tray	-	Active	Trench Field Stop	Full Bridge	650 V	48 A	86 W	2.22V @ 15V, 50A	300 µA	3.137 nF @ 20 V	Standard	Yes	175°C (TJ)	Chassis Mount
NXH80T120L2Q0P2TG IGBT MODULE 1200V 80A TNPC PIM20 onsemi	2,017	48.33	- + FFQ	Datasheet	Tray	-	Obsolete	Trench Field Stop	Three Level Inverter	-	-	-	1.75V @ 15V, 50A	250 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH40T120L3Q1PG IGBT MOD 3TNPC Q1PACK 1200V/40 onsemi	2,340	290.38	- + FFQ	Datasheet	Tray	-	Active	-	Three Phase	-	-	-	2.2V @ 15V, 40A	400 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FMG2G50US60 IGBT MODULE 600V 50A 250W 7PMGA onsemi	3,995	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	-	Half Bridge	600 V	50 A	250 W	2.8V @ 15V, 50A	250 µA	3.46 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G75US60L IGBT MODULE 600V 75A 310W 7PMGA onsemi	3,070	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	-	Single	600 V	75 A	310 W	2.8V @ 15V, 75A	250 µA	7.056 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G75US60H IGBT MODULE 600V 75A 310W 7PMGA onsemi	3,362	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	-	Single	600 V	75 A	310 W	2.8V @ 15V, 75A	250 µA	7.056 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G100US60L IGBT MODULE 600V 100A 400W 7PMGA onsemi	3,604	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	-	Single	600 V	100 A	400 W	2.8V @ 15V, 100A	250 µA	10.84 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G100US60H IGBT MODULE 600V 100A 400W 7PMGA onsemi	3,932	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	-	Single	600 V	100 A	400 W	2.8V @ 15V, 100A	250 µA	10.84 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH80B120MNQ0SNG PIM POWER MODULE onsemi	3,019	63.14	- + FFQ	Datasheet	Tray	-	Active	-	Dual Boost Chopper	-	-	69 W	-	-	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH50M65L4C2SG 650V 50A CONVERTER-INVERTER-PFCS onsemi	3,844	71.74	- + FFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter	650 V	50 A	20 mW	2.2V @ 15V, 75A	250 µA	4.877 nF @ 20 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH50M65L4C2ESG 650V 50A CONVERTER-INVERTER-PFCS onsemi	2,610	82.83	- + FFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter	650 V	50 A	20 mW	2.2V @ 15V, 75A	250 µA	2.608 nF @ 20 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
