| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MG12300D-BN2MMIGBT MODULE 1200V 480A 1450W D3 |
3,211 | 198.69 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 480 A | 1450 W | 1.7V @ 15V, 300A | 1 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG12200D-BN2MMIGBT MODULE 1200V 290A 1050W D3 |
2,816 | 139.02 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 290 A | 1050 W | 1.7V @ 15V, 200A (Typ) | 1 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|

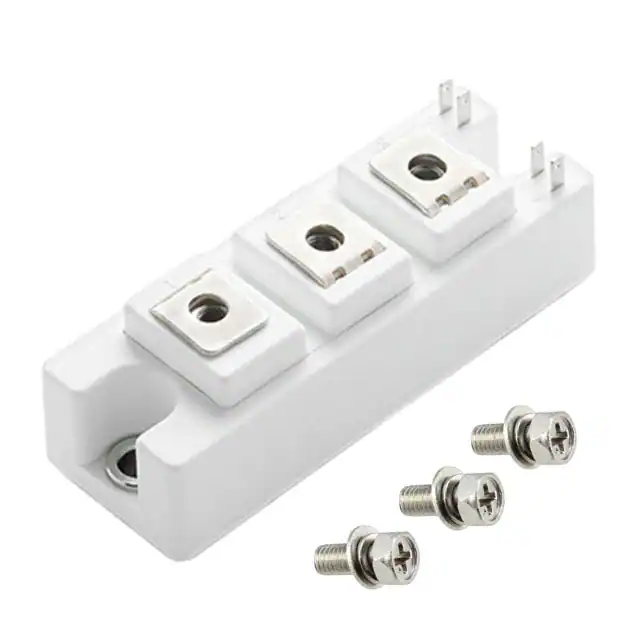

MG06200S-BN4MMIGBT MODULE 600V 200A 600W S3 |
3,495 | 106.45 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 300 A | 600 W | 1.45V @ 15V, 200A (Typ) | 1 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

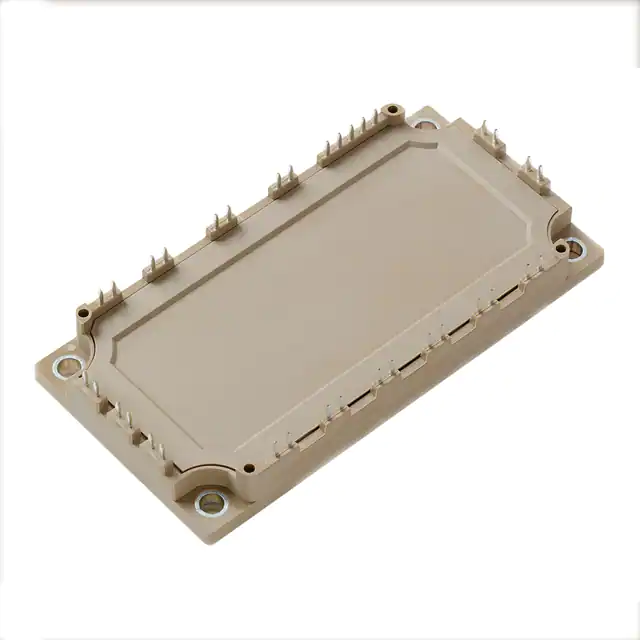

MG12100W-XN2MMIGBT MOD 1200V 140A 450W |
2,518 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 450 W | 1.7V @ 15V, 100A (Typ) | 1 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG12100D-BA1MMIGBT MODULE 1200V 160A 1000W D3 |
2,234 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 160 A | 1000 W | 1.8V @ 15V, 100A (Typ) | 1 mA | 8.58 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG12150D-BA1MMIGBT MODULE 1200V 210A 1100W D3 |
3,678 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 210 A | 1100 W | 1.8V @ 15V, 150A (Typ) | 1 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG12200D-BA1MMIGBT MODULE 1200V 300A 1400W D3 |
3,688 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 300 A | 1400 W | 1.8V @ 15V, 200A (Typ) | 1 mA | 14.9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG12300D-BA1MMIGBT MODULE 1200V 450A 1800W D3 |
3,404 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 450 A | 1800 W | 1.9V @ 15V, 300A (Typ) | 2 mA | 21.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG12400D-BN2MMIGBT MODULE 1200V 580A 1925W D3 |
3,957 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 580 A | 1925 W | 1.7V @ 15V, 400A (Typ) | 2 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG06400D-BN1MMIGBT MODULE 600V 460A 1400W D3 |
3,351 | 0.00 |
FFQ |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 460 A | 1400 W | 2.45V @ 15V, 400A | 1 mA | 18 nF @ 25 V | Standard | No | - | Chassis Mount | |
|
|
MG06400D-BN4MMIGBT MODULE 600V 400A 1250W D3 |
3,013 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 500 A | 1250 W | 1.45V @ 15V, 400A (Typ) | 1 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG12300D-BN3MMIGBT MODULE 1200V 450A 1450W D3 |
3,013 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 450 A | 1450 W | 3.2V @ 15V, 300A | 2 mA | 22 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG06300D-BN4MMIGBT MODULE 600V 300A 940W D3 |
3,770 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 400 A | 940 W | 1.45V @ 15V, 300A (Typ) | 1 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
MG06600WB-BN4MMIGBT MOD 600V 600A 1500W |
2,615 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 700 A | 1500 W | 1.45V @ 15V, 600A (Typ) | 1 mA | 39 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|

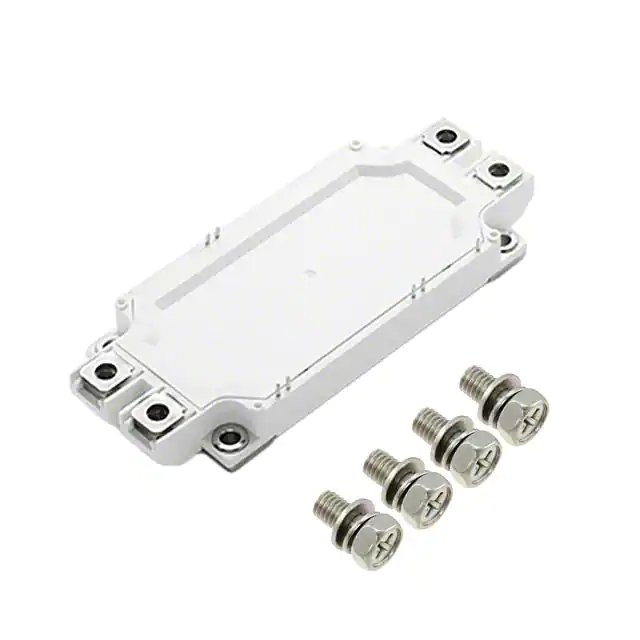

MG12225WB-BN2MMIGBT MODULE 1200V 325A 1050W WB |
3,767 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 325 A | 1050 W | 1.7V @ 15V, 225A (Typ) | 1 mA | 16 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG12300WB-BN2MMIGBT MODULE 1200V 500A 1400W WB |
2,990 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 500 A | 1400 W | 1.7V @ 15V, 300A (Typ) | 1 mA | 21 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG12450WB-BN2MMIGBT MODULE 1200V 600A 1950W WB |
3,647 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 600 A | 1950 W | 1.7V @ 15V, 450A (Typ) | 1 mA | 32 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MG0675S-BN4MMIGBT MODULE 600V 75A 250W S3 |
3,267 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG06100S-BR1MMIGBT MODULE 600V 150A 625W S3 |
3,393 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 150 A | 625 W | 1.9V @ 15V, 100A (Typ) | 500 µA | 5.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MG06100S-BN4MMIGBT MODULE 600V 100A 330W S3 |
3,162 | 0.00 |
FFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 125 A | 330 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
