Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

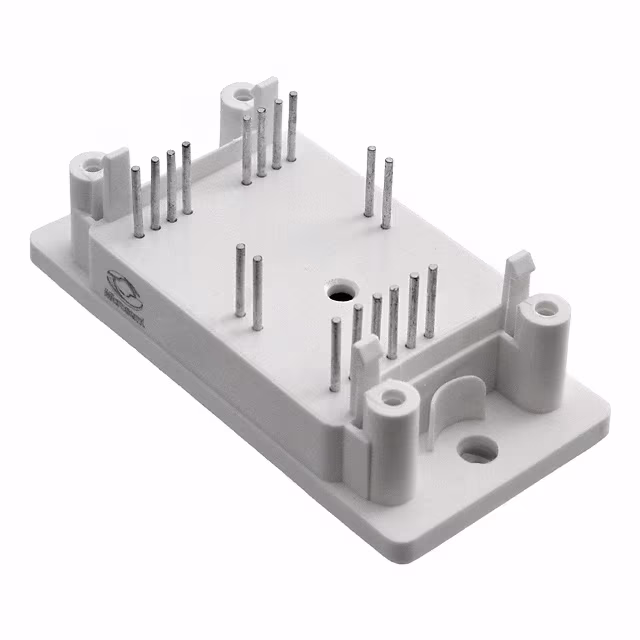

APTGL180A1202G IGBT MODULE 1200V 220A 750W SP2 Microsemi Corporation	2,232	93.42	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	750 W	2.2V @ 15V, 150A	300 µA	9.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT100SK60T1G IGBT MODULE 600V 150A 340W SP4 Microsemi Corporation	3,130	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Single	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT100SK60TG IGBT MODULE 600V 150A 340W SP4 Microsemi Corporation	2,309	0.00	- + FFQ	Datasheet	Bulk	-	Discontinued at Mosen	Trench Field Stop	Single	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT100TA60PG IGBT MODULE 600V 150A 340W SP6P Microsemi Corporation	2,156	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Three Phase	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT150A120D1G IGBT MODULE 1200V 220A 700W D1 Microsemi Corporation	3,850	0.00	- + FFQ		Bulk	-	Obsolete	Trench Field Stop	Half Bridge	1200 V	220 A	700 W	2.1V @ 15V, 150A	4 mA	10.8 nF @ 25 V	Standard	No	-	Chassis Mount
APT200GN60JDQ4G IGBT MOD 600V 283A 682W ISOTOP Microsemi Corporation	2,629	0.00	- + FFQ	Datasheet	Tube	-	Discontinued at Mosen	Trench Field Stop	Single	600 V	283 A	682 W	1.85V @ 15V, 200A	50 µA	14.1 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
APT200GN60JG IGBT MOD 600V 283A 682W ISOTOP Microsemi Corporation	2,665	0.00	- + FFQ	Datasheet	Tube	-	Discontinued at Mosen	Trench Field Stop	Single	600 V	283 A	682 W	1.85V @ 15V, 200A	25 µA	14.1 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
APT30GP60JDQ1 IGBT MODULE 600V 67A 245W ISOTOP Microsemi Corporation	3,436	0.00	- + FFQ	Datasheet	Tube	POWER MOS 7®	Active	PT	Single	600 V	67 A	245 W	2.7V @ 15V, 30A	500 µA	3.2 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT75GN120JDQ3G IGBT MOD 1200V 124A 379W ISOTOP Microsemi Corporation	2,246	0.00	- + FFQ	Datasheet	Tube	-	Discontinued at Mosen	Trench Field Stop	Single	1200 V	124 A	379 W	2.1V @ 15V, 75A	200 µA	4.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT75GN120J IGBT MOD 1200V 124A 379W ISOTOP Microsemi Corporation	3,793	0.00	- + FFQ	Datasheet	Tube	-	Obsolete	Trench Field Stop	Single	1200 V	124 A	379 W	2.1V @ 15V, 75A	100 µA	4.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT50GF60JU3 IGBT MODULE 600V 75A 277W SOT227 Microsemi Corporation	2,077	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	75 A	277 W	2.7V @ 15V, 50A	40 µA	2.25 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF100DU120TG IGBT MODULE 1200V 135A 568W SP4 Microsemi Corporation	2,248	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	1200 V	135 A	568 W	3.7V @ 15V, 100A	350 µA	6.9 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF100SK120TG IGBT MODULE 1200V 135A 568W SP4 Microsemi Corporation	3,930	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	135 A	568 W	3.7V @ 15V, 100A	350 µA	6.9 nF @ 25 V	Standard	Yes	-	Chassis Mount

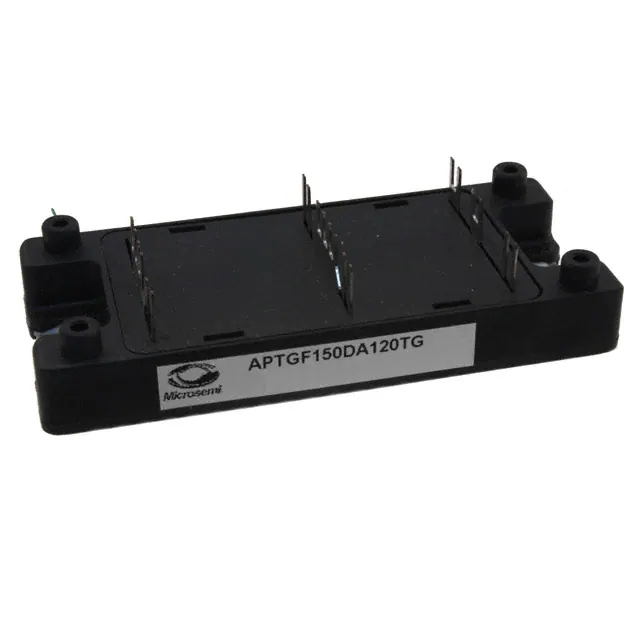

APTGF150DA120TG IGBT MODULE 1200V 200A 961W SP4 Microsemi Corporation	2,741	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	Yes	-	Chassis Mount

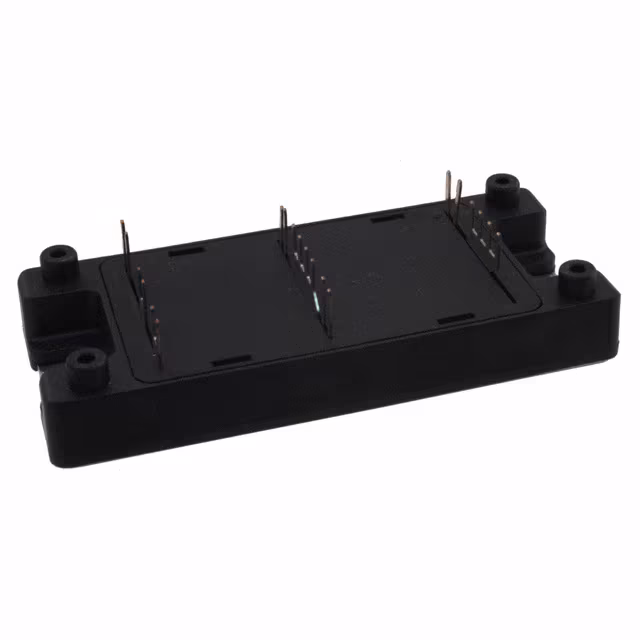

APTGF150DU120TG IGBT MODULE 1200V 200A 961W SP4 Microsemi Corporation	2,709	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF150SK120TG IGBT MODULE 1200V 200A 961W SP4 Microsemi Corporation	2,805	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15A120T1G IGBT MODULE 1200V 25A 140W SP1 Microsemi Corporation	2,264	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15H120T1G IGBT MODULE 1200V 25A 140W SP1 Microsemi Corporation	2,908	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15H120T3G IGBT MODULE 1200V 25A 140W SP3 Microsemi Corporation	3,748	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF15X120T3G IGBT MODULE 1200V 25A 140W SP3 Microsemi Corporation	2,014	0.00	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	1200 V	25 A	140 W	3.7V @ 15V, 15A	250 µA	1 nF @ 25 V	Standard	Yes	-	Chassis Mount
