Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APT100GT120JU2 IGBT MOD 1200V 140A 480W SOT227 Microchip Technology	164	38.70	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	140 A	480 W	2.1V @ 15V, 100A	5 mA	7.2 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT45GP120JDQ2 IGBT MOD 1200V 75A 329W ISOTOP Microchip Technology	128	45.80	- + FFQ	Datasheet	Tube	POWER MOS 7®	Active	PT	Single	1200 V	75 A	329 W	3.9V @ 15V, 45A	750 µA	4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT75GN120JDQ3 IGBT MOD 1200V 124A 379W ISOTOP Microchip Technology	3,383	36.10	- + FFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	1200 V	124 A	379 W	2.1V @ 15V, 75A	200 µA	4.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT150GN60JDQ4 IGBT MOD 600V 220A 536W ISOTOP Microchip Technology	2,428	39.09	- + FFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	600 V	220 A	536 W	1.85V @ 15V, 150A	50 µA	9.2 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
APT100GT120JRDQ4 IGBT MOD 1200V 123A 570W ISOTOP Microchip Technology	2,014	61.82	- + FFQ	Datasheet	Tube	Thunderbolt IGBT®	Active	NPT	Single	1200 V	123 A	570 W	3.7V @ 15V, 100A	200 µA	7.85 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT60GF120JRDQ3 IGBT MOD 1200V 149A 625W ISOTOP Microchip Technology	2,410	113.04	- + FFQ	Datasheet	Tube	-	Active	NPT	Single	1200 V	149 A	625 W	3V @ 15V, 100A	350 µA	7.08 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount

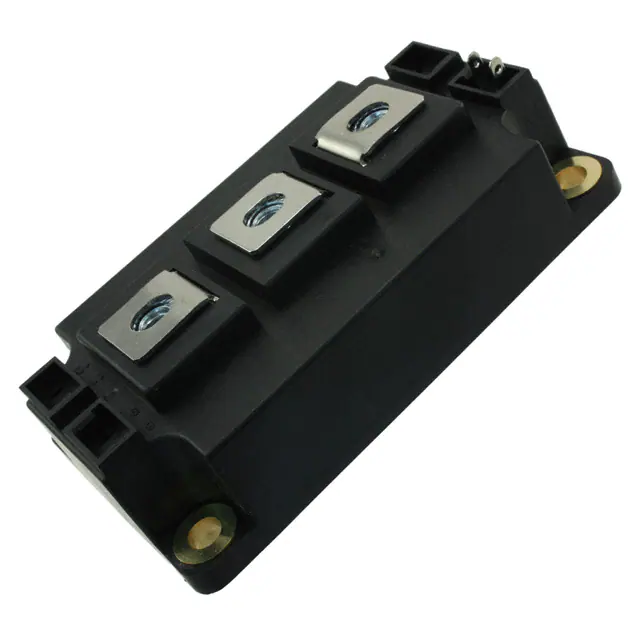

APTGT300SK60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	3,430	161.59	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-	Chassis Mount
APT85GR120JD60 IGBT MOD 1200V 116A 543W SOT227 Microchip Technology	2,636	40.60	- + FFQ	Datasheet	Tube	-	Active	NPT	Single	1200 V	116 A	543 W	3.2V @ 15V, 85A	1.1 mA	8.4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APT40GF120JRD IGBT NPT COMBI 1200V 40A ISOTOP Microchip Technology	3,938	42.44	- + FFQ		Tube	-	Active	-	Single	1200 V	60 A	390 W	3.4V @ 15V, 50A	500 µA	3.45 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount

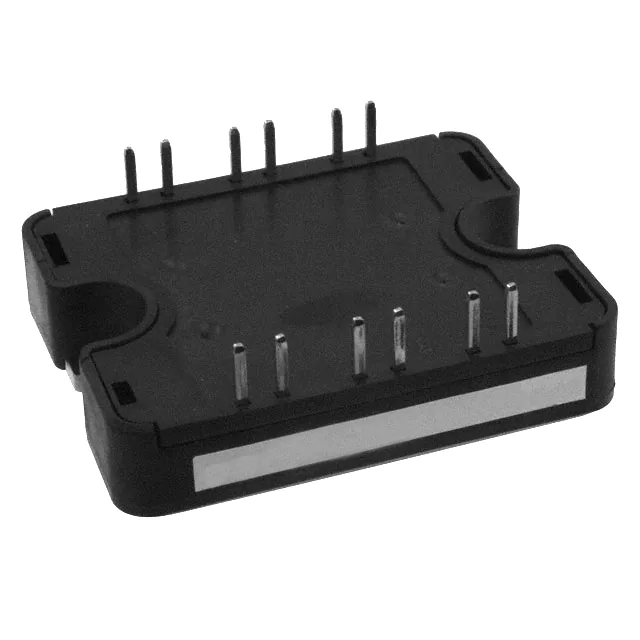

APTGT50SK170T1G IGBT MODULE 1700V 75A 312W SP1 Microchip Technology	2,628	62.51	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

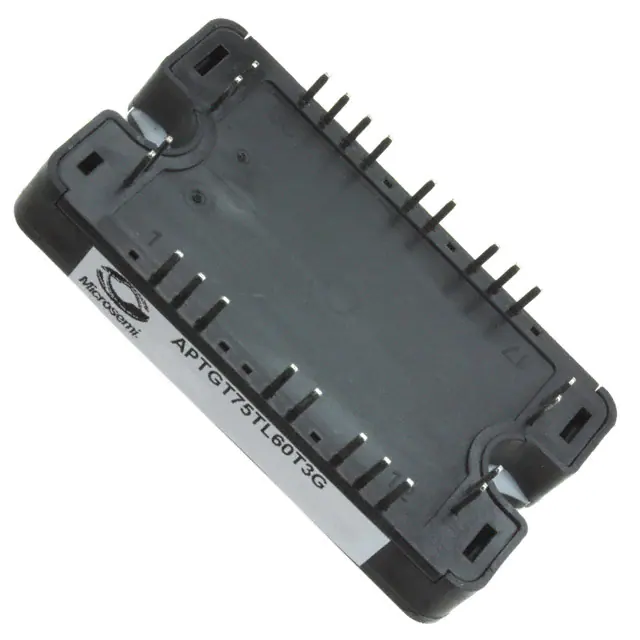

APTGT75TL60T3G IGBT MODULE 600V 100A 250W SP3 Microchip Technology	2,819	94.16	- + FFQ	Datasheet	Tube	-	Active	Trench Field Stop	Three Level Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

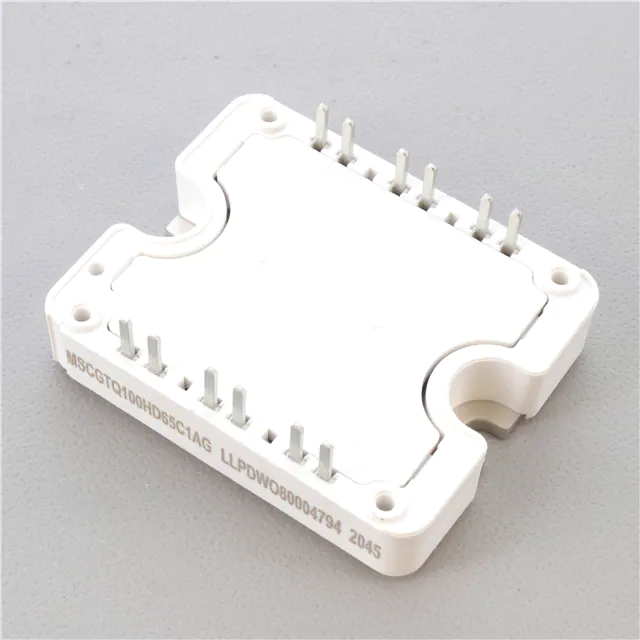

MSCGTQ100HD65C1AG PM-IGBT-TFS-SBD~-SP1F Microchip Technology	2,902	133.91	- + FFQ	Datasheet	Tube	MSC	Active	Trench	Half Bridge	650 V	80 A	-	-	80 A	-	Standard	No	-	Chassis Mount

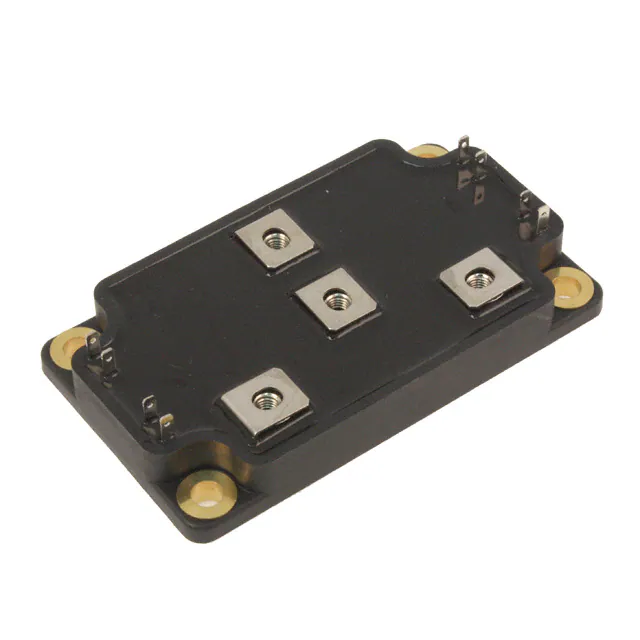

APTGT200TL60G IGBT MODULE 600V 300A 652W SP6 Microchip Technology	3,213	249.95	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	300 A	652 W	1.9V @ 15V, 200A	350 µA	12.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

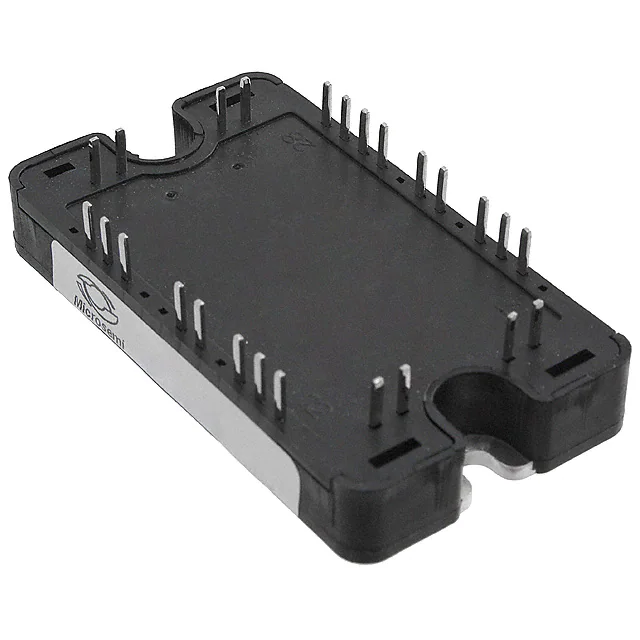

APTGT50H60T3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	2,032	75.29	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APT150GN120JDQ4 IGBT MOD 1200V 215A 625W ISOTOP Microchip Technology	2,616	68.16	- + FFQ	Datasheet	Tube	-	Active	Trench Field Stop	Single	1200 V	215 A	625 W	2.1V @ 15V, 150A	300 µA	9.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APTGT35A120T1G IGBT MODULE 1200V 55A 208W SP1 Microchip Technology	2,381	58.04	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	55 A	208 W	2.1V @ 15V, 35A	250 µA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT100DH60TG IGBT MODULE 600V 150A 340W SP4 Microchip Technology	3,331	103.73	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APT50GF60JU2 IGBT MODULE 600V 75A 277W SOT227 Microchip Technology	3,634	31.29	- + FFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	75 A	277 W	2.7V @ 15V, 50A	40 µA	2.25 nF @ 25 V	Standard	No	-	Chassis Mount

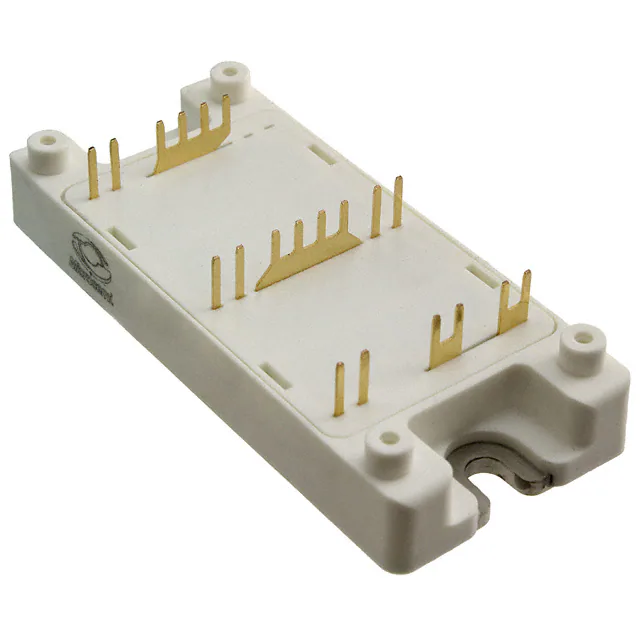

APTGT300A60TG IGBT MODULE 600V 430A 935W SP4 Microchip Technology	3,861	165.37	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	430 A	935 W	1.9V @ 15V, 300A	350 µA	18.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

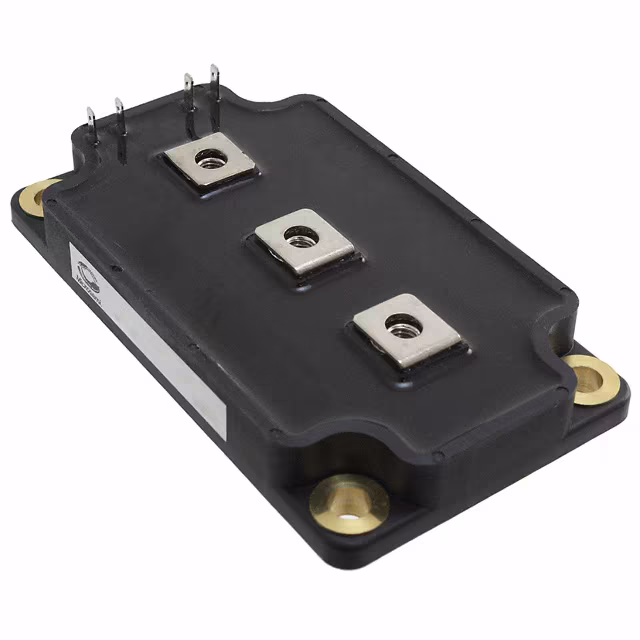

APTGT200DU120G IGBT MODULE 1200V 280A 890W SP6 Microchip Technology	3,676	237.71	- + FFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1200 V	280 A	890 W	2.1V @ 15V, 200A	350 µA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
