| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1208STPR MTR BIPOLAR 10V 0.5A/PHASE |
294 | 19.49 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 10VDC | 500 mA | 200 | 1.8° | - | 14 / 98.86 | Square - 1.386 x 1.386 (35.20mm x 35.20mm) | 14 | 0.197 (5.00mm) | 0.827 (21.00mm) | 1.023 (26.00mm) | Wire Leads | -20°C ~ 50°C | 20 Ohms |
|
1207STPR MTR BIPOLAR 7.4V 0.28A/PHSE |
158 | 19.49 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 4.56VDC | 280 mA | 200 | 1.8° | - | 9 / 63.55 | Square - 1.386 x 1.386 (35.20mm x 35.20mm) | 14 | 0.197 (5.00mm) | 0.827 (21.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 26 Ohms |
|
2267STPR MTR BIPOLAR 2.8V 1.7A/PHASE |
712 | 22.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|
1209STPR MTR BIPOLAR 2.7V 1A/PHASE |
195 | 22.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.7VDC | 1 A | 200 | 1.8° | - | 20 / 141.23 | Square - 1.386 x 1.386 (35.20mm x 35.20mm) | 14 | 0.197 (5.00mm) | 0.827 (21.00mm) | 1.023 (26.00mm) | Wire Leads | -20°C ~ 50°C | 2.7 Ohms |
|
1205STPR MTR BIPOLAR 3.8V 0.67A/PHSE |
321 | 25.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | - | 8.33 / 58.84 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms |
|
1200STPR MTR UNI/BIPLR 4V 1.2A/PHSE |
191 | 27.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 4VDC | 1.2 A | 200 | 1.8° | - | 43.9 / 310 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | - |
|
1204STPR MTR BIPOLAR 3.9V 0.6A/PHASE |
349 | 29.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 3.9VDC | 600 mA | 200 | 1.8° | - | 2.5 / 17.65 | Square - 0.795 x 0.795 (20.20mm x 20.20mm) | 8 | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.630 (16.00mm) | Wire Leads | -20°C ~ 50°C | 6.5 Ohms |
|
1206STPR MTR BIPOLAR 4.5V 0.67A/PHSE |
758 | 31.95 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 4.56VDC | 670 mA | 200 | 1.8° | - | 13 / 91.8 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 6.8 Ohms |
|
2268STEPPER MOTOR W/28CM LEAD SCREW |
2,953 | 67.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|

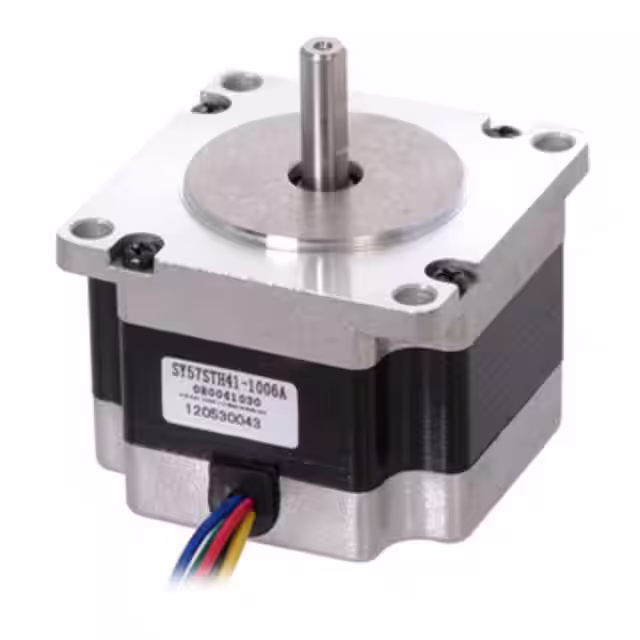

1476STPR MTR UNI/BIPLR 5.7V 1A/PHSE |
3,802 | 36.95 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 5.7VDC | 1 A | 200 | 1.8° | - | 55 / 388.39 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 5.7 Ohms |
|

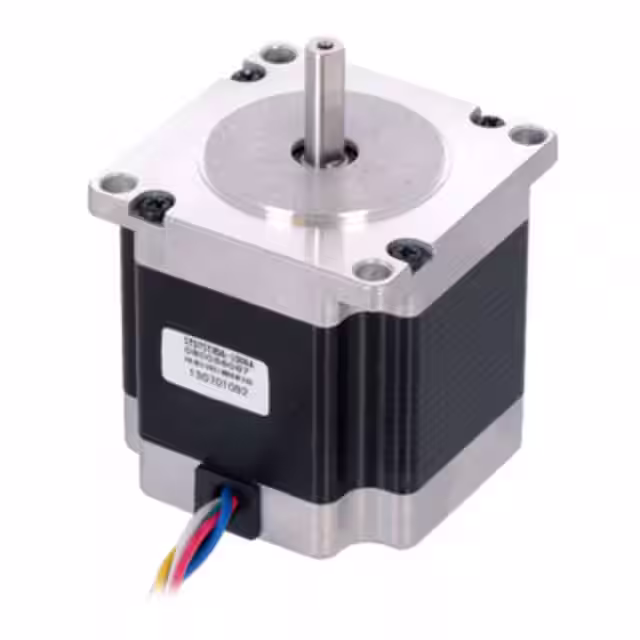

1472STPR MTR UNI/BIPLR 7.4V 1A/PHSE |
2,442 | 49.25 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 7.4VDC | 1 A | 200 | 1.8° | - | 125 / 882.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 7.4 Ohms |
|

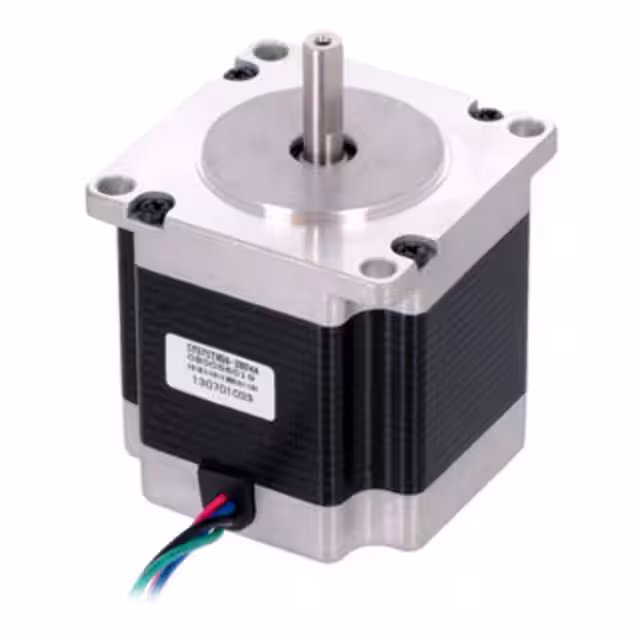

1474STPR MTR BIPOLAR 2.5V 2.8A/PHASE |
2,292 | 49.25 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.5VDC | 2.8 A | 200 | 1.8° | - | 180 / 1271 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.827 (21.00mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms |
|

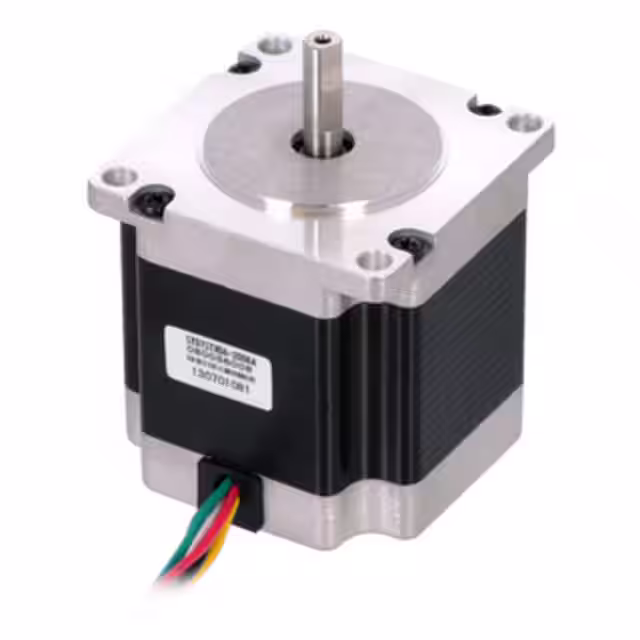

1473STPR MTR UNI/BIPLR 3.6V 2A/PHSE |
3,336 | 49.25 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 3.6VDC | 2 A | 200 | 1.8° | - | 125 / 882.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms |
|

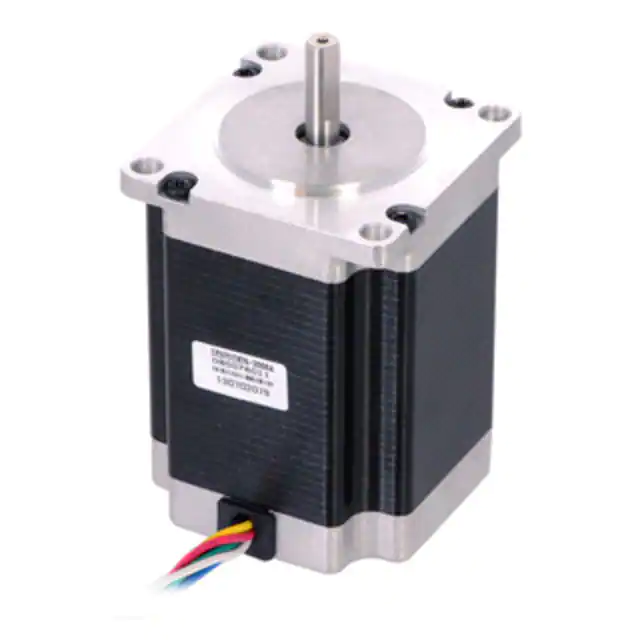

1475STPR MTR UNI/BIPLR 4.5V 2A/PHSE |
2,347 | 61.55 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 4.5VDC | 2 A | 200 | 1.8° | - | 190 / 1341.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 2.25 Ohms |
|

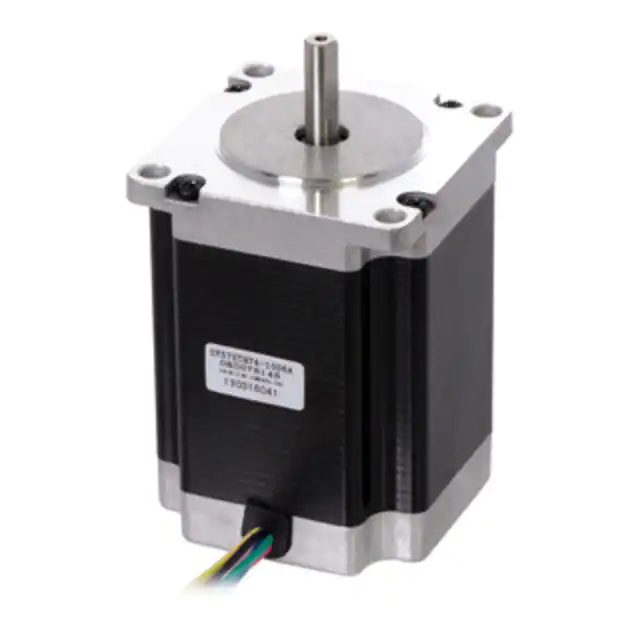

1477STPR MTR UNI/BIPLR 8.6V 1A/PHSE |
3,596 | 61.55 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 8.6VDC | 1 A | 200 | 1.8° | - | 190 / 1341.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 8.6 Ohms |
|

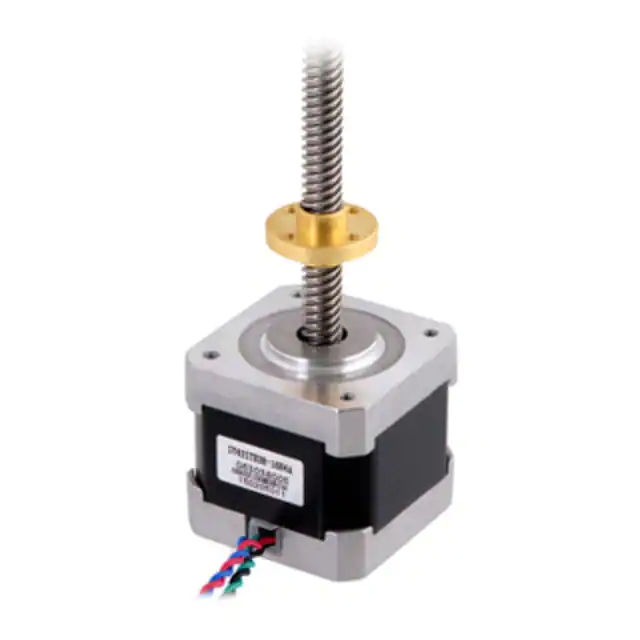

2690STEPPER MOTOR W/38CM LEAD SCREW |
2,548 | 74.95 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|

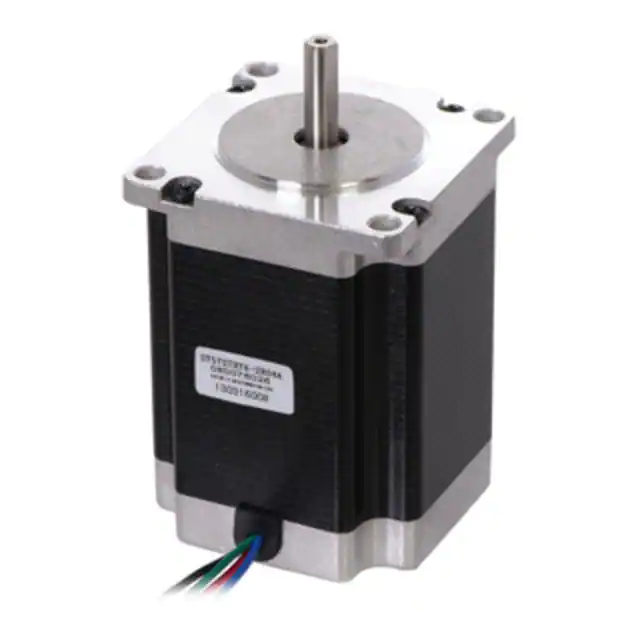

1478STPR MTR BIPOLAR 3.2V 2.8A/PHASE |
2,416 | 61.55 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200 | 1.8° | - | 270 / 1906.62 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms |
|

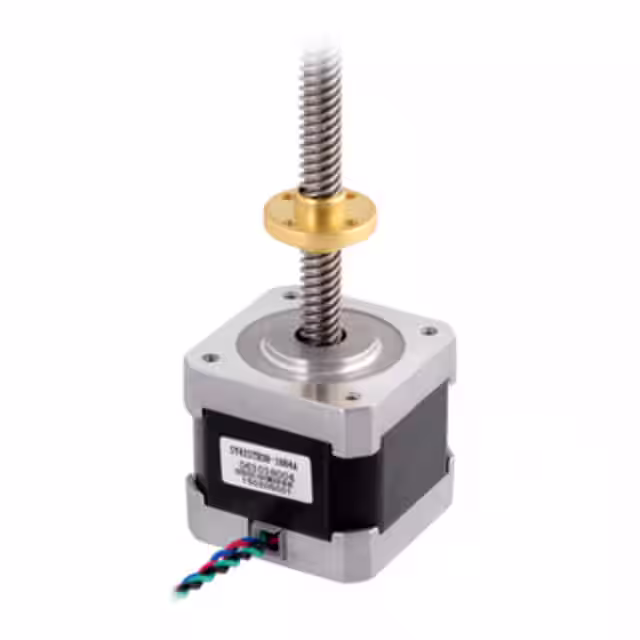

2689STEPPER MOTOR W/18CM LEAD SCREW |
2,122 | 62.75 |
FFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
