Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

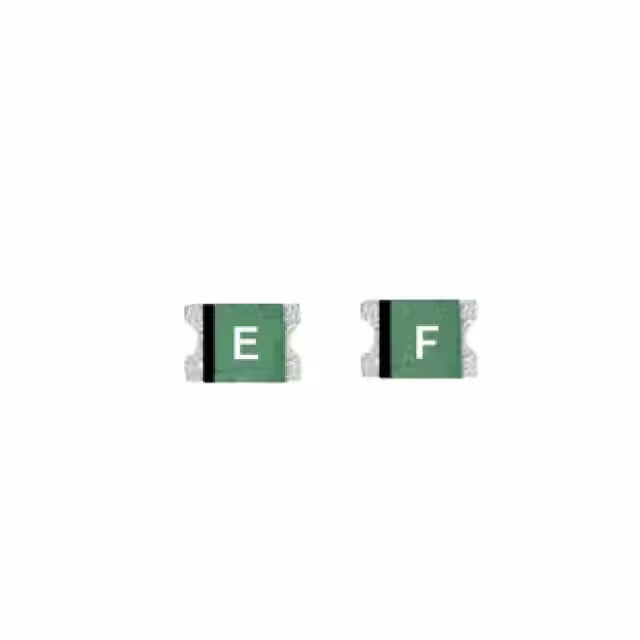

R0603-010-R PTC RESET FUSE 15V 100MA 0603 OptiFuse	4,000	0.20	- + FFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR)	R0603	Active	Polymeric	15V	40 A	100 mA	250 mA	100 ms	900 mOhms	8 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.029 W (1.60mm x 0.73mm)	-	0.030 (0.75mm)

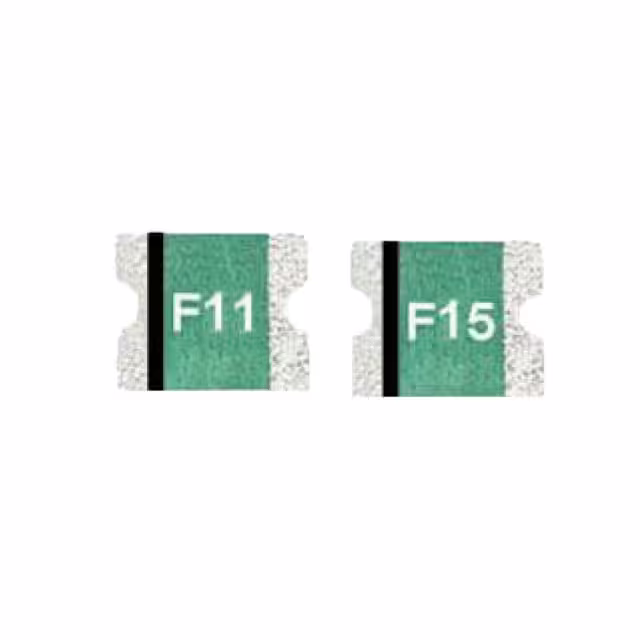

R1206-005-R PTC RESET FUSE 60V 50MA 1206 OptiFuse	3,000	0.20	- + FFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	R1206	Active	Polymeric	60V	100 A	50 mA	150 mA	1.5 s	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.033 (0.85mm)

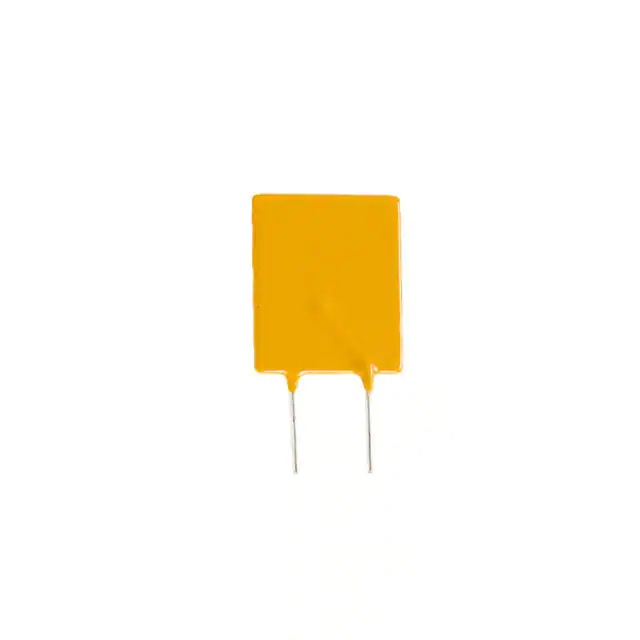

RS30-110 PTC RESET FUSE 30V 1.1A RADIAL OptiFuse	3,041	0.39	- + FFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	1.1 A	2.2 A	6.6 s	50 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-

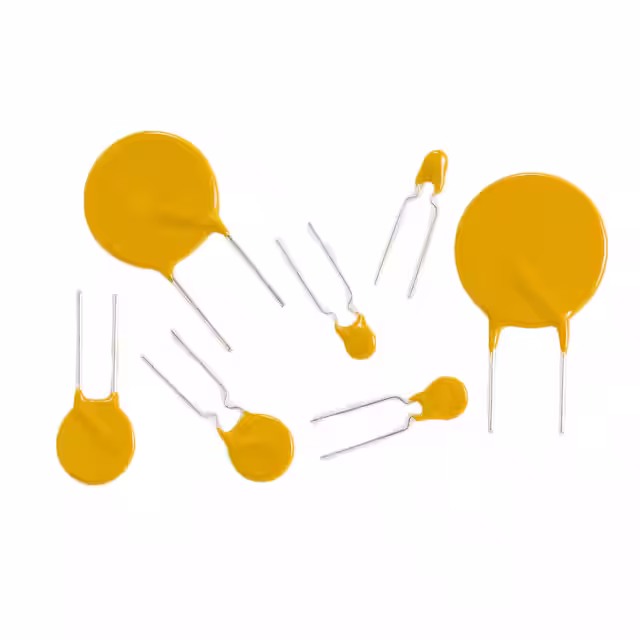

RS90-090 PTC RESET FUSE 72V 900MA RADIAL OptiFuse	6,200	0.40	- + FFQ	Datasheet	Radial, Disc	Bulk	RS90	Active	Polymeric	72V (90V Int)	40 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.461 Dia x 0.122 T (11.70mm x 3.10mm)	0.622 (15.80mm)	-
R0603LR-035-R PTC RESET FUSE 6V 350MA 0603 OptiFuse	12,000	0.42	- + FFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR)	R0603LR	Active	Polymeric	6V	100 A	350 mA	750 mA	100 ms	200 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.029 W (1.60mm x 0.73mm)	-	0.030 (0.75mm)
R2920-100-R PTC RESET FUSE 33V 1.1A 2920 OptiFuse	4,000	0.42	- + FFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	R2920	Active	Polymeric	33V	100 A	1.1 A	2.2 A	500 ms	90 mOhms	410 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.039 (1.00mm)
R2920-050-R PTC RESET FUSE 60V 500MA 2920 OptiFuse	2,000	0.42	- + FFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	R2920	Active	Polymeric	60V	100 A	500 mA	1 A	4 s	300 mOhms	1.4 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.045 (1.15mm)
R1812-110-24-R PTC RESET FUSE 24V 1.1A 1812 OptiFuse	1,500	0.46	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	R1812	Active	Polymeric	24V	100 A	1.1 A	2.2 A	500 ms	60 mOhms	200 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.051 (1.30mm)

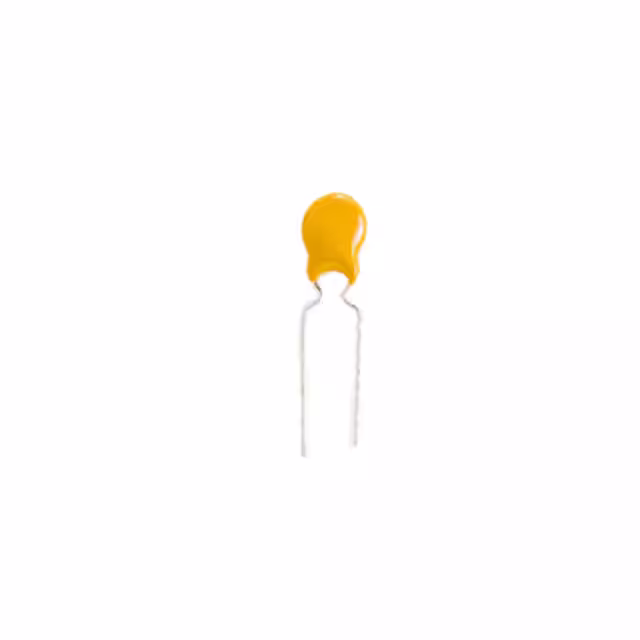

RS60RB-025 PTC RESET FUSE 60V 250MA RADIAL OptiFuse	4,989	0.53	- + FFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
RS60RB-010 PTC RESET FUSE 60V 100MA RADIAL OptiFuse	1,099	0.53	- + FFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-

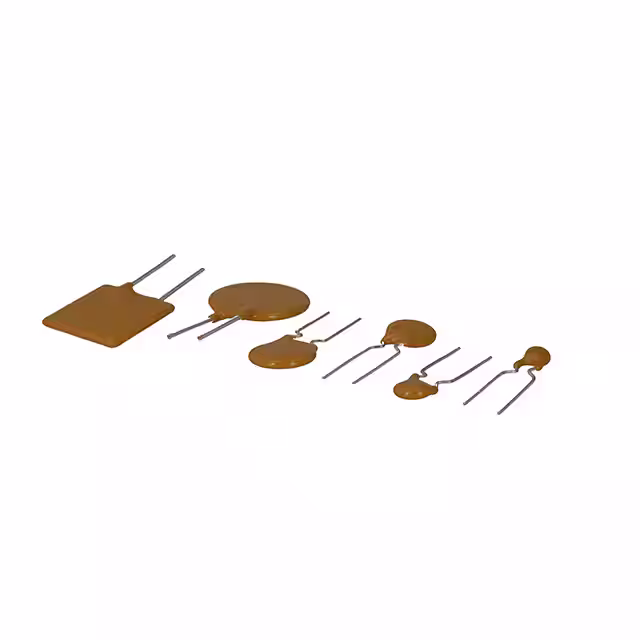

RS60RB-075 PTC RESET FUSE 60V 750MA RADIAL OptiFuse	1,399	0.65	- + FFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.409 Dia x 0.122 T (10.40mm x 3.10mm)	0.598 (15.20mm)	-

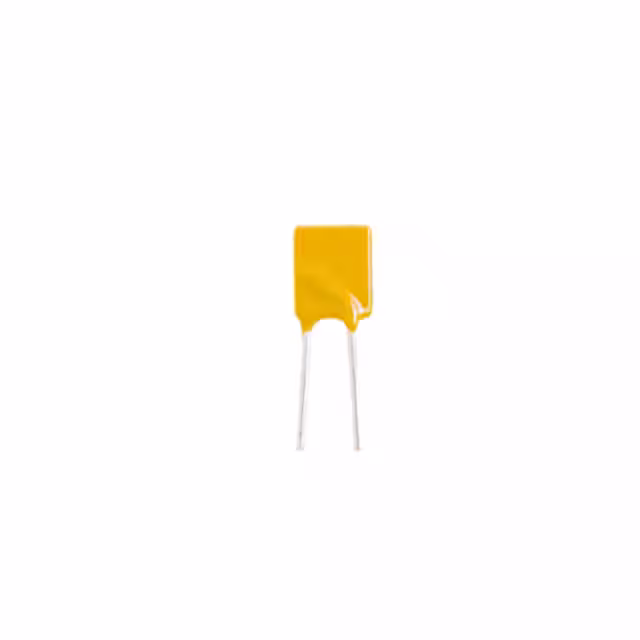

RS16-400 PTC RESET FUSE 16V 4A RADIAL OptiFuse	1,594	0.79	- + FFQ	Datasheet	Radial, Disc	Bulk	RS16	Active	Polymeric	16V	100 A	4 A	6.8 A	3.5 s	20 mOhms	63 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.504 (12.80mm)	-
RS30-700 PTC RESET FUSE 30V 7A RADIAL OptiFuse	1,896	0.82	- + FFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.752 L x 0.118 W (19.10mm x 3.00mm)	1.051 (26.70mm)	-
RS60RB-160 PTC RESET FUSE 60V 1.6A RADIAL OptiFuse	6,789	0.88	- + FFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.642 Dia x 0.122 T (16.30mm x 3.10mm)	0.839 (21.30mm)	-

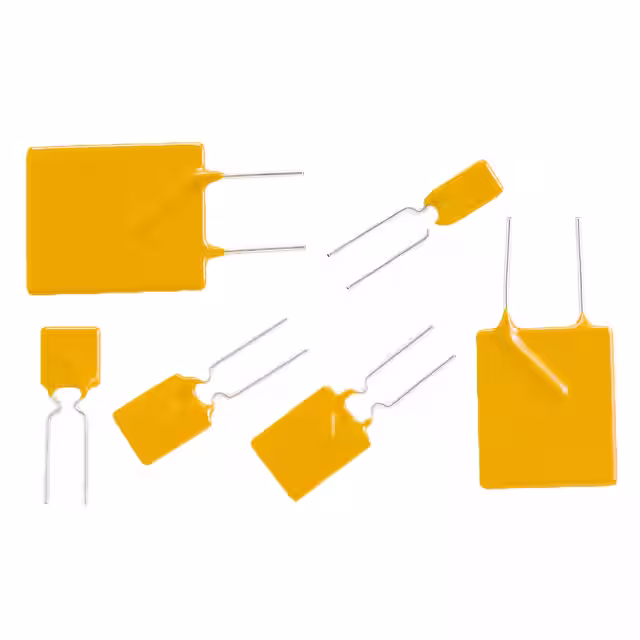

RS30-900 PTC RESET FUSE 30V 9A RADIAL OptiFuse	3,000	1.10	- + FFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.949 L x 0.118 W (24.10mm x 3.00mm)	1.169 (29.70mm)	-

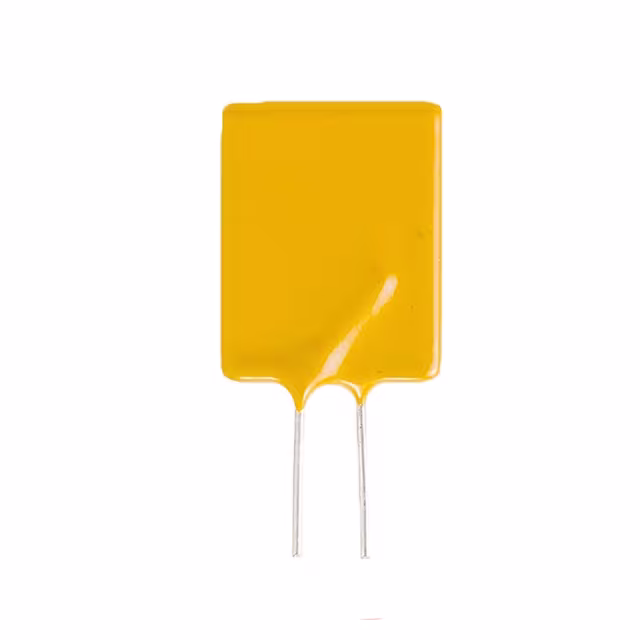

RS60SB-250 PTC RESET FUSE 60V 2.5A RADIAL OptiFuse	6,679	1.14	- + FFQ	Datasheet	Radial, Disc	Bulk	RS60SB	Active	Polymeric	60V	40 A	2.5 A	5 A	15.6 s	40 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.811 (20.60mm)	-

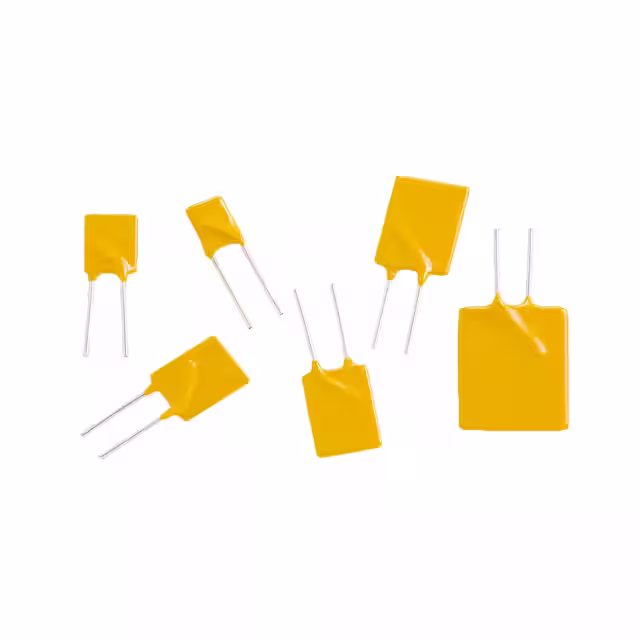

RS16-800 PTC RESET FUSE 16V 8A RADIAL OptiFuse	1,999	1.14	- + FFQ	Datasheet	Radial, Disc	Bulk	RS16	Active	Polymeric	16V	100 A	8 A	13.6 A	9 s	5 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.823 (20.90mm)	-

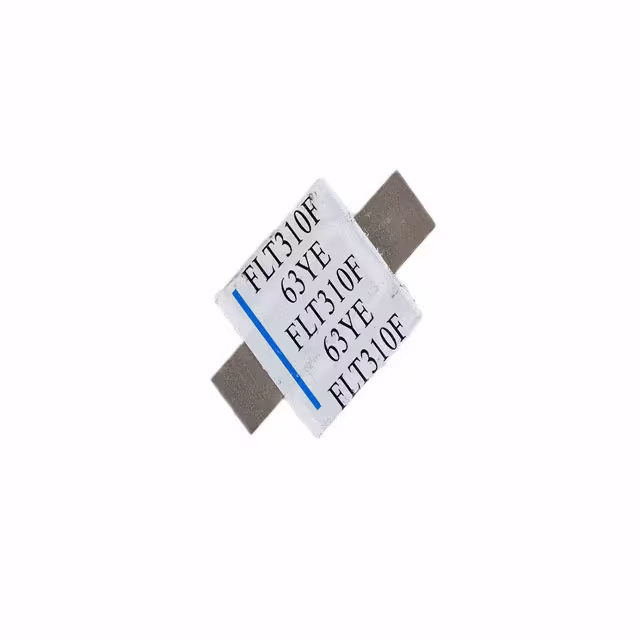

RALT-300 PTC RESET FUSE 24V 3A STRAP OptiFuse	1,789	1.90	- + FFQ	Datasheet	Strap	Bulk	RALT	Active	Polymeric	24V	100 A	3 A	6.3 A	-	15 mOhms	55 mOhms	-	-40°C ~ 85°C	-	User Defined	1.185 L x 0.522 W (30.10mm x 13.25mm)	-	0.043 (1.10mm)

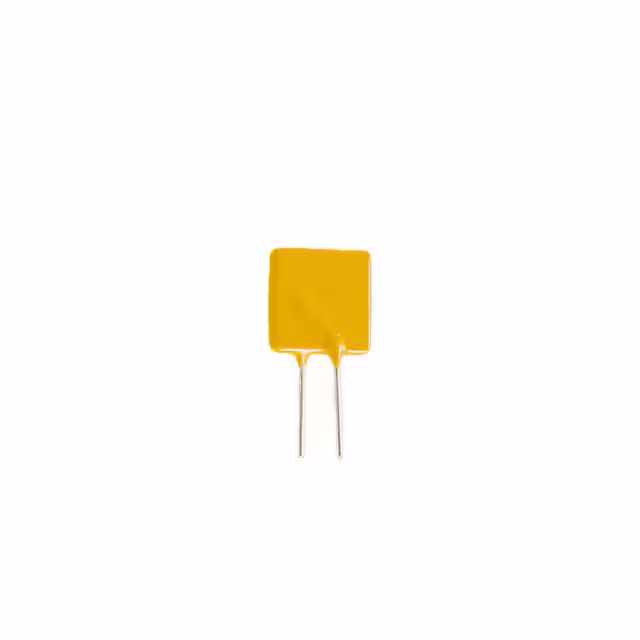

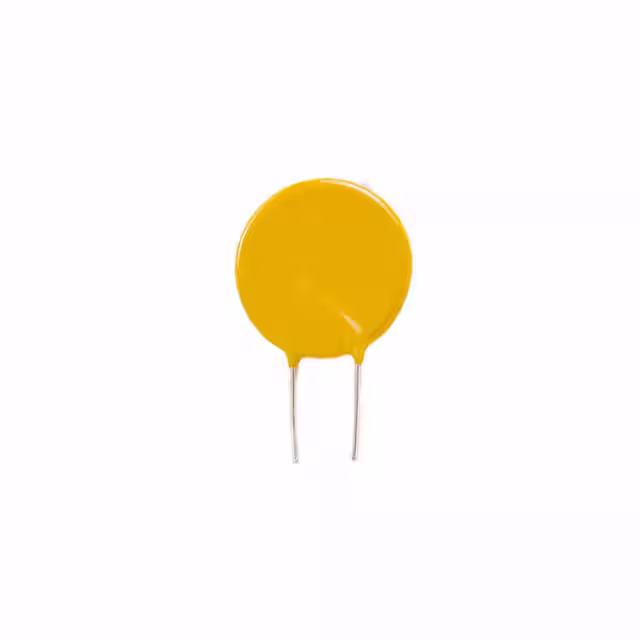

RS120-200 PTC RESET FUSE 120V 2A RADIAL OptiFuse	527	2.04	- + FFQ	Datasheet	Radial, Disc	Bulk	RS120	Active	Polymeric	120V (135V Int)	20 A	2 A	4.2 A	36 s	80 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.925 L x 0.161 W (23.50mm x 4.10mm)	1.098 (27.90mm)	-
RS120-300 PTC RESET FUSE 120V 3A RADIAL OptiFuse	3,142	2.05	- + FFQ	Datasheet	Radial, Disc	Bulk	RS120	Active	Polymeric	120V (135V Int)	17 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.886 Dia x 0.161 T (22.50mm x 4.10mm)	1.181 (30.00mm)	-
