Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PFMF.010.2 PTC RESET FUSE 60V 100MA 1812 SCHURTER Inc.	28,208	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	60V	40 A	100 mA	300 mA	1.5 s	700 mOhms	15 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.043 (1.10mm)
PFUF.005.2 PTC RESET FUSE 30V 50MA 1210 SCHURTER Inc.	7,405	0.38	- + FFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFUF	Active	Polymeric	30V	10 A	50 mA	150 mA	1.5 s	2.8 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.093 W (3.22mm x 2.35mm)	-	0.037 (0.95mm)
PFMF.050.2 PTC RESET FUSE 15V 500MA 1812 SCHURTER Inc.	6,933	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	15V	100 A	500 mA	1 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
PFMF.020.2 PTC RESET FUSE 30V 200MA 1812 SCHURTER Inc.	7,254	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	30V	80 A	200 mA	400 mA	60 ms	400 mOhms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.043 (1.10mm)
PFMF.030.2 PTC RESET FUSE 30V 300MA 1812 SCHURTER Inc.	3,841	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	30V	10 A	300 mA	600 mA	100 ms	300 mOhms	3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.043 (1.10mm)

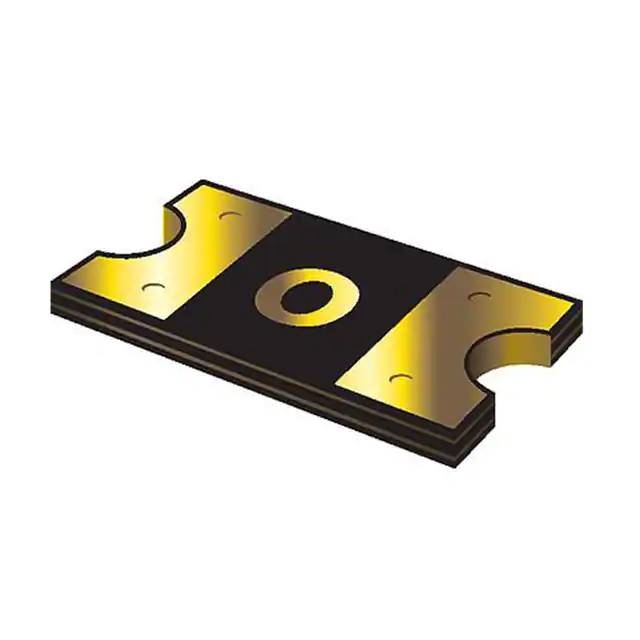

PFNF.020.2 PTC RESET FUSE 24V 200MA 1206 SCHURTER Inc.	50,291	0.38	- + FFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	24V	10 A	200 mA	460 mA	600 ms	600 mOhms	2.6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
PFNF.012.2 PTC RESET FUSE 30V 120MA 1206 SCHURTER Inc.	46,201	0.38	- + FFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	30V	10 A	120 mA	290 mA	200 ms	1.35 Ohms	8.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.043 (1.10mm)
PFMF.075.24.2 PTC RESET FUSE 24V 750MA 1812 SCHURTER Inc.	4,524	0.39	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	24V	40 A	750 mA	1.5 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)

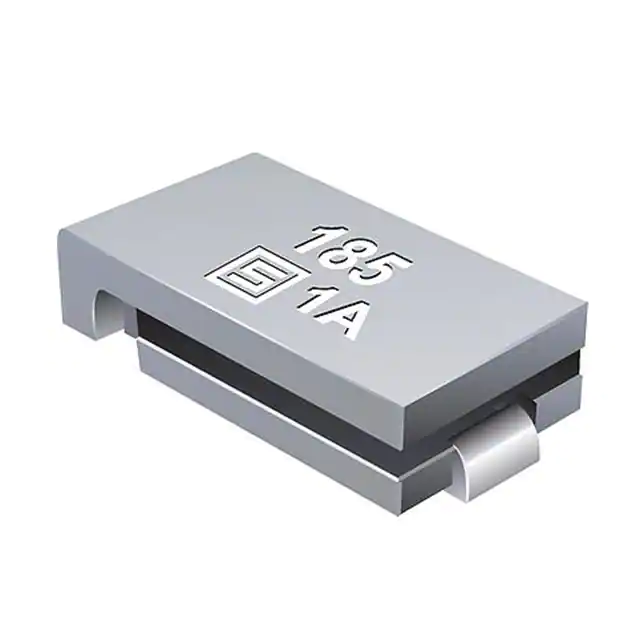

PFSM.050.2 PTC RESET FUSE 60V 500MA 2SMD SCHURTER Inc.	7,146	0.50	- + FFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	60V	40 A	500 mA	1 A	4 s	350 mOhms	1.4 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.214 W (7.36mm x 5.44mm)	-	0.125 (3.18mm)
PFSM.030.2 PTC RESET FUSE 60V 300MA 2SMD SCHURTER Inc.	6,978	0.50	- + FFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	900 mOhms	4.8 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.214 W (7.36mm x 5.44mm)	-	0.125 (3.18mm)
PFMF.200.2 PTC RESET FUSE 8V 2A 1812 SCHURTER Inc.	3,902	0.45	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	8V	40 A	2 A	4 A	3 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)

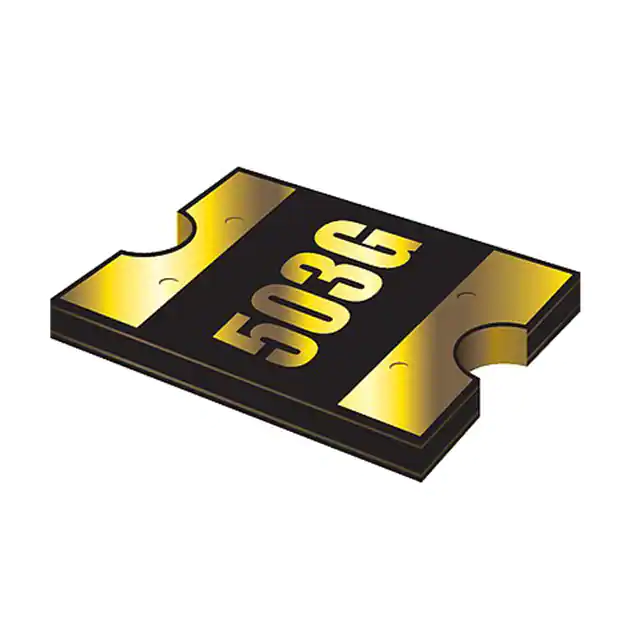

PFDF.050.2 PTC RESET FUSE 60V 550MA 2018 SCHURTER Inc.	5,646	0.52	- + FFQ	Datasheet	2018 (5045 Metric)	Tape & Reel (TR),Cut Tape (CT)	PFDF	Active	Polymeric	60V	10 A	550 mA	1.2 A	3 s	200 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.180 W (5.08mm x 4.58mm)	-	0.043 (1.09mm)
PFSM.250.2 PTC RESET FUSE 15V 2.5A 2SMD SCHURTER Inc.	4,500	0.41	- + FFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	2.5 A	5 A	25 s	24 mOhms	85 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)
PFMF.110.2 PTC RESET FUSE 6V 1.1A 1812 SCHURTER Inc.	2,593	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	6V	100 A	1.1 A	2.2 A	300 ms	40 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
PFSM.125.2 PTC RESET FUSE 15V 1.25A 2SMD SCHURTER Inc.	2,000	0.36	- + FFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	1.25 A	2.5 A	2 s	70 mOhms	250 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.214 W (7.36mm x 5.44mm)	-	0.118 (3.00mm)
PFSM.150.2 PTC RESET FUSE 15V 1.5A 2SMD SCHURTER Inc.	1,500	0.41	- + FFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	1.5 A	3 A	5 s	60 mOhms	250 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)

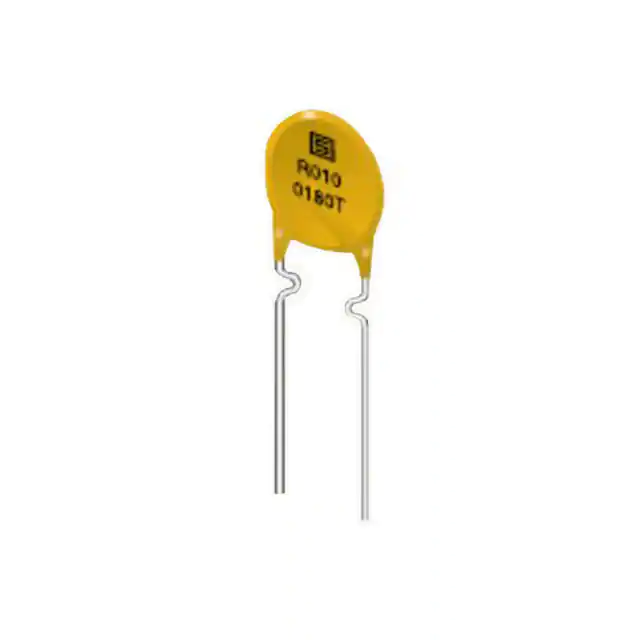

PFRA.160 PTC RESET FUSE 30V 1.6A RADIAL SCHURTER Inc.	1,037	0.55	- + FFQ	Datasheet	Radial, Disc	Bulk	PFRA	Active	Polymeric	30V	40 A	1.6 A	3.2 A	8 s	55 mOhms	150 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.661 (16.80mm)	-
PFRA.400.2 PTC RESET FUSE 30V 4A RADIAL SCHURTER Inc.	1,500	1.34	- + FFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PFRA	Active	Polymeric	30V	40 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.567 L x 0.118 W (14.40mm x 3.00mm)	0.976 (24.80mm)	-
PFMF.125.2 PTC RESET FUSE 6V 1.25A 1812 SCHURTER Inc.	1,774	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	6V	100 A	1.25 A	2.5 A	400 ms	35 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
PFMF.150.2 PTC RESET FUSE 6V 1.5A 1812 SCHURTER Inc.	1,515	0.29	- + FFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	6V	100 A	1.5 A	3 A	500 ms	30 mOhms	120 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
