Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
ZXGD3009DYTA IC GATE DRVR LOW-SIDE SOT363 Diodes Incorporated	3,340	0.43	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	40V (Max)	-	2A, 2A	Non-Inverting	-	210ns, 240ns	-55°C ~ 150°C (TJ)	Surface Mount
ZXGD3009E6TA IC GATE DRVR LOW-SIDE SOT26 Diodes Incorporated	2,986	0.42	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	Low-Side	Single	1	N-Channel MOSFET	40V (Max)	-	2A, 2A	Non-Inverting	-	210ns, 240ns	-55°C ~ 150°C (TJ)	Surface Mount
ZXGD3005E6TA IC GATE DRVR LOW-SIDE SOT26 Diodes Incorporated	3,606	0.60	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	25V (Max)	-	10A, 10A	Non-Inverting	-	48ns, 35ns	-55°C ~ 150°C (TJ)	Surface Mount
DGD0215WT-7 IC GATE DRVR LOW-SIDE TSOT25 Diodes Incorporated	3,641	0.80	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.9A, 1.8A	Inverting, Non-Inverting	-	15ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
ZXGD3103N8TC IC GATE DRVR HI-SIDE/LO-SIDE 8SO Diodes Incorporated	2,725	1.05	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	High-Side or Low-Side	Single	1	N-Channel MOSFET	5V ~ 15V	-	2.5A, 6A	Non-Inverting	-	450ns, 21ns	-40°C ~ 150°C (TJ)	Surface Mount

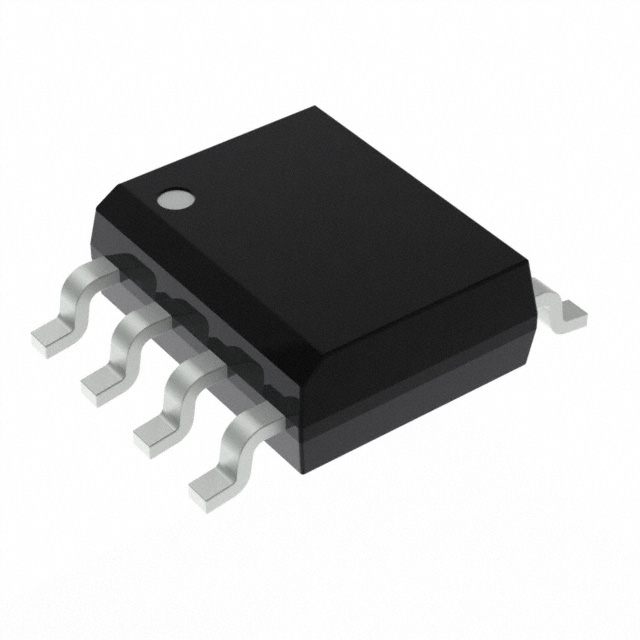

DGD2304S8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	3,103	1.26	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.7V, 2.3V	290mA, 600mA	Non-Inverting	600 V	70ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount
DGD2104MS8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	2,461	1.47	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	290mA, 600mA	Non-Inverting	600 V	70ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount
DGD2181S8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	2,573	1.71	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	1.9A, 2.3A	Non-Inverting	600 V	40ns, 20ns	-40°C ~ 150°C (TJ)	Surface Mount
DGD0216WT-7 IC GATE DRVR LOW-SIDE TSOT25 Diodes Incorporated	3,875	0.80	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.9A, 1.8A	Inverting, Non-Inverting	-	15ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount

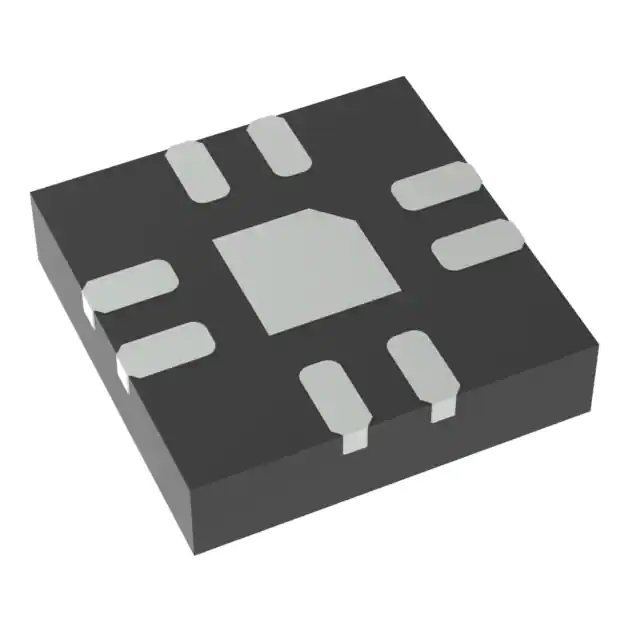

DGD0590AFU-7 IC GATE DRV HALF-BRIDG QFN3030-8 Diodes Incorporated	3,799	0.86	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	4.5V ~ 5.5V	-	1A, 3A	Non-Inverting	50 V	27ns, 29ns	150°C (TJ)	Surface Mount
DGD2003S8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	3,442	0.94	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	290mA, 600mA	Non-Inverting	200 V	70ns, 35ns	-40°C ~ 125°C (TA)	Surface Mount
DGD0280WT-7 HV GATE DRIVER SOT25 Diodes Incorporated	3,106	0.94	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	2.5A, 2.8A	CMOS, TTL	-	20ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
DGD2113S16-13 IC GATE DRVR HALF-BRIDGE 16SO Diodes Incorporated	2,286	2.60	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	6V, 9.5V	2.5A, 2.5A	Non-Inverting	600 V	15ns, 13ns	-40°C ~ 150°C (TJ)	Surface Mount
DGD1503S8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	2,480	1.05	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Half-Bridge	Independent	2	N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	290mA, 600mA	Inverting, Non-Inverting	250 V	70ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount
ZXGD3107N8TC IC GATE DRVR LOW-SIDE 8SO Diodes Incorporated	2,536	1.22	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Single	1	N-Channel MOSFET	40V (Max)	-	2A, 7A	Non-Inverting	-	175ns, 20ns	-40°C ~ 150°C (TJ)	Surface Mount
DGD2101MS8-13 IC GATE DRVR HI/LO-SIDE 8SO 2.5K Diodes Incorporated	3,253	1.33	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	High-Side or Low-Side	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	290mA, 600mA	Non-Inverting	600 V	70ns, 35ns	-40°C ~ 125°C (TA)	Surface Mount
DGD1504S8-13 IC GATE DRVR HALF-BRIDGE 8SO Diodes Incorporated	3,835	1.33	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	290mA, 600mA	Non-Inverting	250 V	70ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount

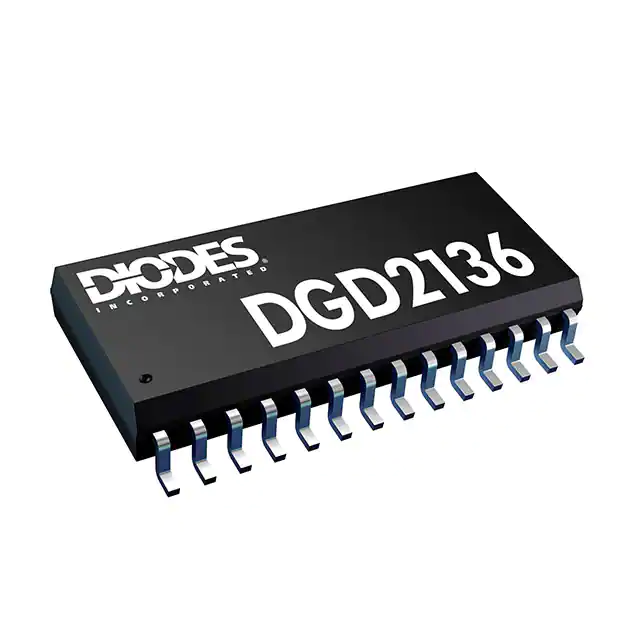

DGD2136MS28-13 IC GATE DRVR HALF-BRIDGE 28SO Diodes Incorporated	3,322	2.63	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.4V	200mA, 350mA	Inverting	600 V	90ns, 35ns	150°C (TJ)	Surface Mount
DGD0507AFN-7 IC GATE DRV HALF-BRDG DFN3030-10 Diodes Incorporated	224	0.95	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	0.8V, 2.4V	1.5A, 2A	CMOS/TTL	50 V	16ns, 18ns	-40°C ~ 125°C (TA)	Surface Mount
DGD0506AM10-13 IC GATE DRVR HALF-BRIDGE 10MSOP Diodes Incorporated	2,913	0.53	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	0.8V, 2.4V	1.5A, 2A	Non-Inverting	50 V	17ns, 12ns	-40°C ~ 150°C (TJ)	Surface Mount
