| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TLP2367(TPR,EOPTOISO 3.75KV TRI-STATE SO6 |
3,072 | 2.56 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50MBd | 20ns, 20ns | 2ns, 1ns | 1.6V | 15mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2366(V4-TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
115 | 1.51 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2766A(TP,ECOUPLER HIGH SPEED LOGIC OUTPUT |
3,413 | 1.67 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 55ns, 55ns | 5ns, 4ns | 1.8V (Max) | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2710(TP,EOPTOCOUPLER HI SPEED LOGIC OUTPU |
632 | 1.60 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2719(TP4,EOPTOCOUPLER HI SPEED LOGIC OUTPU |
3,997 | 1.75 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 8 mA | 1MBd | 800ns, 800ns | - | 1.6V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
|
TLX9378(TPL,FIC COUPLER; 4-PIN SO6; AECQ; ROH |
3,821 | 3.38 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 90ns, 30ns | 1.75V (Max) | 25mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP118(TPL,EOPTOISO 3.75KV OPEN COLL SO6-5 |
3,465 | 1.83 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20Mbps | 60ns, 60ns | 30ns, 30ns | 1.61V | 25mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2770(TP,EOPTOISO 5KV PSH-PULL/TOTEM S06L |
2,136 | 2.24 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLPN137(F)HIGH SPEED LOGIC OUTPUT COUPLER |
404 | 1.55 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10MBd | 75ns, 75ns | 3ns, 12ns | 1.55V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
TLP2710(TP4,EOPTOCOUPLER HI SPEED LOGIC OUTPU |
2,841 | 1.60 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5705H(D4-TP,EGATE DRIVE COUPLER; HIGH TEMP; R |
630 | 1.91 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/1 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 37ns, 50ns | 1.55V | 20mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|

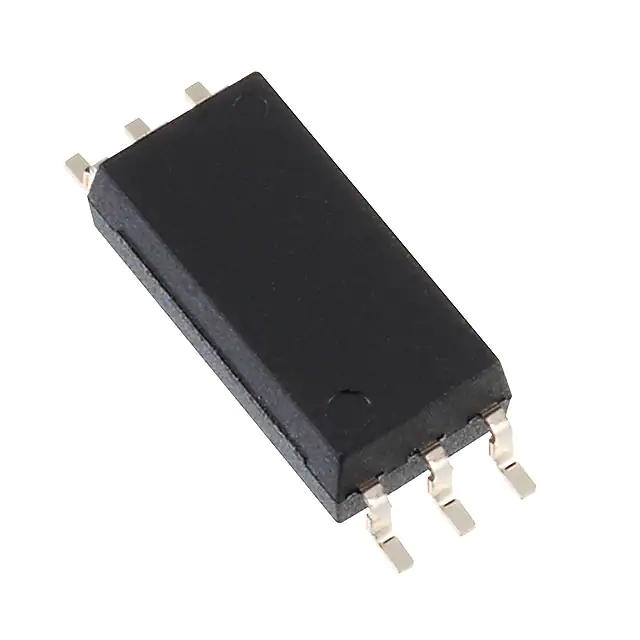

TLP5772(TP,EOPTOISO 5KV 1CH PSH PULL 6SO |
793 | 2.38 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 15ns, 8ns | 1.65V | 8mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLX9304(TPL,FIC COUPLER; 4-PIN SO6; AECQ; ROH |
289 | 3.38 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.56V | 25mA | 4.5V ~ 20V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2362(TPR,EOPTOISO 3.75KV OPEN COLL SO6-5 |
2,908 | 1.05 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2361(TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
3,614 | 1.02 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2361(V4-TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
3,343 | 1.06 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2358(TPR,E)X36 PB-F PHOTOCOUPLER |
2,165 | 0.34 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 250ns, 250ns | 15ns, 12ns | 1.55V | 20mA | 3V ~ 20V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2361(TPR,E15MBPS HIGH SPEED COUPLER; SO6; |
2,334 | 0.34 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2363(V4-TPL,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
3,175 | 0.34 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
TLP2363(TPL,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
2,871 | 0.34 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
