| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGAP2SMTRDGTL ISO |
982 | 2.78 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | -40°C ~ 125°C (TJ) | Surface Mount |
|

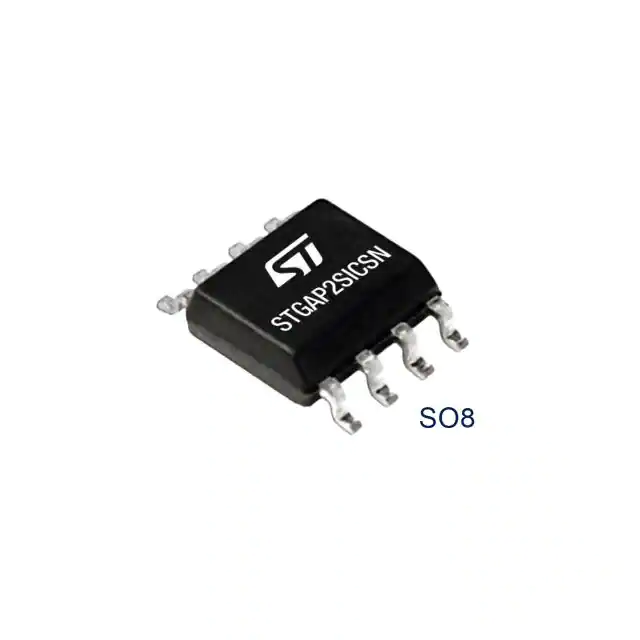

STGAP2SICSNTRGALVANICALLY ISOLATED 4 A SINGLE |
2,338 | 3.41 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 16.4V ~ 26V | -40°C ~ 125°C (TJ) | Surface Mount | |
|
STGAP2HSCMTRGALVANICALLY ISOLATED 4 A SINGLE |
698 | 4.00 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
STGAP2HDMTRGALVANICALLY ISOLATED 4 A DUAL G |
495 | 4.54 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 6000Vrms | 100V/ns | 90ns, 90ns | - | 30ns, 30ns | 4A, 4A | 4A | - | - | 3.1V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|

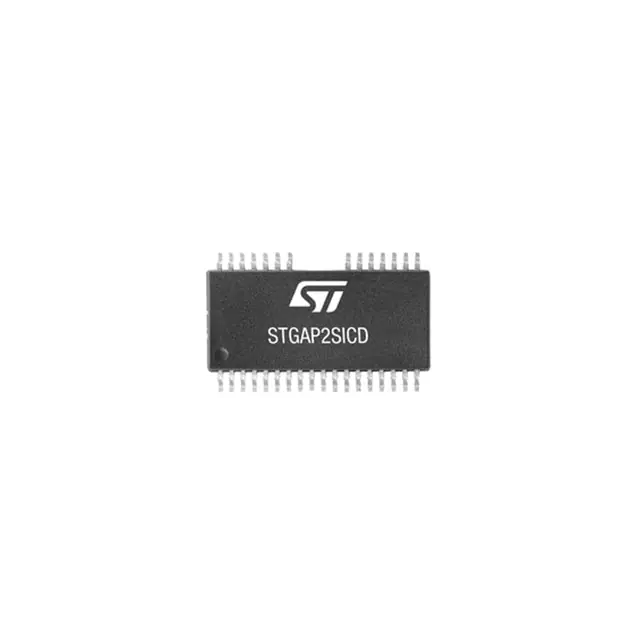

STGAP2SICDTRGALVANICALLY ISOLATED 4 A DUAL G |
171 | 4.54 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 6000Vrms | 100V/ns | 90ns, 90ns | - | 30ns, 30ns | 4A, 4A | 4A | - | - | 3.1V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|

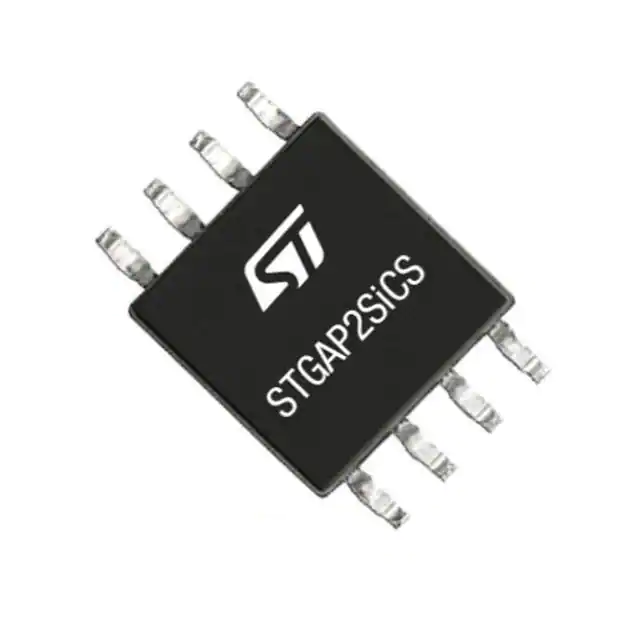

STGAP2SICSGALVANICALLY ISOLATED 4 A SINGLE |
3,115 | 4.00 |
FFQ |
Tube | - | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
STGAP2SCMTRDGTL ISO |
2,559 | 2.78 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
STGAP2HSMTRGALVANICALLY ISOLATED 4 A SINGLE |
3,350 | 4.00 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
STGAP2DMTRDGTL ISO |
3,862 | 3.50 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Magnetic Coupling | 2 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
STGAP2SICSCGALVANICALLY ISOLATED 4 A SINGLE |
590 | 4.00 |
FFQ |
Tube | - | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
STGAP2SCMDGTL ISO |
3,831 | 1.56 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
STGAP2SMDGTL ISO |
3,460 | 1.56 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
STGAP2DMDGTL ISO |
3,835 | 2.18 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STGAP1ASDGTL ISO 2.5KV 1CH GATE DVR 24SO |
2,828 | 6.95 |
FFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | -40°C ~ 125°C | Surface Mount |
|
|
STGAP1SDGTL ISO 2.5KV 1CH GATE DVR 24SO |
3,970 | 0.00 |
FFQ |
Datasheet |
Tube | Automotive, AEC-Q100, gapDRIVE™ | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | -40°C ~ 125°C | Surface Mount |
|
STGAP1STRDGTL ISO 2.5KV 1CH GATE DVR 24SO |
2,610 | 0.00 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, gapDRIVE™ | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | -40°C ~ 125°C | Surface Mount |
|
|
STGAP1ASTRDGTL ISO 2.5KV 1CH GATE DVR 24SO |
3,905 | 0.00 |
FFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100 | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | -40°C ~ 125°C | Surface Mount |
|
|
STGAP1BSTRIC GATE DVR ISO 2.5KV 1CH 24SOIC |
3,543 | 0.00 |
FFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
|
STGAP1BSIC GATE DVR ISO 2.5KV 1CH 24SOIC |
2,541 | 0.00 |
FFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
