Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CAOV-4.0-2.2 CMC 2.2MH 4A 2LN TH Amgis, LLC	2,258	9.40	- + FFQ	Datasheet	Bulk	CA	Active	Signal Line	2	-	2.2 mH @ 10 kHz	4A	30mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.906 Dia (23.00mm)	0.433 (11.00mm)
CAOV-7.5-3.3 CMC 3.3MH 7.5A 2LN TH Amgis, LLC	2,668	10.25	- + FFQ	Datasheet	Tray	CA	Active	Power Line	2	-	3.3 mH @ 10 kHz	7.5A	16mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.339 Dia (34.00mm)	0.610 (15.50mm)

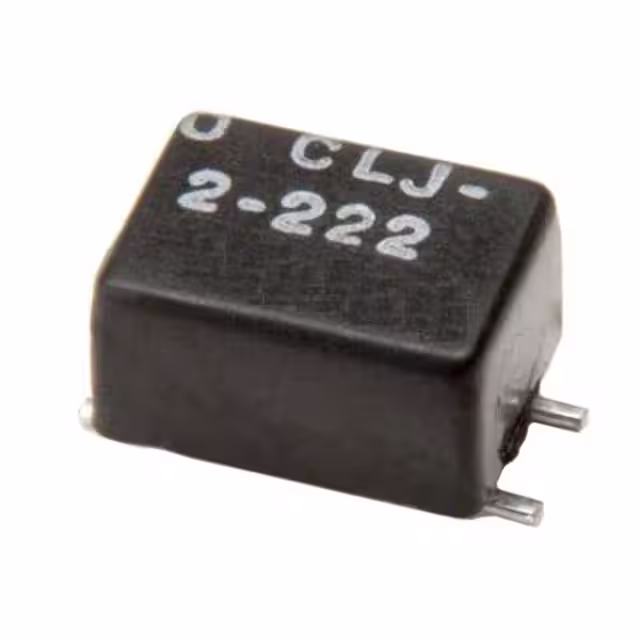

CLJ-2-102 CMC 1MH 500MA 2LN SMD Amgis, LLC	2,773	2.31	- + FFQ	Datasheet	Tape & Reel (TR)	CLJ-2	Active	-	2	-	1 mH @ 100 kHz	500mA	275mOhm (Typ)	-	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.350 L x 0.213 W (8.90mm x 5.40mm)	0.146 (3.70mm)

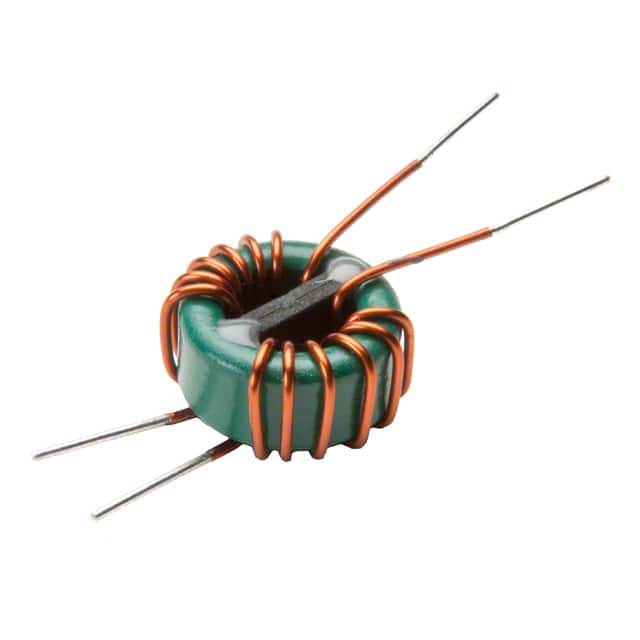

CAO-4.6-0.15 CMC 150UH 4.6A 2LN TH Amgis, LLC	2,151	2.48	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	150 µH @ 10 kHz	4.6A	8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.551 Dia (14.00mm)	0.315 (8.00mm)
CMJ-4-472 CMC 4.7MH 200MA 4LN SMD Amgis, LLC	3,363	3.05	- + FFQ	Datasheet	Tape & Reel (TR)	CMJ	Active	-	4	-	4.7 mH @ 100 kHz	200mA	860mOhm (Typ)	-	-	0°C ~ 70°C	-	-	-	Surface Mount	0.354 L x 0.228 W (9.00mm x 5.80mm)	0.169 (4.30mm)
CLJ-2-203 CMC 20MH 140MA 2LN SMD Amgis, LLC	2,934	3.78	- + FFQ	Datasheet	Tape & Reel (TR)	CLJ-2	Active	Power Line	2	-	20 mH @ 100 kHz	140mA	1.8Ohm (Typ)	80V	42V	-25°C ~ 85°C	-	-	-	Surface Mount	0.350 L x 0.213 W (8.90mm x 5.40mm)	0.146 (3.70mm)
CAV-1.2-10 CMC 10MH 1.2A 2LN TH Amgis, LLC	3,351	3.98	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	10 mH @ 10 kHz	1.2A	285mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.610 (15.50mm)
CAO-5.0-1.5 CMC 1.5MH 5A 2LN TH Amgis, LLC	2,850	3.99	- + FFQ	Datasheet	Tray	CA	Active	Power Line	2	-	1.5 mH @ 10 kHz	5A	22mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.906 Dia (23.00mm)	0.433 (11.00mm)
CLJ-2-473 CMC 47MH 100MA 2LN SMD Amgis, LLC	3,292	4.74	- + FFQ	Datasheet	Tape & Reel (TR)	CLJ-2	Active	-	2	-	47 mH @ 100 kHz	100mA	3.9Ohm (Typ)	-	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.350 L x 0.213 W (8.90mm x 5.40mm)	0.146 (3.70mm)

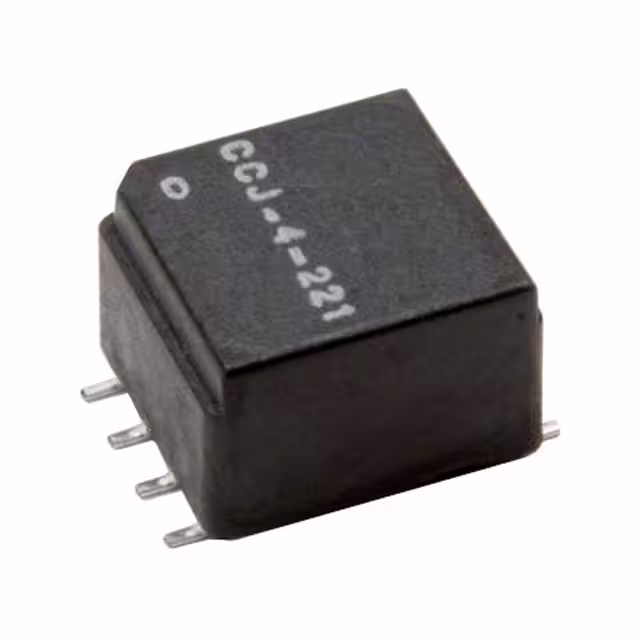

CCJ-4-221 CMC 220UH 330MA 4LN SMD Amgis, LLC	3,752	4.98	- + FFQ	Datasheet	Tape & Reel (TR)	CCJ	Active	Signal Line	4	-	220 µH @ 100 kHz	330mA	190mOhm (Typ)	-	-	0°C ~ 70°C	-	-	-	Surface Mount	0.551 L x 0.433 W (14.00mm x 11.00mm)	0.315 (8.00mm)
TVHS-1.0-103 CMC 10MH 1A 2LN SMD Amgis, LLC	2,892	5.15	- + FFQ	Datasheet	Tray	TVH	Active	-	2	-	10 mH @ 10 kHz	1A	450mOhm	-	1500V (1.5kV)	-40°C ~ 125°C	-	-	-	Surface Mount	0.630 L x 0.559 W (16.00mm x 14.20mm)	0.350 (8.90mm)

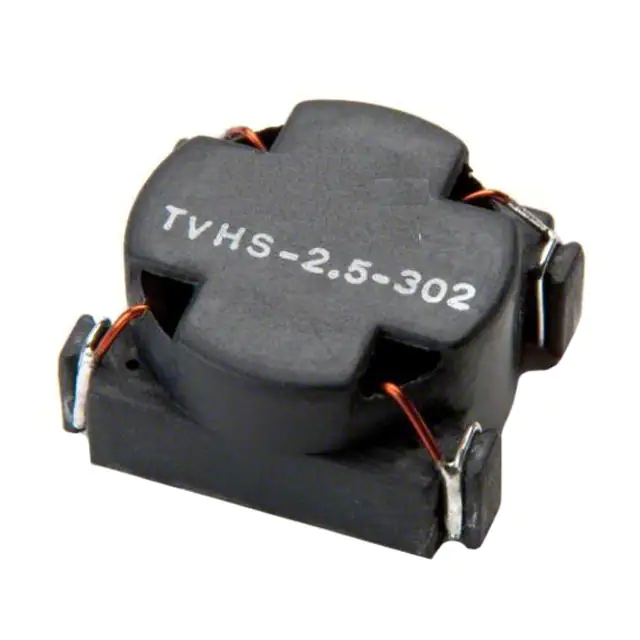

TVHS-2.5-302 CMC 3MH 2.5A 2LN SMD Amgis, LLC	2,594	5.25	- + FFQ	Datasheet	Tape & Reel (TR)	TVH	Active	-	2	-	3 mH @ 10 kHz	2.5A	80mOhm	-	1500V (1.5kV)	-40°C ~ 125°C	-	-	-	Surface Mount	0.760 L x 0.662 W (19.31mm x 16.82mm)	0.390 (9.90mm)
CAV-16-0.15 CMC 150UH 16A 2LN TH Amgis, LLC	3,018	8.18	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	150 µH @ 10 kHz	16A	3mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.693 L x 1.102 W (43.00mm x 28.00mm)	1.870 (47.50mm)

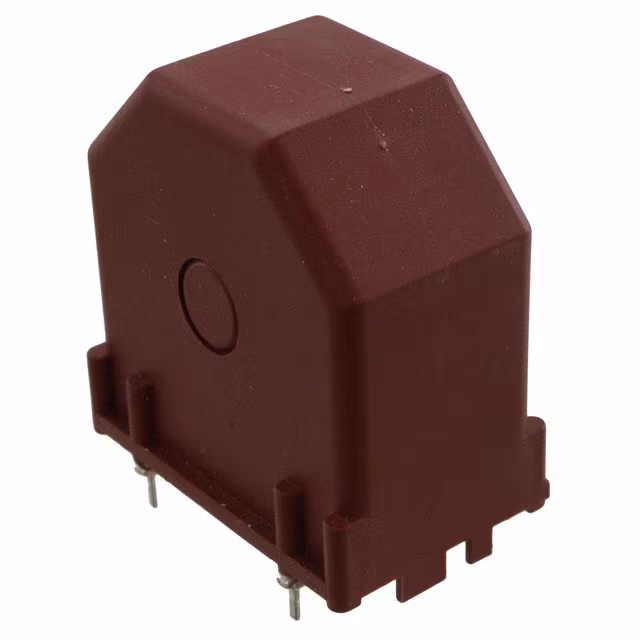

CAV-7.5-3.3 CMC 3.3MH 7.5A 2LN TH Amgis, LLC	2,663	10.15	- + FFQ	Datasheet	Bulk	CA	Active	Signal Line	2	-	3.3 mH @ 10 kHz	7.5A	16mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.693 L x 1.102 W (43.00mm x 28.00mm)	1.870 (47.50mm)
CAB-4.0-3.3 CMC 3.3MH 4A 2LN TH Amgis, LLC	2,996	0.00	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	3.3 mH @ 10 kHz	4A	34mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.000 L x 0.630 W (25.40mm x 16.00mm)	1.319 (33.50mm)

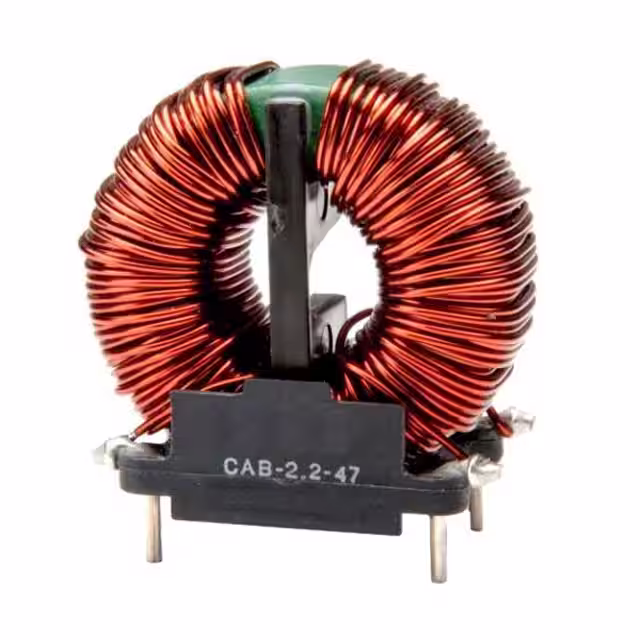

CAB-2.2-47 CMC 47MH 2.2A 2LN TH Amgis, LLC	2,360	0.00	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	47 mH @ 10 kHz	2.2A	185mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.098 L x 0.799 W (27.90mm x 20.30mm)	1.516 (38.50mm)

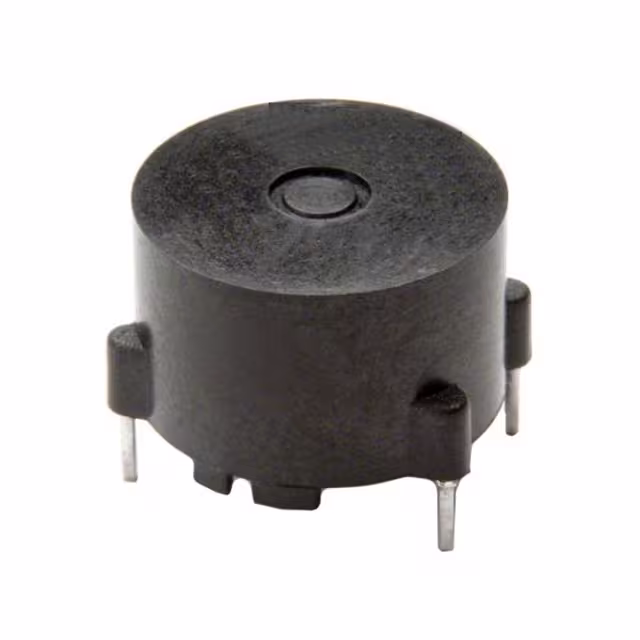

CAF-0.5-68 CMC 68MH 500MA 2LN TH Amgis, LLC	2,812	0.00	- + FFQ	Datasheet	Tray	CA	Active	Power Line	2	-	68 mH @ 10 kHz	500mA	1.853Ohm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.886 L x 0.866 W (22.50mm x 22.00mm)	0.591 (15.00mm)
CAOH-6.1-0.33 CMC 330UH 6.1A 2LN TH Amgis, LLC	2,979	0.00	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	330 µH @ 10 kHz	6.1A	7mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.709 Dia (18.00mm)	0.236 (6.00mm)
CAX-0.4-100 CMC 100MH 400MA 2LN TH Amgis, LLC	3,104	0.00	- + FFQ	Datasheet	Tray	CA	Active	Power Line	2	-	100 mH @ 10 kHz	400mA	2.807Ohm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
CAF-6.1-0.33 CMC 330UH 6.1A 2LN TH Amgis, LLC	2,329	0.00	- + FFQ	Datasheet	Tray	CA	Active	Signal Line	2	-	330 µH @ 10 kHz	6.1A	7mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.886 L x 0.866 W (22.50mm x 22.00mm)	0.591 (15.00mm)
