Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
	0805USB-901MLC CMC 47NH 500MA 2LN SMD COILCRAFT	2,155	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	47 nH @ 100 MHz	500mA	170mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-902MLC CMC 413NH 400MA 2LN SMD COILCRAFT	2,150	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	413 nH @ 100 MHz	400mA	650mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-421MLC CMC 23NH 500MA 2LN SMD COILCRAFT	2,287	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	23 nH @ 100 MHz	500mA	120mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-172MLC CMC 84NH 500MA 2LN SMD COILCRAFT	2,985	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	84 nH @ 100 MHz	500mA	250mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-672MLC CMC 322NH 500MA 2LN SMD COILCRAFT	2,063	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	322 nH @ 100 MHz	500mA	450mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-372MLC CMC 189NH 500MA 2LN SMD COILCRAFT	3,359	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	189 nH @ 100 MHz	500mA	320mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-262MLC CMC 147NH 500MA 2LN SMD COILCRAFT	2,607	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	147 nH @ 100 MHz	500mA	260mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
	0805USB-502MLC CMC 273NH 500MA 2LN SMD COILCRAFT	958	1.20	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	273 nH @ 100 MHz	500mA	370mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)

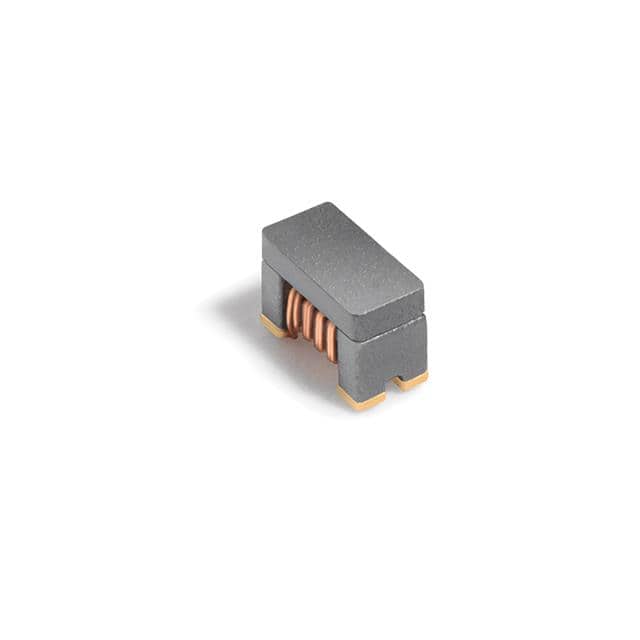

	0603USB-222MLC COMMON MODE CHOKE, USB 3.0/IEEE1 COILCRAFT	3,284	0.93	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	150 nH @ 100 MHz	500mA	209mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063 L x 0.033 W (1.60mm x 0.85mm)	0.046 (1.17mm)
	0603USB-951MLC COMMON MODE CHOKE, USB 3.0/IEEE1 COILCRAFT	2,045	0.93	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	63 nH @ 100 MHz	500mA	142mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063 L x 0.033 W (1.60mm x 0.85mm)	0.046 (1.17mm)
	0603USB-601MLC COMMON MODE CHOKE, USB 3.0/IEEE1 COILCRAFT	2,376	0.93	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	37 nH @ 100 MHz	500mA	109mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063 L x 0.033 W (1.60mm x 0.85mm)	0.046 (1.17mm)
	0603USB-142MLC COMMON MODE CHOKE, USB 3.0/IEEE1 COILCRAFT	3,743	0.93	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	98 nH @ 100 MHz	500mA	174mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063 L x 0.033 W (1.60mm x 0.85mm)	0.046 (1.17mm)
	0603USB-251MLC COMMON MODE CHOKE, USB 3.0/IEEE1 COILCRAFT	3,587	0.93	- + FFQ	Datasheet	Strip	-	Active	Signal Line	2	-	18 nH @ 100 MHz	500mA	77mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063 L x 0.033 W (1.60mm x 0.85mm)	0.046 (1.17mm)
	CDF8500LD COMMON MODE CHOKE COILCRAFT	2,582	4.69	- + FFQ		Strip	CDF	Active	Signal Line	8	520 Ohms @ 42 MHz	5 µH @ 1 MHz	500mA	180mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.177 (4.50mm)
	CDF8000LD COMMON MODE CHOKE COILCRAFT	3,716	4.69	- + FFQ		Strip	CDF	Active	Signal Line	8	630 Ohms @ 37 MHz	5 µH @ 1 MHz	100mA	250mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.177 (4.50mm)
	CDF10000LD COMMON MODE CHOKE COILCRAFT	972	5.48	- + FFQ		Strip	CDF	Active	Signal Line	10	520 Ohms @ 43 MHz	5 µH @ 1 MHz	100mA	250mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.362 L x 0.362 W (9.20mm x 9.20mm)	0.165 (4.20mm)
